3kg Battery Free Fall Drop Test Equipment , 300-1500mm Battery Drop Tester

1 Set
MOQ
$1680~4800USD
Price
3kg Battery Free Fall Drop Test Equipment , 300-1500mm Battery Drop Tester
Features Gallery Product Description Request A Quote
Features
Specifications
Model: JD-6001C
Drop Height: 300 ~ 1500mm (adjustable)
Test Method: Face, Edge And Angle Drop In All Directions
Test Load: 0~3kg
Maximum Size Of Test Piece: W200 X D200 X H200mm
Drop Panel Size: W600 X D700 X H10mm (solid Core Steel Plate)
Weight: About 250kg
Size: W700 X D900 X H1800mm
High Light:

Pneumatic Free Fall Drop Test Equipment

,

300mm Battery Drop Tester

,

1500mm Battery Drop Tester

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: JD-6001C
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

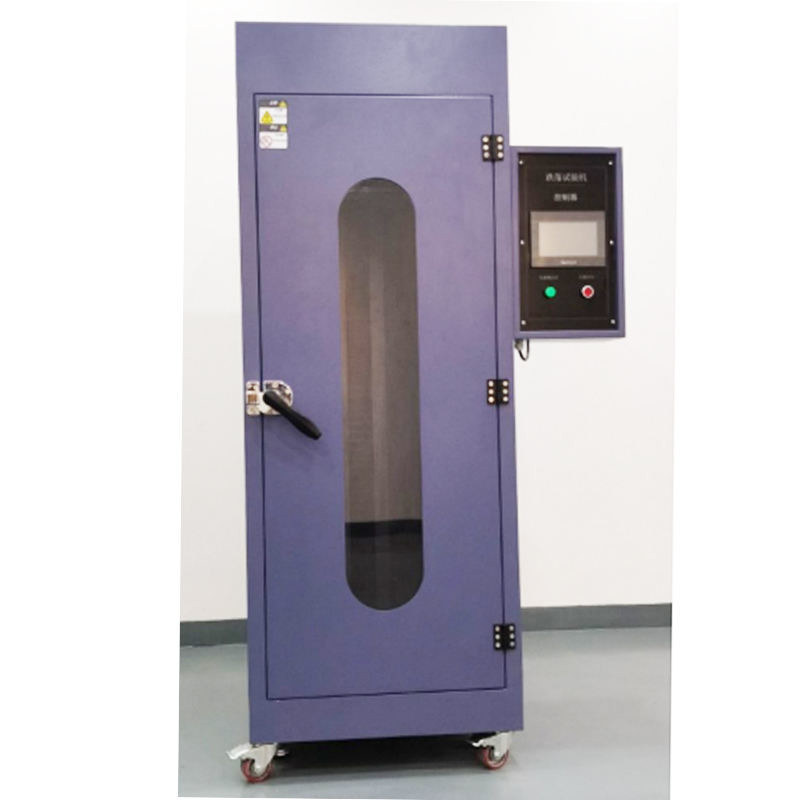

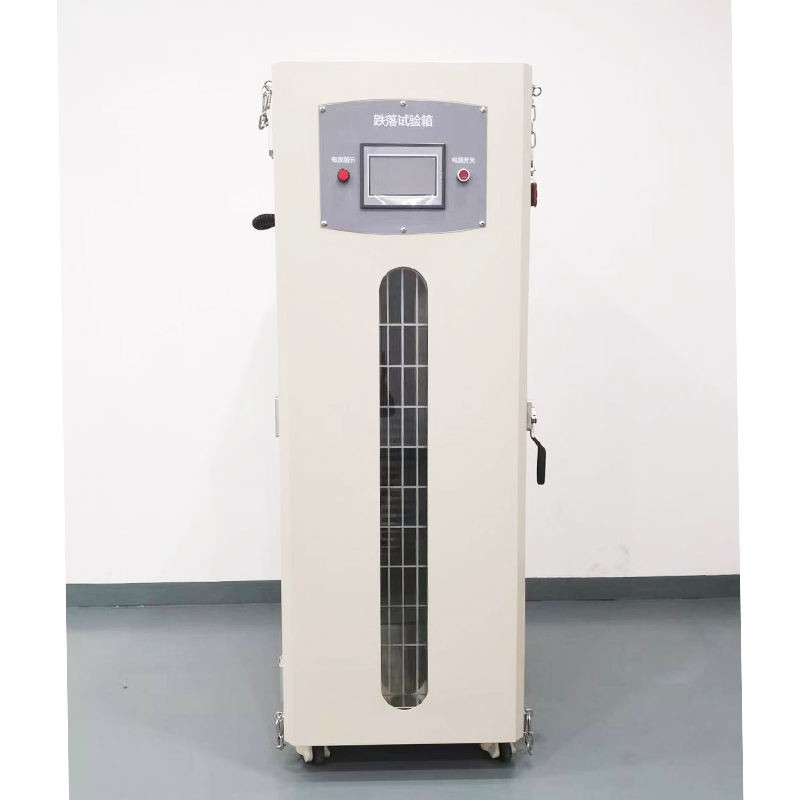

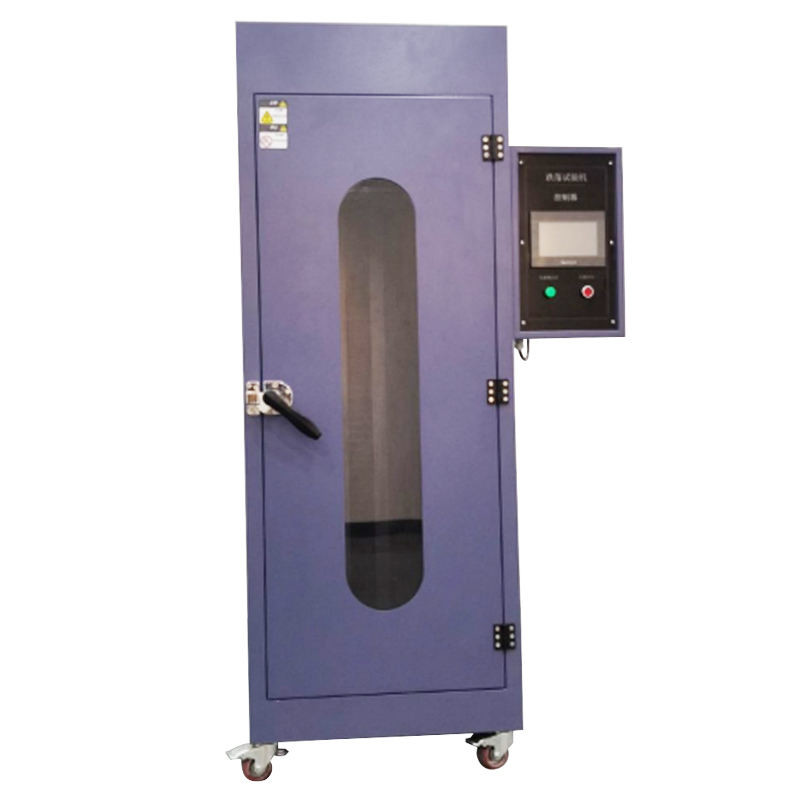

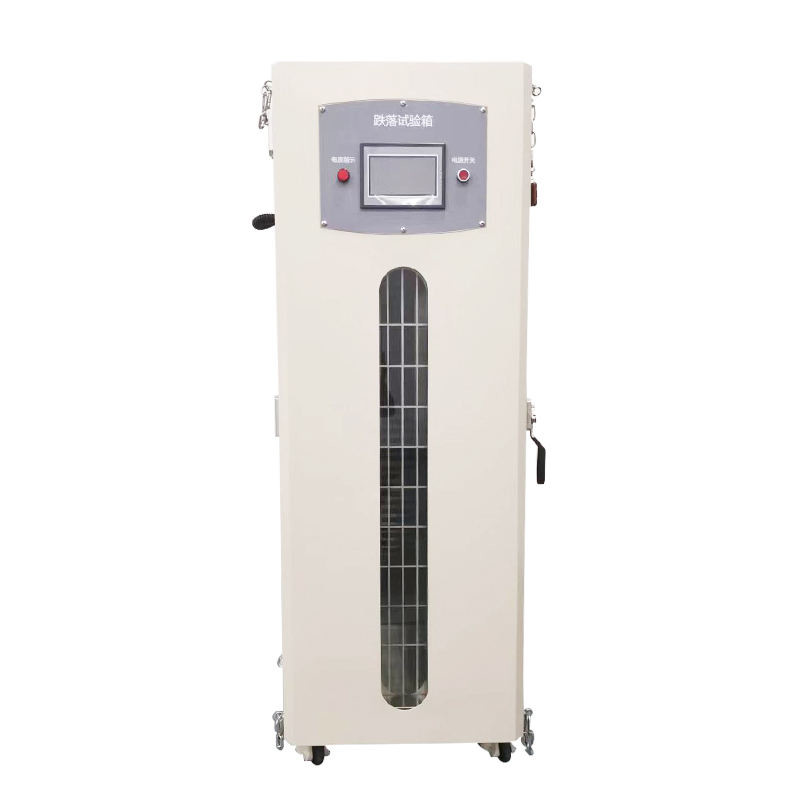

LIYI Battery Free Fall Drop Test Equipment Battery Drop Tester



► Product purpose:
This machine is applicable to the free falling test of small consumer electronic products and parts such as mobile phones (mobile phones), lithium batteries, walkie talkies, electronic dictionaries, apartment walkie talkies, CD / MD / MP3, etc.

► According to standard:
GB31241-2014 UN38.3 UL 1642,UL 2054; QC-T744-2006; QC-T743-2006; GB-18287-2000; SJ-11169-1998; YD-1268-2003; SJ/T 11170-1998; GB8897.4-2002 and other test standards.

► Product features:
The machine adopts pneumatic structure. The test piece is clamped in a special clamp (adjustable stroke). Press the drop key, and the air cylinder is released. The test piece will be subjected to free fall test. The drop height can be adjusted up and down, and a height scale is attached. The drop height of the test piece can be known. A variety of drop plates are available to meet different test standards.

Specifications:

Model
JD-6001C
Drop height
300 ~ 1500mm (adjustable)
Test method
Face, edge and angle drop in all directions
Test load
0~3kg
Maximum size of test piece
W200 x D200 x H200mm
Drop floor media
A3 steel plate (acrylic plate, marble plate and wood plate for selection)
Drop panel size
W600 x D700 x h10mm (solid core steel plate)
weight
About 250kg
Size
W700 X D900 X H1800mm
Motor power
0.75KW
Drop mode:
Pneumatic drop
Lifting mode
Electric lifting
Use power
220V 50Hz
Safety device
Totally enclosed explosion-proof device
Use air pressure
<1mpa
Control display mode
PLC touch screen



3kg Battery Free Fall Drop Test Equipment , 300-1500mm Battery Drop Tester 03kg Battery Free Fall Drop Test Equipment , 300-1500mm Battery Drop Tester 1





Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

3kg Battery Free Fall Drop Test Equipment , 300-1500mm Battery Drop Tester 2



FAQ

Q: Are your company a trading one or a factory ?

A: We have our own factory and we have also register a trading company for more options (in order to make the business more simple) for more than 18 years focusing on test instruments field and 15 years exporting experience. As one of the toppest supplier in Dongguan, OEM/ODM is warmly welcome from all of you as long as you confirm us with your requirement.



Q: How to choose the most suitable products?

A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.



Q: What's the delivery term?

A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.



Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.



Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.



Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.



Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.



Q: How to install and use the product?

A:About the machine you grt from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance
