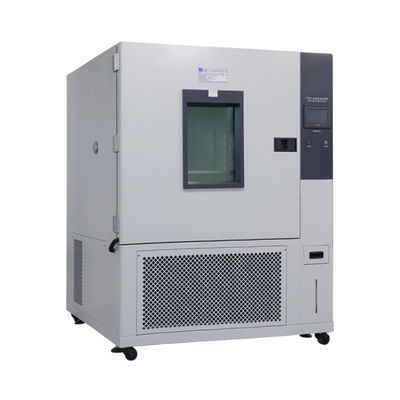

High Accuracy Climatic Test Chamber With Balanced Temperature Humidity Control
Liyi High Accuracy Climatic Test Chamber With Balanced Temperature Humidity Control is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.
Standards:
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
Specifications:
| Model | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 | LY-21000 | |
| Inner size W×H×D(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×100 | |
| External size W×H×D(cm) | 92×138×108 | 102×146×116 | 102×162×126 | 113×172×148 | 150×186×139 | 158×188×168 | |
| Volume(L) | 80 L | 150L | 225L | 408L | 800L | 1000L | |
| Temp & Humi Control Range |
Temp range: A:-20℃～150℃ B: -40℃～150℃ C: -60℃～150℃ D: -70℃～150℃ Humi range: RH20%-98% |
||||||
| Heating & cooling speed | 1.5℃/min (can customize from 1-20℃/min) | ||||||
| Fluctuation | ±0.5℃；±2.5%RH | ||||||
| Deviation | ±0.5℃-±2℃；±3%RH(＜75%RH); ±5%RH(≥75%RH) | ||||||
| Controller | TEMI880, 990, 1500 or customize brands and models | ||||||
| Refrigerator | Fully enclosed piston French Tecumseh compressor(or Semi-closed compressor) | ||||||
| Refrigerants | Dupont(R23+R404) | ||||||
| Test hole | *50mm, 100mm or customize | ||||||
| Power | 1φ 220V AC±10% 50Hz | 3φ 380V AC±10% 50Hz | |||||
What you will get:
1)Delicate touch and excellent user experience
2)Unique and compact design, top grade appearance, stable performance and easy operation.
3)Can simulate a wide range of temperature and humidity environments
4)Capable of testing large components, assemblies, and finished products
5)Customized sizes and configurations available
6)1 year free warranty
Our service:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
