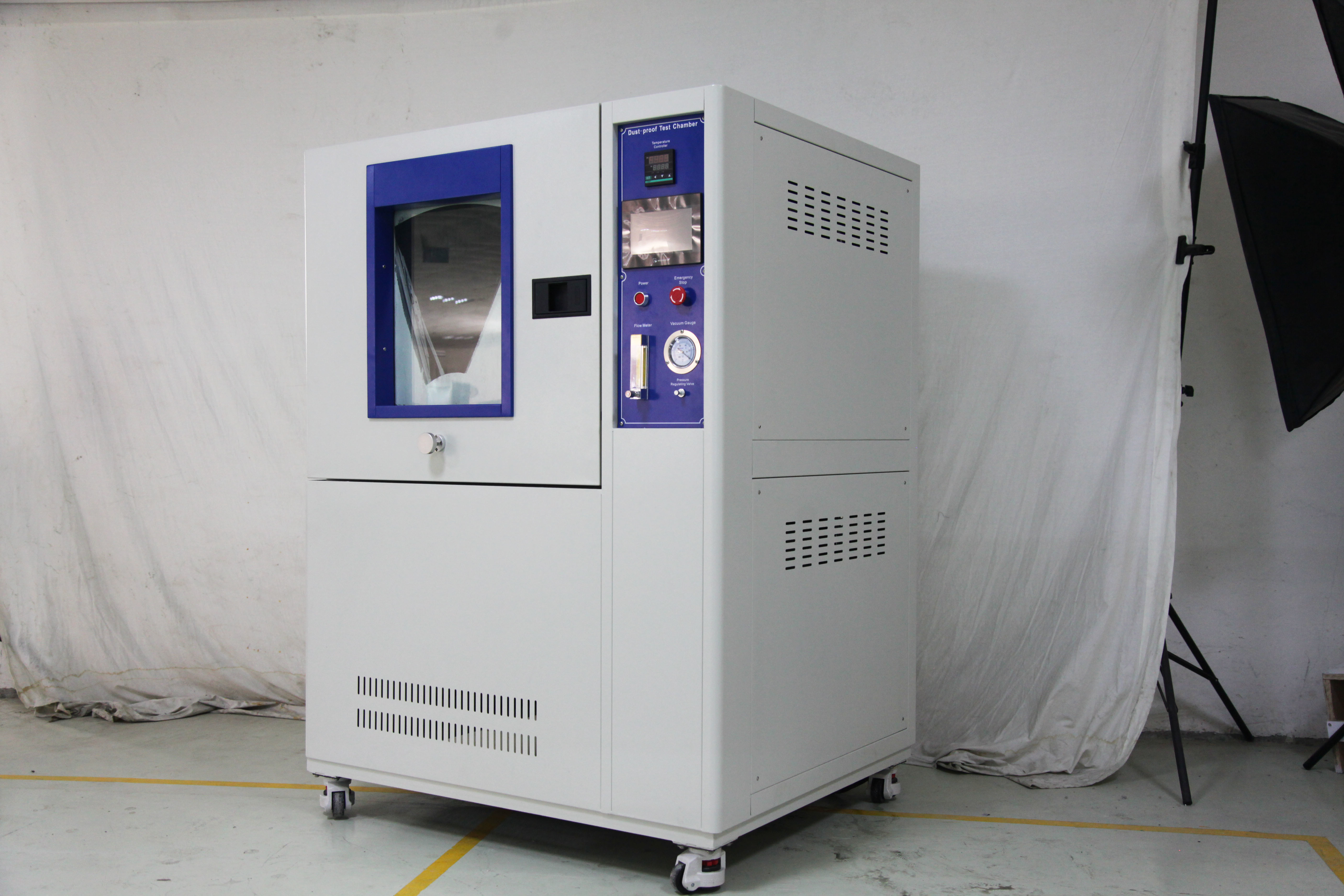

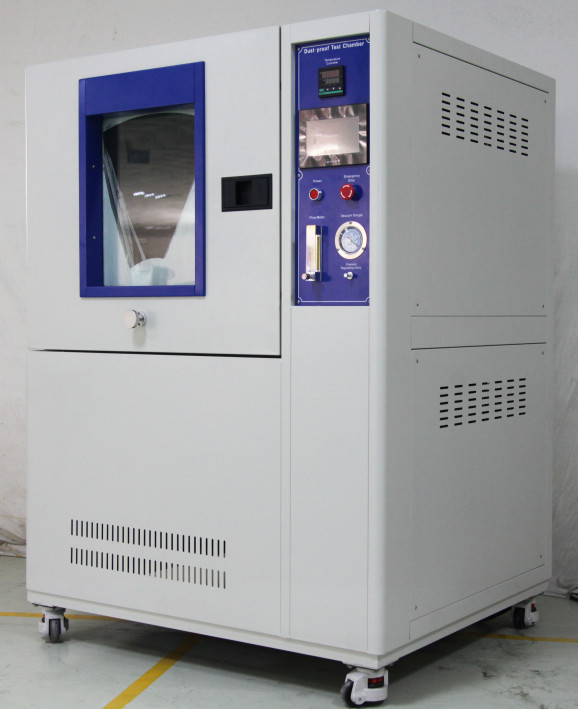

IP5X/6X Sand Blast Dust Proof Test Chamber for LED Lamps and Electronics
IP5X/6X Sand Blast Dust Proof Test Chamber for LED Lamps and Electronics is designed according to GB4706,GB2423,GB7000.1,IEC60529,ect standards and meet the IP5X and IP6X dust test requirements. It is maily used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts,ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.
The damage of natural dust (sand dust, wind dust, dust, etc.) to products and materials causes economic loss which is hard to estimate every year. The damage caused mainly includes corrosion, fading, deformation, strength reduction, expansion, mildew, etc., especially the electrical products are easy to cause fire due to short circuit caused by dust. Therefore, it is an essential key procedure to carry out dust-proof test for specific products or materials.
General application: outdoor lamps, household appliances, auto parts and other electronic and electrical products.
The main function of the equipment is to test the physical and other related properties of the products under the simulated dust climate conditions, such as electronic and electrical products, lamps, cabinets, electrical components, automobiles, motorcycles and their parts. After the test, judge whether the performance of the product meets the requirements through verification, so as to facilitate the design, improvement, verification and delivery inspection of the product.
IEC60529:1989 +A1:1999 +A2:2013

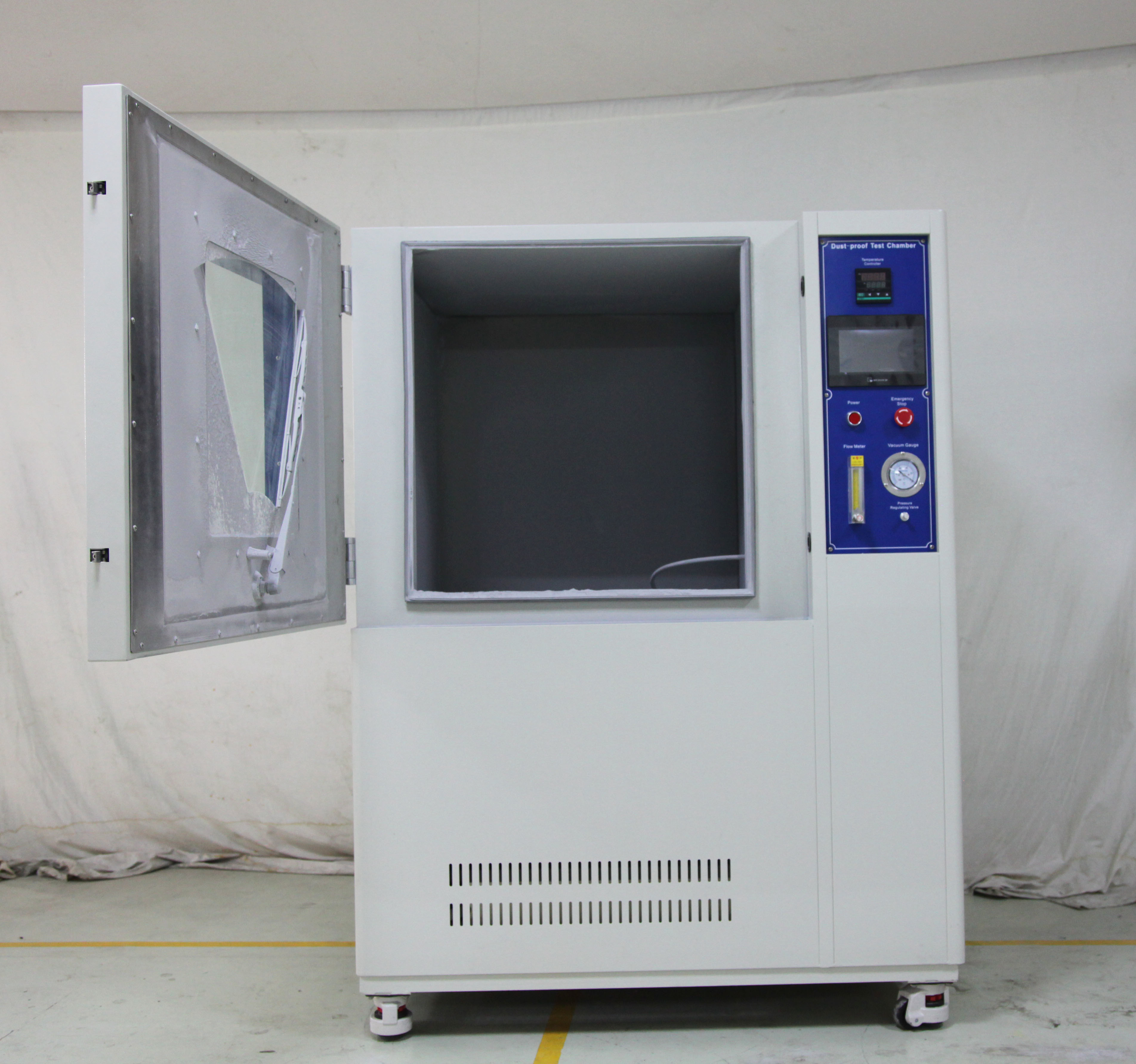

|Inner chamber size||L1000*D1000* H1000mm|
|Overall size||L 1450* D1220* H1970mm|
|Temperature range||RT+10~70℃ (can customize, confirm before order)|
|Related humidity||45%~75%(can not display)|
|Standard wire diameter of metal mesh||50um|
|Standard spacing between lines of mesh||75um|
|Amount of talcum powder||2～4kg/m|
|Powder type||Dry talcum powder|
|Dust reduction mode||Free falling dust|
|Test time||0-999H (adjustable)|
|Machine power source||220V|
|Sample power source||220V|
|Safty function||Leakage protection, short circuit protection|
