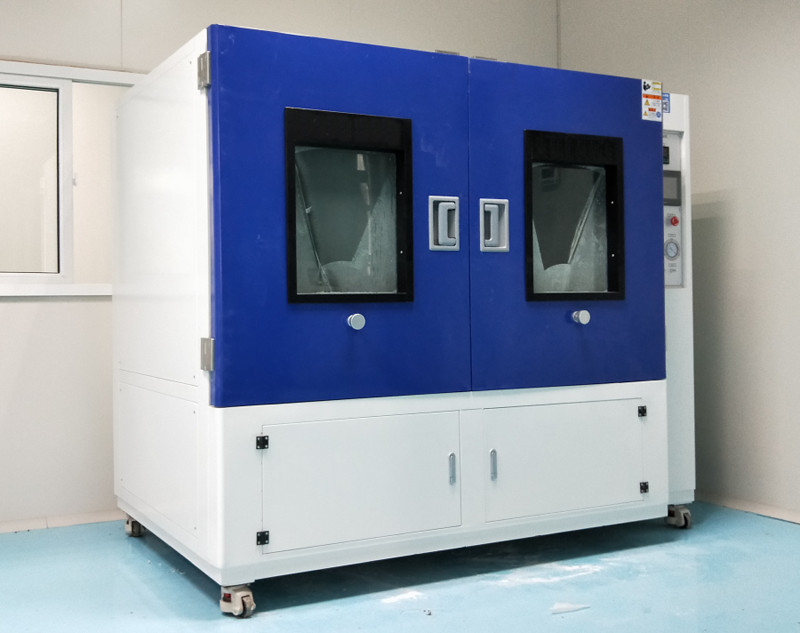

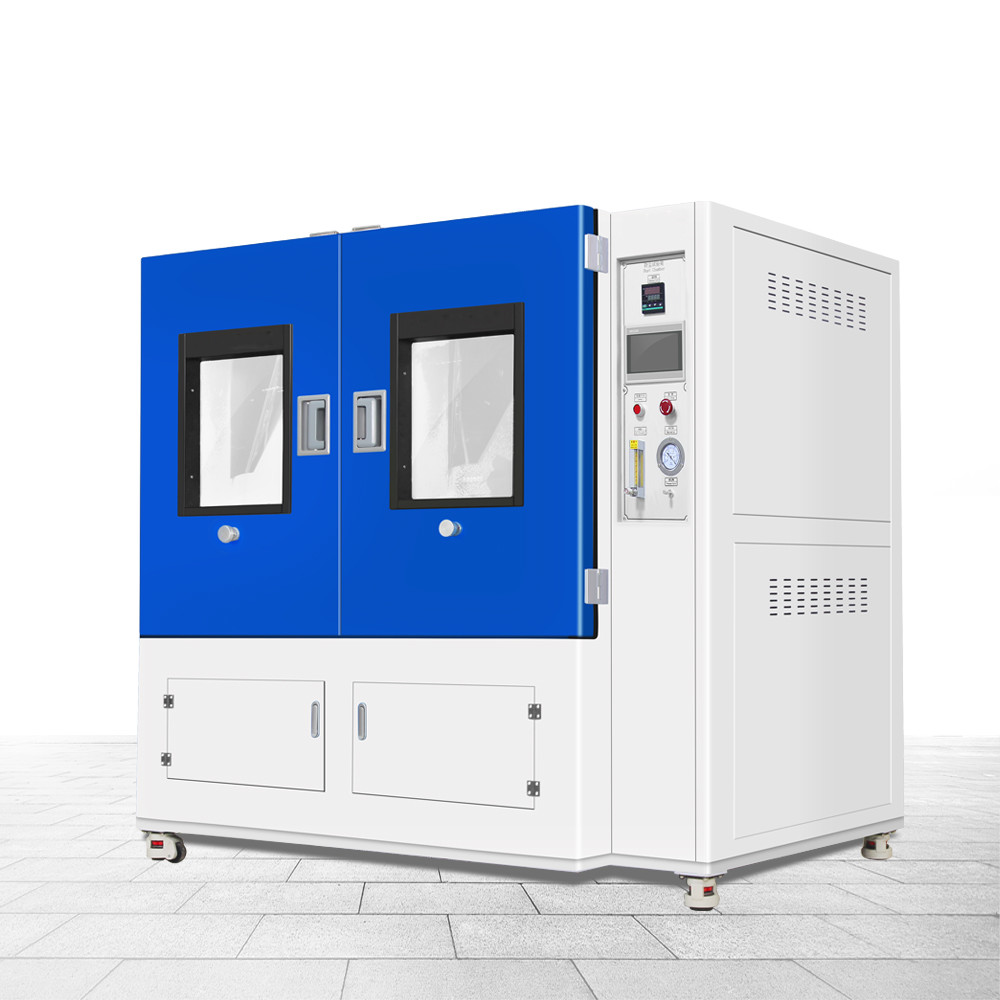

LIYI Durable Sand Dust Test Chamber Dust Settling Chamber Adjustable Temperature
Liyi Durable Dust Settling Chamber , Sand Test Chamber Adjustable Temperature Sand Testing Machine, large observation window with bright lights to keep the box, and use of tempered glass embedded heating element. Dust test chamber provides testing as per various iec 60529 for ip5x & ip6x, jis, is, dot mil standard. Combination of various testing cycles are available in a completely mono block construction. All settings can be done in an ergonomically designed control panel with accurate and uniform dust agitation.
Liyi Durable Dust Settling Chamber , Sand Test Chamber Adjustable Temperature Sand Testing Machine is applied to all mechanic, electric, electronic, electric chemical and mechanical and electric equipment, it is used to evaluate whether equipment can resistivity and storage, running or not in air of dry sand or dust.
It is applied to IEC-529, GB4208-93, GB2423.37-89 and GJB150.12.
|Inner chamber size||
|Temperature range||RT+10~70℃ (can customize, confirm before order)|
|Related humidity||45%~75%(can not display)|
|Standard wire diameter of metal mesh||50um|
|Standard spacing between lines of mesh||75um|
|Amount of talcum powder||2～4kg/m|
|Powder type||Dry talcum powder|
|Dust reduction mode||Free falling dust|
|Test time||0-999H (adjustable)|
|Machine power source||220V|
|Sample power source||220V|
|Safty function||Leakage protection, short circuit protection|
Electronic and Control systems:
1. The main controller LCD touch screen, can do programmable test
2. PLC complex man-machine interface control, contrived moving time, rest time and power-on time setting.
3. multiple sets of test procedures can be planned in the interface, and each group can be arbitrarily set the desired action, easy to operate.
4. If a fault occurs in the operation of various signals are written records will be displayed to facilitate maintenance.
5. Touch the setting, digital direct display, all the conditions fully automatic locking by a microcomputer.
6. imported electronic temperature and humidity sensor, not need to cleanup.
