LIYI Programmable Sand Dust Test Chamber IP Class Dust Control Equipment
1 Set
LIYI Programmable Sand Dust Test Chamber IP Class Dust Control Equipment
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-SC
High Light:

dust settling chamber


dust control equipment

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 20-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Material: 304# Stainless Steel
Standards: IEC60529 IP5X/6X
Controller: Touch Screen Programmable
OEM: Offered
Voltage: 220V
Inner Chamber Size: 1000L
Product Description

LIYI Programmable Sand Dust Test Chamber IP Class Dust Control Equipment


      Programmable Electronic Box IP Class Blowing Sand And Dust Test Chamber Dust Control Equipment  is according to IEC60529, IEC 60598, GB2423.37-89 (Test L:dust test methods), GB 4208-93 protective casing grade (IP code), GB/T 4942.2-93(protective casing grade of low-voltage apparatus), GB 7000.1-1996, GB 7001-1986(protective casing grade of lamps),DIN40050 and IP5K0. The XB-OTS-IP65X is applied in LED or other luminaries for IP5X and IP6X test.


Working principle:

      Centrifugal fan is the main source of dust movement, the high-speed operation of the fan so that dust into the fan due to the centrifugal force of the role of fan blades into the dust pipe dust. The wind speed of the pipeline is usually more than 7.5m / s (too low wind speed will make the dust precipitate in the pipeline will cause the test tube can not work). The dust line was sprayed from above into the test chamber and passed through the sample at a rate of> 2 m / s. Sand and dust chamber As the lower part of the working box for the funnel, it can precipitate down the dust into the lower part of the 72 × 50um filter. Through the vibrating motor vibration, less than the diameter of the filter hole in the dust and centrifugal fan sucked so back and forth.



1.Providing a simulated environment of dry sand blowing and dust emission.

2.Long time and continuous running without fault.

3.Ensure a certain amount of dust blowing, dust blowing speed, dust blowing time and automatically set.

4.With dust dehumidifying and controlling the temperature and humidity of the inner environment.

5.Ensure the whole test is recyclable.

6.perfect safety protection function


Standard Compliance:

1. IEC 60529:2001 / GB 4208-2008 of protection provided by enclosure (IP code)

2. IEC 60034-5: 2000 / GB/T 4942.1-2006 Rotating electrical machines-Part 5: Degree of protection provided by the integral design of rotating electrical machines (IP code)-Classification, IDT

3. IEC 60068-2-68: 1994 / GB/T 2423.37-2006 Environmental testing -Part 2: Tests-Test L: Dust and sand IDT

4. IEC 60068-1:1988 / GB/T 2421-2008 Environmental testing- Part 1: General and guidance, IDT

5. IEC 60068-5-2:1990 / GB/T 2422-2012 Environmental testing-Part 5: Guide to drafting of test methods-Terms and definitions, IDT

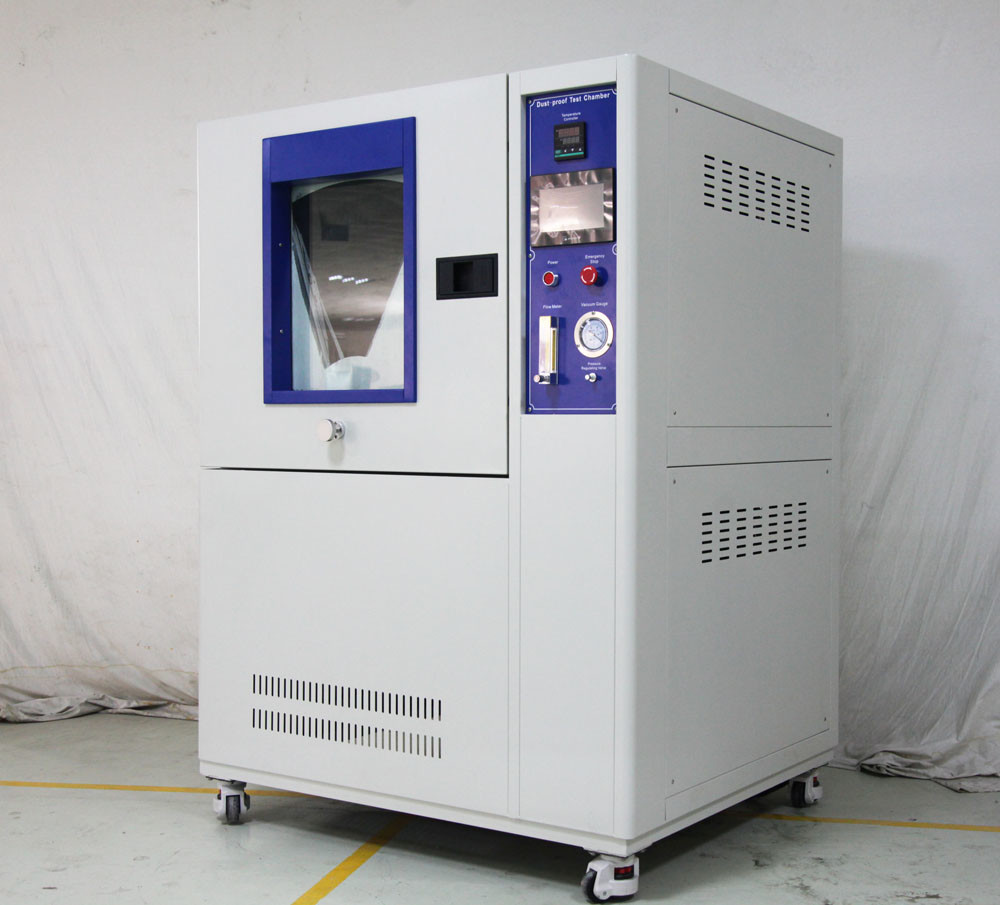

LIYI Programmable Sand Dust Test Chamber IP Class Dust Control Equipment 0


Machine specifications:

Basic parameters
Inner chamber size

800×800×800 mm

800×1000×1000 mm

1000×1000×1000 mm

1000×1500×1000 mm

Overall size
Temperature range RT+10~70℃ (can customize, confirm before order)
Related humidity 45%~75%(can not display)
Standard wire diameter of metal mesh 50um
Standard spacing between lines of mesh 75um
Amount of talcum powder 2~4kg/m
Powder type Dry talcum powder
Dust reduction mode Free falling dust
Test time 0-999H (adjustable)
Vibration time 0-999H(adjustable)
Timing accuracy ±1s
Vacuum degree 0—10Kpa(adjustable)
Vacuum speed 0-4800L/H(adjustable)
Power parameters
Machine power source 220V
Sample power source 220V
Rate 1.5KW
Safty function Leakage protection, short circuit protection


Electronic and Control systems:
1. The main controller LCD touch screen, can do programmable test
2. PLC complex man-machine interface control, contrived moving time, rest time and power-on time setting.
3. multiple sets of test procedures can be planned in the interface, and each group can be arbitrarily set the desired action, easy to operate.
4. If a fault occurs in the operation of various signals are written records will be displayed to facilitate maintenance.
5. Touch the setting, digital direct display, all the conditions fully automatic locking by a microcomputer.
6. imported electronic temperature and humidity sensor, not need to cleanup.

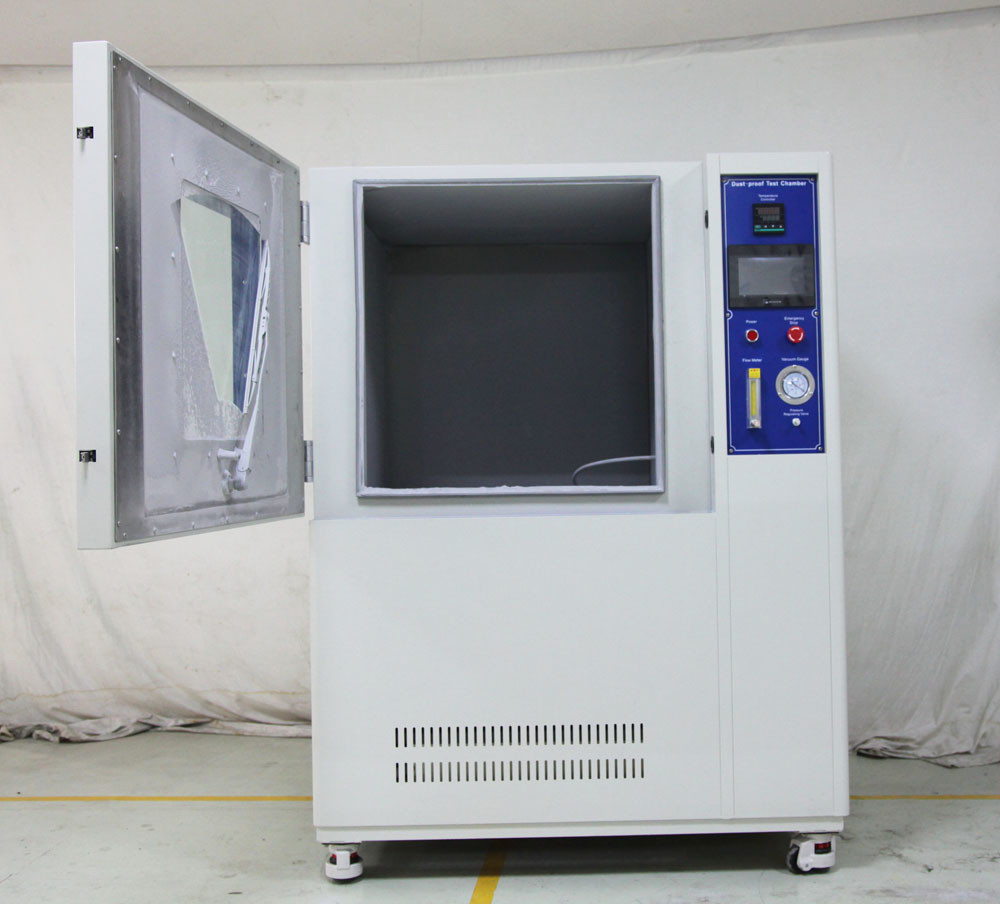

LIYI Programmable Sand Dust Test Chamber IP Class Dust Control Equipment 1LIYI Programmable Sand Dust Test Chamber IP Class Dust Control Equipment 2
