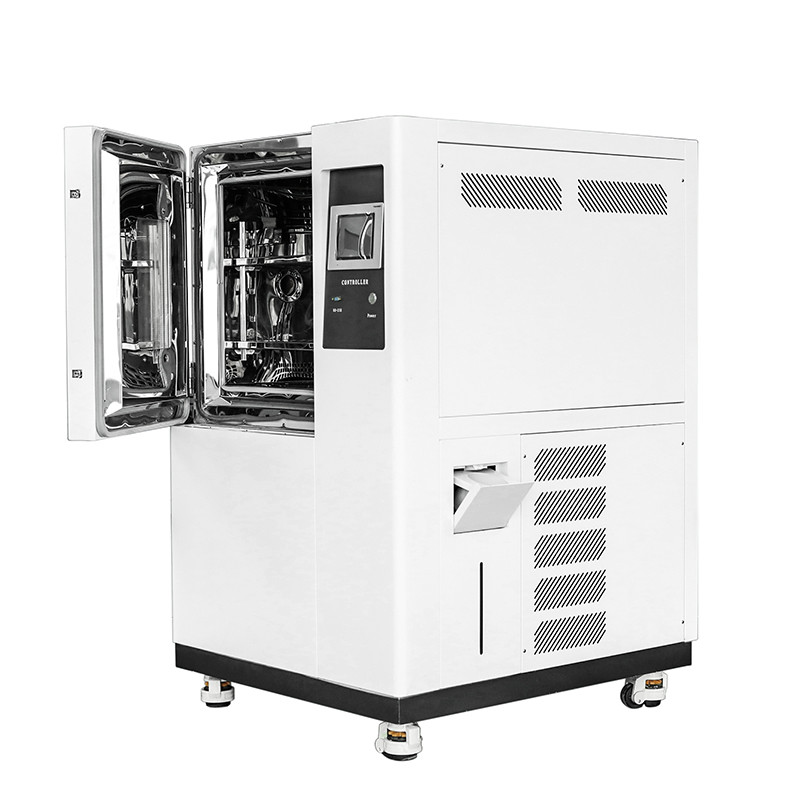

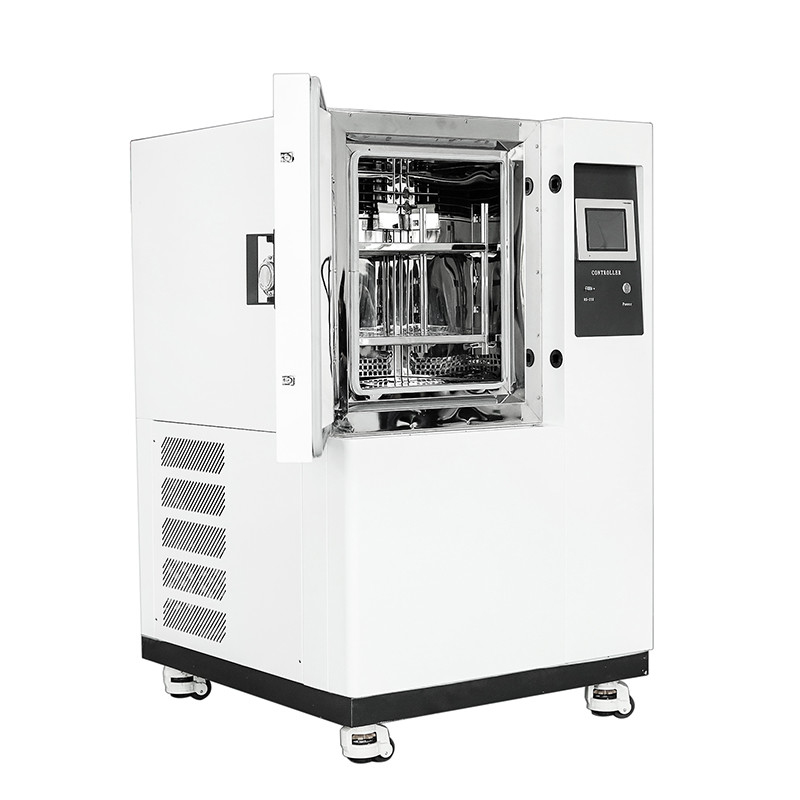

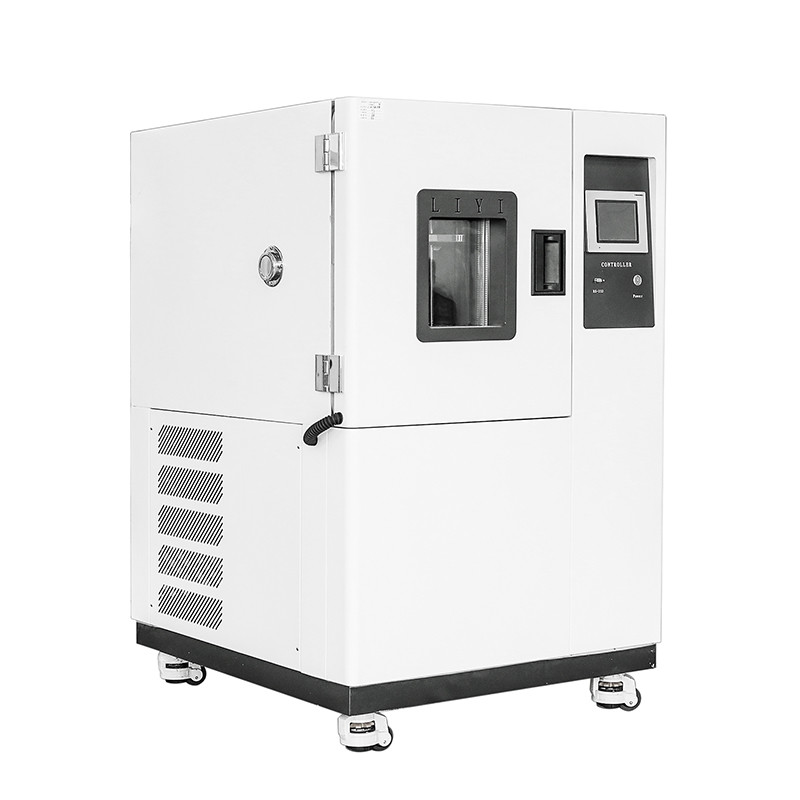

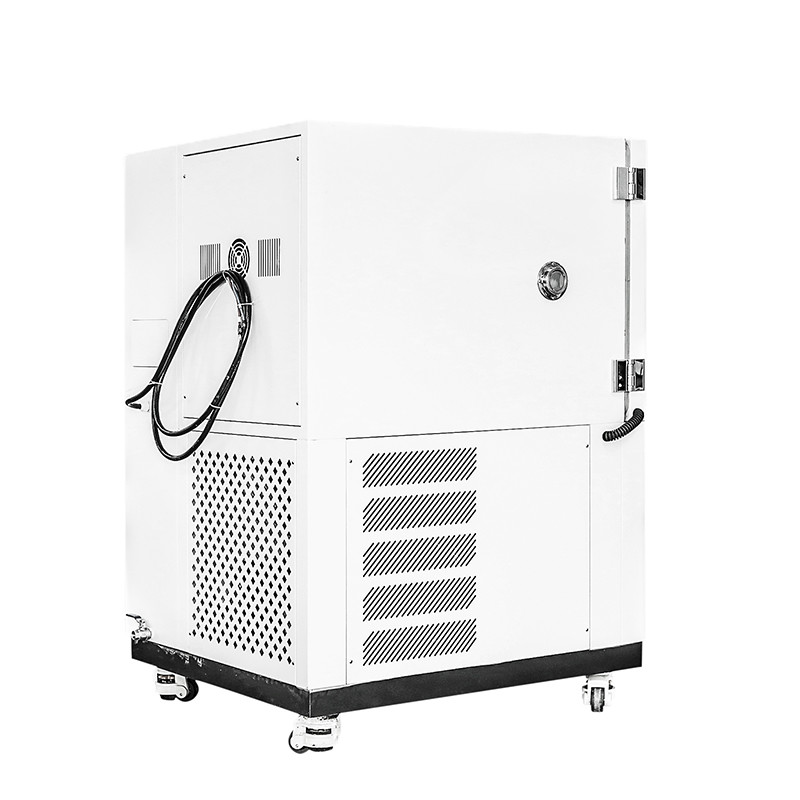

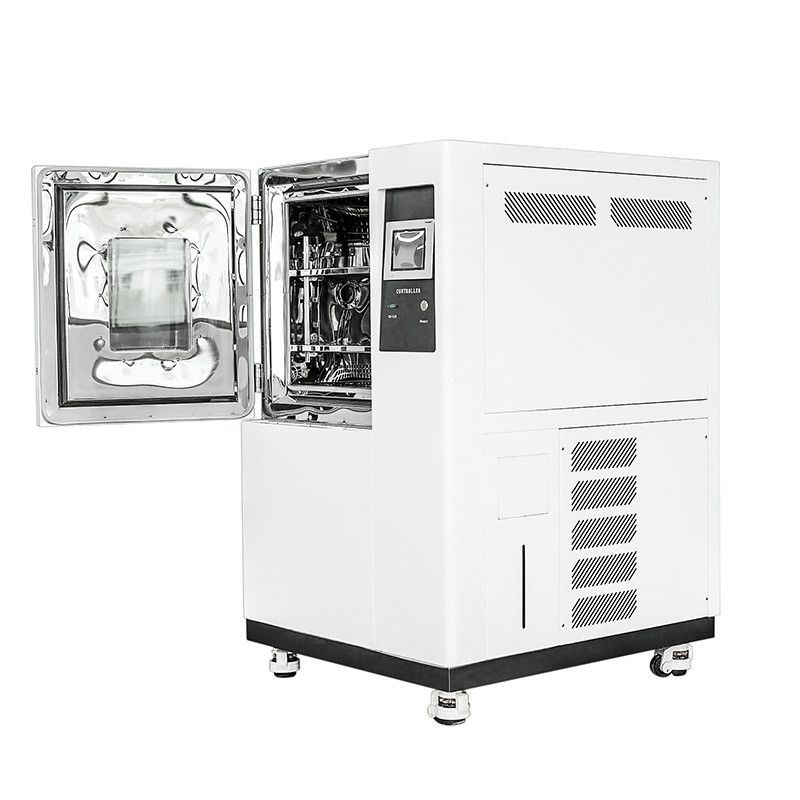

LIYI Programmable High Low Temperature Test Chamber Lithium Battery Explosion Proof Testing
-70 ~ +180 C Programmable High Low Temperature Test Chamber Lithium Battery Explosionproof Testing is widely used in aviation, aerospace, information, electronics, instrumentation and other industries for the accelerated heat and humidity test of electrical products, materials, parts, equipment, etc. Damp heat test chamber, constant temperature and humidity chamber to evaluate the performance of the sample under given environmental conditions.
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
|Inner size W×H×D(cm)||40×50×40||50×60×50||50×75×60||60×85×80||100×100×80||100×100×100|
|External size W×H×D(cm)||92×138×108||102×146×116||102×162×126||113×172×148||150×186×139||158×188×168|
|Temp & Humi Control Range||
Temp range: A:-20℃～150℃ B: -40℃～150℃ C: -60℃～150℃ D: -70℃～150℃
Humi range: RH20%-98%
|Heating & cooling speed||1.5℃/min (can customize from 1-20℃/min)|
|Controller||TEMI880, 990, 1500 or customize brands and models|
|Refrigerator||Fully enclosed piston French Tecumseh compressor(or Semi-closed compressor)|
|Test hole||*50mm, 100mm or customize|
|Power||1φ 220V AC±10% 50Hz||3φ 380V AC±10% 50Hz|
1.SUS#304 stainless steel interior, powder coated finishing for the exterior chamber.
2. With glass window to view testing samples, equipped with a sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness bulbs to provide light inside the box.
3.Double-layer-insulated gastight doors, able to insulate the internal temperature effectively.
4.Water supply system is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh compressor is used for the cooling system, capable of removing the lubricant between the condensation pipes and capillaries. environment-friendly coolant is (R23, R404A)
6.Precise touchscreen controller, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and with a temperature ramp
8. Floor standing with casters for ease of mobility, with strong positioning screws.
9. Heating and cooling rate are from 5°C/min 10°C/min to 15°C/min, as per your specific request.
