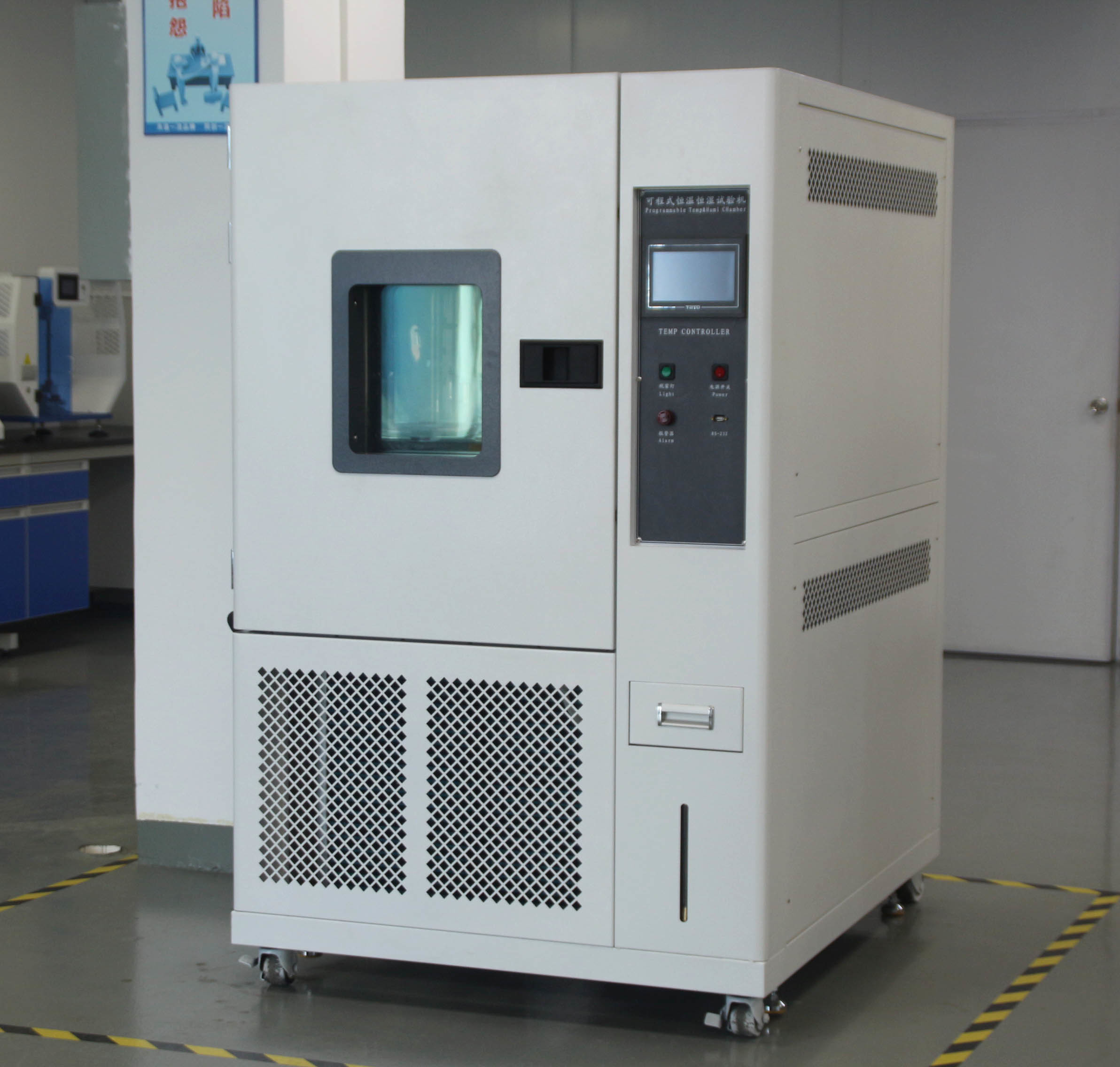

Cycling Climate Test Chamber 225L Sample Conditioning And Aging Test
1 Set
MOQ
4500~20000USD
Price
Cycling  Climate Test Chamber 225L Sample Conditioning And Aging Test
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-2225
High Light:

temperature and humidity chamber

,

environmental simulation chambers

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Material: 304# Stainless Steel
Inner Size: 50*75*50cm
Voltage: 3 Phase 380V
Warranty: 1 Year
Compressor: Tecumseh
Accuracy: 0.5℃ ±2.5%RH
Temperature Range: -40°C~150°C/-70°C~150°C
Humidity Range: 20%~98% / 5%~98%
Product Description

Sample Conditioning and Aging Test Cycling High Low Temperature Humidity Chamber 225L



      Sample Conditioning and Aging Test Cycling High Low Temperature Humidity Chamber 225L is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.



Standards:

● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test

● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test

● GJBl50.3-2009(MIL-STD-810D) High Temperature Test

● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test

● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test

● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test

● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test



Specifications:

Programmable Cycling High Low Temperature Climate Test Chamber 225L Damp Heat Testing Chamber
Model LY-2225
Interior chamber size(mm) W 650
H 640
D 550
Exterior chamber size(mm) W 1490
H 1760
D 1205

Temp. range

Humi. range

  -40°C~+150°C / -70°C~+150°C

20%~98% / 5%~98%

Temp. deviation

≤ ±2.0°C (no-load)

≤ ±3.0°C (standard load) The test space temperature uniformity reach

standard after the temperature reach the setting value for 30 mins.

Temp. fluctuation ±0.5°C (no-load)
Heating rate from -40°C ~ +150°C average heating rate≥3°C/min(standard load)
Cooling rate from +25°C ~ -40°C average cooling rate≥1°C/min(standard load)
Internal material Matte stainless steel plate(SUS 304)
External material Baked painting quality steel sheet
Insulation material High-density rigid polyurethane foam+glass fiber wool
Chamber door

Single-open door, left-opening, with heating wire was installed at the door frames

to prevent condensation at low temperatures

Observation window

With 1 set 400*500mm (width*height) observation window installed on the door,

multi-hollow electric insulation coated glass prevent condensation effectively

Lighting device One light of 11W/AC 220V, located on observation window
Heater Quality nickel-chromium alloy wire electric heaters, Non-contact control mode (SSR)
Condensate outlet hole

Equipped with drainage hole and pipes for test space condensed water

and refrigeration system condensate

Cable hole Two cable holes of 100mm located on both sides of the test chamber, with rubber stopper and plastic cover
Sample-holder Two layers of stainless steel sample holder. Weight bearing 30KG/layer
Moving casters With 4 mobile casters (with foot cups)
Electrical control cabinet Total power circuit breaker, over-temperature protection

Exclusion-proof

Function

Chamber inside and outside air-pressure balancing device,installing

pressure-relief valve

Air outleting blower

When the chamber inside air-pressure exceeds the safety valve pressure value,

the air outleting blower automatically work-releasing the inside pressure







What you will get:

1)Delicate touch and excellent user experience
2)Unique and compact design, top grade appearance, stable performance and easy operation.
3)Can simulate a wide range of temperature and humidity environments
4)Capable of testing large components, assemblies, and finished products
5)Customized sizes and configurations available
6)1 year free warranty

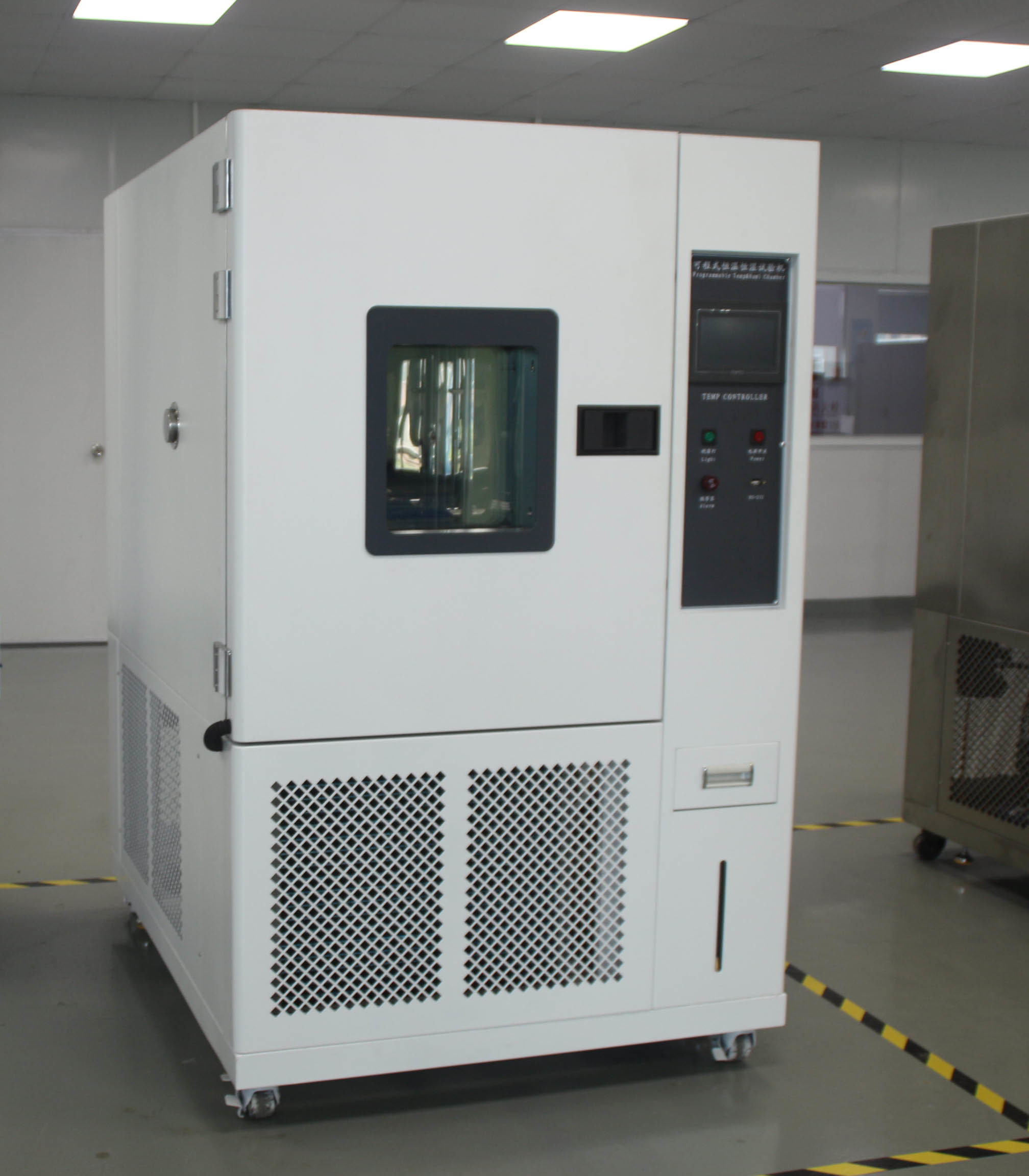

Cycling  Climate Test Chamber 225L Sample Conditioning And Aging Test 0

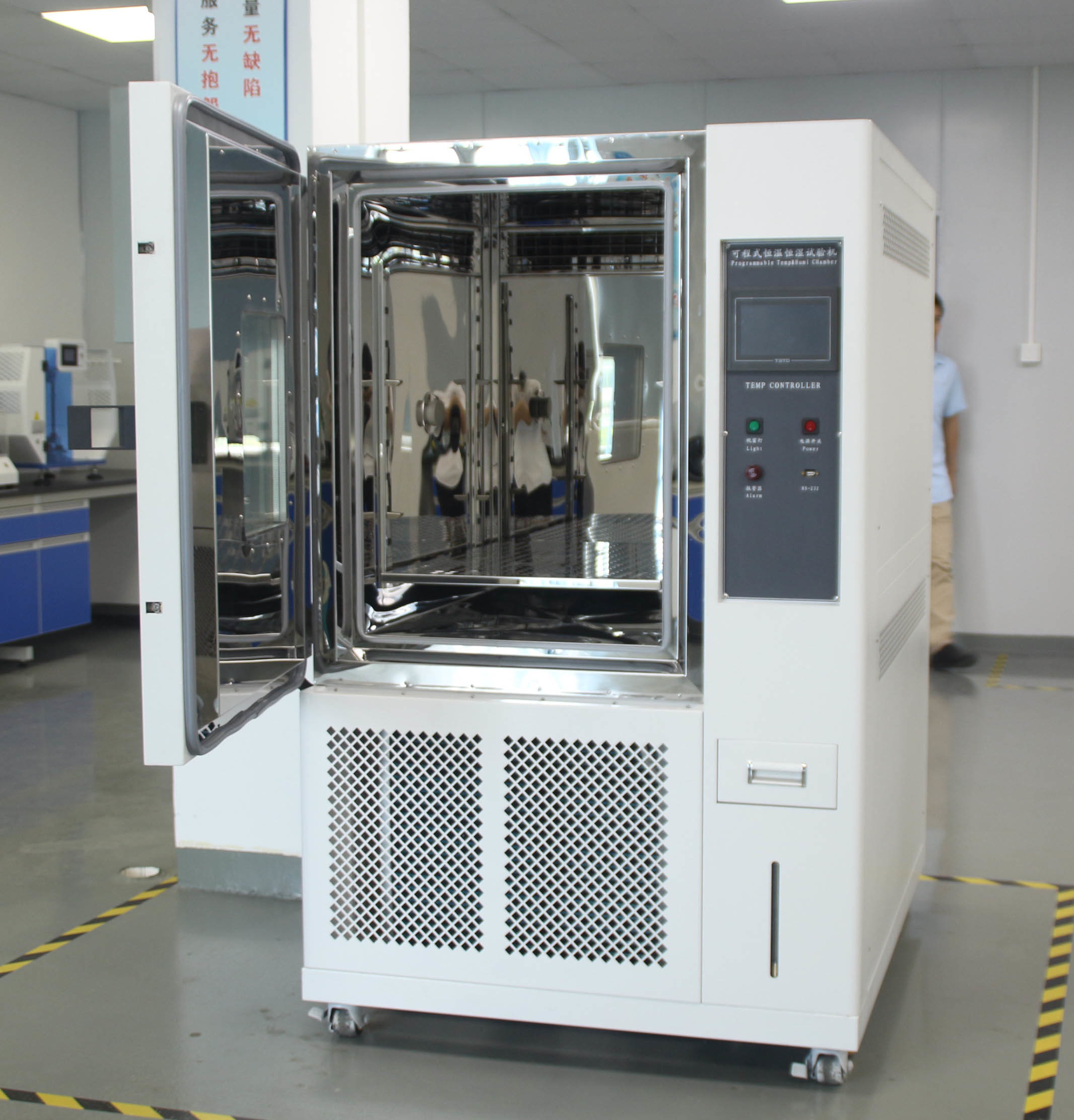

Cycling  Climate Test Chamber 225L Sample Conditioning And Aging Test 1



Our service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.



1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

3.Commitment:We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
