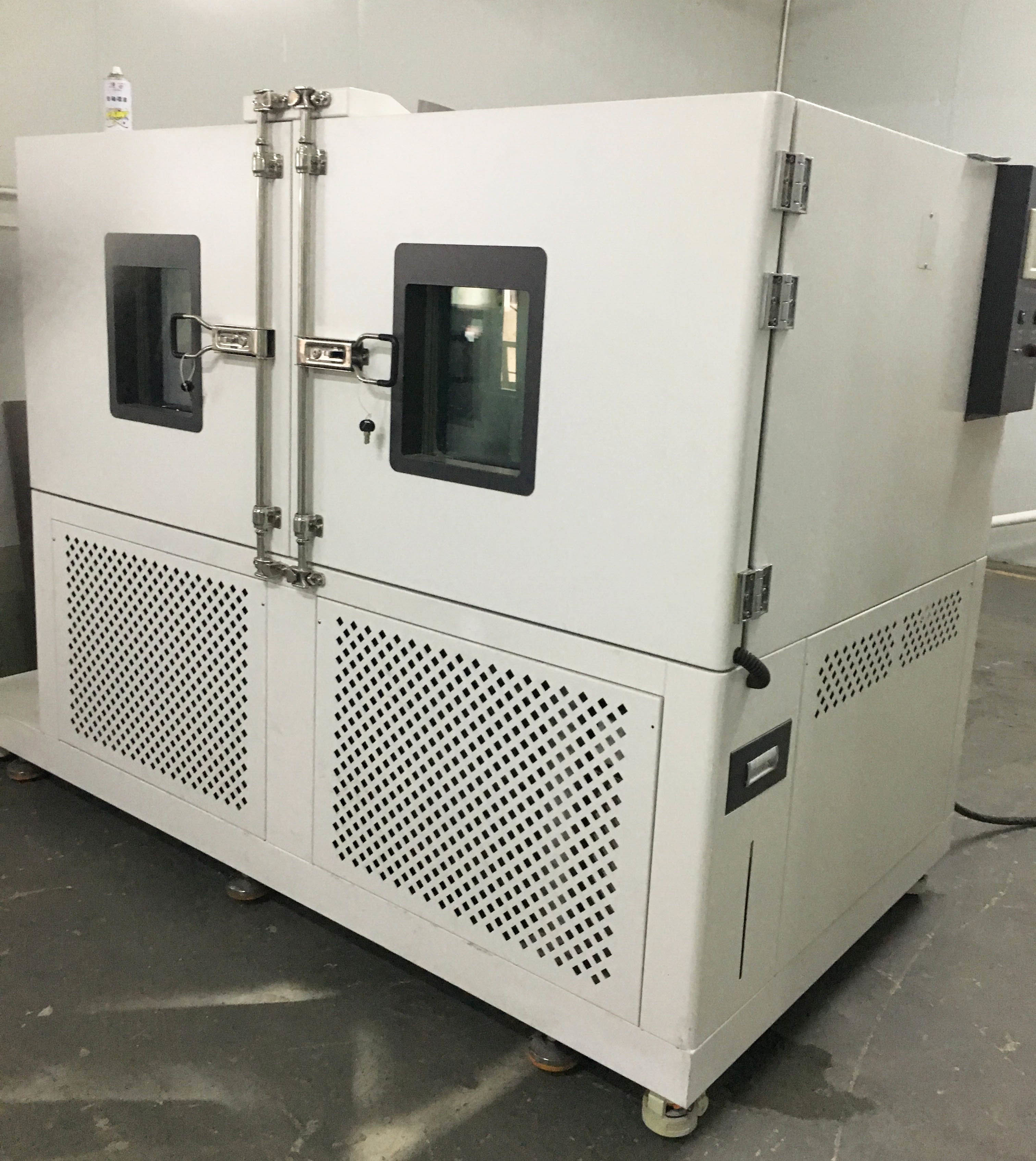

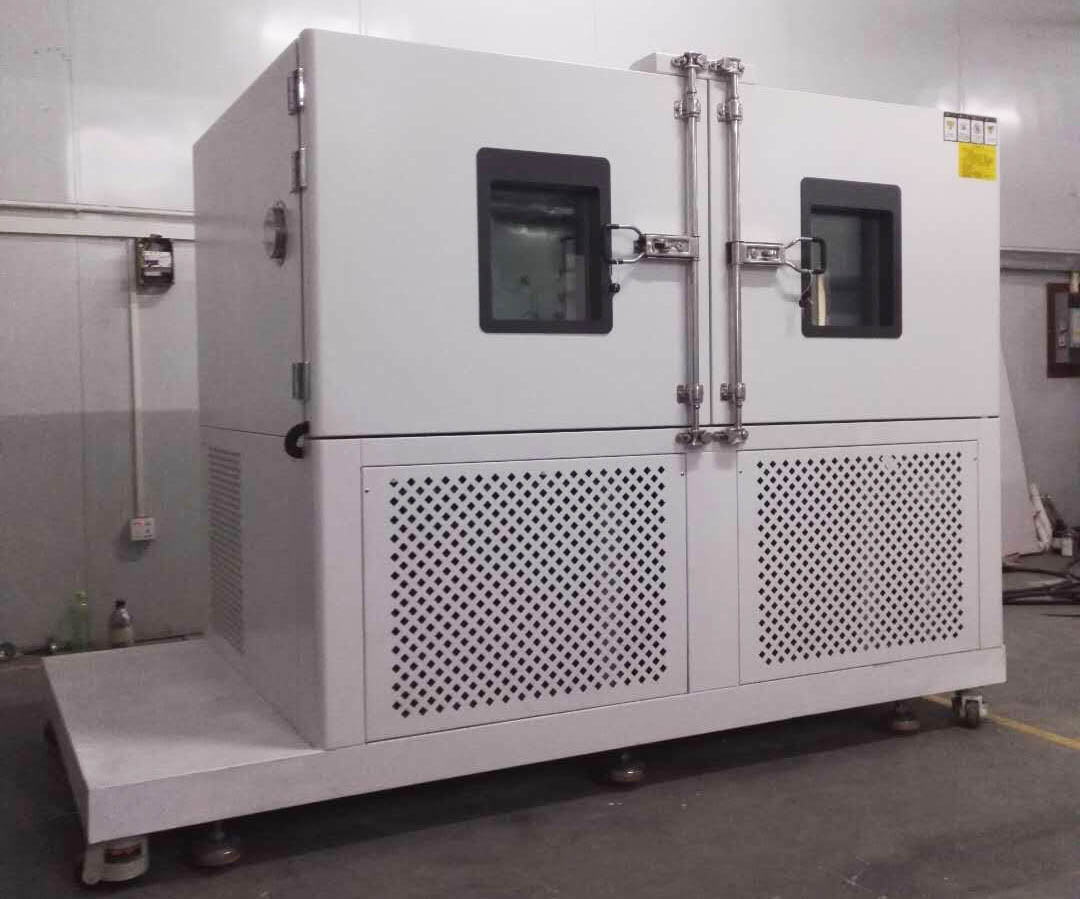

LIYI 304 Stainless Steel Temperature Cycling Chamber 1.5m Width Double Door
1.5m Width Double Door Temperature Cycling Chamber With Temperature And Humidity Control System is widely used in aviation, aerospace, information, electronics, instrumentation and other industries for the accelerated heat and humidity test of electrical products, materials, parts, equipment, etc. Damp heat test chamber, constant temperature and humidity chamber to evaluate the performance of the sample under given environmental conditions.
Standards:
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
Application:
Applicable to environmental adaptability and reliability test in such industrial units as electronics,electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material,research institution, inspection and quarantine bureau, university etc..
Specifications:
| Model | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 | LY-21000 | |
| Inner size W×H×D(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×100 | |
| External size W×H×D(cm) | 92×138×108 | 102×146×116 | 102×162×126 | 113×172×148 | 150×186×139 | 158×188×168 | |
| Volume(L) | 80 L | 150L | 225L | 408L | 800L | 1000L | |
| Temp & Humi Control Range |
Temp range: A:-20℃～150℃ B: -40℃～150℃ C: -60℃～150℃ D: -70℃～150℃ Humi range: RH20%-98% |
||||||
| Heating & cooling speed | 1.5℃/min (can customize from 1-20℃/min) | ||||||
| Fluctuation | ±0.5℃；±2.5%RH | ||||||
| Deviation | ±0.5℃-±2℃；±3%RH(＜75%RH); ±5%RH(≥75%RH) | ||||||
| Controller | TEMI880, 990, 1500 or customize brands and models | ||||||
| Refrigerator | Fully enclosed piston French Tecumseh compressor(or Semi-closed compressor) | ||||||
| Refrigerants | Dupont(R23+R404) | ||||||
| Test hole | *50mm, 100mm or customize | ||||||
| Power | 1φ 220V AC±10% 50Hz | 3φ 380V AC±10% 50Hz | |||||
Features:
1.SUS#304 stainless steel interior, powder coated finishing for the exterior chamber.
2. With glass window to view testing samples, equipped with a sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness bulbs to provide light inside the box.
3.Double-layer-insulated gastight doors, able to insulate the internal temperature effectively.
4.Water supply system is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh compressor is used for the cooling system, capable of removing the lubricant between the condensation pipes and capillaries. environment-friendly coolant is (R23, R404A)
6.Precise touchscreen controller, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and with a temperature ramp
8. Floor standing with casters for ease of mobility, with strong positioning screws.
9. Heating and cooling rate are from 5°C/min 10°C/min to 15°C/min, as per your specific request.
LIYI Showroom:
Standard configuration :
●Stainless steel exterior
●Energy-efficient refrigeration with exclusive electronic expansion valve system
●Specialized humidity generation and control
●Unique thermal break construction for extreme testing
●Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
●No fuse breaker, overpressure, overheat and over current protection for compressor, Over temperature protection, overload protection of the blower, dry heat protection
Optional accessories :
●Cable Port: Φ100mm cable port is available
●Shelves
●Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
●Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
●Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.
●Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
