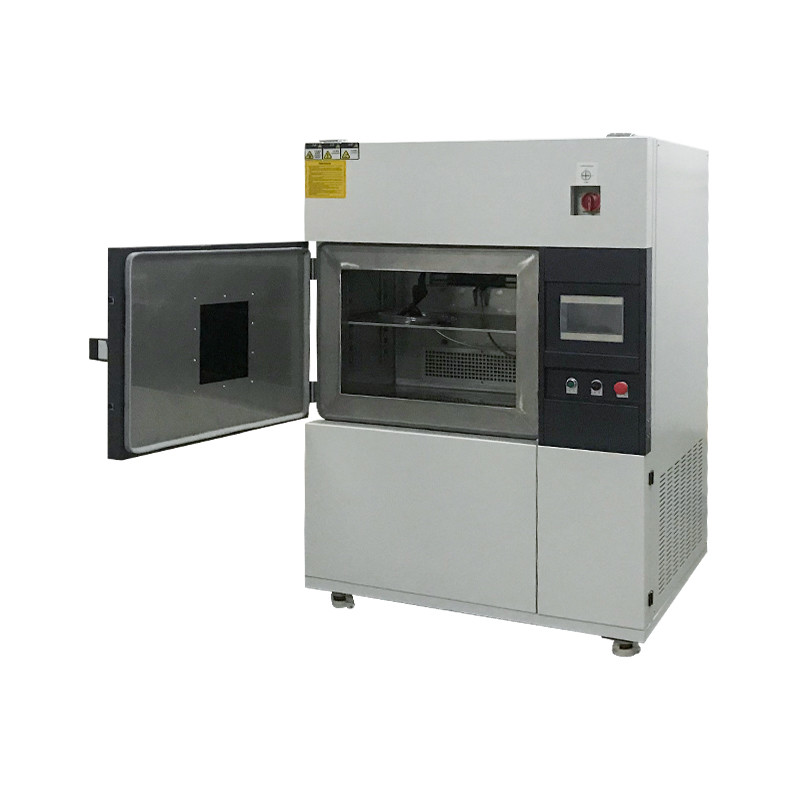

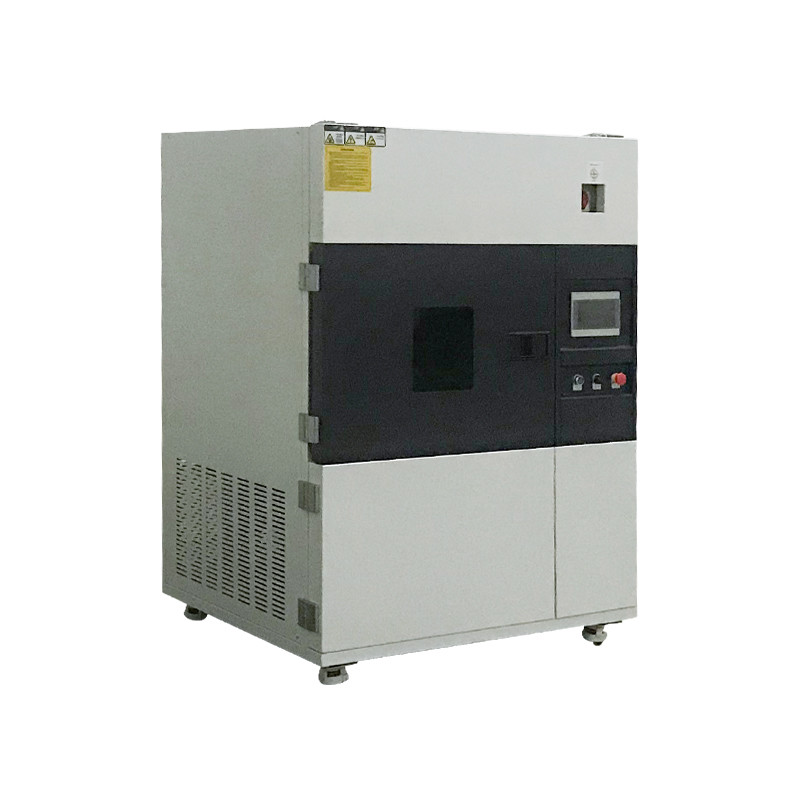

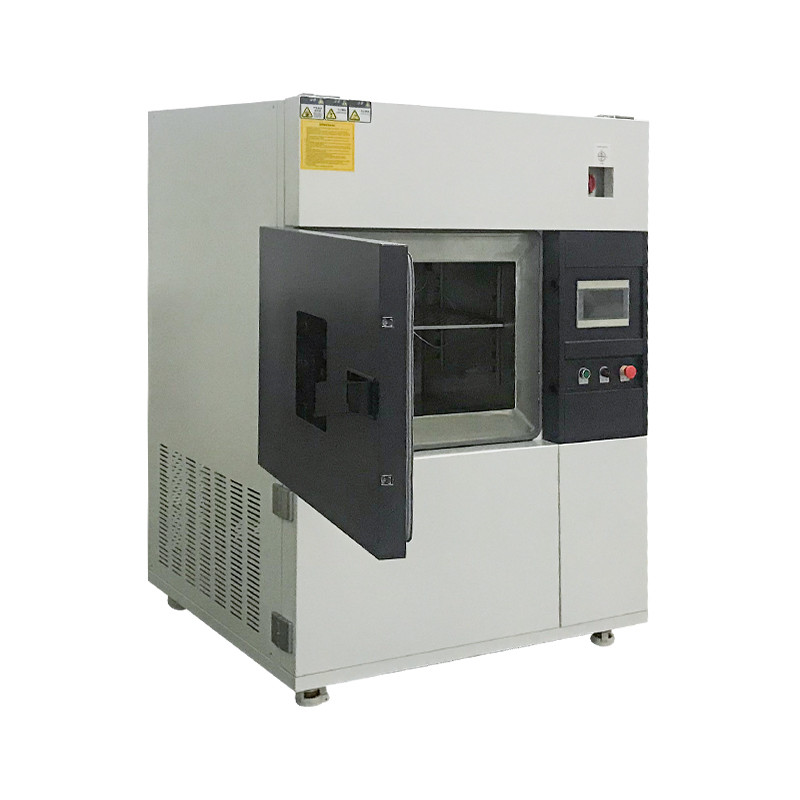

LIYI Xenon Arc Accelerated Weathering Tester 340nm 420nm 300-400nm Optional
LIYI Xenon Arc Accelerated Weathering Tester 340nm 420nm 300-400nm Optional
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-XD
High Light:

accelerated weathering tester


uv weathering test chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets/month
Temperature Range: RT~100℃
Humidity Range: 30%~95%
Xenon Lamp: 3PCS
Wavelength: 340nm, 420nm, 300-400nm Optional
Material: Inner Stainless Steel
Controller: PLC
Cooling: Air Cooled
Lamp Power: 2.5KW
Product Description

LIYI Xenon Arc Accelerated Weathering Tester 340nm 420nm 300-400nm Optional



       340nm, 420nm, 300-400nm Optional Xenon Arc Accelerated Weathering Chamber for Plastic Applicable to textiles, paints, dyes, paints, rubber, plastics, paper materials such as wood flooring and light color fastness, color fastness to light perspiration fastness, climate test and light aging test, with rain, revolution, rotation and spray, weather resistant function.



GB/T 8427,ISO 105-B02,ASTM D4355,ISO 105-B04,GB/T 14576,AATCC TM16 ,GB/T 15102,GB/T 15104



  • Rated 2500W long-arc xenon lamp technology adopted to real simulate sunlight spectrum.
  • High transmittance of filter combinations and use 95% of the transmittance filters and filter cartridges. With Low power consumption but achieve the same irradiation light requirements. To make the machine is more energy saving and environment friendly.
  • Digital setting of light intensity , real-time monitoring, automatic adjustment, to meet the different standards for testing the stability of light source.
  • Test and radio transmission are powered by using light conversion technology, no additional power supply is required.
  • The sample is tested with black plate thermometer(BPT),black plate standard thermometer(BST),irradiance detector at the same position(in equidistance) to really indicate measuring state of the sample, the tested data is transmitted synchronously by using technolody of radio frequency.
  • With industrial temperature control (refrigeration) system for smoothly and fast adjusting temperature in test chamber.
  • With several modes of operation (rain, alternating light and dark, revolution and rotation), can simulate the real climate state.
  • Individual timing of each sample clamp may enable different sample test in a same tester and facilitate test monitor and reduce operation cost.
  • 10.4 inch color touching screen display control and various test monitoring modules(animation,digit,chart)make operation easy, visual and clear.
  • One test can run for 1000 hour continuously with quality guarantee.


LIYI Xenon Arc Accelerated Weathering Tester 340nm 420nm 300-400nm Optional 0



Item Parameter
Model LY-XD-3F2500
Test chamber size 550×750×550(D×W×H)㎜
Overall size 1020㎜×1350㎜×1750㎜(D×W×H)
Xenon lamp power 2.5KW(air cooled). Life:≥1500H
Xenon lamp quantity 3PCS
Xenon lamp wavelength 280~800nm
Irridiance control




Irridiance adjusting method IPD Automatic Regulation for Closed-loop Irradiation Intensity Monitoring
Blackboard temperature 35~100℃(adjustable)
Test chamber temperature 35~80℃(adjustable)
Temperature flucuation ±0.5℃
Temperature uniformity ±3℃
Humidity range 40%R.H~95%R.H(adjustable)
Humidity error ±5%R.H
Sample shelf 725mm×550mm,vertical position adjustable
Sample Can test finished products or standard pieces sample
Distance between xenon lamp center to the sample shelf 200~300mm adjustable
Dark cycle 0~9999H cycle setting(like 8H irridiance,4H dark)
Spray period 0~9999min cycle setting(like 18min spray, stop 102min and free setting of cycle times)
Water spray pressure 78~127kpa


Sample shelves and irridiance meter:

LIYI Xenon Arc Accelerated Weathering Tester 340nm 420nm 300-400nm Optional 1


Controller interface:

LIYI Xenon Arc Accelerated Weathering Tester 340nm 420nm 300-400nm Optional 2

LIYI Xenon Arc Accelerated Weathering Tester 340nm 420nm 300-400nm Optional 3LIYI Xenon Arc Accelerated Weathering Tester 340nm 420nm 300-400nm Optional 4



During the whole business process, we offer Consultative Selling service.


1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
