High Precision Thermal Shock Equipment Temperature Recovery 5 Min Transfer 10s
1 Set
MOQ
20000~50000USD
Price
High Precision Thermal Shock Equipment Temperature Recovery 5 Min Transfer 10s
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-TS80
High Light:

10s thermal cycling test equipment

,

5Min impact test equipment

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Material: 304# Stainless Steel
Inner Size: 80L
Controller: Touch Screen Programmable
Voltage: 380V
Cooling Method: Air Cooled
Temperature Range: -40℃ To +150 ℃
Temperature Recovery Time: Less Than 5min
Transfer Time: 10S
Product Description

Temperature Recovery Time 5min and Transfer Time 10S Thermal Shock Equipment Basket Type

Machine introduction:
      Temperature Recovery Time 5min and Transfer Time 10S Thermal Shock Equipment Basket Type is divided into two-box and three-box type, the difference is that the test method and internal structure are different, the product conforms to the standard: GB/T2423.1-2008 test A, GB/T2423.2-2008 test B, GB- T10592-2008, GJB150.3-198, GJB360A-96 Method
      The hot and cold impact test box is a necessary test equipment for metal, plastics, rubber, electronics and other materials industries. It is used to test the structure of materials or composite materials, and can tolerance it under extremely high temperature and extremely low temperature in a continuous environment.
     The chemical change or physical damage caused by thermal expansion and contraction of the sample can be detected in the shortest time.

Standards:
● GB-2423.1-89(IEC68-2-1)Test Mode A:Low Temperature Test
● GB-2423.2-89(IEC68-2-2)Test Mode B:High Temperature Test
● GJB360.8-87(MIL-STD.202F)High Temperature Life Test
● GBJl50.3(MIL-STD-810D)High Temperature Test
● GJBl50.4(MIL-STD-810D)Low Temperature Test



High Precision Thermal Shock Equipment Temperature Recovery 5 Min Transfer 10s 0



Specifications:(all can customize)



ModelLY-TS-42LY-TS-80LY-TS-150LY-TS-225
Test chamber volumn(L)4280150225
Test methodPneumatic throttle switching 2 chambers or 3 chambers
IndexHigh Temperature chamberPre-heating temperature range+60~+200℃
Heating speed ※1+60→+200℃≤20min
Low temperature chamberPre-cooling temperature range-60-0℃
Cooling speed ※1+20→-75℃≤80min
Test chamberTemperature deviation±2℃
Thermal shock temperature range-40→+150℃ (or customize)
Temperature recovery time※2Less than 5min
Sample shelf max load30kg
Allowed sample weight7.5kg7.5kg10kg10kg
Test chamber inner size(mm)W400400500500
H350500600700
D300400500600
Overall size(mm)W1360146015601880
H1800184019402040
D1400150016001900
※1. Heating and cooling speed are both empty chamber working condition.
※2. Recovery condition:Room temperature +25℃ and cycling water temperature +25℃,Test samples evenly distributed





Structure Features

Chamber Structure
1. Composed

Overall structure and chamber was composed of three parts as below



Insulation box, separate refrigeration units, and electrical control



cabinet.



2. Sample holders



2 sample holders with SUS#304

3. Cable port

Φ50mm at the top of the chamber ,another 50mm at the side of the low



temperature zone

4. Isolating material



PUR+Glass Fiber

5. Air Circulation system

a. Teco Motor

b. Stainless steel lengthening Axil

c. Sirocco Fan

6. Test Drive Way

Rack gear racking



7. Monitor7 inch TFT color LCD monitor

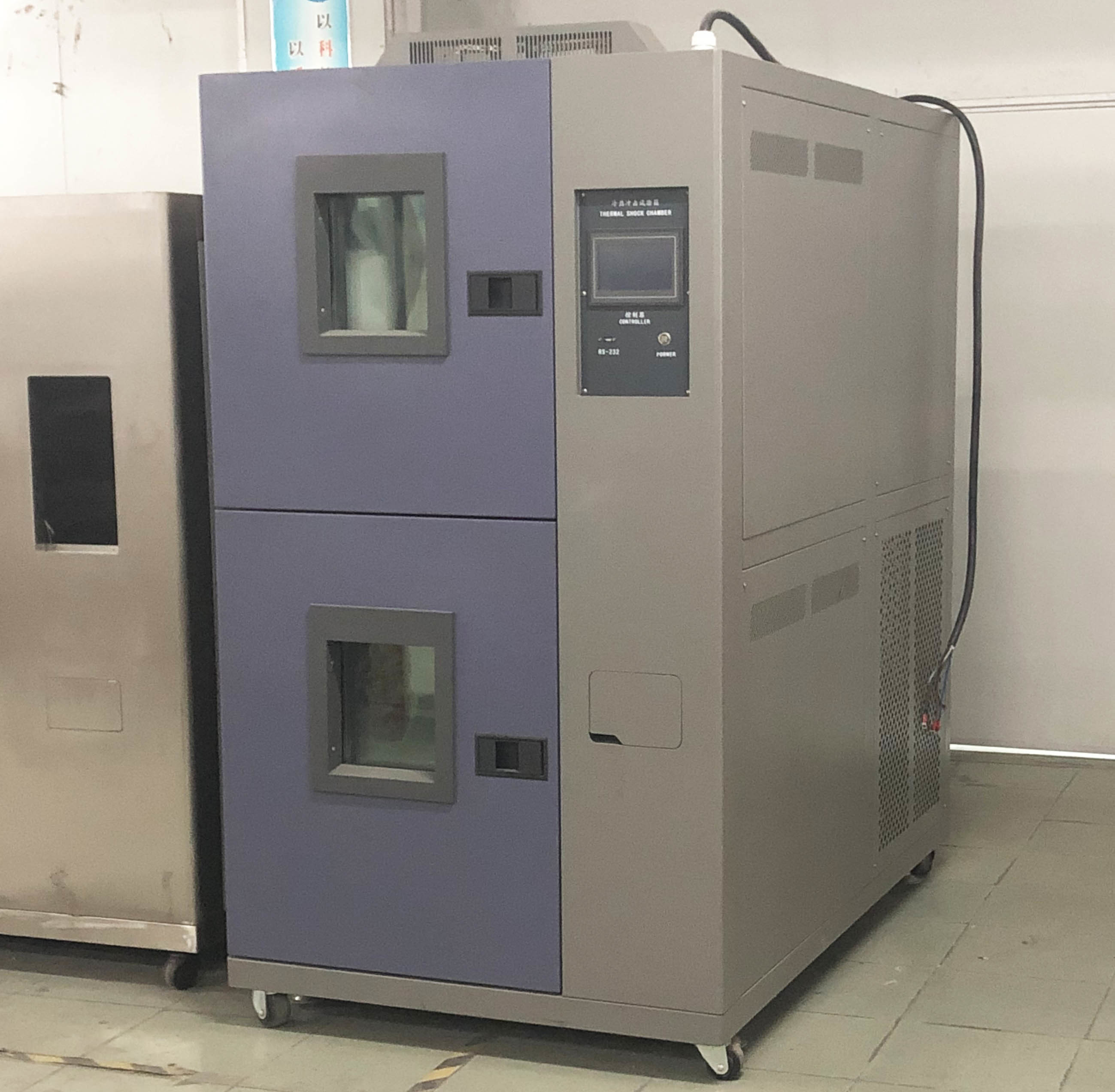

High Precision Thermal Shock Equipment Temperature Recovery 5 Min Transfer 10s 1

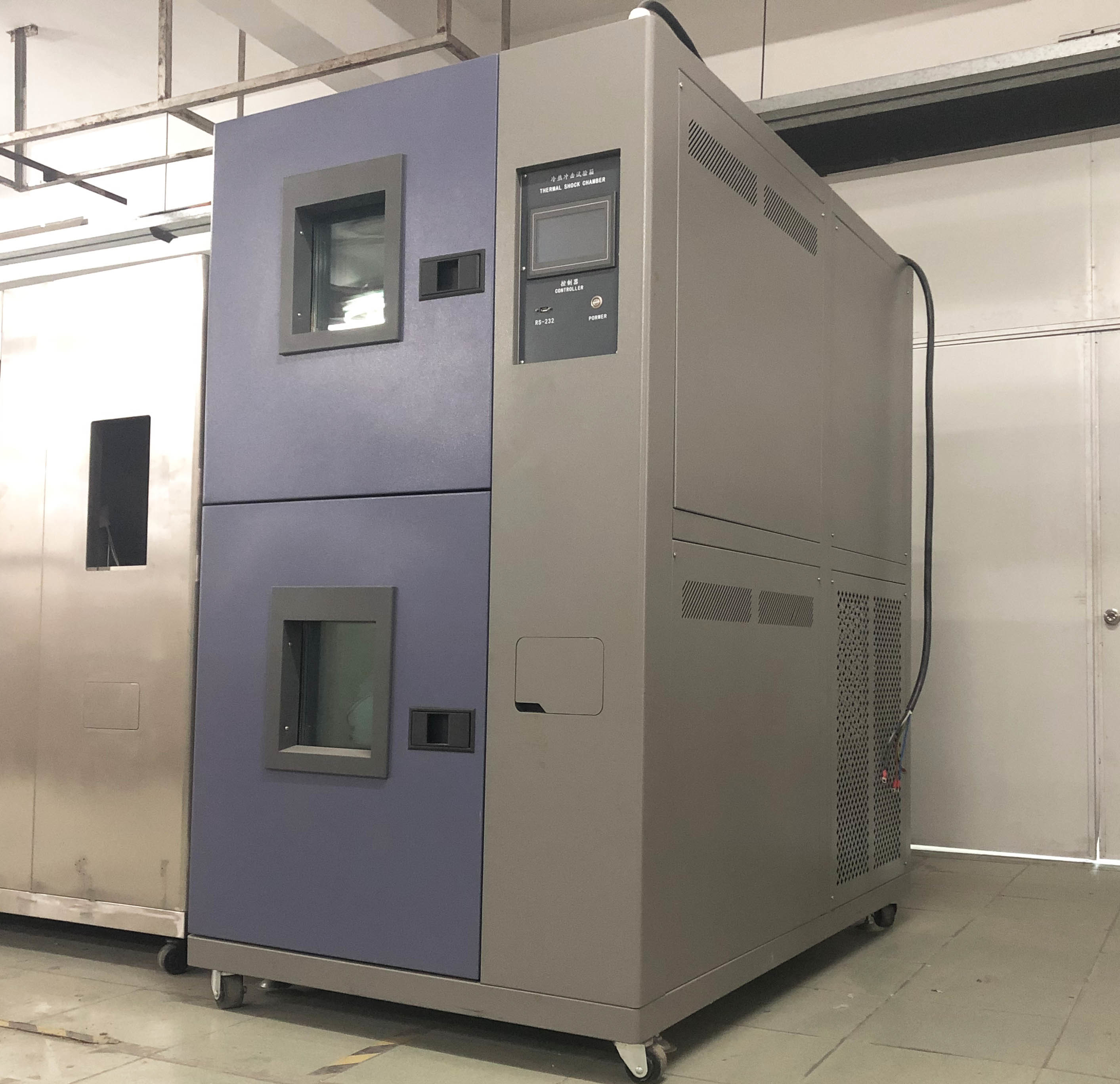

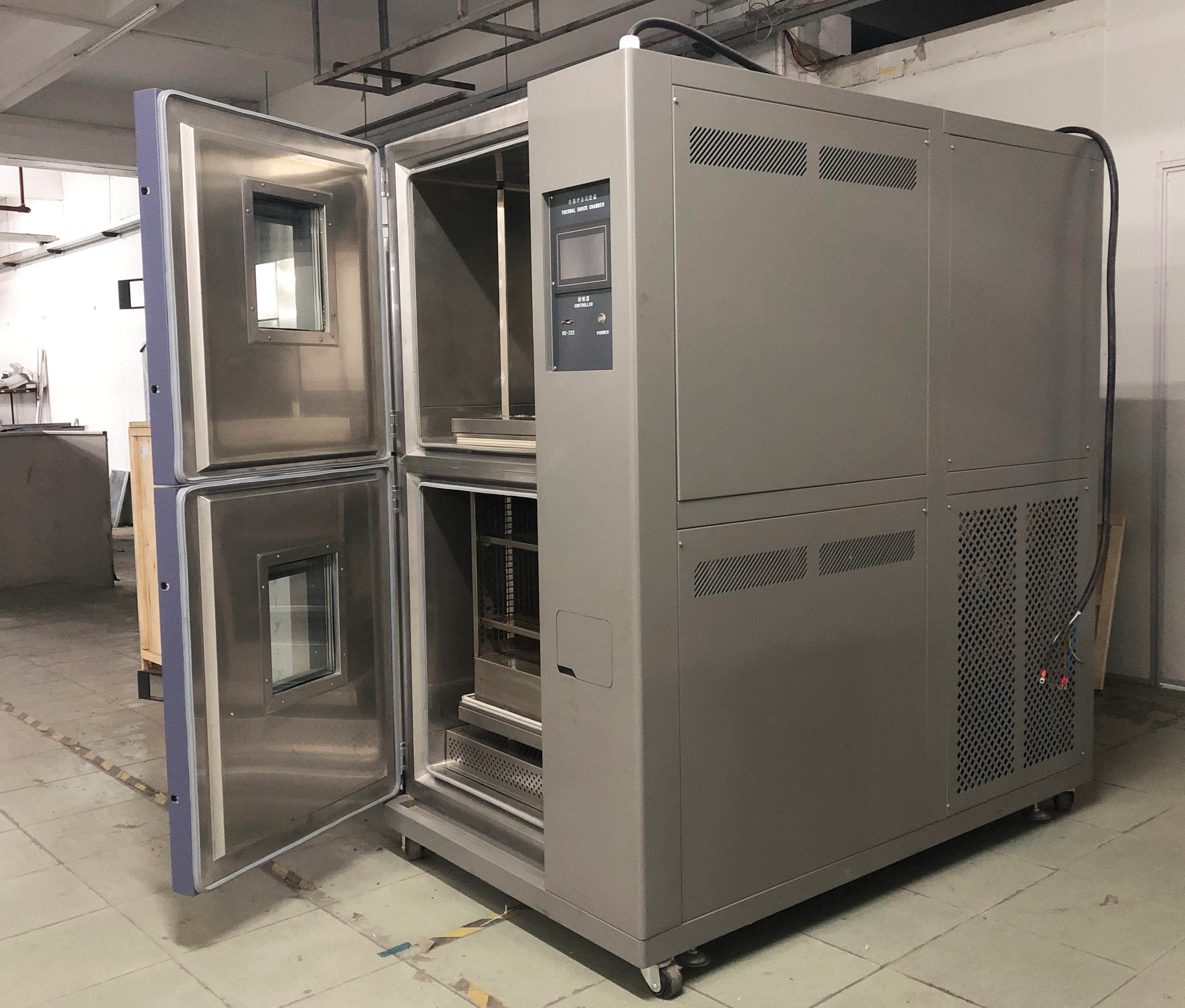

High Precision Thermal Shock Equipment Temperature Recovery 5 Min Transfer 10s 2High Precision Thermal Shock Equipment Temperature Recovery 5 Min Transfer 10s 3
