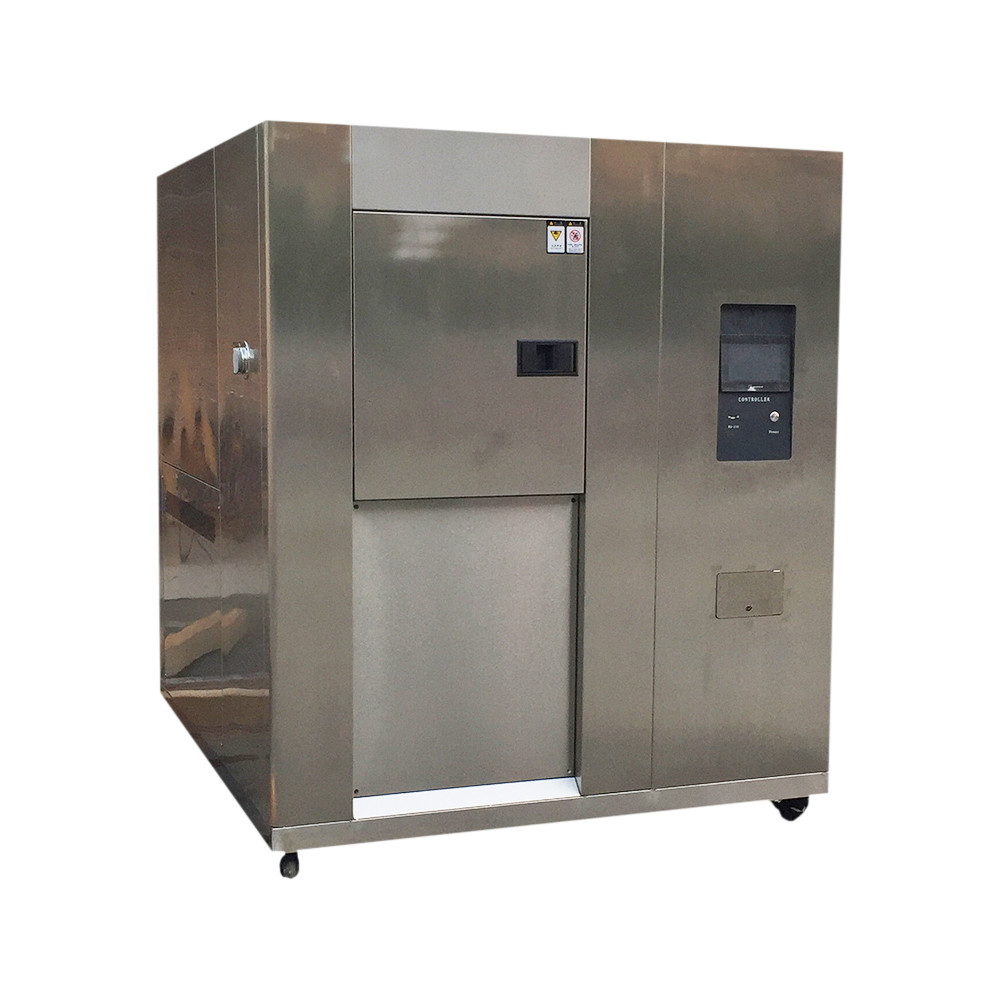

LIYI 304 Stainless Steel Thermal Shock Test Chamber Thermal Cycling Test Equipment
Thermal shock test chamber occurs when a thermal gradient causes different parts of an object to expand by different amounts. This differential expansion can be understood in terms of stress or of strain, equivalently. At some point, this stress can exceed the strength of the material, causing a crack to form. If nothing stops this crack from propagating through the material, it will cause the object's structure to fail.
||High temperature chamber:RT~+150°C Low temperature:RT~-60°C
||Less than ±2°C
|Temperature conversion time
||Less than 10S
|Temperature recovery time
||Less than 5min
External material: SUS#304 Stainless steel plate
Internal material: SUS#304 Stainless steel plate
Water-cooled or air-cooled,
Tecumseh compressor in France,
Environment friendly refrigerant
||Programmable temperature controllor imported from Japan
||PT 100 *3
/ Time: OH1M ~ 9999H 59M
/ Cycle: 10000 cycle
||Temperature: 0.01°C / Tim: 1min
||PID + PWM + SSR control method
|Simulated load IC (kg)
||Cable hole, lighting equipment
||AC380V/50HZ Three-phase four-wire ac power
The outlet and return it checks for taste known control
/CM BUS (RS-485) remote monitoring management system
/Ln2 liquid nitrogen rapid cooling control device
It can be customiazed according to customer demands.
Technology index refer to product description.Delivery time within 45days.
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3) Order process:
We offer below business term:
|Accepted Delivery Terms:
||FOB, CFR, CIF, EXW, DDP
|Accepted Payment Currency:
||USD, EUR, HKD, CNY
|Accepted Payment Type:
||T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
||Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired
4) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
