LIYI 80L Thermal Shock Test Chamber Hot Zone And Cold Zone Separate Control

1 Set
MOQ
20000~50000USD
Price
LIYI 80L Thermal Shock Test Chamber Hot Zone And Cold Zone Separate Control
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 304# Stainless Steel
Inner Size: 80L, 400*500*400mm
Controller: Touch Screen Programmable
Voltage: 380V
Cooling Method: Water Cooled
Temperature Range: -65℃ To +180 ℃
Temperature Recovery Time: Less Than 5min
Uses: Thermal Shock Machine
High Light:

thermal shock test machine

,

impact test equipment

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-TS80
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

LIYI 80L Thermal Shock Test Chamber Hot Zone And Cold Zone Separate Control



Machine introduction:

     Programmable Environmental 2 Zone High Low Temperature Test Shock Chamber with Hot Zone and Cold Zone Separate Control is divided into two-box and three-box type, the difference is that the test method and internal structure are different, the product conforms to the standard: GB/T2423.1-2008 test A, GB/T2423.2-2008 test B, GB- T10592-2008, GJB150.3-198, GJB360A-96 Method

      The hot and cold impact test box is a necessary test equipment for metal, plastics, rubber, electronics and other materials industries. It is used to test the structure of materials or composite materials, and can tolerance it under extremely high temperature and extremely low temperature in a continuous environment.

     The chemical change or physical damage caused by thermal expansion and contraction of the sample can be detected in the shortest time.



Standards:

● GB-2423.1-89(IEC68-2-1)Test Mode A:Low Temperature Test

● GB-2423.2-89(IEC68-2-2)Test Mode B:High Temperature Test

● GJB360.8-87(MIL-STD.202F)High Temperature Life Test

● GBJl50.3(MIL-STD-810D)High Temperature Test

● GJBl50.4(MIL-STD-810D)Low Temperature Test



Specifications:



Model LY-TS50 LY-TS80 LY-TS100 LY-TS150 LY-TS200 LY-TS300 LY-TS480
System (BTC) Balanced temperature control system
High temperature zone +60℃~200℃ Optional
Preheating time +60℃~200℃ About 20 minutes
Low temperature zone -55℃~10℃, -70℃~10℃, -80℃~10℃
Precooling time +20℃~-55℃ 60 minutes, +20℃~-75℃ 75 minutes, +20℃~-80℃ 90 minutes,
Recovery time Within 5 minutes, heat exposure 30 minutes, low exposure 30 minutes,
Transfer time Within 10 seconds
Temperature flucturation ±1.0℃
Temperature deviation ≤±2.0℃
Interior dimension(cm) W 40 50 55 68 68 80 80
H 40 40 45 45 50 50 55
D 32 40 40 50 60 75 93
Test weight (KG) 3.5 5 5 5 10 12 15
Interior material SUS#304 Stainless steel plate
Exterior material Backed paiting steel or stainless steel(SUS304)
Insulation material Rigid polyruethane foam +glass fibre
Floor bearing load 500Kg/m3
Refrigeration system Air cooled (Water cooled type is option)
Cascade type, hermetic/semitight compressor,CFC free refrigerant
Controller Color LCD screen in English/Chinese, programing,communicating function
Safety devices No welding wire switch,compressor overheating and over current protection,over temperature protection, blower overload protection,dry heating machine protector,low water protection,fault warning system.
Power AC380±10% 50HZ 3 phase 4 wires+ground wires

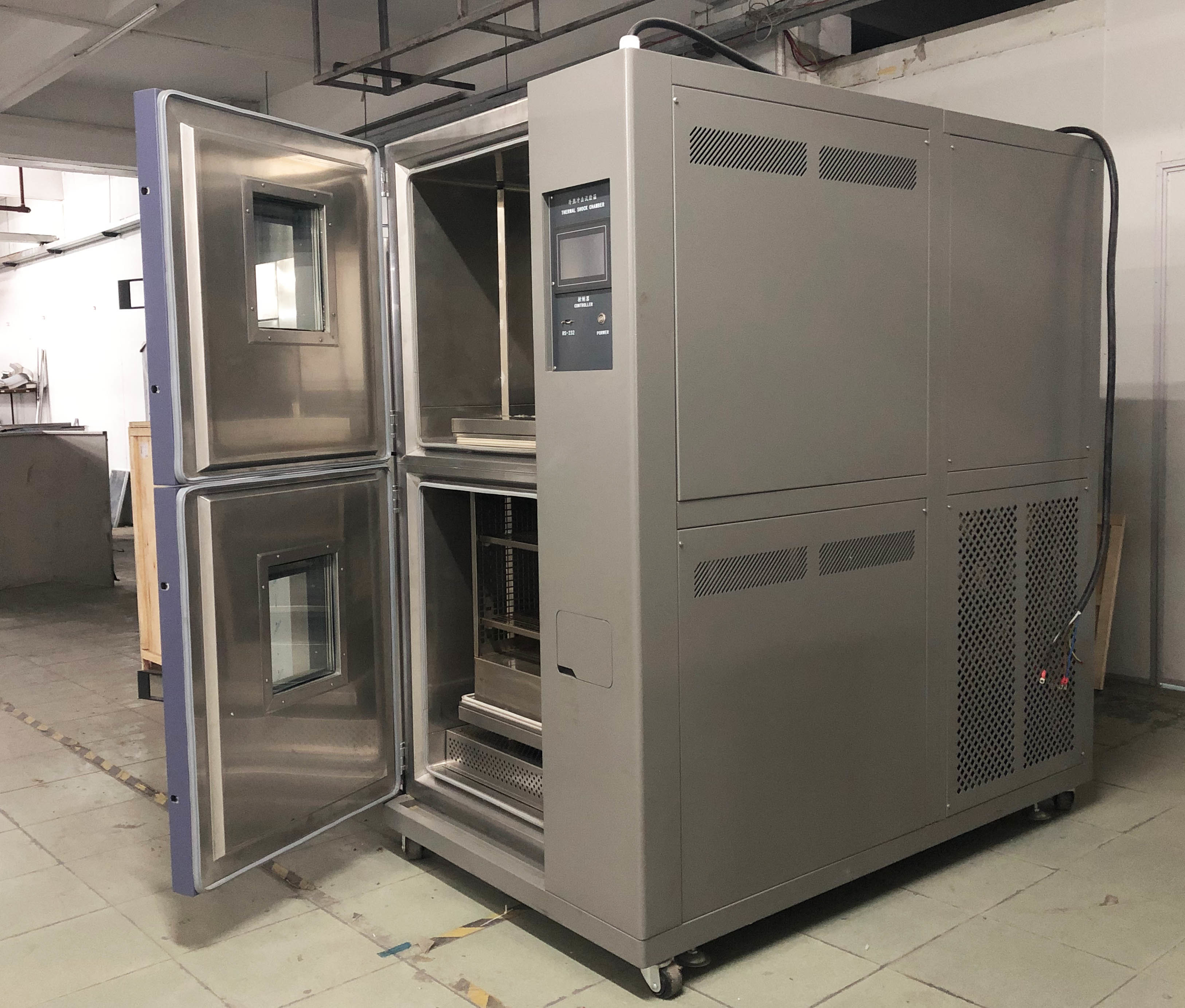

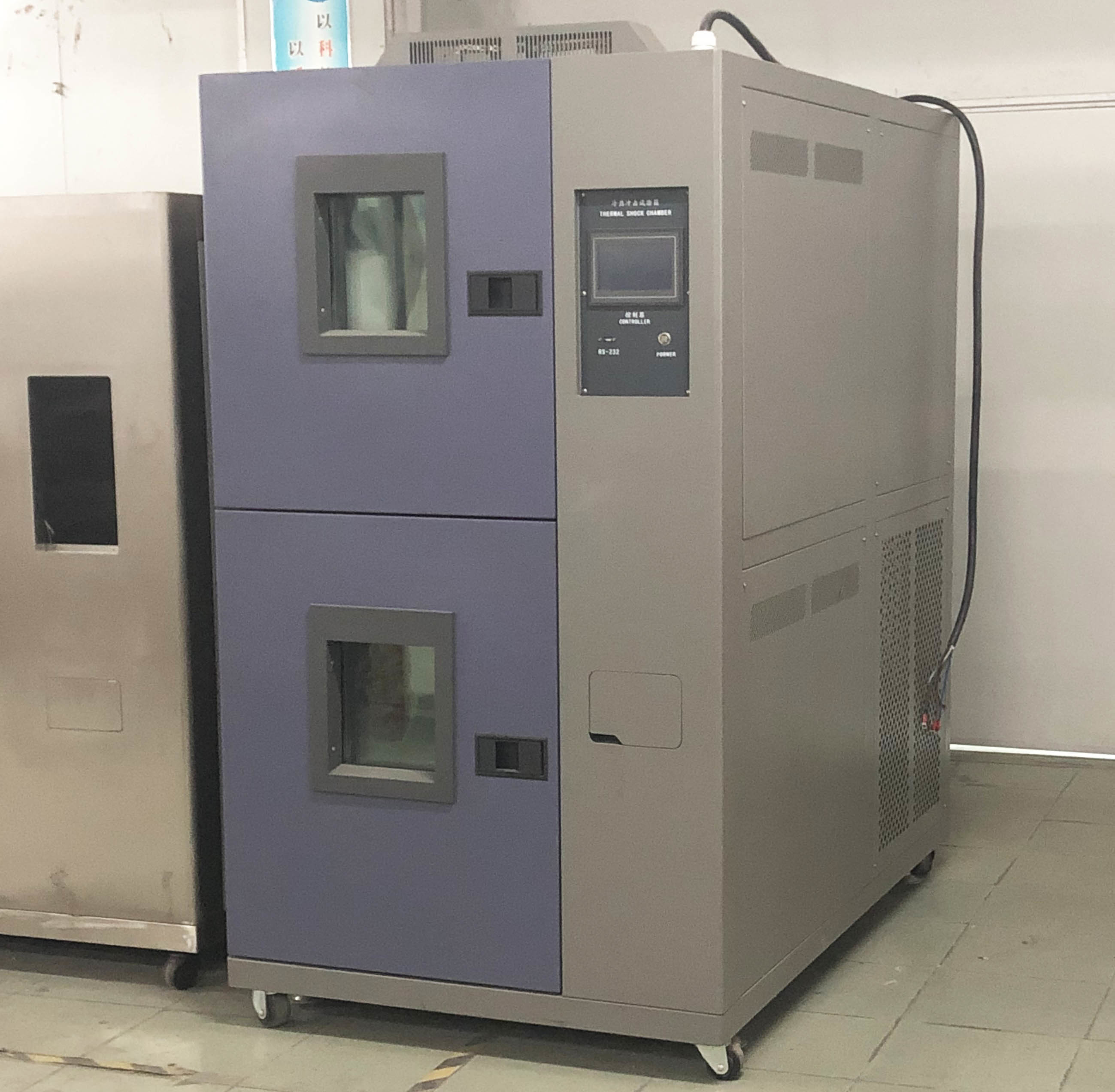

LIYI 80L Thermal Shock Test Chamber Hot Zone And Cold Zone Separate Control 0

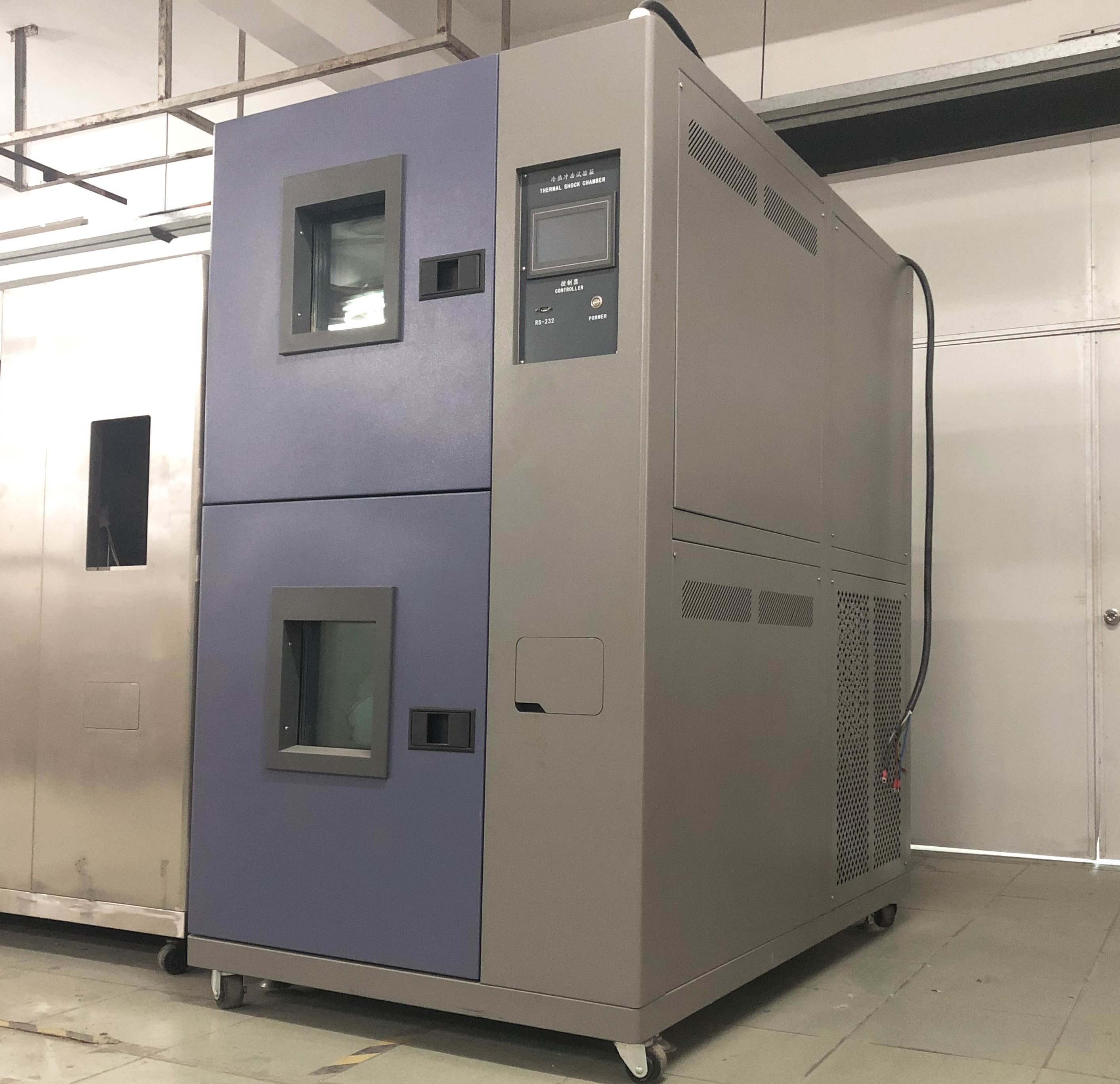

LIYI 80L Thermal Shock Test Chamber Hot Zone And Cold Zone Separate Control 1
