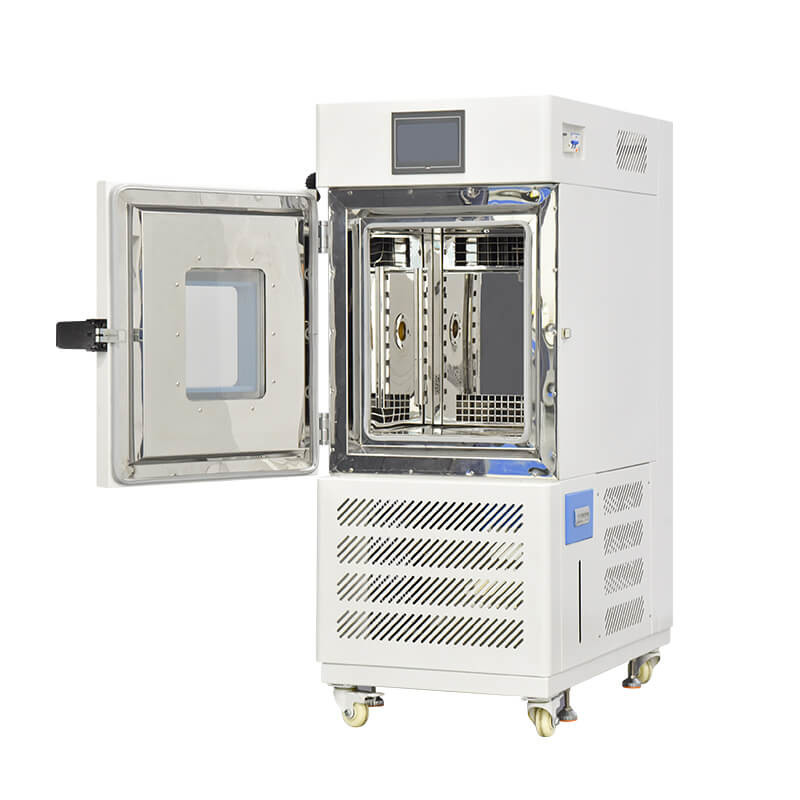

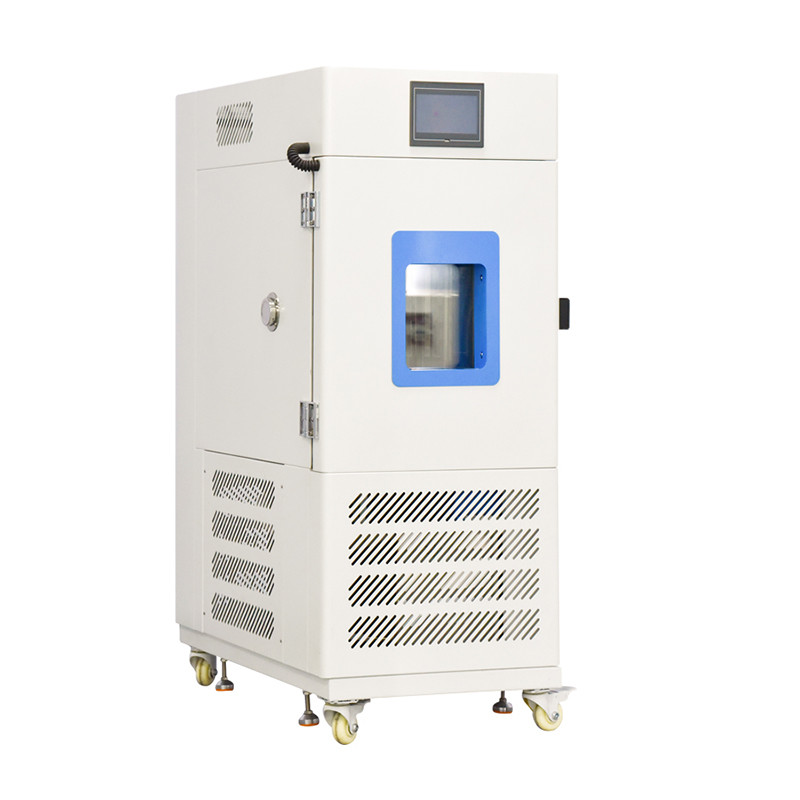

LIYI Sample Conditioning Temperature Humidity Chamber 80L Benchtop Temperature Chamber
80L Lab Use Benchtop Constant Temperature and Humidity Chamber Sample Conditioning Chamber In Stock is widely used in aviation, aerospace, information, electronics, instrumentation and other industries for the accelerated heat and humidity test of electrical products, materials, parts, equipment, etc. Damp heat test chamber, constant temperature and humidity chamber to evaluate the performance of the sample under given environmental conditions.
Standards:
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
Specifications:
| Model | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 | LY-21000 | |
| Inner size W×H×D(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×100 | |
| External size W×H×D(cm) | 92×138×108 | 102×146×116 | 102×162×126 | 113×172×148 | 150×186×139 | 158×188×168 | |
| Volume(L) | 80 L | 150L | 225L | 408L | 800L | 1000L | |
| Temp & Humi Control Range |
Temp range: A:-20℃～150℃ B: -40℃～150℃ C: -60℃～150℃ D: -70℃～150℃ Humi range: RH20%-98% |
||||||
| Heating & cooling speed | 1.5℃/min (can customize from 1-20℃/min) | ||||||
| Fluctuation | ±0.5℃；±2.5%RH | ||||||
| Deviation | ±0.5℃-±2℃；±3%RH(＜75%RH); ±5%RH(≥75%RH) | ||||||
| Controller | TEMI880, 990, 1500 or customize brands and models | ||||||
| Refrigerator | Fully enclosed piston French Tecumseh compressor(or Semi-closed compressor) | ||||||
| Refrigerants | Dupont(R23+R404) | ||||||
| Test hole | *50mm, 100mm or customize | ||||||
| Power | 1φ 220V AC±10% 50Hz | 3φ 380V AC±10% 50Hz | |||||
Features:
Environmental Test Chambers (ETC) are mainly and widely used for various types of testing such as prototype evaluation, research & development testing, production quality control testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed.
Standard configuration :
●Stainless steel exterior
●Energy-efficient refrigeration with exclusive electronic expansion valve system
●Specialized humidity generation and control
●Unique thermal break construction for extreme testing
●Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
●No fuse breaker, overpressure, overheat and over current protection for compressor, Over temperature protection, overload protection of the blower, dry heat protection
Optional accessories :
●Cable Port: Φ100mm cable port is available
●Shelves
●Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
●Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
●Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.
●Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
