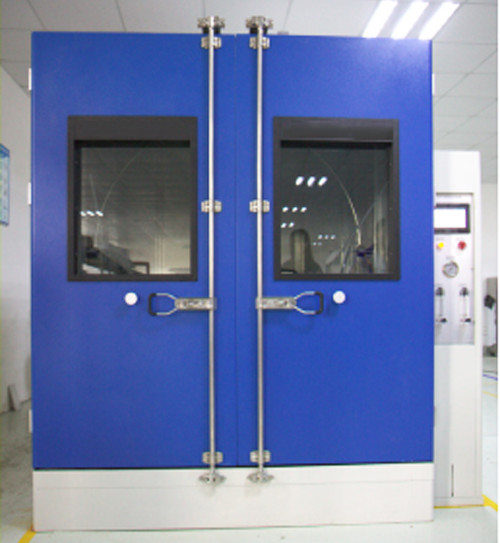

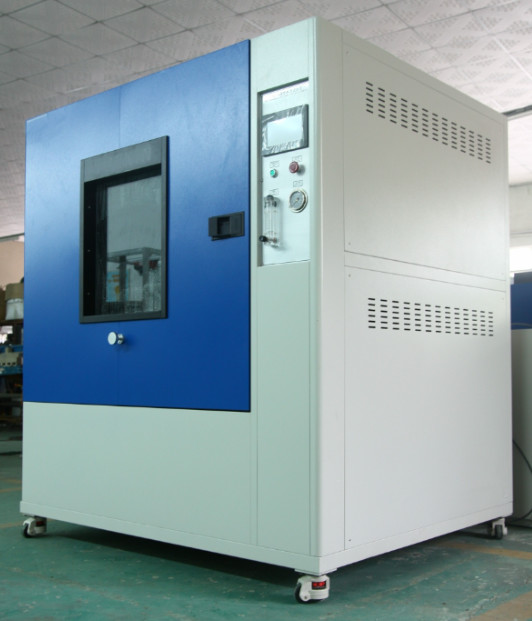

LIYI R800mm Waterproof Test Machine PLC Controller Water Resistance Tester
General application fields:
R800mm IEC60529 IPX3-4 Test Waterproof Test Chamber for Big Samples with PLC Controller is used for outdoor lamps, household appliances, automotive accessories and other electronic and electrical products.
Function of the equipment:
The main function of the R800mm IEC60529 IPX3-4 Test Waterproof Test Chamber for Big Samples with PLC Controller is to test the physical and other related properties of electronic and electrical products, lamps, cabinets, electrical components, automobiles, motorcycles and their components under simulated rainy weather conditions. After testing, the performance of the product can be judged by verification, so as to facilitate the design, improvement, verification and factory inspection of the product.
IEC60529:1989 +A1:1999 +A2:2013
1. Suitable for IPX3 and IPX4 water resistance test requirements.
2. Machine structure: Double pillar structure, easy installation, smooth rotation of swing tube.
3. The shell and turntable of the equipment are all made of SUS304# stainless steel plate, which is not rusty for a long time.
4. Water storage tank is installed in the chassis, water level float valve is installed in the water tank to automatically control the water intake, and alarm detection of high and low water level is provided to effectively prevent the water pump from drying out and damage.
5. Swing drive: imported Panasonic servo motor (servo motor has the advantages of low noise, precise swing speed and angle).
6. Turntable drive: using domestic high-quality stepper motor, speed and angle can be set on touch screen, precisely stepless adjustable within the standard range, and can automatically control forward and backward rotation (suitable for sample electrification test, prevent winding).
7. The test time can be set to 0-999 min (adjustable); the sample power can be controlled by program: power off (0-999 min) - power on (0-999 min) - power off (0-999 min) - power off (0-999 min), which is suitable for the sample in the test.
8. Touch screen function:
A.“IPX3 test”: Test according to IPX3 test condition of standard.
B.“IPX4 test”: Test according to IPX4 test condition of standard.
C.“Custom test”:According to the user's needs, the test can be carried out according to the user's needs. The test time, the angle of rain, the swing speed and the turntable speed can be set.
9. The core control components are 7-inch touch screen + Panasonic PLC. The electrical components are imported brands such as LS and Omron. The wiring process meets the requirements of national standards. The layout of the panel is reasonable, the wiring is firm and the marking is clear.
10. Filtration measures: standard high-precision filters can filter impurities in tap water; filter elements can be replaced regularly.
11. The chassis is equipped with built-in spa
|Swing pipe size||R600mm||R800mm|
|Inner chamber size||L1300* D1300* H1300mm||L1700* D1700* H1700mm|
|Overall size||L2100* D1920* H2150mm||L1800* D1520* H1950mm|
|Spray nuzzle size||D0.4mm|
|Swing pipe ID||15mm|
|Sample turntable size||D800mm|
|Sample turntable load||70kg|
|Sample turntable height||customize|
|Sample turntable speed||1-5r/min(adjustable)|
|Turning method||Always positive/negative transition|
|Swing angle||120º(IPX3),350º(IPX4) or custom|
|Swing speed||240° back and forth 4S,720° back and forth 12S(Precision control) or custom|
|Safety protection||Leakage protection, water shortage protection and short circuit protection|
