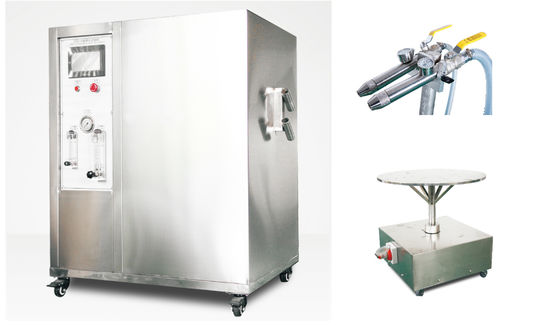

IP Code IPX5/6 Hand-held Type Strong Water Jet Test Machine With Portable Nozzle
Background:
The destruction of products and materials by natural water (rainwater, sea water, River water, etc.) has caused incalculable economic losses every year. The damage mainly includes corrosion, fading, deformation, strength reduction, expansion, mildew and so on. Especially, electrical products are easy to cause fire because of short circuit caused by rainwater. Therefore, it is an essential and key procedure to carry out the shell protection water test for specific products or materials.
General application fields:
outdoor lamps, household appliances, automotive accessories and other electronic and electrical products.
Test Condition:
IPX 5
Method name:Water jet test
Test device:Spray nuzzle inner diameter 6.3mm
Test condition:Make the test sample 2.5m ～ 3m far away from the nuzzle,water flow is 12.5 L/min (750 L/h)
Test time:According to the sample surface area,every square meter 1 min (exclude installation area) , at least 3 min
IPX 6
Method name:Strong water jet test
Test device:Spray nuzzle inner diameter 12.5mm
Test condition:Make the test sample 2.5m ～ 3m far away from the nuzzle,water flow is 100L/min (6000 L/h)
Test time:According to the sample surface area,every square meter 1 min (exclude installation area) , at least 3 min
Standards:
IEC60529:1989 +A1:1999 +A2:2013
Specifications:
| Model | LY-IPX56A | LY-IPX56AL | LY-IPX56AS |
| Overall size | W1000*D800*H1300 | ||
| Turn table size | W600*D600*H800mm | ||
| Water tank capacity | 550L, size around 800×600×1145(mm) | ||
| Turn table size | D600mm | ||
| IPX5 spray nozzle | D6.3mm | ||
| IPX6 spray nozzle | D12.5mm | ||
| IPX5 water flow | 12.5±0.625(L/min) | ||
| IPX6 water flow | 100±5(L/min) | ||
| Flow control method |
Manually adjusting (flow meter) |
Manually adjusting (flow adjusting valve) |
Manually adjusting (flow meter) |
| Spray distance | 2.5-3m(controlled by operator) | ||
| Spray nozzle fixing method | Manually hold | Manually hold(can equip with frame | |
| Turn table max load | 50KG | ||
| Control method | Buttom type | 7 inch touch screen PLC | |
| Power source | 380V, 3.0kw | ||
