LIYI Laboratory Constant Temperature And Humidity Chamber Environment Resistance Testing

1 Set
MOQ
3500~20000USD
Price
LIYI Laboratory Constant Temperature And Humidity Chamber Environment Resistance Testing
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 304# Stainless Steel
Inner Size: 400*500*400mm
Controller: Touch Screen Programmable
OEM: Offered
Voltage: 220V 50HZ
Warranty: 1 Year
Compressor: Tecumseh
Accuracy: 0.5℃ ±2.5%RH
Temperature Range: -40°C~150°C
Humidity Range: 20%~98%
High Light:

high low temperature chamber

,

temperature cycling chamber

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-280
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

LIYI Laboratory Constant Temperature And Humidity Chamber Environment Resistance Testing



     80L Laboratory Intelligent Climate Box Temperature Humidity Chamber for Environment Resistance Testing is widely used in aviation, aerospace, information, electronics, instrumentation and other industries for the accelerated heat and humidity test of electrical products, materials, parts, equipment, etc. Damp heat test chamber, constant temperature and humidity chamber to evaluate the performance of the sample under given environmental conditions.



Standards:

● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test

● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test

● GJBl50.3-2009(MIL-STD-810D) High Temperature Test

● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test

● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test

● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test

● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test



LIYI Laboratory Constant Temperature And Humidity Chamber Environment Resistance Testing 0



Specifications:

Model LY-280 LY-2150 LY-2225 LY-2408 LY-2800 LY-21000
Inner chamber size w×h×d(cm) 40×50×40 50×60×50 50×75×60 60×85×80 100×100×80 100×100×100
Exterior chamber size w×h×d(cm) 90×140×95 100×150×105 100×165×115 110×175×135 150×190×135 150×190×155
Testing temperature range -73℃ ,-60℃,-40℃,-20℃,0℃~150℃,180℃
Testing humidity range 20%RH~98%RH(10%RH~98%RH Or 5%RH~98%RH)
Performance

Temp.humi.

fluctuation

±0.2℃,±0.5%RH

Temp.humi.

uniformity

±1.5℃;±2.5%RH(RH≤75%),±4%(RH>75%)empty load,after stabilization

Temp.humi.

resolution

0.01℃;0.1%RH
Heating-up time 10 0 15 0
min 30 40 30 40 30 45 30 45 30 45 30 45
Cooling-drow time 0 -20 -40 -60 -70
min 25 40 50 70 80
Material Exterior chamber material Stainless steel+Powder coating
Interior chamber material SUS#304 Stainless steel
Insulation material PU fiberglass wool
System Air circulation system Cooling fan
Heating system SUS#Stainless steel high-speed heater
Humidification system Surface evaporation system
Refrigeration system Imported tecumseh compressor+fin type evaporator+air(water)cooling system
Dehumidifying system ADP critical dew point cooling/dehumidifying method
Controlling system Digital electronic indicator+SSR+PID
Other components Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable)
Safety protection device Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lamp
Power supply AC 1 phase 220V;3 phase 380V 60/50Hz
Customization service Non-standard or special requirements are all welcome



Features:

  • Uncover test unit weakness in a short-term test with accelerated time effect.
  • Each programme can do 999 times or repeat, operation interface is English. It is with fault warning and protecting function, RS-232 communication interface, attached PC software available for far control.
  • The shelves can be equipped more according to customers' requirements and the space between shelves can be adjusted.
  • Independent audible and visible temperature-limiting alarm system ensures experiments run safely.

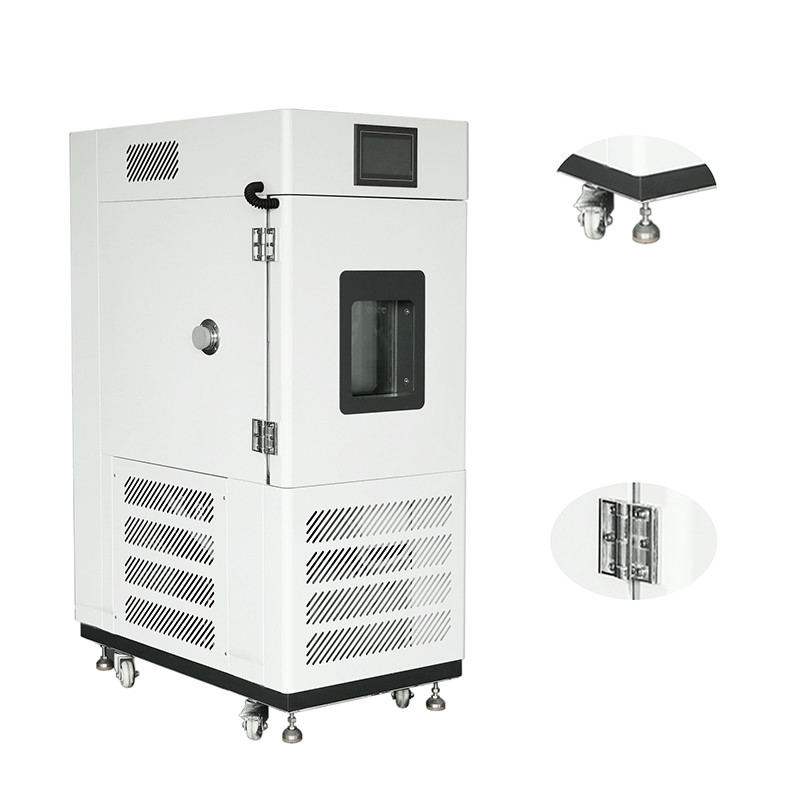

LIYI Laboratory Constant Temperature And Humidity Chamber Environment Resistance Testing 1

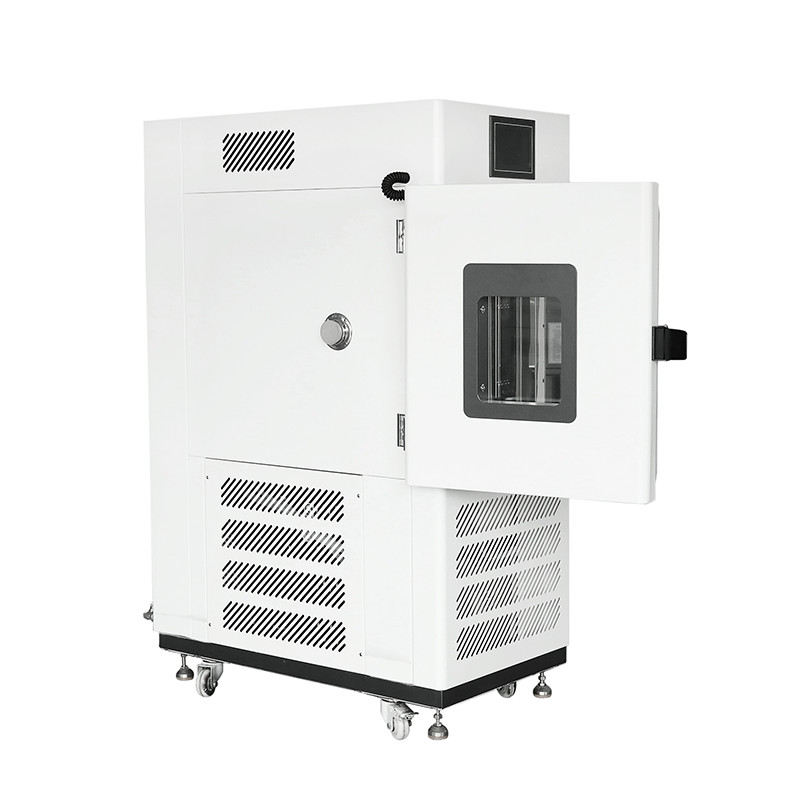

LIYI Laboratory Constant Temperature And Humidity Chamber Environment Resistance Testing 2

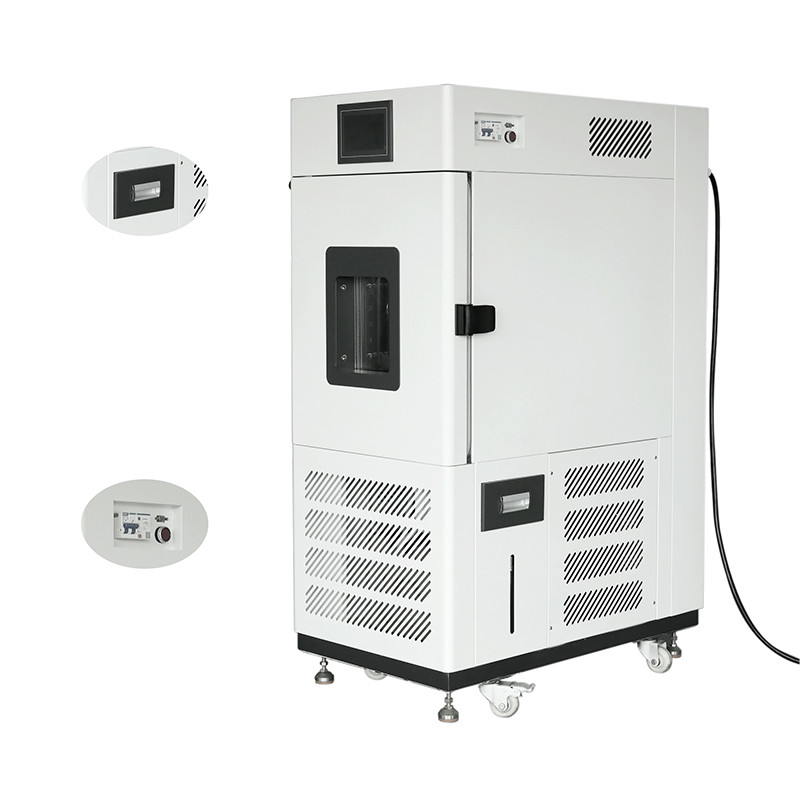

LIYI Laboratory Constant Temperature And Humidity Chamber Environment Resistance Testing 3

LIYI Laboratory Constant Temperature And Humidity Chamber Environment Resistance Testing 4







Standard configuration :



●Stainless steel exterior



●Energy-efficient refrigeration with exclusive electronic expansion valve system



●Specialized humidity generation and control



●Unique thermal break construction for extreme testing



●Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m


●No fuse breaker, overpressure, overheat and over current protection for compressor, Over temperature protection, overload protection of the blower, dry heat protection





Optional accessories :



●Cable Port: Φ100mm cable port is available


●Shelves


●Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.


●Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.


●Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.


●Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
