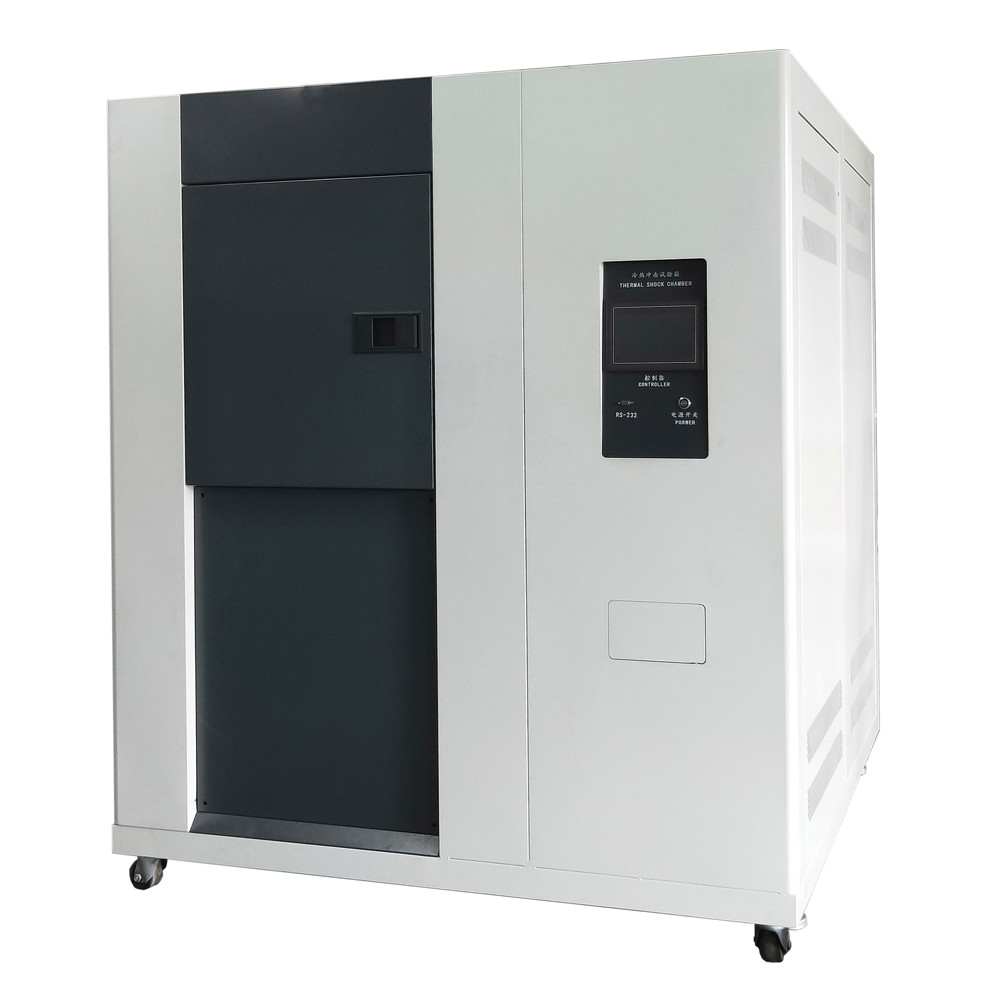

Single Door Thermal Shock Test Equipment Touch Screen Thermal Shock Chamber
1 Set
MOQ
10000~50000USD
Price
Single Door  Thermal Shock Test Equipment Touch Screen Thermal Shock Chamber
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-TS80
High Light:

thermal shock test machine

,

impact test equipment

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Material: 304# Stainless Steel
Inner Size: 400*500*400mm (can Customize)
Controller: Touch Screen Programmable
Voltage: 380V
Compressor: Tecumseh
Temperature Range: -40°C~150°C
Temperature Recovery Time: Less Than 5min
Uses: Thermal Shock Chamber
Product Description

Single Door Stainless Steel Plate 3-Zone Thermal Shock Chamber Thermal Test Equipment



Machine introduction:

      Single Door Stainless Steel Plate 3-Zone Thermal Shock Chamber Thermal Test Equipment is metal, plastic, rubber, electronics and other industries necessary testing equipment. For the continuous exposure to extremely high temperature, very low temperature environment, instant exposure of the material structure or composite material tolerance, can be detected in the shortest possible time due to thermal expansion and contraction caused by chemical or physical damage.
      Single Door Stainless Steel Plate 3-Zone Thermal Shock Chamber Thermal Test Equipment meets today's environmental stress screening requirements and is proven in installations around the world. It's an economical way to achieve ESS or thermal shocks for rapid component temperature changes.

      The thermal shock chamber of this type is provided with three dampers, i.e., one for opening or closing the gas outlet and intake of the high-temperature air conditioning unit, another for the air outlet and inlet of the outside air supplying unit, and another for the gas outlet and intake of the low-temperature air conditioning unit.



Standards:

1. GB/T2423.1-1989
2. GB/T2423.2-1989
3. GB/T2423.22-1989
4. GJB150.5-86
5. GJB360.7-87
6. GJB367.2-87 405
7. SJ/T10187-91Y73
8. SJ/T10186-91Y73
9. IEC68-2-14
10. GB/T 2424.13-2002
11. GB/T 2423.22-2002
12. QC/T17-92
13. EIA 364-32

Single Door  Thermal Shock Test Equipment Touch Screen Thermal Shock Chamber 0



Specifications:



1. High Temp.chamber +20℃ ~ +180℃
2. High temp.chamber heat up time +20℃ ~ +180℃ 56min no load
3. Low Temp.chamber -10℃ ~ -65℃
4. Low Temp.chamber pull down time -10℃ ~ -65℃ 57min no load
5. Temp.uniformit ±2.0℃
6. Humidity constancy ±0.5℃
. Structure
1. Chamber size W 400 × H 500 × D 400 mm (can customize)
2. Exterior size About W 1700 × H 1820 × D 1850 mm
3. Chamber Structure Have independent product test area, high temperature regenerative zone, low temperature storage area
4. Interior material Stainless Steel Plate(SUS 304#)
5. Exterior material Steel Paint
6. Insulation material

High Temp.chamber:24k Glass fibre wool

Low Temp.chamber:PU Foam+Glass fibre wool

7. Heater Open wire electric heater

8. Supply air

circulation system

a.Dongyuan motor

b.Stainless steel plate lengthened axle

c.Sirocco fan

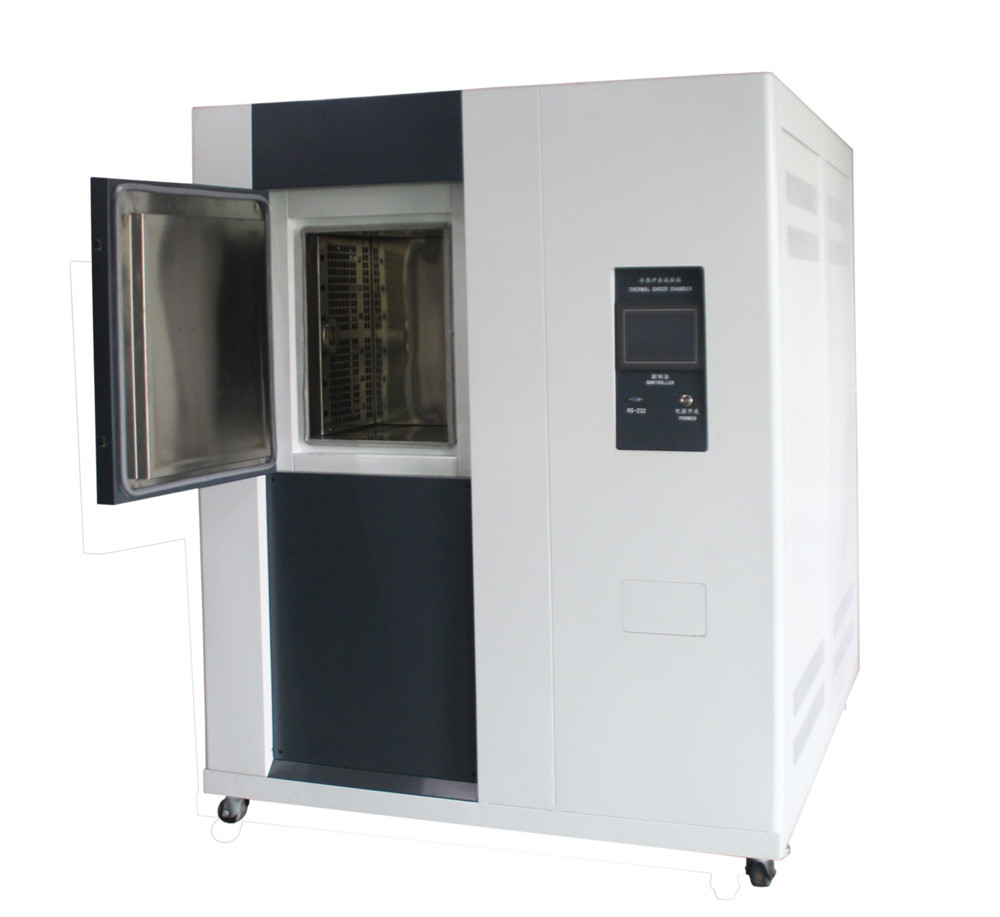

9. Chamber Door

Single door

a. Plane embedded handle

b. Back button: SUS 304#

c. Silicone foam strip

.Refrigeration system
1. Compressor

Germany Bock Semi-hermetic compressor or

Germany Semi-hermetic compressor

2. Refrigerant R404A/R23 ,safe and no ozone damage
3. Condenser Shell and tube condenser ( water cooled )
4. Evaporator High efficiency fin type auto load adjusted evaporator, no frost for long time operation.
5. Other Accessories

High-precision expansion valve, oil separator, desiccant, etc. components

are imported using internationally renowned brands

6. Refrigerant

flow control

Automatic adjustment of energy consumption output of the

refrigeration system.

7. Refrigeration Technology

Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable.

water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber.



Single Door  Thermal Shock Test Equipment Touch Screen Thermal Shock Chamber 1



Since the cold chamber need huge cooling capacity for shocking, the chamber’s cooling mode is often designed as air-cooled or water-cooled.



Air-cooled type need installation environment:
The room must be equipped with exhauster and air conditioner to make sure heat dissipation timely.
It’s applied to small power products and cool areas.



Water-cooled type need installation conditions:
The customer must prepare water pipe and water tower (located outside) accordingly.
The water must be pure, or it will block the pipes and result in some maintenance trouble with time going.
It’s often applied to large system with the features of better heat dissipation, longer service time, low noise but slightly higher price if count the fee of water tower and water pipes.



Single Door  Thermal Shock Test Equipment Touch Screen Thermal Shock Chamber 2

Single Door  Thermal Shock Test Equipment Touch Screen Thermal Shock Chamber 3



Single Door  Thermal Shock Test Equipment Touch Screen Thermal Shock Chamber 4





Our service:

During the whole business process, we offer Consultative Selling service.



1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
