Thermal Cycling Test Constant Humidity Chamber -70 - +150 Degree

1 Set
MOQ
4000~20000USD
Price
Thermal Cycling Test Constant Humidity Chamber  -70 - +150 Degree
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 304# Stainless Steel
Volumn: Customize Size
System: Balanced&Humidity Control System
Accuracy: 0.5℃ ±2.5%RH
Temperature Range: -40°C~150°C/-70°C~150°C
Humidity Range: 20%~98% / 5%~98%
Heating Rate: Standard Around 3°C/min (can Customize)
Cooling Rate: Standard Around 1°C/min (can Customize)
High Light:

temperature and humidity chamber

,

environmental simulation chambers

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-21000F
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

Double Door -70~+150 Degree Thermal Cycling Test Constant Humidity Chamber

       Double Door -70~+150 Degree Thermal Cycling Test Constant Humidity Chamber   is widely used to do accelerated damp and thermal testing, alternating temperature test and constant temperature test,etc in aerospace, aviation, electronics, automobiles, batteries and other industries, and also could do routine tests at high and low temperatures. Storage at low temperature to evaluate the performance of the specimen under given environmental conditions.
        Providing virtual space to simulate the real environment, to verify the product inspection and R & D results for aerospace, aviation, electronics, automobile, battery and other products and quality inspection institutes, research institutes, colleges and universities and other experimental units. the test chamber is to shorten the development period. An indispensable right-hand man to improve product quality and reliability.



Standards:
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test

Specifications:

Model LY-280 LY-2150 LY-2225 LY-2408 LY-2800 LY-21000
Inner Size W×H×D(cm) 40×50×40 50×60×50 50×75×60 60×85×80 100×100×80 100×100×1000
External Size W×H×D(cm) 93×155×95 100×148×106 117×166×118 122×176×121 158×186×148 158×195×168
Volume(L) 80 L 150L 225L 408L 800L 1000L
Temp&Humi Control Range

Temp. Range: A: -20℃~100℃ humidity range: 20%~98%

B: -40℃~150℃

C: -70℃~150℃

(Other temperature and humidity range can be customized)

Temp&Humi Fluctuation ±0.5℃;±2.5%RH
Temp&Hum Departure ±0.5℃-±2℃;±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller Resolution ±0.3℃;±2.5%RH
Controller Brand LCD touch screen controller
Material In side wall SUS 304# stainless steel plate
Housing Steel plate surface fog processed or color painted
Heat Insulator resistance to high temperature, high chlorine acid b vinegar foam insulation materials
Air Circulation Way centrifugal fan-broadband type force air circulation
Refrigeration Way cascade type multiple refrigeration
Refrigerator fully enclosed piston compressor Tecumseh France
Refrigerants R4O4Aor American Dupont environmental protection cold media(R23+R404)
Condensing Way Air-cooling
Heater nickel chrome heating wire heater
Humidifier semi-closed steam
Water Supply Way automatic cycle water supply
Standard Accessories

* 50mm test hole on the left............................................................1PCS
* PL inner lamp................................................................................1PCS
* Adjustable clapboard.....................................................................2PCS
* Humidity cloth...............................................................................1Bag
* Fuses..............................................................................................3PCS
* Power line.......................................................................................1PCS
* Software CD....................................................................................1PCS
* Operation manual.............................................................................1PCS

Safety Devices

* Leakage current
* Overload
* Compressor overload
* Over temperature
* Ultra-wet/dry
* Humidification temperature protection.

Power Single phase 220V AC±10% 50/60HZ

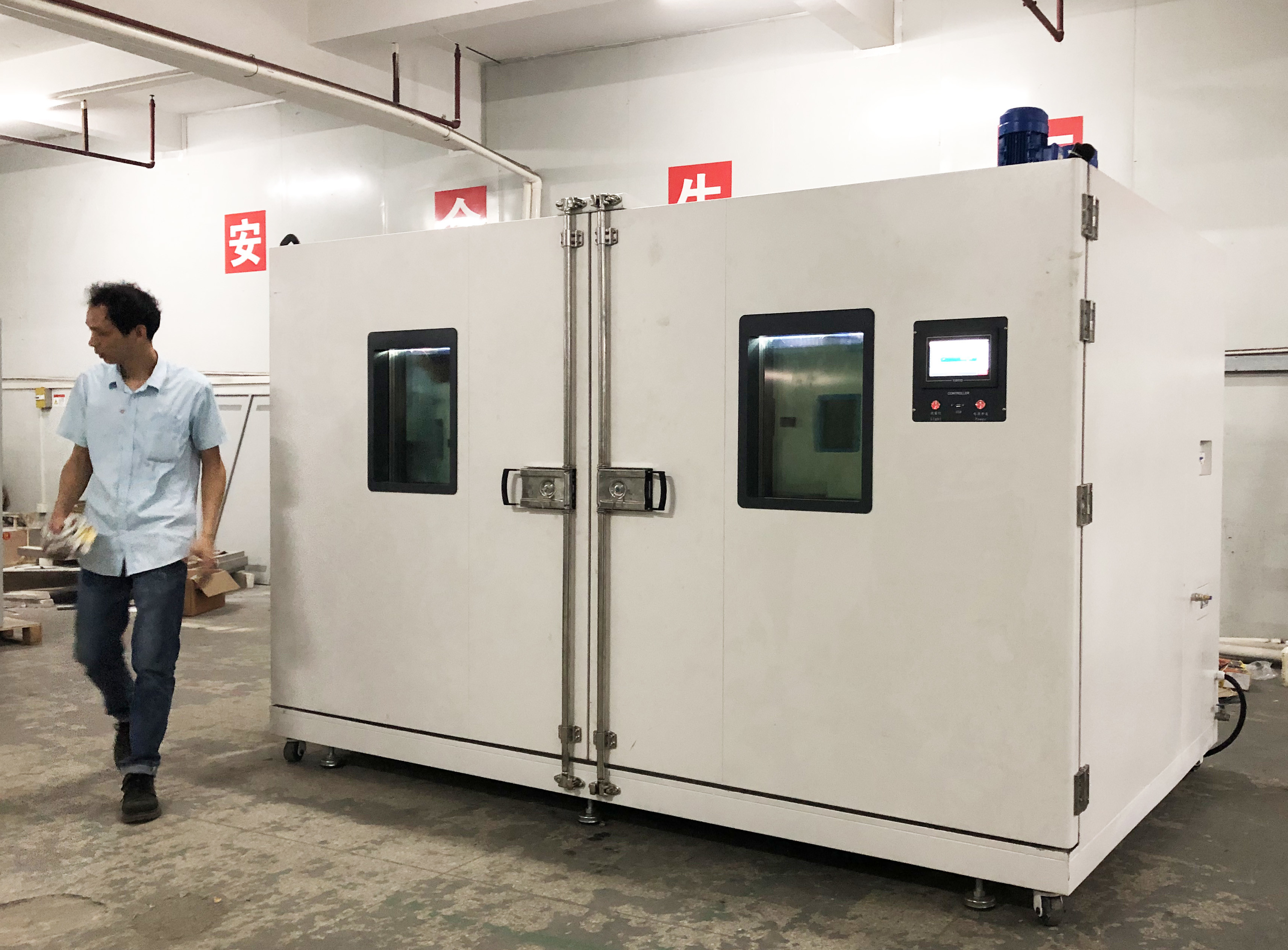

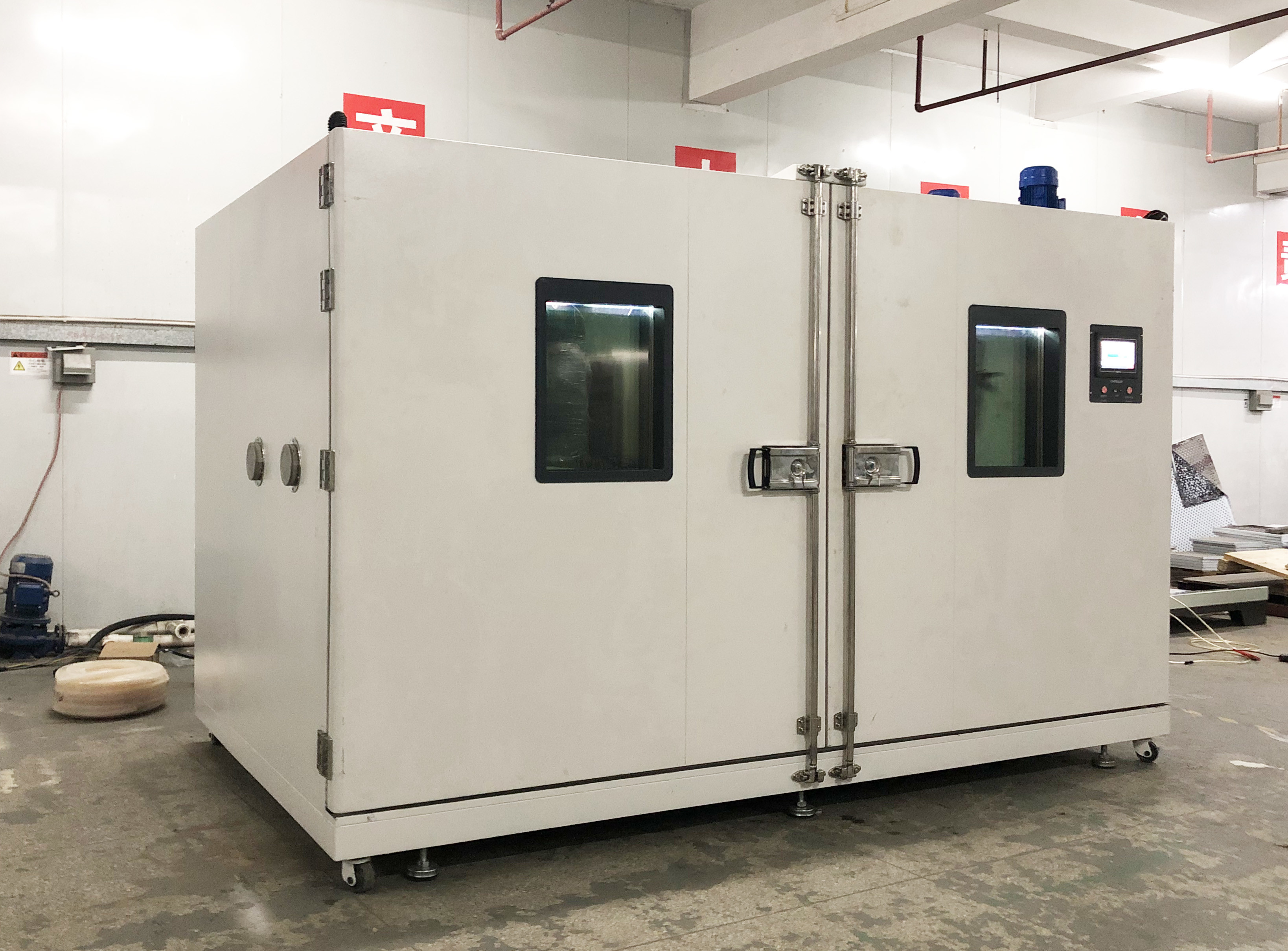

Thermal Cycling Test Constant Humidity Chamber  -70 - +150 Degree 0Thermal Cycling Test Constant Humidity Chamber  -70 - +150 Degree 1

Features:
1. Environmental Simulation Climatic Test Chamber With Balanced Temperature Humidity Control System is composed of the chamber, refrigeration systems, heating systems, air circulation system and control system.
2. Battery Explosion-proof High Low Temperature Test Chamber is made of high quality SUS#304 stainless steel material,the outer shell adopts A3 steel plate,surface electrostatic spraying.
3. Insulation system uses superfine fiberglass wool or polyurethane foam so as to ensure the temperature of inside chamber.
4. Temperature and humidity control adopts programmable touch screen temperature and humidity controller, with automatic calculation of PID function.
5. Adopts steam humidifying method, automatic water circulation loop,with functions of automatic filling water.
6. Refrigeration system adopts original France "Taikang" refrigeration unit and full sets of refrigeration parts.
7. Input mode PT100 sensor.
8. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate.
9. Powerful multi-wing type air circulation which can ensure even temperature distribution inside the working chamber.
10. With larger transparent viewing window and lighting inside to observe the test.
11. Door seal adopts silicone rubber material which can avoid aging and hardening in high and low temperature conditions.
12. Standard configuration with one test hole on the left side of the chamber for easy testing operation and temperature measurement.
13. With various of safety protection device such as leakage and outage protection,compressor overpressure protection,overload fusing protection,audio signal alarm.


What you will get:

• LED Touch Screen

• PID Control of Temperature and Humidity

• Both Temperature and Humidity are Programmable (can have 100pattern, each pattern has 999 segment)

• With Humidity Sensor

• With RS485/232 output to computer

• Window Software

• Remote fault notification(opntional)

• With Viewing Window

• With thermostats (prevent overheat)

• Cable Ports(50mm diameter)

• With Data Storage fuction by USB Flash Memory

• Protection (phase protection, overheat, overcurrent etc)

• Water Tank with level detector

• Adjustable Shelf

• Anti-condensation technology of the workroom .(Optional)

• User friendly three color LED indicator lamp ,easy to read working condition


Thermal Cycling Test Constant Humidity Chamber  -70 - +150 Degree 2

FAQ:

1. Are your a trading company or a factory?
Re: We are factory with 15 years manufacturing experience and export to more than 100 countries all over the world in past 9 years or exporting..

2. After an order is placed, when to deliver?
Re: Generally about 20-30 working days, standared products most of time we can arrange shipment within 3 working days.

3. What about the warranty with after - sales services?
Re: 12 months free warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

4. What about the services and product' quality?
Re:Service: OEM service,Design service,Buyer lable service.Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.

5. How to install and training?
Re: If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come LIYI factory to learn how to installation and use.

Customer can also choose to require our engineer to go for onsite installation if needed.
