LIYI Touch Screen Controller ESS Chamber Temperature Cycling Test Chamber

1 Set
LIYI Touch Screen Controller ESS Chamber Temperature Cycling Test Chamber
Features Gallery Product Description Request A Quote
Material: 304# Stainless Steel
Inner Size: 100*100*80cm
Controller: Touch Screen Programmable
Voltage: 3 Phase 380V
Temperature Range: -40°C~150°C/-70°C~150°C
Changing Speed: 5C/min, 10C/min, 15C/min, 20C/min
Cooling Method: Water Cooled
Humidity Control: 5%~98% (optional)
High Light:

controlled humidity chamber


environmental stress screening chamber

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-2800ES
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

LIYI Touch Screen Controller ESS Chamber Temperature Cycling Test Chamber



       10℃/min Ramp Rate Environmental Chamber Testing -40~+85℃ Temperature Cycling Test Chamber is suitable for electrical, electronic, mechanical and other products, parts, materials, etc. for low temperature cold test, high and low temperature test and other products reliability test,With temperature and humidity control accuracy and wide control range,Performance indicators in line with GB5170. requirements..


Sample requirements
       In order to make your test data more realistic and effective,The test chamber must be used reasonably while meeting the following principles:
The total mass of the load is not more than 80Kg per cubic meter of studio volumeThe total volume of the load cannot be greater than 1/5 of the working chamber volume
       On any section perpendicular to the dominant wind direction,The sum of the load areas should be no more than 1/3 of the cross-sectional area of the working chamber.Do not block the flow of airflow when the load is placed.




Model LY-2225ES LY-2408ES LY-2800ES LY-21000ES
Inner size W×H×D(cm) 50×75×60 60×85×80 100×100×80 100×100×100
External size W×H×D(cm) 102×162×126 113×172×148 150×186×139 158×188×168
Volume(L) 225L 408L 800L 1000L
Temp & Humi Control Range

Temp range: A:-20℃~150℃ B: -40℃~150℃ C: -60℃~150℃ D: -70℃~150℃

Humi range: RH20%-98%

Heating & cooling speed





Fluctuation ±0.5℃;±2.5%RH
Deviation ±0.5℃-±2℃;±3%RH(<75%RH); ±5%RH(≥75%RH)
Controller TEMI880, 990, 1500 or customize brands and models
Refrigerator Fully enclosed piston French Tecumseh compressor(or Semi-closed compressor)
Refrigerants Dupont(R23+R404)
Test hole *50mm, 100mm or customize
Power 3φ 380V AC±10% 50Hz



1. Rational Construction and fast cooling rate
2. Frequency conversion control of wind speed.
3. Adopts international brand of imported parts for cooling system to improve operation reliability
4. Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
5. Wide variety of refrigeration available for performance and temperature range flexibility.
6. Programmable LCD touchscreen controller for product or air-change available.

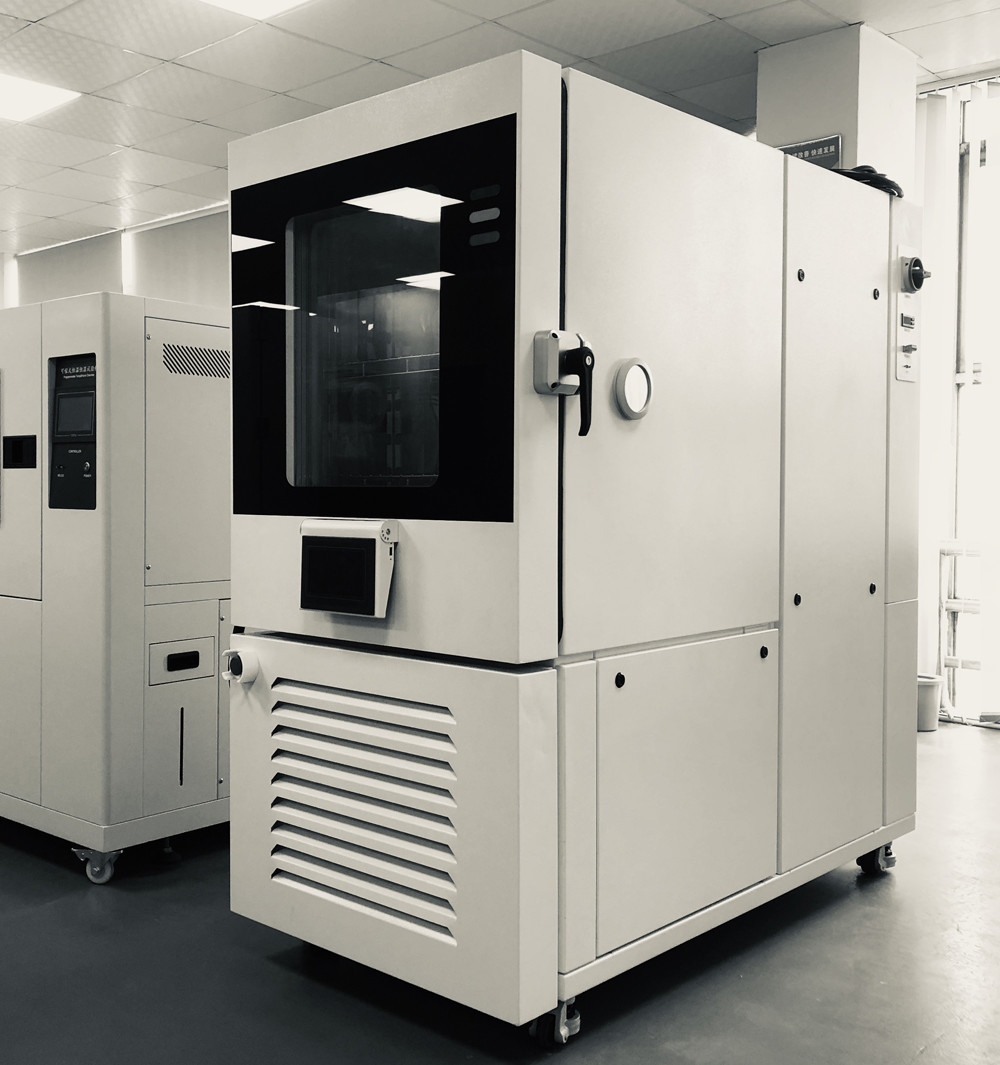

LIYI Touch Screen Controller ESS Chamber Temperature Cycling Test Chamber 0

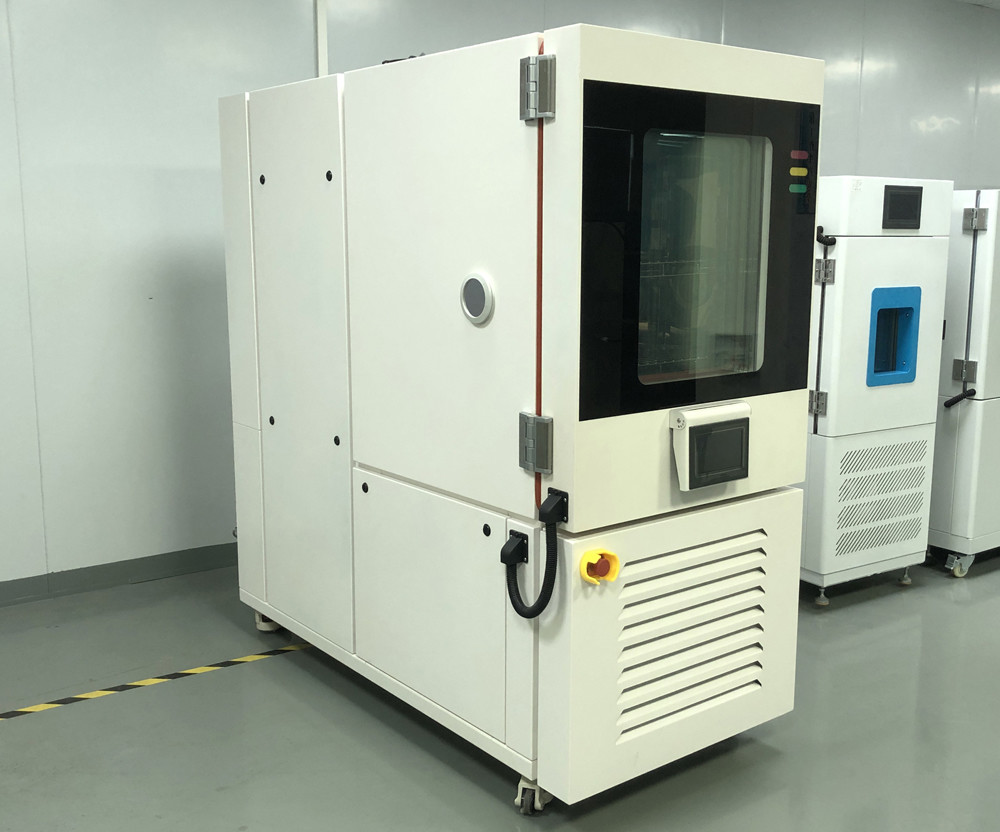

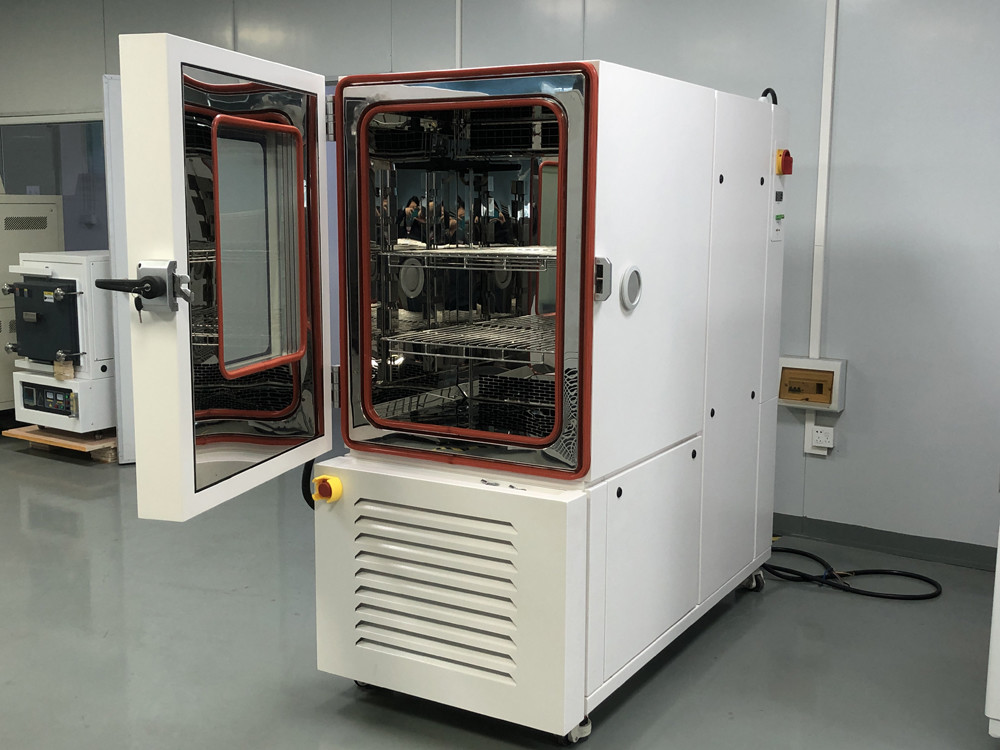

 LIYI Touch Screen Controller ESS Chamber Temperature Cycling Test Chamber 1LIYI Touch Screen Controller ESS Chamber Temperature Cycling Test Chamber 2



Our service:

During the whole business process, we offer Consultative Selling service.


1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
