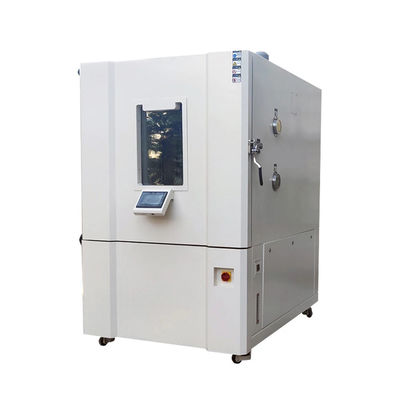

LIYI Ramp Rate ESS Test Chamber Environmental Stress Screening Chamber
During the ESS Stress Screening Test ,the product are subjected to precisely stressed so that defects in electric components and PCBs can be detected before leaving the manufacturer's plant. Detecting the weak points considerablely improve the robustness of the product because unreliable products are filtered out before they reach the customers and end users.
Sample requirements
In order to make your test data more realistic and effective,The test chamber must be used reasonably while meeting the following principles:
The total mass of the load is not more than 80Kg per cubic meter of studio volumeThe total volume of the load cannot be greater than 1/5 of the working chamber volume
On any section perpendicular to the dominant wind direction,The sum of the load areas should be no more than 1/3 of the cross-sectional area of the working chamber.Do not block the flow of airflow when the load is placed.
Specifications:
| Model | LY-2225ES | LY-2408ES | LY-2800ES | LY-21000ES |
| Inner size W×H×D(cm) | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×100 |
| External size W×H×D(cm) | 102×162×126 | 113×172×148 | 150×186×139 | 158×188×168 |
| Volume(L) | 225L | 408L | 800L | 1000L |
| Temp & Humi Control Range |
Temp range: A:-20℃～150℃ B: -40℃～150℃ C: -60℃～150℃ D: -70℃～150℃ Humi range: RH20%-98% |
|||
| Heating & cooling speed |
5℃/min 10℃/min 15℃/min 20℃/min |
|||
| Fluctuation | ±0.5℃；±2.5%RH | |||
| Deviation | ±0.5℃-±2℃；±3%RH(＜75%RH); ±5%RH(≥75%RH) | |||
| Controller | TEMI880, 990, 1500 or customize brands and models | |||
| Refrigerator | Fully enclosed piston French Tecumseh compressor(or Semi-closed compressor) | |||
| Refrigerants | Dupont(R23+R404) | |||
| Test hole | *50mm, 100mm or customize | |||
| Power | 3φ 380V AC±10% 50Hz | |||
Features:
1. Rational Construction and fast cooling rate
2. Frequency conversion control of wind speed.
3. Programmable LCD touchscreen controller for product or air-change available.
4. Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
5. Wide variety of refrigeration available for performance and temperature range flexibility.
Our service:
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3) Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
