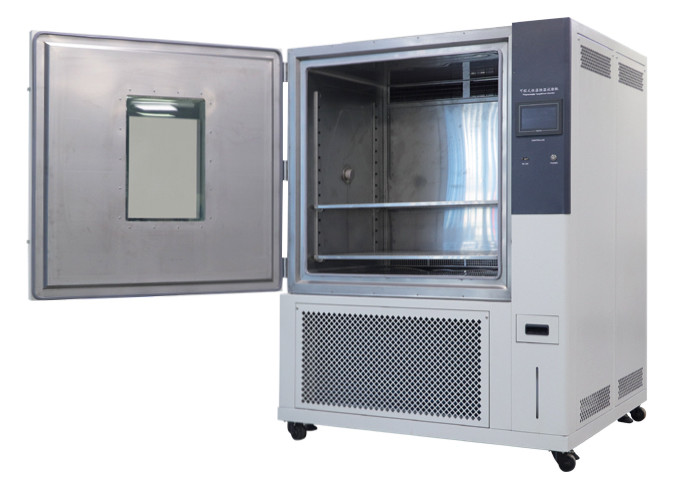

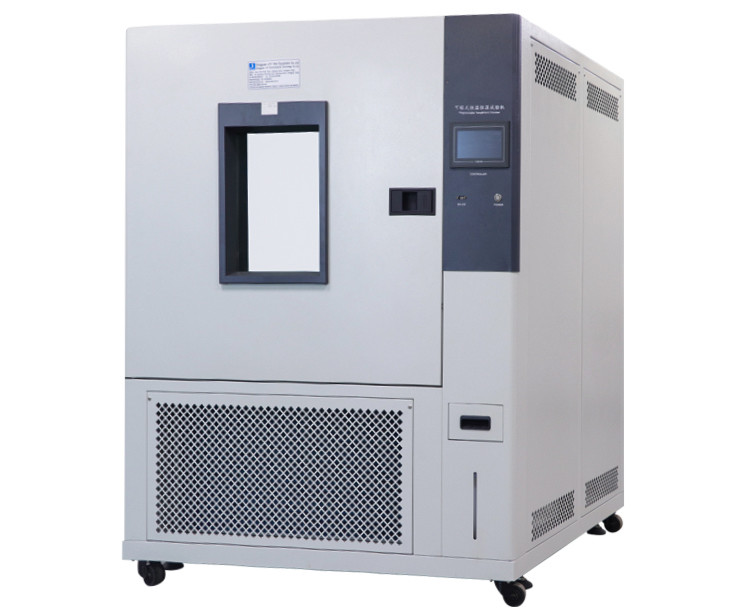

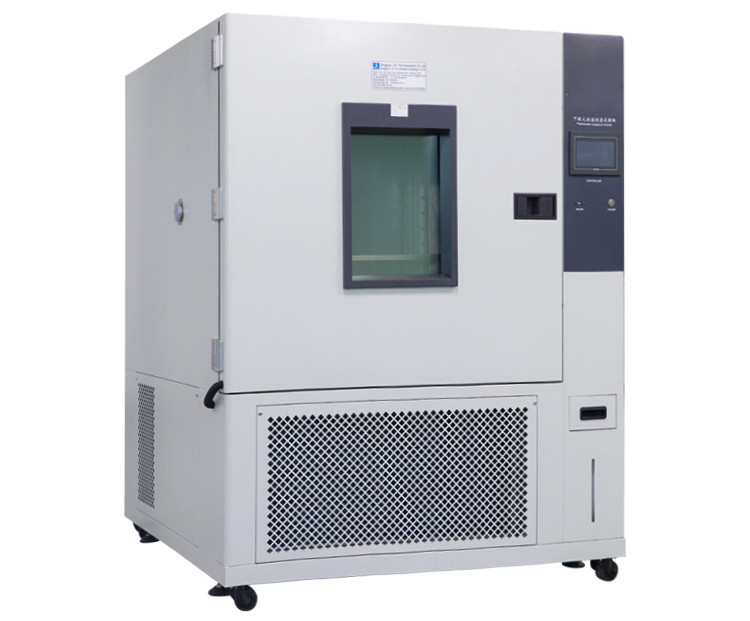

CE Certificated High Accuracy Climatic Test Chamber With Balanced Temperature Humidity Control System
CE Certificated High Accuracy Climatic Test Chamber With Balanced Temperature Humidity Control System is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.
CE Certificated High Accuracy Climatic Test Chamber With Balanced Temperature Humidity Control System is applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
|Inner Size W×H×D(cm)||40×50×40||50×60×50||50×75×60||60×85×80||100×100×80||100×100×1000|
|External Size W×H×D(cm)||93×155×95||100×148×106||117×166×118||122×176×121||158×186×148||158×195×168|
|Temp&Humi Control Range||
Temp. Range: A: -20℃～100℃ humidity range: 20%~98%
(Other temperature and humidity range can be customized)
|Temp&Hum Departure||±0.5℃-±2℃；±3%RH(>75%RH); ±5%RH(≤75%RH)|
|Controller Brand||LCD touch screen controller|
|Material||In side wall||SUS 304# stainless steel plate|
|Housing||Steel plate surface fog processed or color painted|
|Heat Insulator||resistance to high temperature, high chlorine acid b vinegar foam insulation materials|
|Air Circulation Way||centrifugal fan-broadband type force air circulation|
|Refrigeration Way||cascade type multiple refrigeration|
|Refrigerator||fully enclosed piston compressor Tecumseh France|
|Refrigerants||R4O4Aor American Dupont environmental protection cold media(R23+R404)|
|Heater||nickel chrome heating wire heater|
|Water Supply Way||automatic cycle water supply|
*50mm test hole on the left............................................................1PCS
|Power||Single phase 220V AC±10% 50/60HZ|
What you will get:
• LED Touch Screen
• PID Control of Temperature and Humidity
• Both Temperature and Humidity are Programmable (can have 100pattern, each pattern has 999 segment)
• With Humidity Sensor
• With RS485/232 output to computer
• Window Software
• Remote fault notification(opntional)
• With Viewing Window
• With thermostats (prevent overheat)
• Cable Ports(50mm diameter)
• With Data Storage fuction by USB Flash Memory
• Protection (phase protection, overheat, overcurrent etc)
• Water Tank with level detector
• Adjustable Shelf
• Anti-condensation technology of the workroom .(Optional)
• User friendly three color LED indicator lamp ,easy to read working condition
1. Are your a trading company or a factory?
Re: We are factory with 15 years manufacturing experience and export to more than 100 countries all over the world in past 9 years or exporting..
2. After an order is placed, when to deliver?
Re: Generally about 20-30 working days, standared products most of time we can arrange shipment within 3 working days.
3. What about the warranty with after - sales services?
Re: 12 months free warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4. What about the services and product' quality?
Re:Service: OEM service,Design service,Buyer lable service.Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
5. How to install and training?
Re: If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come LIYI factory to learn how to installation and use.
Customer can also choose to require our engineer to go for onsite installation if needed.
