LIYI Simulated Environmental Climate Test Chamber Industrial Grade CE Approved
Our advantages
1. Direct factory with 10+ years manufacturing experience in environmental test equipment.
2. Professional R&D staff with more than 5 years experience in this filed.
3. ISO 9001-2015 certified manufacturer
4. OEM service

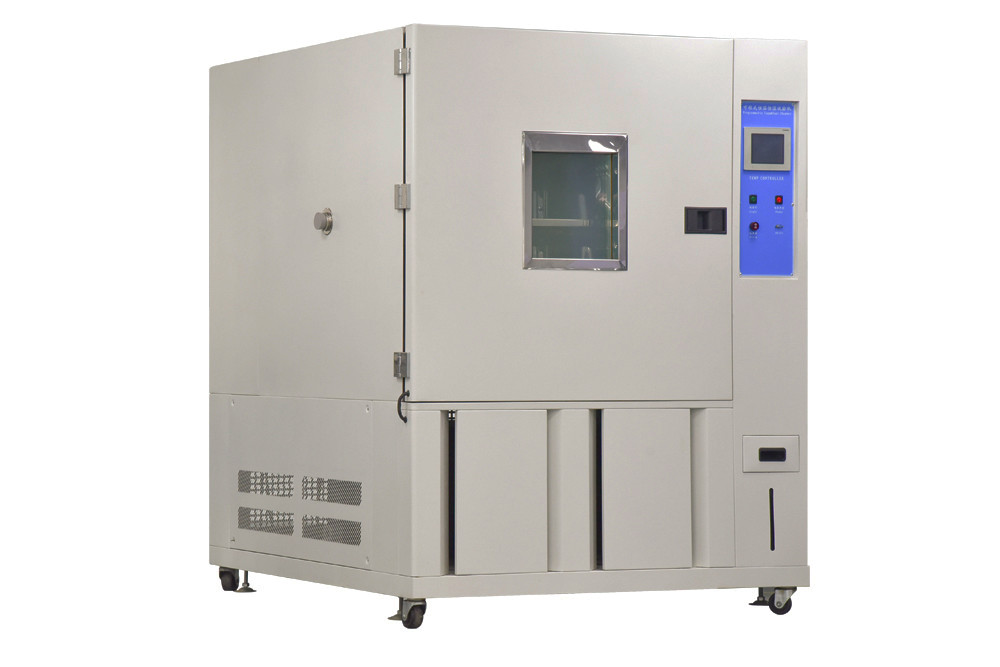

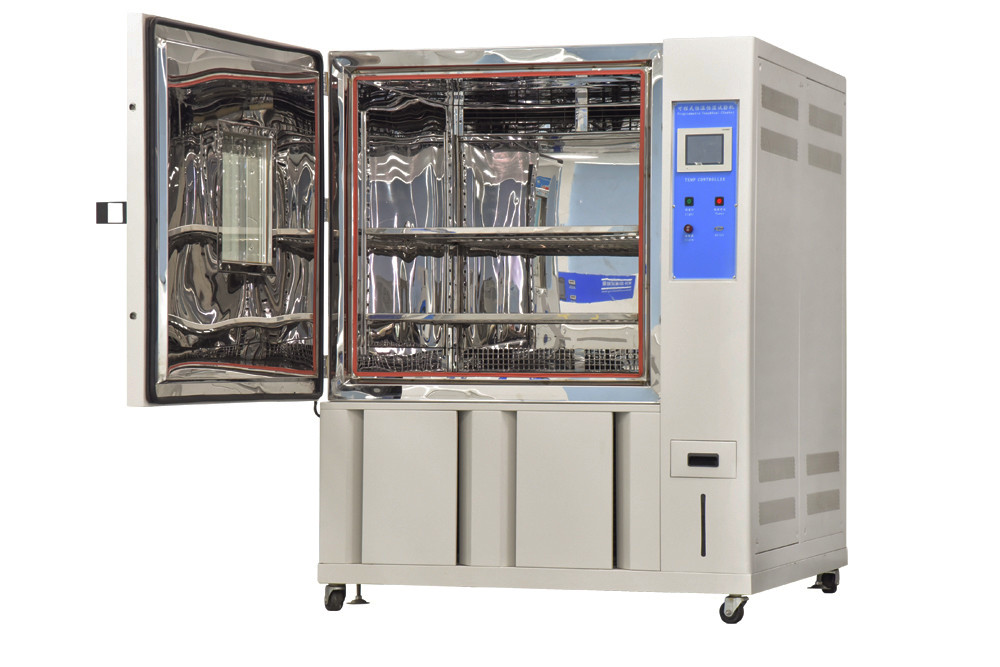

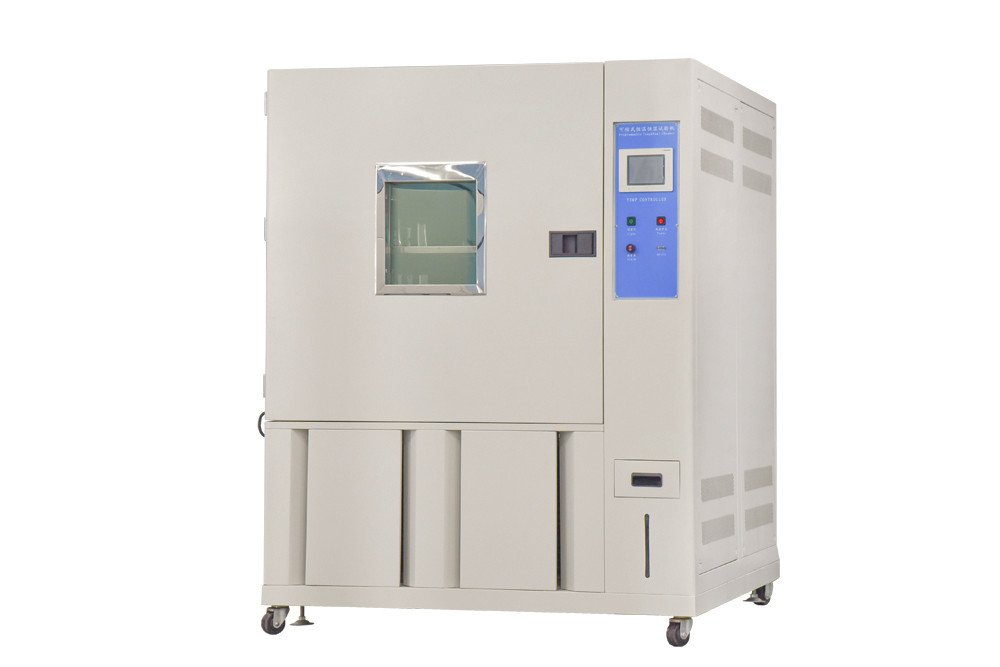

Industrial Grade Simulated Environmental Temperature Humidity Climatic Test Chamber with CE Approved is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.
Industrial Grade Simulated Environmental Temperature Humidity Climatic Test Chamber with CE Approved is applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Standards:
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
Specifications:
| Model | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 | LY-21000 | ||
| Inner chamber size w×h×d(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×100 | ||
| Exterior chamber size w×h×d(cm) | 90×140×95 | 100×150×105 | 100×165×115 | 110×175×135 | 150×190×135 | 150×190×155 | ||
| Testing temperature range | -73℃ ,-60℃,-40℃,-20℃,0℃~150℃,180℃ | |||||||
| Testing humidity range | 20%RH~98%RH(10%RH~98%RH Or 5%RH~98%RH) | |||||||
| Performance |
Temp.humi. fluctuation |
±0.2℃,±0.5%RH | ||||||
|
Temp.humi. uniformity |
±1.5℃;±2.5%RH(RH≤75%),±4%(RH>75%)empty load,after stabilization | |||||||
|
Temp.humi. resolution |
0.01℃;0.1%RH | |||||||
| Heating-up time | ℃ | 10 0 15 0 | ||||||
| min | 30 40 | 30 40 | 30 45 | 30 45 | 30 45 | 30 45 | ||
| Cooling-drow time | ℃ | 0 -20 -40 -60 -70 | ||||||
| min | 25 40 50 70 80 | |||||||
| Material | Exterior chamber material | Stainless steel+Powder coating | ||||||
| Interior chamber material | SUS#304 Stainless steel | |||||||
| Insulation material | PU fiberglass wool | |||||||
| System | Air circulation system | Cooling fan | ||||||
| Heating system | SUS#Stainless steel high-speed heater | |||||||
| Humidification system | Surface evaporation system | |||||||
| Refrigeration system | Imported tecumseh compressor+fin type evaporator+air(water)cooling system | |||||||
| Dehumidifying system | ADP critical dew point cooling/dehumidifying method | |||||||
| Controlling system | Digital electronic indicator+SSR+PID | |||||||
| Other components | Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable) | |||||||
| Safety protection device | Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lamp | |||||||
| Power supply | AC 1 phase 220V;3 phase 380V 60/50Hz | |||||||
| Customization service | Non-standard or special requirements are all welcome | |||||||
FAQ:
1. Are your a trading company or a factory?
Re: We are factory with 15 years manufacturing experience and export to more than 100 countries all over the world in past 9 years or exporting..
2. After an order is placed, when to deliver?
Re: Generally about 20-30 working days, standared products most of time we can arrange shipment within 3 working days.
3. What about the warranty with after - sales services?
Re: 12 months free warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4. What about the services and product' quality?
Re:Service: OEM service,Design service,Buyer lable service.Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
5. How to install and training?
Re: If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come LIYI factory to learn how to installation and use.
Customer can also choose to require our engineer to go for onsite installation if needed.
