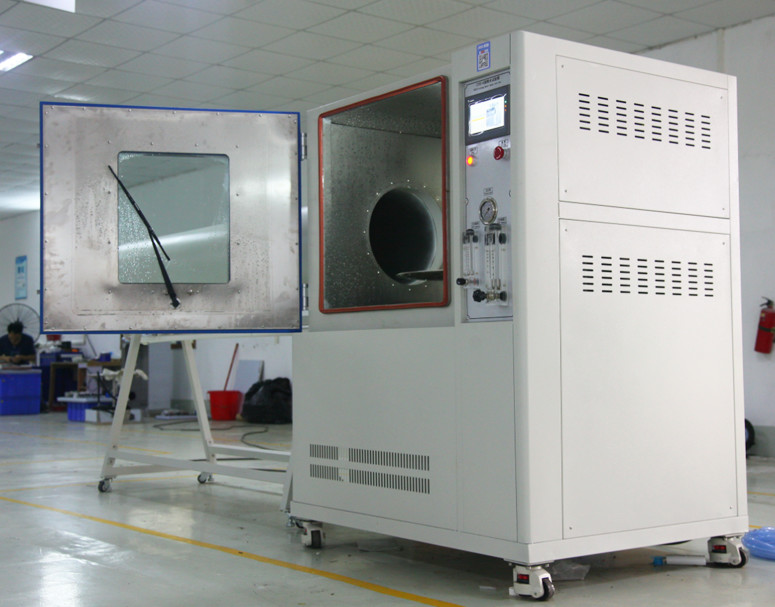

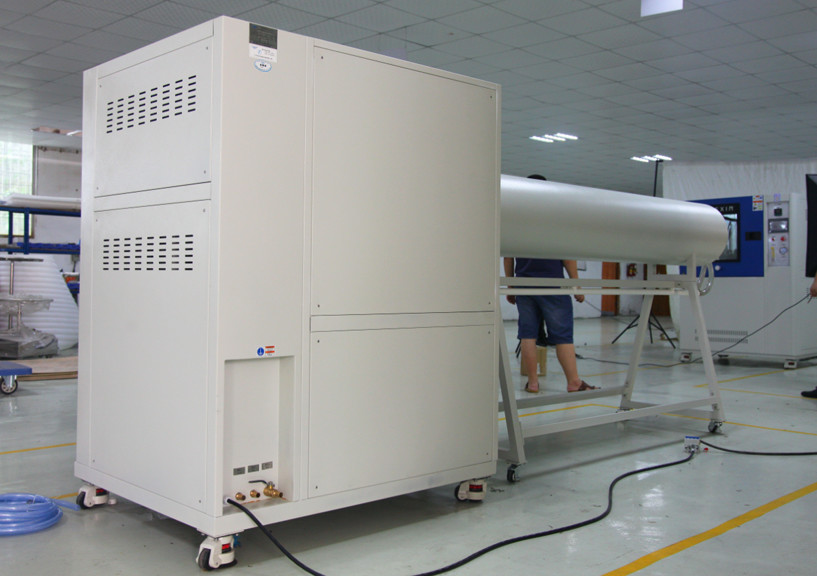

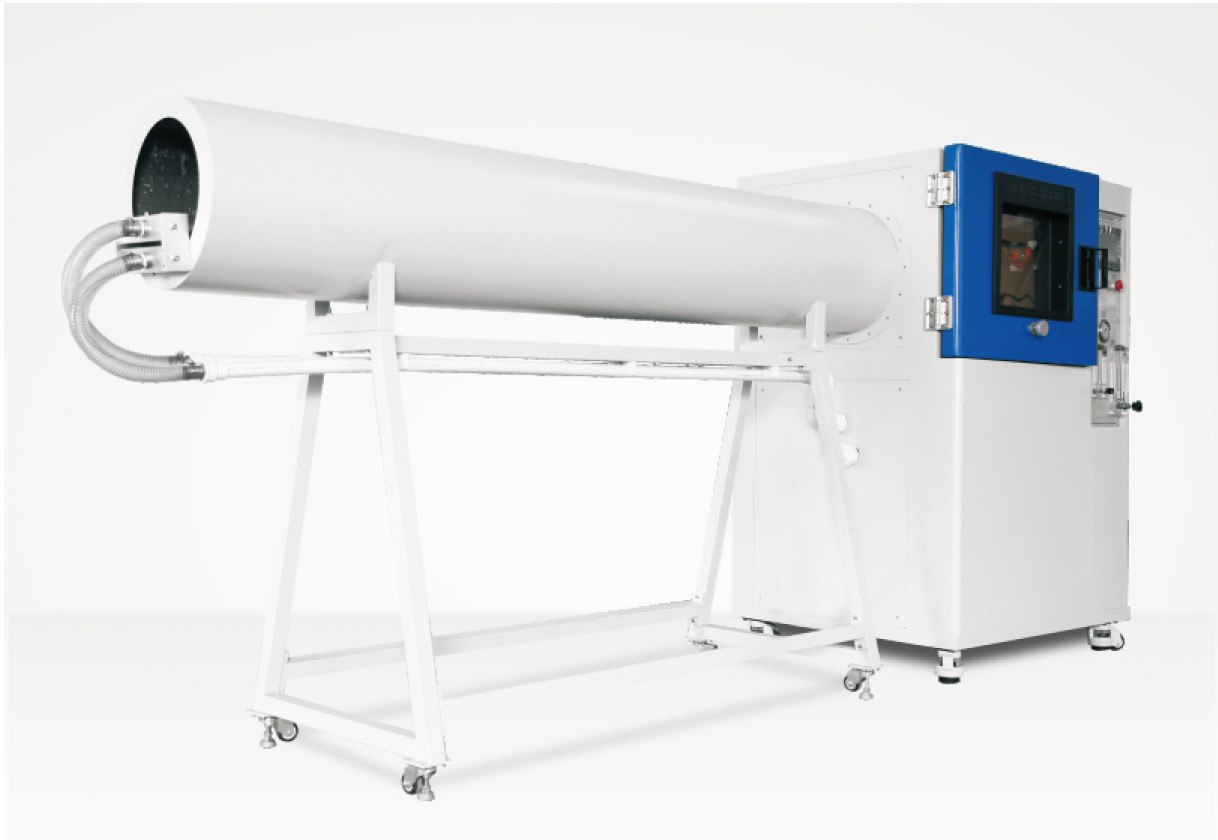

IEC60529 IPX5-6 1000L Strong Water Tet Test Test Chamber with Automatic Water Cycling System
The destruction of products and materials by natural water (rainwater, sea water, River water, etc.) has caused incalculable economic losses every year. The damage mainly includes corrosion, fading, deformation, strength reduction, expansion, mildew and so on. Especially, electrical products are easy to cause fire because of short circuit caused by rainwater. Therefore, it is an essential and key procedure to carry out the shell protection water test for specific products or materials.
General application fields:
outdoor lamps, household appliances, automotive accessories and other electronic and electrical products.
Function of the equipment:
The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, cabinets, electrical components, automobiles, motorcycles and their components under simulated rainy weather conditions. After testing, the performance of the product can be judged by verification, so as to facilitate the design, improvement, verification and factory inspection of the product.
IEC60529:1989 +A1:1999 +A2:2013
|Include water pipe length 2450mm|
OInner chamber size
|Water tank capacity||100L,W500×D450×H450mm|
|Turn table size||D400mm||D600mm||D800mm|
|IPX5 spray nozzle||D6.3mm|
|IPX6 spray nozzle||D12.5mm|
|IPX5 water flow||12.5±0.625(L/min)|
|IPX6 water flow||100±5(L/min)|
|Flow control method||Manually adjusting (flow meter)|
|Water spray distance||2.8m(spray nuzzle to the center of turn table)|
|Spray nozzle fixing method||Mechnical fixing(can manually adjusting spray nuzzle angle)|
|Turn table max load||50KG|
|Water cycle||Can use recycle|
|Control method||7 inch touch screen+PLC|
|Power source||380V, 3.0kw|
