Ramp Rate ESS Test Chamber Environmental Stress Screening Chamber
1 Set
MOQ
10000~50000USD
Price
Ramp Rate ESS Test Chamber Environmental Stress Screening Chamber
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Liyi
Certification: CE ISO
High Light:

controlled humidity chamber

,

environmental stress screening chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Material: 304# Stainless Steel
Price: Negotiable
Capacity: 225L
Power Supply: 3 Phase, 380V, 50Hz
Deviation: ±0.5℃-±2℃;±3%RH
Inner Size: Can Be Customized
Warranty: 1 Year
Product Description

Liyi High 225L Ramp Rate ESS Test Chamber For Environmental Stress Screening Test



During the ESS Stress Screening Test ,the product are subjected to precisely stressed so that defects in electric components and PCBs can be detected before leaving the manufacturer's plant. Detecting the weak points considerablely improve the robustness of the product because unreliable products are filtered out before they reach the customers and end users.



Sample requirements
In order to make your test data more realistic and effective,The test chamber must be used reasonably while meeting the following principles:
The total mass of the load is not more than 80Kg per cubic meter of studio volumeThe total volume of the load cannot be greater than 1/5 of the working chamber volume
On any section perpendicular to the dominant wind direction,The sum of the load areas should be no more than 1/3 of the cross-sectional area of the working chamber.Do not block the flow of airflow when the load is placed.



Specifications:

Model LY-2225ES LY-2408ES LY-2800ES LY-21000ES
Inner size W×H×D(cm) 50×75×60 60×85×80 100×100×80 100×100×100
External size W×H×D(cm) 102×162×126 113×172×148 150×186×139 158×188×168
Volume(L) 225L 408L 800L 1000L
Temp & Humi Control Range

Temp range: A:-20℃~150℃ B: -40℃~150℃ C: -60℃~150℃ D: -70℃~150℃

Humi range: RH20%-98%

Heating & cooling speed

5℃/min

10℃/min

15℃/min

20℃/min

Fluctuation ±0.5℃;±2.5%RH
Deviation ±0.5℃-±2℃;±3%RH(<75%RH); ±5%RH(≥75%RH)
Controller TEMI880, 990, 1500 or customize brands and models
Refrigerator Fully enclosed piston French Tecumseh compressor(or Semi-closed compressor)
Refrigerants Dupont(R23+R404)
Test hole *50mm, 100mm or customize
Power 3φ 380V AC±10% 50Hz



Features:
1. Rational Construction and fast cooling rate
2. Frequency conversion control of wind speed.
3. Programmable LCD touchscreen controller for product or air-change available.
4. Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
5. Wide variety of refrigeration available for performance and temperature range flexibility.

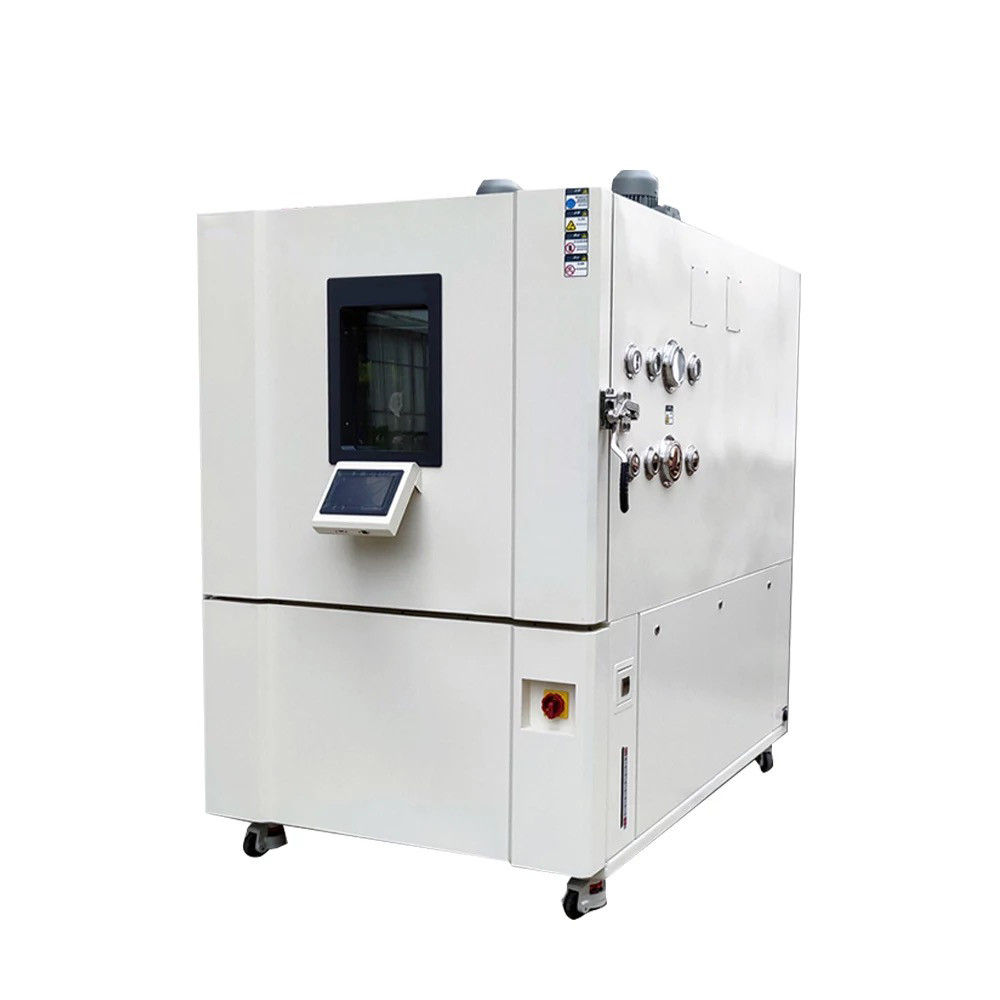

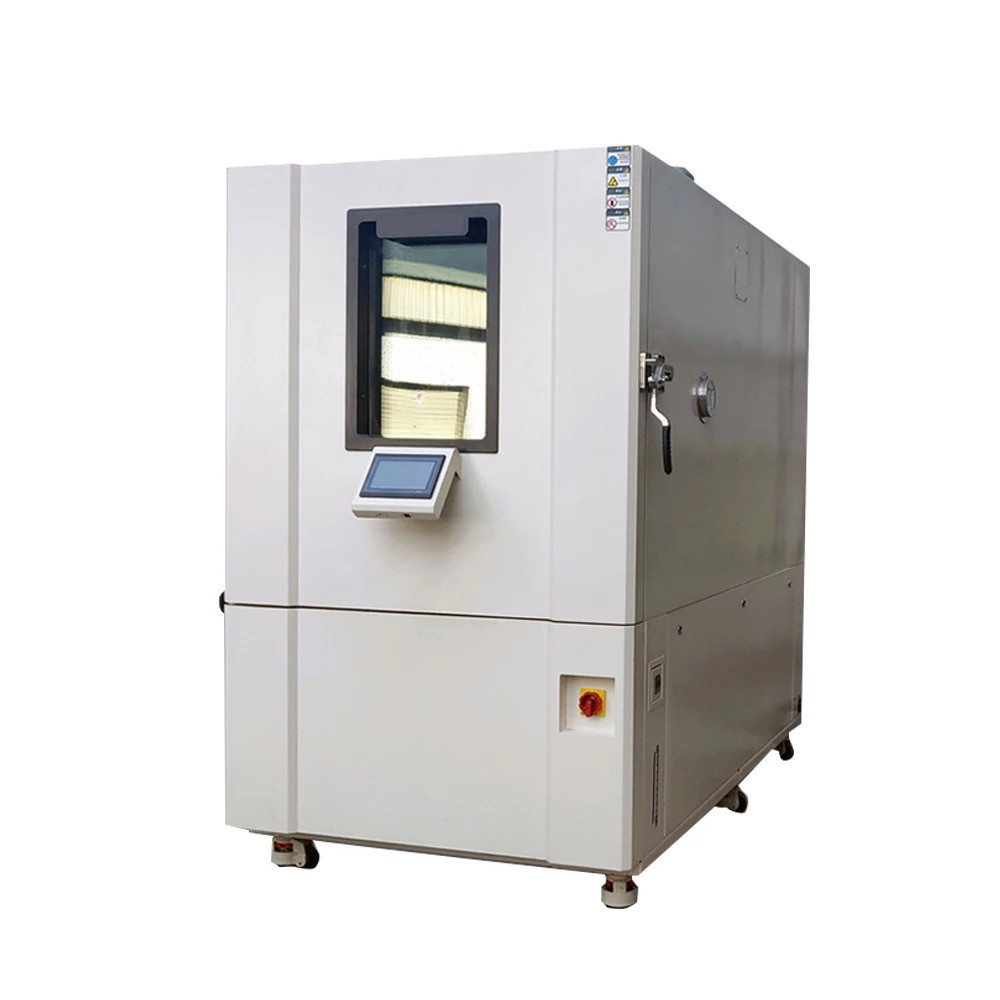

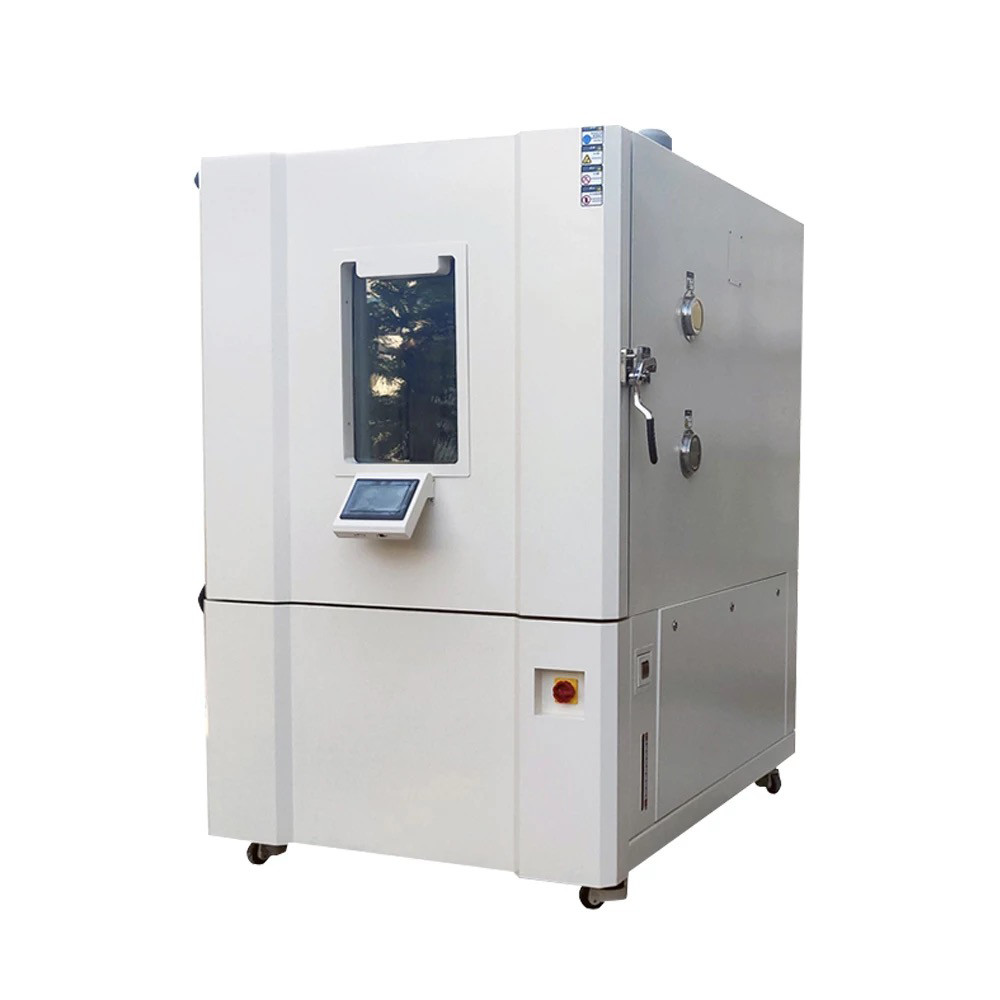

Ramp Rate ESS Test Chamber Environmental Stress Screening Chamber 0Ramp Rate ESS Test Chamber Environmental Stress Screening Chamber 1Ramp Rate ESS Test Chamber Environmental Stress Screening Chamber 2

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3) Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
