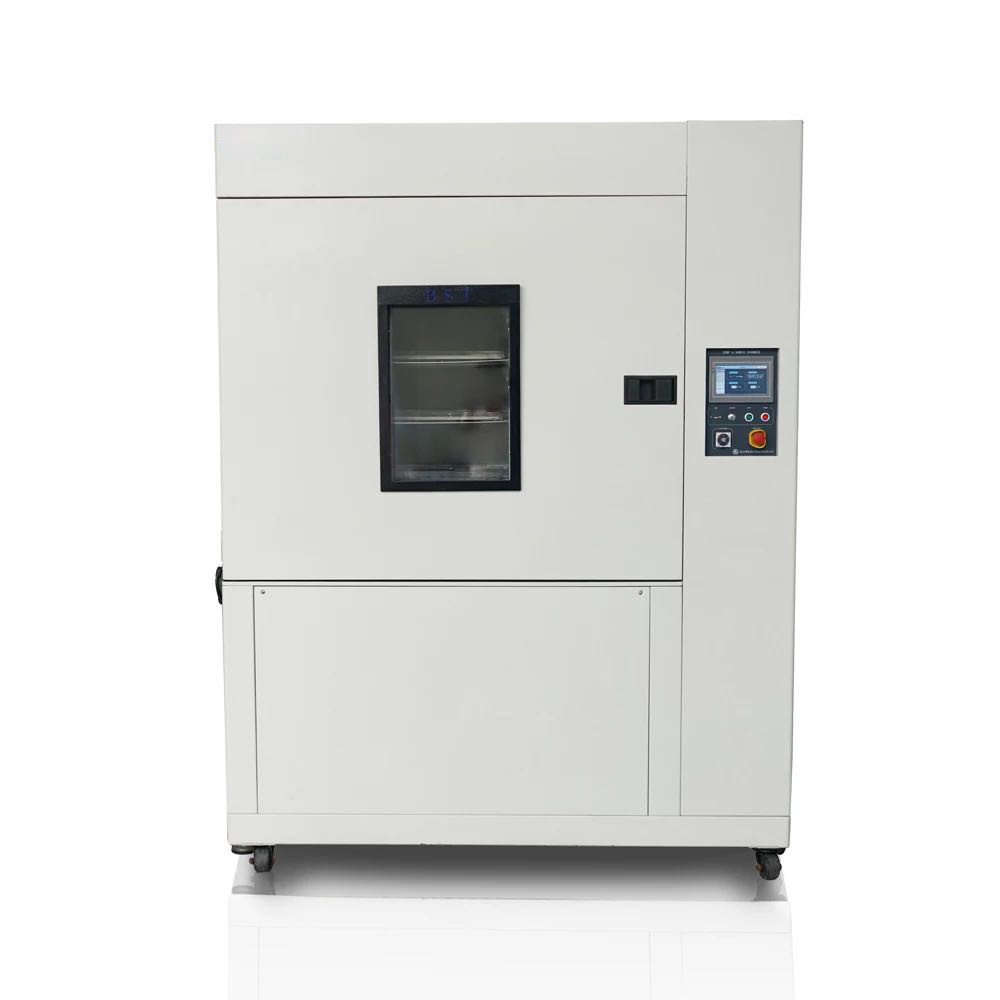

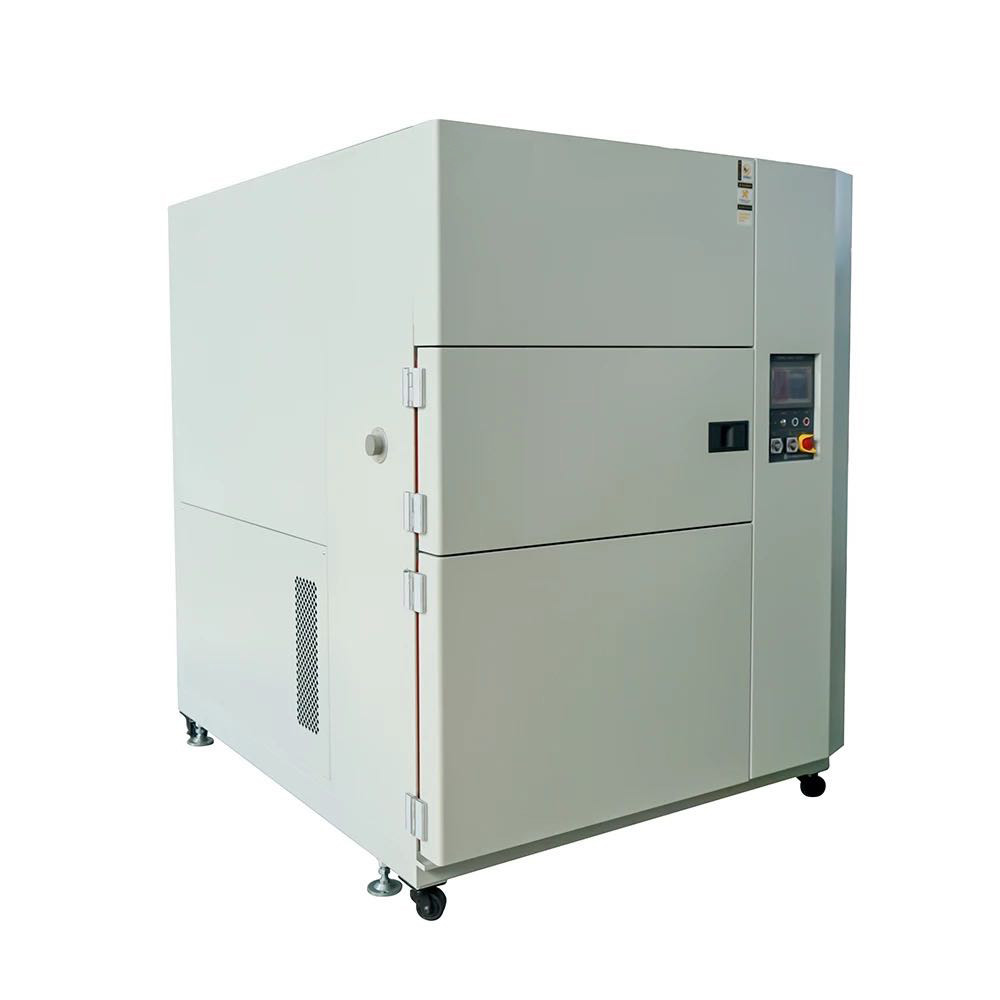

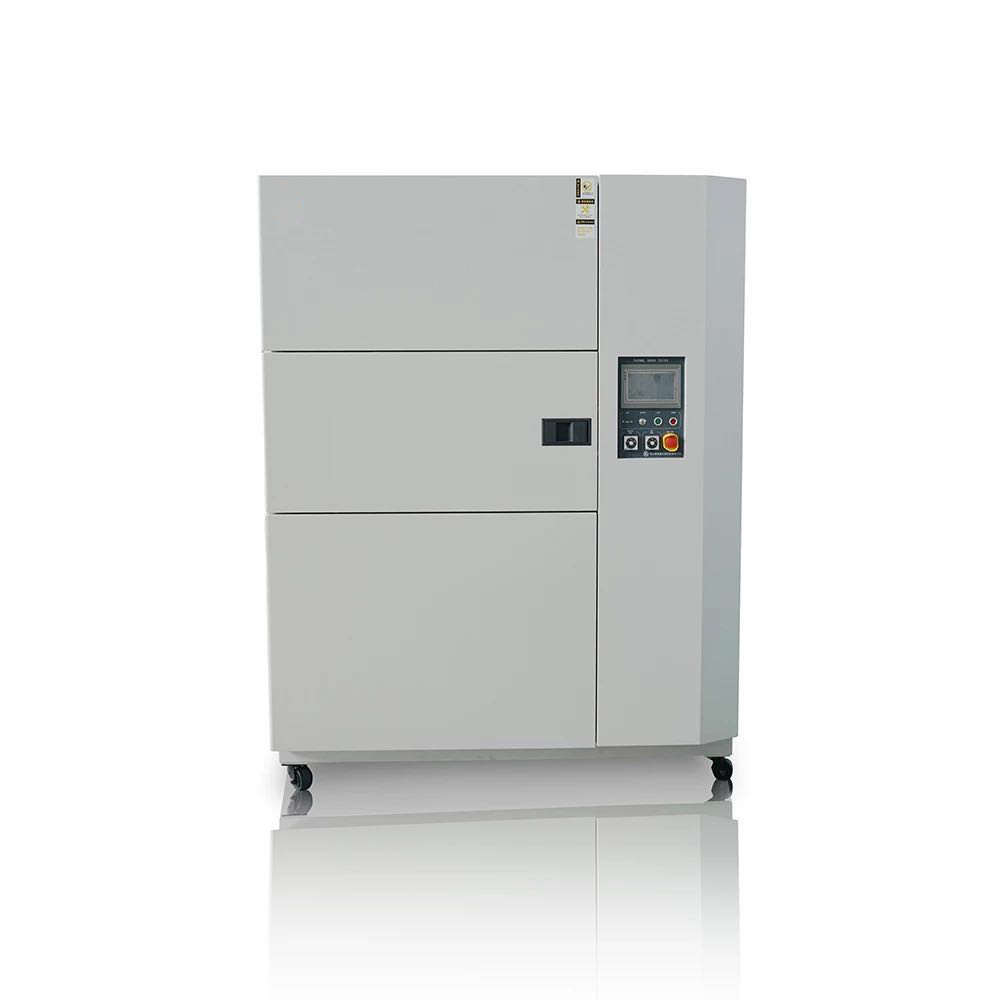

Programmable Thermal Shock Test Chamber High Low Temperature Shock Test Machine
1 Set
MOQ
12000~50000USD
Price
Programmable Thermal Shock Test Chamber High Low Temperature Shock Test Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Liyi
Certification: CE ISO
High Light:

thermal shock test machine

,

impact test equipment

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Power Supply: 220V 50Hz
Standard: ASTM ISO EN JS
Temperature Range: -40~150C/-60~150C
Temperature Recovery Time: Less Than 5min
Temperature Deviation: Less Than ±2°C
Temperature Conversion Time: Less Than 10S
Materia: SUS#304 Stainless Steel Plate
Warranty: 1 Year
Product Description

Liyi Programmable Thermal Shock Impact High Low Temperature Thermal Shock Test Chamber



Thermal shock machine can be used to test the structure of the material or composite material, in an instant by a very high temperature and low temperature continuous environment can bear degree of to in the shortest time test its due to thermal expansion and contraction caused by the changes of chemical or physical damage. Applicable objects including metal, plastic, rubber, electronics and other materials, to improve their products as the basis or reference.

The chemical change or physical damage caused by thermal expansion and contraction of the sample can be detected in the shortest time.



Standards:

1. GB/T2423.1-1989
2. GB/T2423.2-1989
3. GB/T2423.22-1989
4. GJB150.5-86
5. GJB360.7-87
6. GJB367.2-87 405
7. SJ/T10187-91Y73
8. SJ/T10186-91Y73
9. IEC68-2-14
10. GB/T 2424.13-2002
11. GB/T 2423.22-2002
12. QC/T17-92
13. EIA 364-32



Inner Size(mm) 400×350×300 400×500×400 500×600×500 500×750×600
Temperature Range High temperature chamber:RT~+150°C Low temperature:RT~-60°C
Temperature Deviation Less than ±2°C
Temperature Conversion Time Less than 10S
Temperature Recovery Time Less than 5min
Material

External material: SUS#304 Stainless steel plate

Internal material:SUS#304 Stainless steel plate

Coolting System

Water-cooled or air-cooled,

Tecumseh compressor in France,

Environment friendly refrigerant

Controllor Programmable temperature controllor
Temperature Sensor PT 100 *3
Setting Range

TEMPERATURE : -100.00+200.00°C

/ TIME : OH1M ~ 9999H 59M

/ CYCLE ~ 10000 CYCLE

Resolution TEMPERATURE : 0.01°C / TIME : 1 MIN
Output Mode PID + PWM + SSR CONTROL METHOD
Simulated Load IC (KG) 3.5kg
Standard Accessories Cable hole, lighting equipment
Cooling System Water-cooled/air-filled type
Power AC380V/50HZ Three-phase four-wire ac power
Additional Features

The outlet and return it checks for taste known control

/CM BUS (RS-485) remote monitoring management system

/Ln2 liquid nitrogen rapid cooling control device

Remarks

It can be customiazed according to customer demands.

Technology index refer to product description.Delivery time within 45days.



Programmable Thermal Shock Test Chamber High Low Temperature Shock Test Machine 0

thermal shock test chamber



During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
