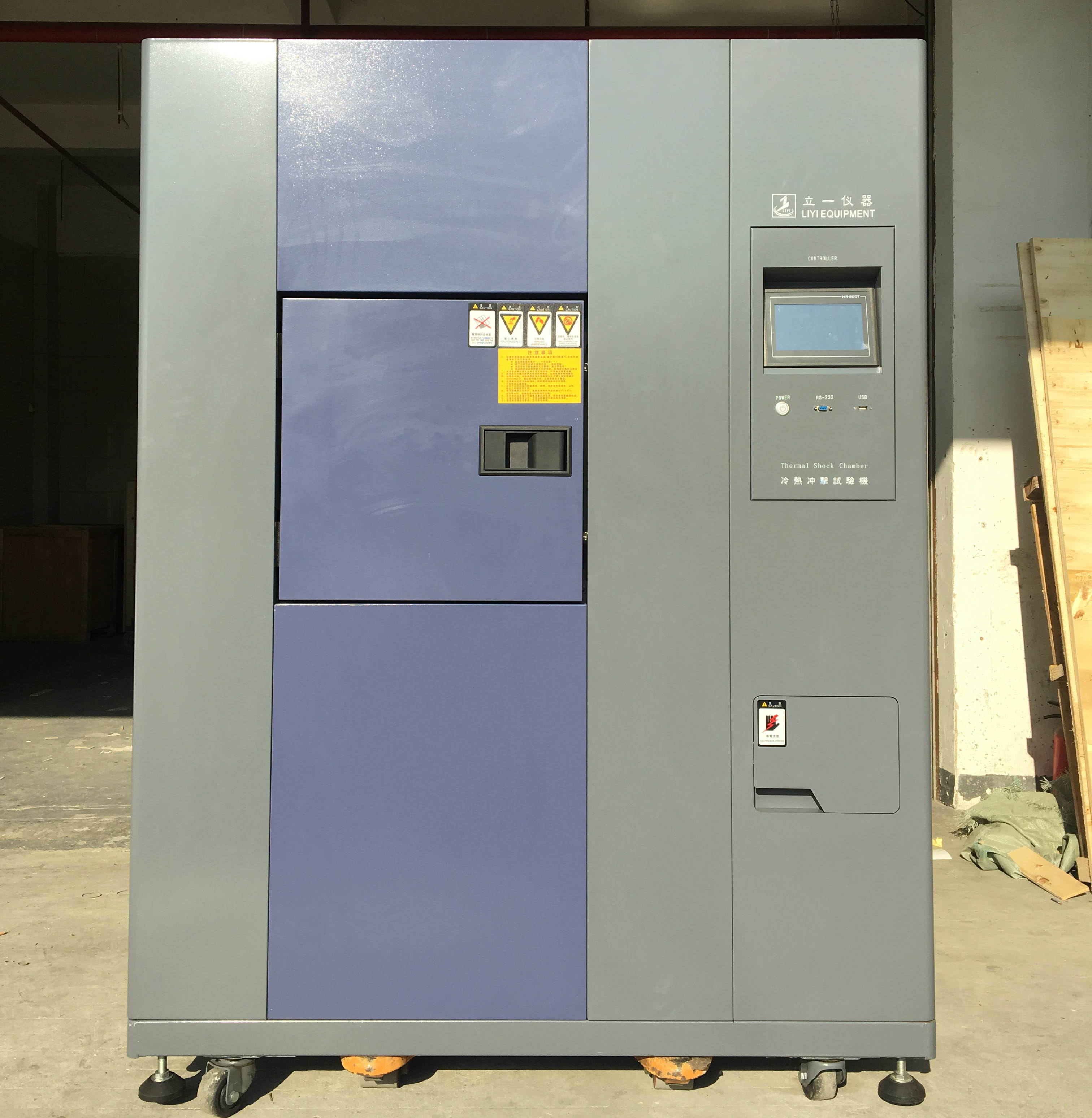

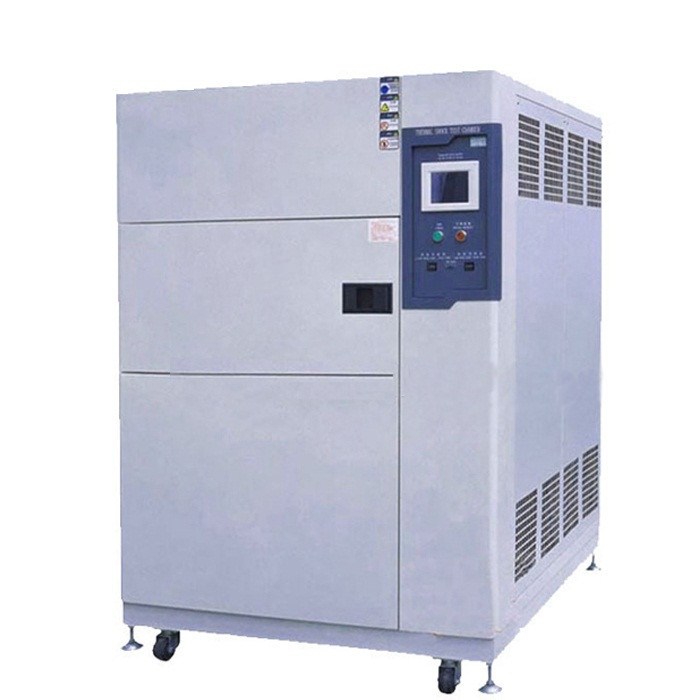

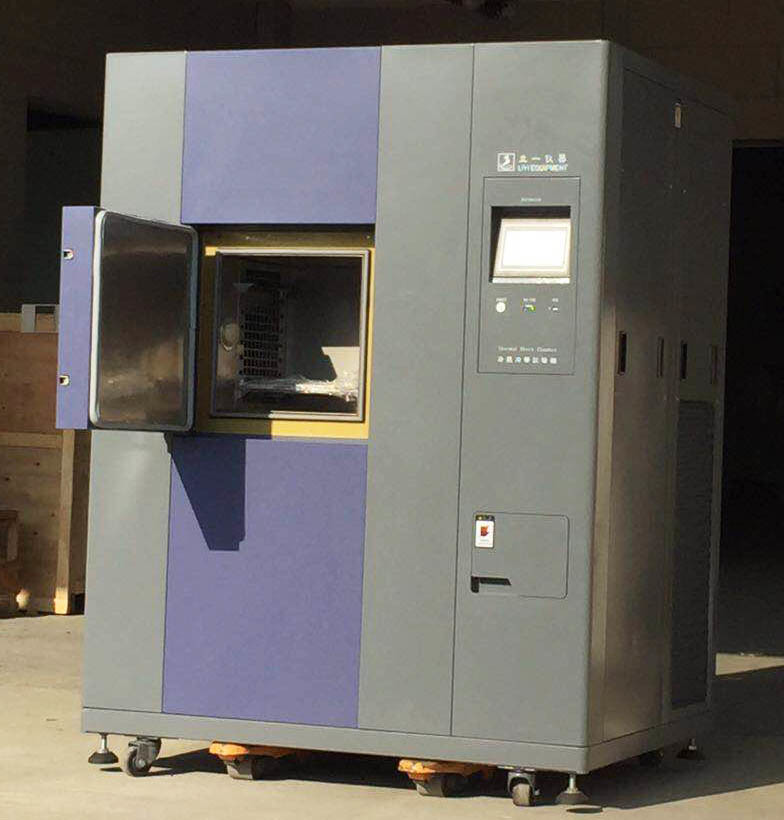

LIYI AC 380V / 50HZ Climatic Thermal Shock Test Chamber Air Thermal Shock
Product introduction:
It uses the low temperature and high temperature storage hot trough, according to the movement need, uses the cylinder valve to switch the cold and hot air, thus achieves the fast temperature impact effect, balances the temperature control system (BTC) + the special design supply air circulation system, controls the SSR by the P.I.D. method, causes the heating amount of the system to be equal to the heat loss, therefore makes it long-term stable use.
Specification:
| Inner Size(mm) | 400×350×300 | 400×500×400 | 500×600×500 | 500×750×600 |
| Temperature Range | High temperature chamber:RT~+150°C Low temperature:RT~-60°C | |||
| Temperature Deviation | Less than ±2°C | |||
| Temperature Conversion Time | Less than 10S | |||
| Temperature Recovery Time | Less than 5min | |||
| Material |
External material: SUS#304 Stainless steel plate Internal material:SUS#304 Stainless steel plate |
|||
| Coolting System |
Water-cooled or air-cooled, Tecumseh compressor in France, Environment friendly refrigerant |
|||
| Controllor | Programmable temperature controllor | |||
| Temperature Sensor | PT 100 *3 | |||
| Setting Range |
TEMPERATURE : -100.00+200.00°C / TIME : OH1M ~ 9999H 59M / CYCLE ~ 10000 CYCLE |
|||
| Resolution | TEMPERATURE : 0.01°C / TIME : 1 MIN | |||
| Output Mode | PID + PWM + SSR CONTROL METHOD | |||
| Simulated Load IC (KG) | 3.5kg | |||
| Standard Accessories | Cable hole, lighting equipment | |||
| Cooling System | Water-cooled/air-filled type | |||
| Power | AC380V/50HZ Three-phase four-wire ac power | |||
| Additional Features |
The outlet and return it checks for taste known control /CM BUS (RS-485) remote monitoring management system /Ln2 liquid nitrogen rapid cooling control device |
|||
| Remarks |
It can be customiazed according to customer demands. Technology index refer to product description.Delivery time within 45days. |
|||
Our service:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
