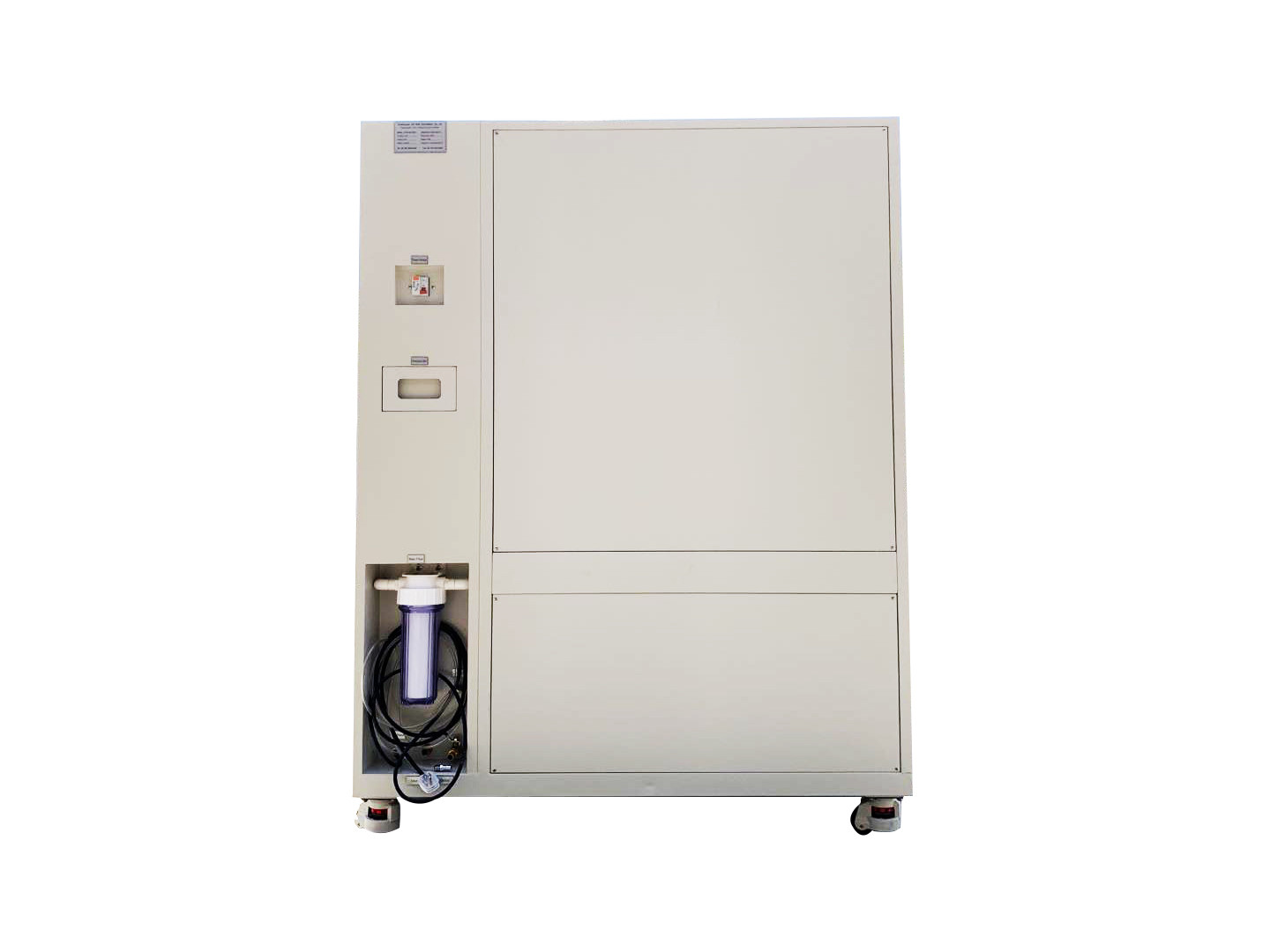

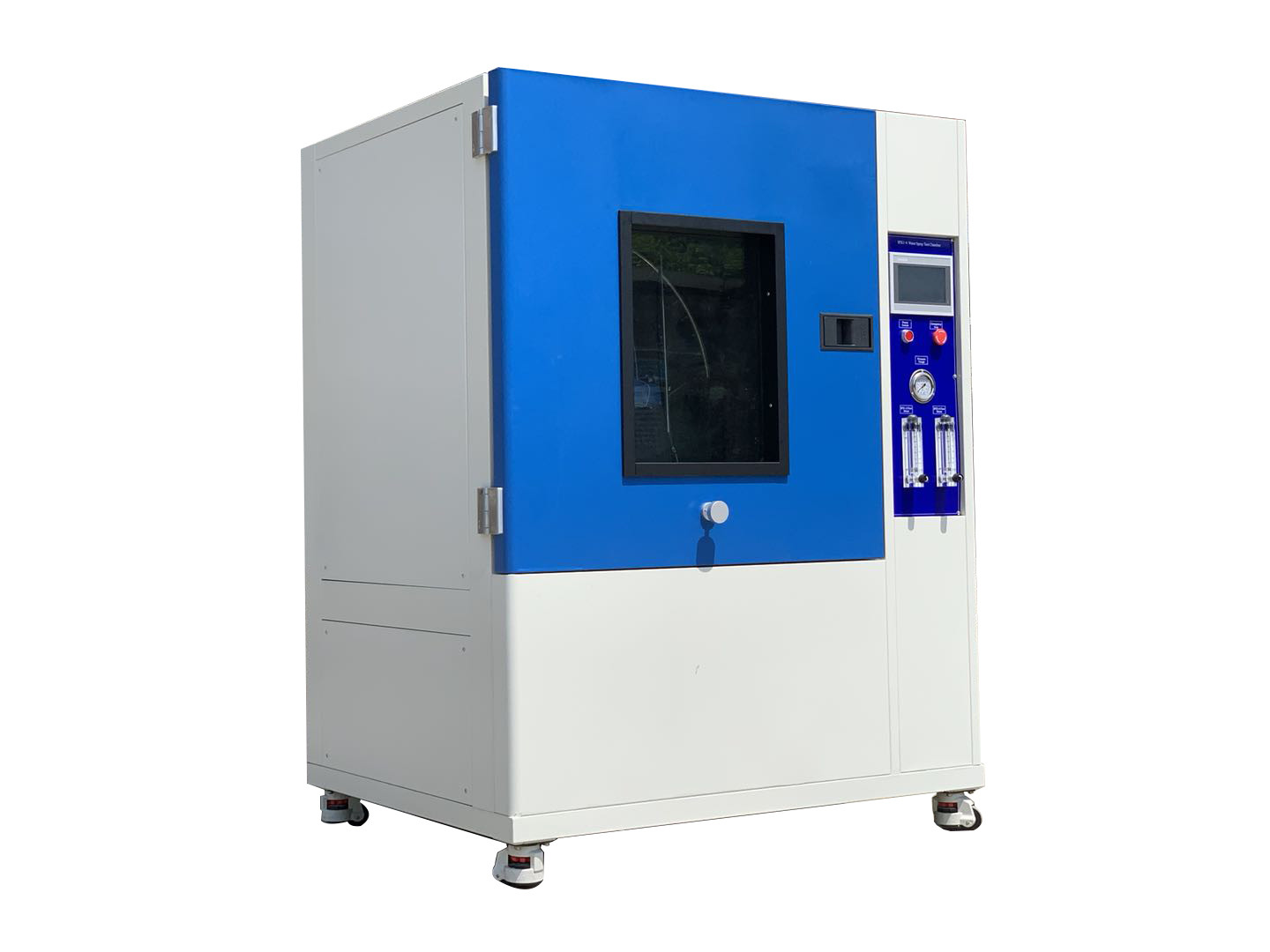

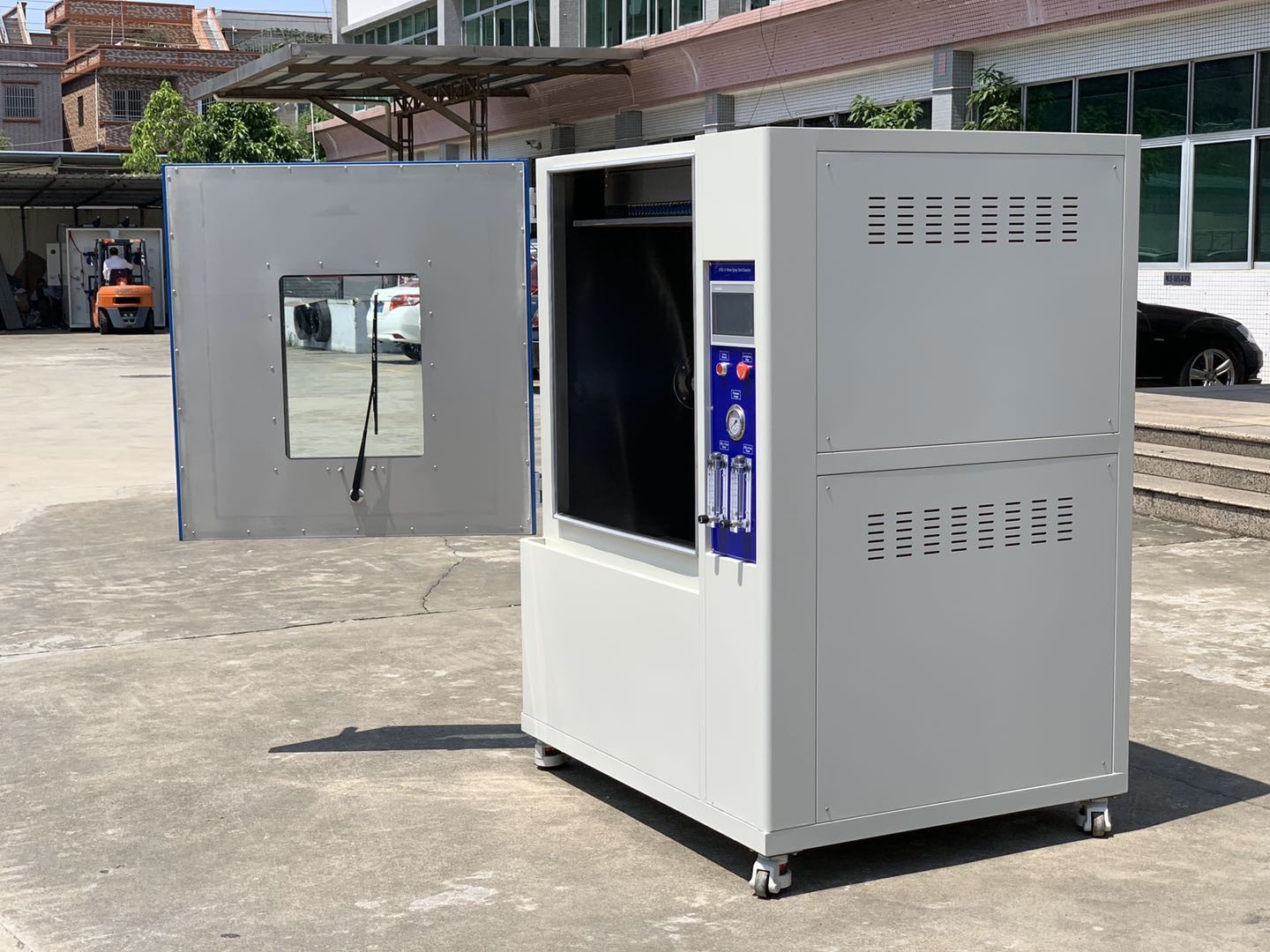

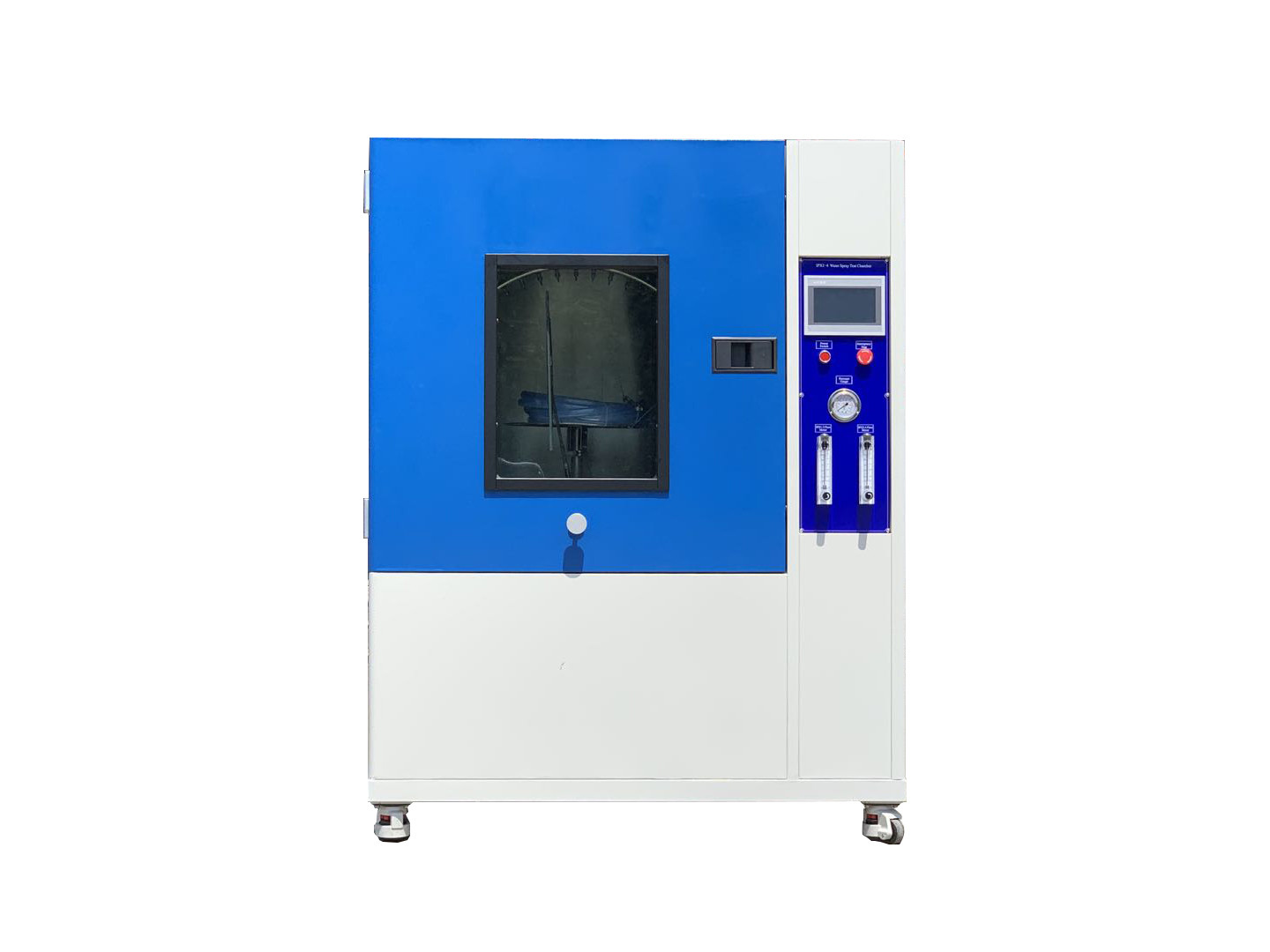

Automobile Lamps Waterproof Test Machine 304 Stainless Steel Inner
1 Set
MOQ
4000~1600USD
Price
Automobile Lamps Waterproof Test Machine 304 Stainless Steel Inner
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Liyi
Certification: CE ISO
High Light:

water resistance tester

,

rain test machine

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 20-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Swipping Pipe Diameter: R400mm/600mm
Material: Inner 304# Stainless Steel
Standards: IEC60529 IPX1-4 Test
Voltage: 220V 50Hz
Warranty: 12 Months
Inner Chamber Size: 900*900*900mm
MOQ: 1 Set
Water Temperature: Normal Atmospheric Temperature
Product Description

Liyi Water Resistance Test Chamber /Waterproof Testing Equipment/Rain Proof Test Equipment



Product introduction:

The water resistance test chamber is suitable for testing the waterproof performance of automobile lamps, wiper performance, waterproof strip, locomotive instrument and low voltage electrical apparatus housing protection.



General application fields:

outdoor lamps, household appliances, automotive accessories and other electronic and electrical products.



Function of the equipment:

The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, cabinets, electrical components, automobiles, motorcycles and their components under simulated rainy weather conditions. After testing, the performance of the product can be judged by verification, so as to facilitate the design, improvement, verification and factory inspection of the product.



Specifications:

Model LY-FS14B-R400 LY-FS14B-R600
Basic parameters
Inner chamber size W900* D900* H900mm W1300* D1300* H1450mm
Overall size W1350* D1150* H1750mm W 1750* D1520* H1950mm
Smaple turntable size ¢400mm ¢600mm
Max sample weight 50KG 50KG
Turntable lifting height 400-750 mm 550-1000 mm
Turntable adjustable angle 0° or 15°(horizontal direction)
Turntable speed 1 -5r/min(adjustable)
Turning way Always forward / forward and backward alternation / intermittent rotation
Test time 0-999 min
Machine weight 230kg 280kg
IPX12
Dripping board size 600*600mm 1000*1000mm
Spray nuzzle size D0.4mm
Distance between dripping nuzzle 20*20 mm
Rain capacity IPX1=1mm/min;IPX2=3mm/min
Flow adjust method Manually adjusting
Dripping board lifting way Fix, can not lift
IPX34
Swipping pipe radius R400mm(can add R200mm) R600mm(can add R200mm)
Water flow IPX3=1.1L/min;IPX4=1.8L/min IPX3=1.8L/min;IPX4=2.6L/min
Spray nuzzle size 0.4mm
Distance between dripping nuzzle 50mm
Swipping pipe inner diameter 15mm
Swipping pipe angle 120º(IPX3),350º(IPX4) or free setting
Swipping pipe speed 240 degree round-trip 4S, 720 degree round-trip 12S (precision control) or customization





Automobile Lamps Waterproof Test Machine 304 Stainless Steel Inner 0Automobile Lamps Waterproof Test Machine 304 Stainless Steel Inner 1

Our service:

During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:



Defines installing those products in the field and providing after-sales support.
