Cold And Hot Environmental Thermal Shock Chamber Stability Simulating
1 Set
MOQ
10000~50000USD
Price
Cold And Hot Environmental Thermal Shock Chamber Stability Simulating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Liyi
Certification: CE ISO
High Light:

thermal shock test machine

,

thermal cycling test equipment

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Temperature Deviation: Less Than ±2°C
Temperature Conversion Time: Less Than 10s
Temperature Recovery Time: Less Than 5min
Temperature Range: -40~150°C/-60~150°C
Warranty: 1 Year
Power: 220V/380V
Place Of Origin: Guangdong, China
Product Description

Liyi Stability Simulating Cold And Hot Environmental Thermal Shock Chamber



Product introduction:

Thermal shock chamber is with separate hot and cold zones, the Automated Thermal Stress System has a patented, retractable product transfer carrier basket that makes full use of the available workspace in both temperature zones for increased product loading and throughput. The product transfer carrier basket reduces the overall height requirements of the chamber and is made as light as possible to minimize thermal loading restraints.



Specifications:

Inner Size(mm) 400×350×300 400×500×400 500×600×500 500×750×600
Temperature Range High temperature chamber:RT~+150°C Low temperature:RT~-60°C
Temperature Deviation Less than ±2°C
Temperature Conversion Time Less than 10S
Temperature Recovery Time Less than 5min
Material

External material: SUS#304 Stainless steel plate

Internal material:SUS#304Stainless steel plate

Coolting System

Water-cooled or air-cooled,

Tecumseh compressor in France,

environment friendly refrigerant

Controllor Programmable temperature controllor
Temperature Sensor PT 100 *3
Setting Range

TEMPERATURE : -100.00+200.00°C

/ TIME : OH1M ~ 9999H 59M

/ CYCLE ~ 10000 CYCLE

Resolution TEMPERATURE : 0.01°C / TIME : 1 MIN
Output Mode PID + PWM + SSR CONTROL METHOD
Simulated Load IC (KG) 3.5kg
Standard Accessories Cable hole, lighting equipment
Cooling System Water-cooled/air-filled type
Power AC380V/50HZ Three-phase four-wire ac power
Additional Features

The outlet and return it checks for taste known control

/CM BUS (RS-485) remote monitoring management system

/Ln2 liquid nitrogen rapid cooling control device

Remarks

It can be customiazed according to customer demands.

Technology index refer to product description.Delivery time within 45days



Characteristics:
1. Short temperature recovery time
The maximum temperature recovery time at upstream air for 2 zone test (+150°C and -65°C) and 3 zone test is only 5 min.(10 min. for TSA-201S and TSA-301L)
2. Great uniformity
Horizontal air flow system offers excellent specimen temperature uniformity.
3. Efficiency thanks to specimen temperature control (option)
Thanks to this feature, the equipment achieves set temperature attainment with rapidity and accuracy.
4. STT function (option)
Thanks to the specimen temperature monitor with trigger, exposure time starts only when the specimen has reached the set temperature, leading to more precise test results.
5. User-friendly controller
The LCD touch-screen controller allows easy check of the test patterns, temperatures settings, test cycles and graph displays.
6. Reduced load current
7. Reduced operating noise

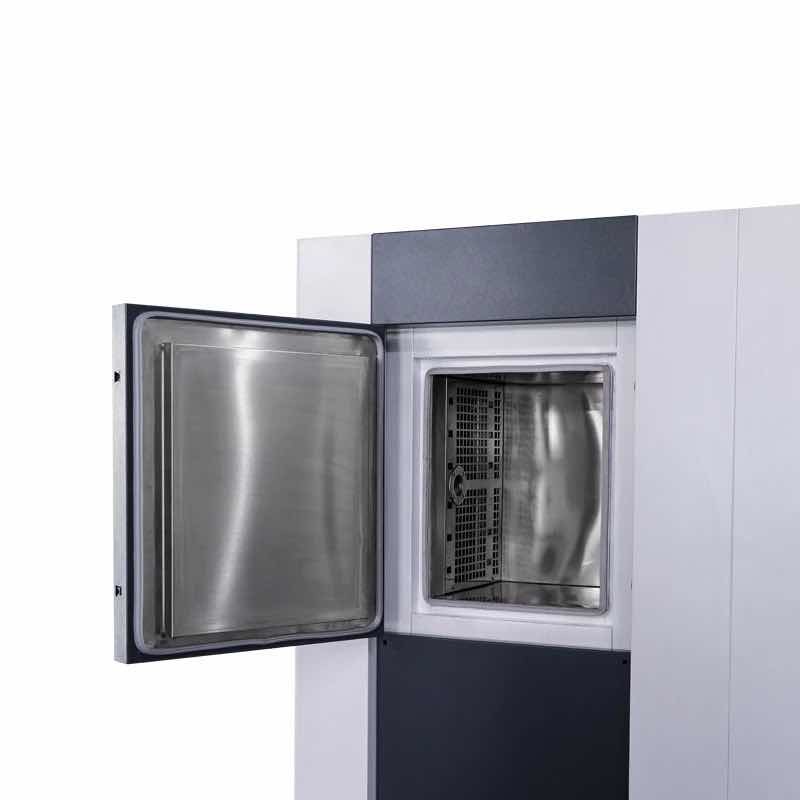

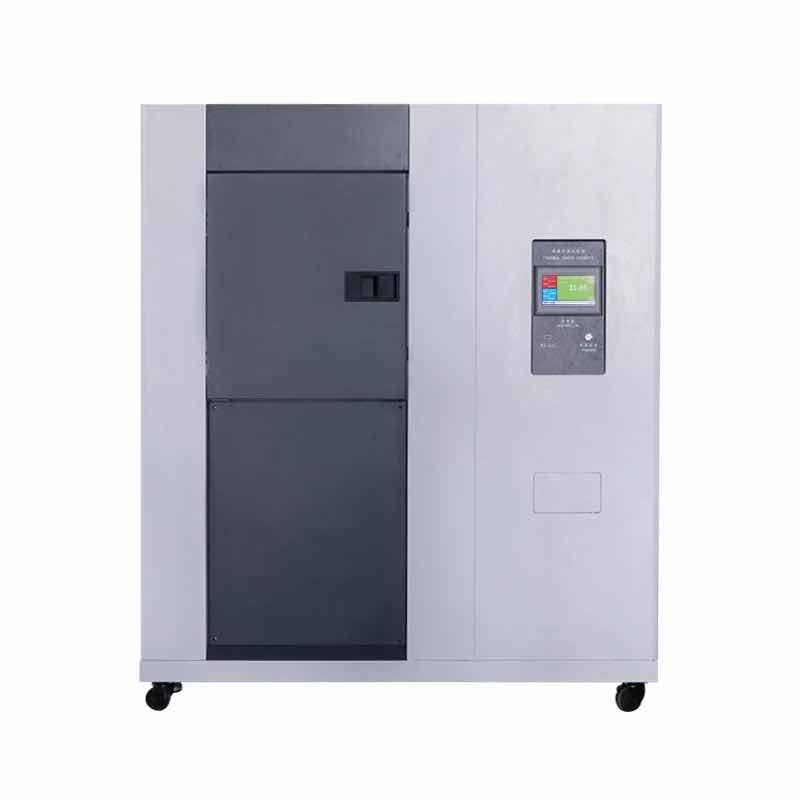

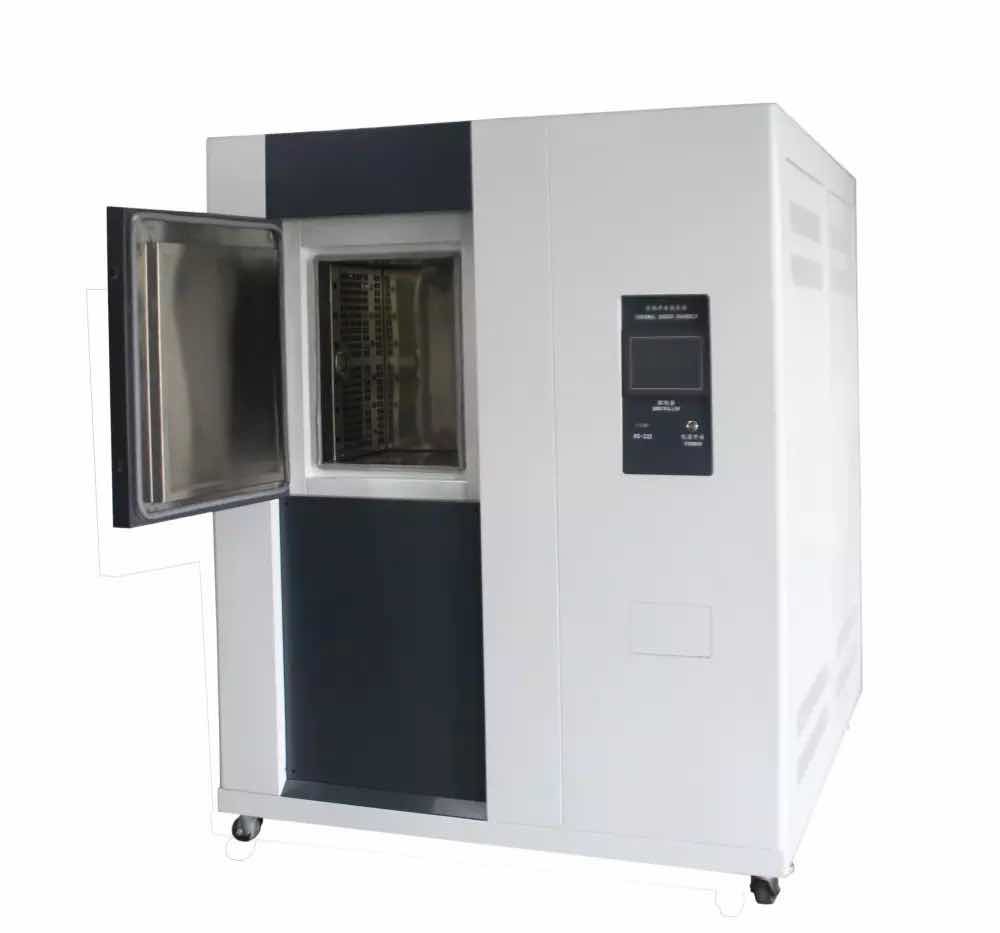

Cold And Hot Environmental Thermal Shock Chamber Stability Simulating 0Cold And Hot Environmental Thermal Shock Chamber Stability Simulating 1Cold And Hot Environmental Thermal Shock Chamber Stability Simulating 2



Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3) Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
