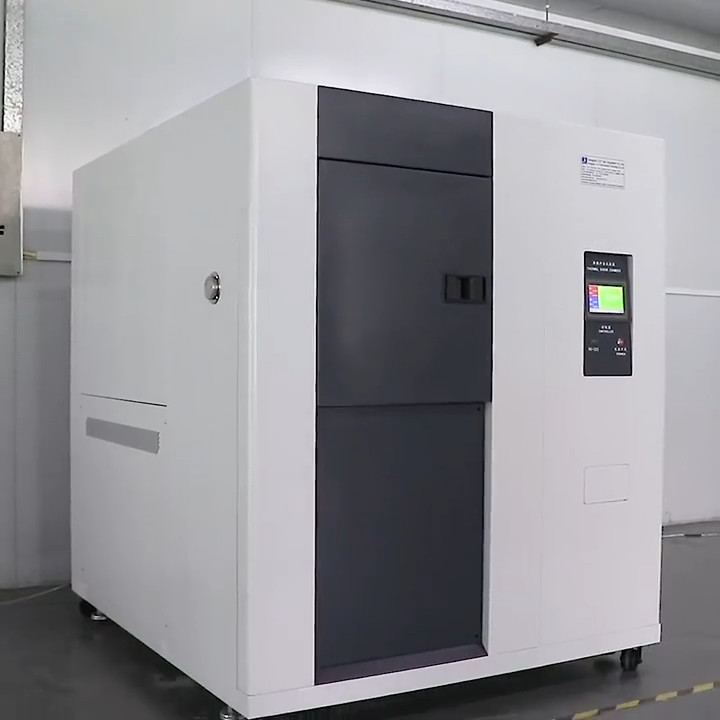

High Low Temperature Shock Test Chamber Thermal Conductivity Testing Equipment
The thermal shock test chamber is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.
GB11158 GB10589-89 GB10592-89
GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001
GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93
ASTM D1735 EIA - 364-59 IEC60068-2-1.1990
IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
|Temperature Range||High temperature chamber:RT~+150°C Low temperature:RT~-60°C|
|Temperature Deviation||Less than ±2°C|
|Temperature Conversion Time||Less than 10S|
|Temperature Recovery Time||Less than 5min|
External material: SUS#304 Stainless steel plate
Internal material:SUS#304 Stainless steel plate
Water-cooled or air-cooled,
Tecumseh compressor in France,
Environment friendly refrigerant
|Controllor||Programmable temperature controllor|
|Temperature Sensor||PT 100 *3|
TEMPERATURE : -100.00+200.00°C
/ TIME : OH1M ~ 9999H 59M
/ CYCLE ~ 10000 CYCLE
|Resolution||TEMPERATURE : 0.01°C / TIME : 1 MIN|
|Output Mode||PID + PWM + SSR CONTROL METHOD|
|Simulated Load IC (KG)||3.5kg|
|Standard Accessories||Cable hole, lighting equipment|
|Cooling System||Water-cooled/air-filled type|
|Power||AC380V/50HZ Three-phase four-wire ac power|
The outlet and return it checks for taste known control
/CM BUS (RS-485) remote monitoring management system
/Ln2 liquid nitrogen rapid cooling control device
It can be customiazed according to customer demands.
Technology index refer to product description.Delivery time within 45days
This is also called Fast Shipping Thermal Shock Test Chamber,Thermal Chamber,Thermal Shock Chamber.
Sample is placed in the test chamber, more extreme temperature than test temperature can be set in high-temperature chamber and low-temperature chamber. When it comes to low temperature test, cold chamber door open, and low-temperature chamber working together with test chamber.
When converted into high-temperature test, cold chamber door closed, hot chamber door are opened, and test chamber working together with high-temperature chamber.
Conversion of mechanical action (transferring from high temperature to low temperature or low temperature to high temperature) can be completed in less than 1second, and the temperature can be quickly stabilized. During the whole test, test sample is no need to be moved, and without any human intervention.
Fast Shipping Thermal Shock Test Chamber,Thermal Chamber,Thermal Shock Chamber have been designed to operate in accordance with reliability programs, quality control, commercial test programs and medical tests. It is used to test the capability of material structure or composite material to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for produce improvement.
1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal energy to efficiently meet the MIL-STD 883 requirements.
2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to zone. Using touch-control graph control as operation interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting two zones or three zones shocks as well as cold and thermal shock start-up.
4.Custom-made and optional accessories available.
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3) Order process:
We offer below business term:
|Accepted Delivery Terms:||FOB, CFR, CIF, EXW, DDP|
|Accepted Payment Currency:||USD, EUR, HKD, CNY|
|Accepted Payment Type:||T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow|
|Nearest Port:||Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired|
4) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
