LIYI 1000L AC380V 50HZ Thermal Shock Test Chamber For Metal Industry
1 Set
LIYI 1000L AC380V 50HZ Thermal Shock Test Chamber For Metal Industry
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Liyi
Certification: CE ISO
High Light:

1000L Thermal Shock Test Chamber


AC380V Thermal Shock Test Chamber


50hz thermal shock test equipment

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Uses: Thermal Shock Chamber
Cooling System: Water-cooled Or Air-cooled, Taikang Compressor In France
Inner Size: 400x350x300cm, Can Custom
Simulated Load IC (kg): 3.5kg
Temperature Deviation: Less Than 2 Centigrade
Power: AC380V/50HZ Three-phase Four-wire Ac Power
Temperature Recovery Time: Less Than 5mins
Controllor: Programmable Temperature Controllor Imported From Japan
Warranty: 1 Year
Product Description

LIYI 1000L AC380V 50HZ Thermal Shock Test Chamber For Metal Industry


Product Description


High and low temperature impact test chamber is a necessary test equipment in metal, plastic, rubber, electronic and other material industries. It is used to test the degree of material structure or composite material, which can test the chemical change or physical damage caused by thermal expansion and cold contraction in the shortest time.




Inner size(mm) 400×350×300
Temperature range High temperature chamber:RT~+150°C Low temperature:RT~-60°C
Temperature deviation Less than ±2°C
Temperature conversion time Less than 10S
Temperature recovery time Less than 5min

External material: SUS#304 Stainless steel plate

Internal material: SUS#304 Stainless steel plate

Coolting system

Water-cooled or air-cooled,

Tecumseh compressor in France,

Environment friendly refrigerant

Controllor Programmable temperature controllor imported from Japan
Temperature sensor PT 100 *3
Setting range

Temperature: -100.00+200.00°C

/ Time: OH1M ~ 9999H 59M

/ Cycle: 10000 cycle

Resolution Temperature: 0.01°C / Tim: 1min
Output mode PID + PWM + SSR control method
Simulated load IC (kg) 3.5kg
Standard accessories Cable hole, lighting equipment
Cooling system Water-cooled/air-filled type
Power AC380V/50HZ Three-phase four-wire ac power
Additional features

The outlet and return it checks for taste known control

/CM BUS (RS-485) remote monitoring management system

/Ln2 liquid nitrogen rapid cooling control device


It can be customiazed according to customer demands.

Technology index refer to product description.Delivery time within 45days.

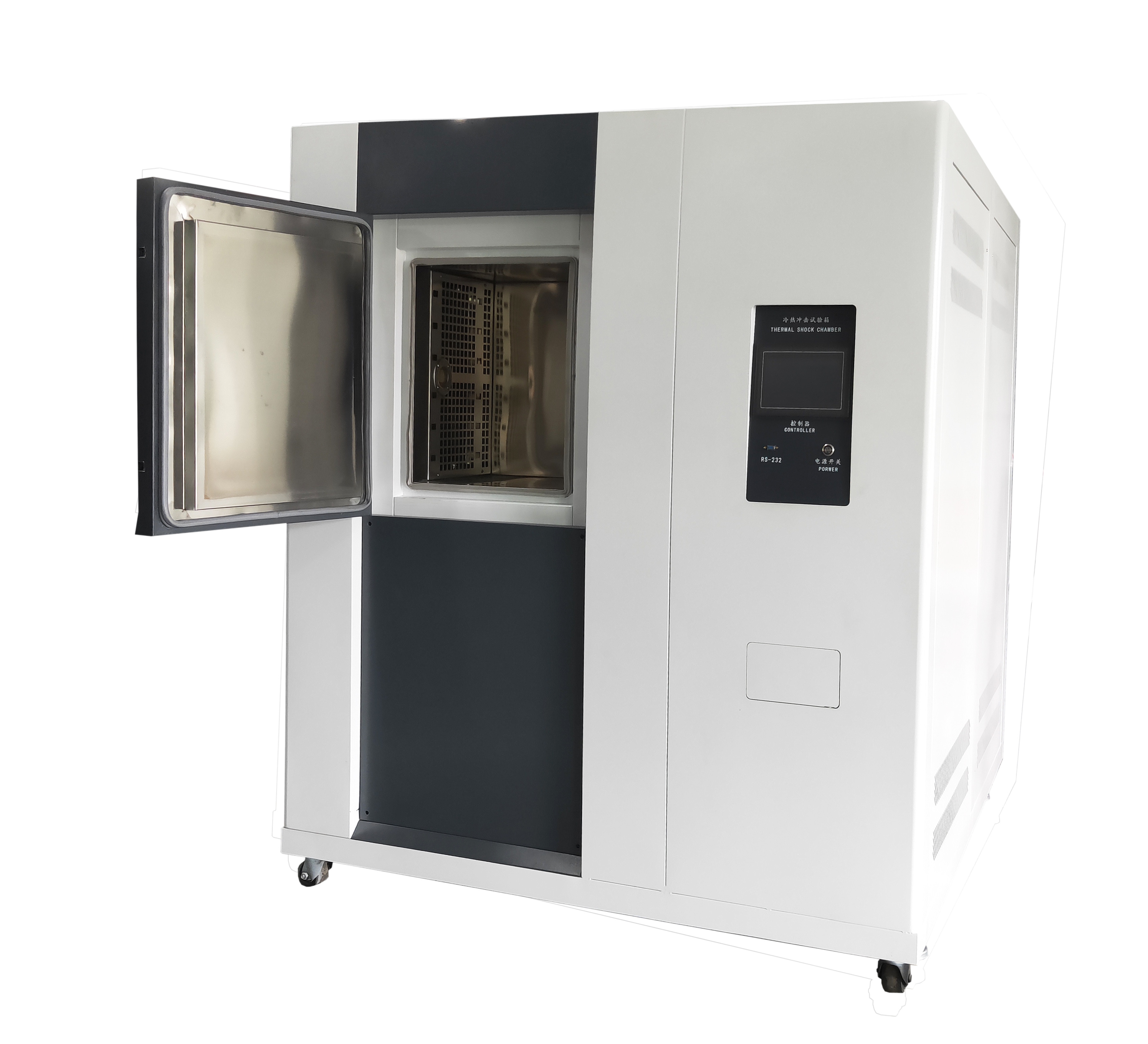

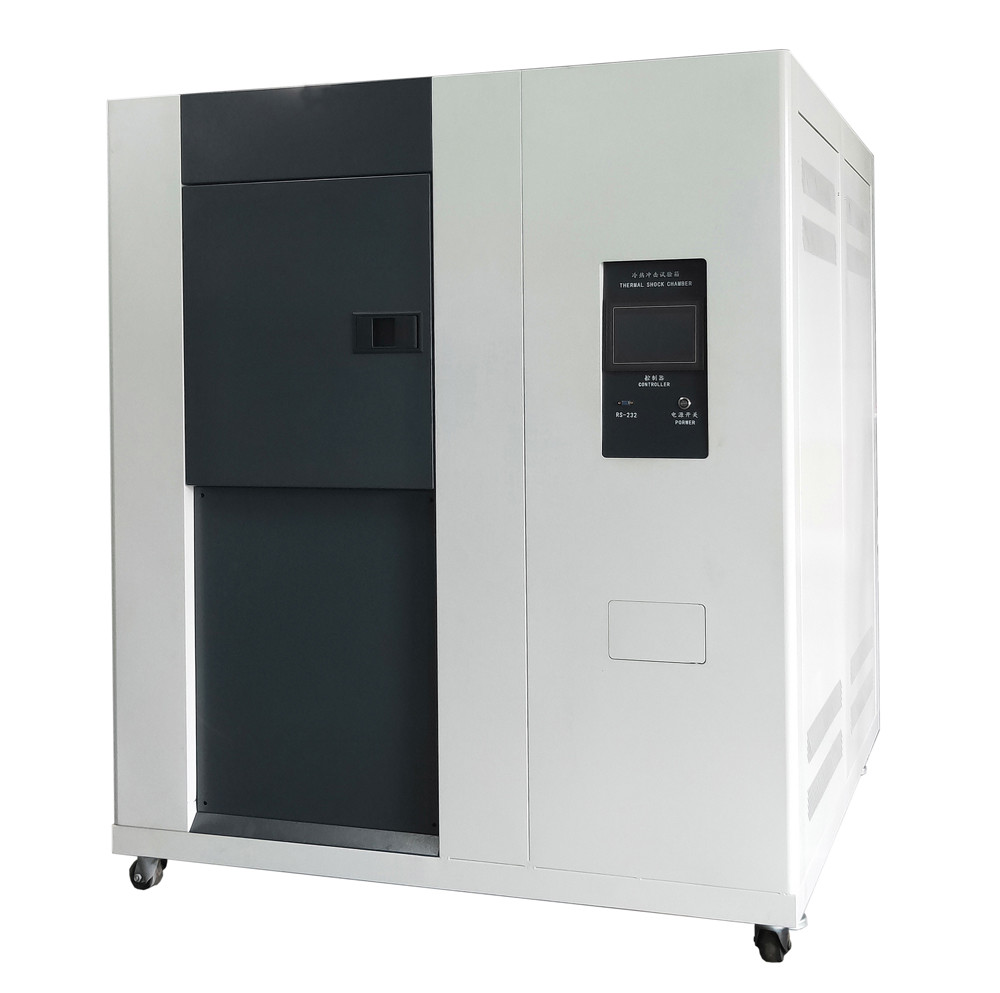

thermal shock chamber.jpg

thermal shock chamber price




1. Are you manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are manufacturer of Thermal Chamber Price,Constant Temperature Chamber,Small Temperature Chamber. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.


2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.


3. Do you accept customization service? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine
