LIYI 220V Drying Vacuum Oven With 3KW Electrothermal Tube
1 Set
LIYI 220V Drying Vacuum Oven With 3KW Electrothermal Tube
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Liyi
Certification: CE ISO
High Light:

220V Drying Vacuum Oven


3KW Electrothermal Tube Drying Vacuum Oven


ASTM Electric Drying Oven

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Name: Drying Oven Vacuum Chamber
Weight: Customized
Power Supply: 220V 50Hz
Accuracy: ±0.3C
Standard: ASTM ISO EN JS
Uniformity(°C): ±1%
Temperature Range(°C): (A-D) A:200°C B:300°C C:400°C D:500°C
Warranty: 1 Year
Product Description

LIYI 220V Drying Vacuum Oven With 3KW Electrothermal Tube


Product Uses:


Drying Oven Vacuum Chamber is used for drying and heating test in vacuum condition of objects in scientific research units, specialty universities, industrial and mining enterprises's laboratories together with production field, etc. Widely used in biochemical, chemical, pharmaceutical, health, agricultural research, environmental protection and other research applications, powder drying, baking and various glass containers for disinfection and sterilization. It is especially suitable for rapid and efficient drying of heat-sensitive, oxidization and complex components.




Model LY-608-30 LY-608-40 LY-608-60 LY-608-X(Customized)
Inner chamber size W×H×D(cm) 30*30*30 40*40*40 60*60*60 Based on your requirements, we need to know what the size of your sample
Exterior chamber size W×H×D(cm) 61×47×47 71×57×57 96×80×80
Testing temperature range RT~200℃ (300℃/400℃)
Vacuum degree Atmospheric pressure~ 100Pa
Performance Temp. fluctuation ±0.5℃
Temp. uniformity ±5℃
Control accuracy 0.1℃
Heating-up time RT~200℃<80min (No linear,empty load)
Material Exterior chamber material Cold-rolled steel plate+Powder coating
Interior chamber material SUS#304 Stainless steel
Insulation PU&fiberglass wool
System Air circulation system Cooling fan
Heating system SUS#Stainless steel high-speed heater
Vacuum system Equipped with vacuum pump
Control Mode Microcomputer PID+S.S.R+Timer
Power supply AC 3 phase 220/380V 60/50Hz




1) Liyi industrial vacuum chamber can reduce the drying temperature.
2) Liyi industrial vacuum chamber avoid some of the items being oxidation when heating.
3) Liyi industrial vacuum chamber avoid some biologic cells being killed by the air when heating.
4) No dust damage.

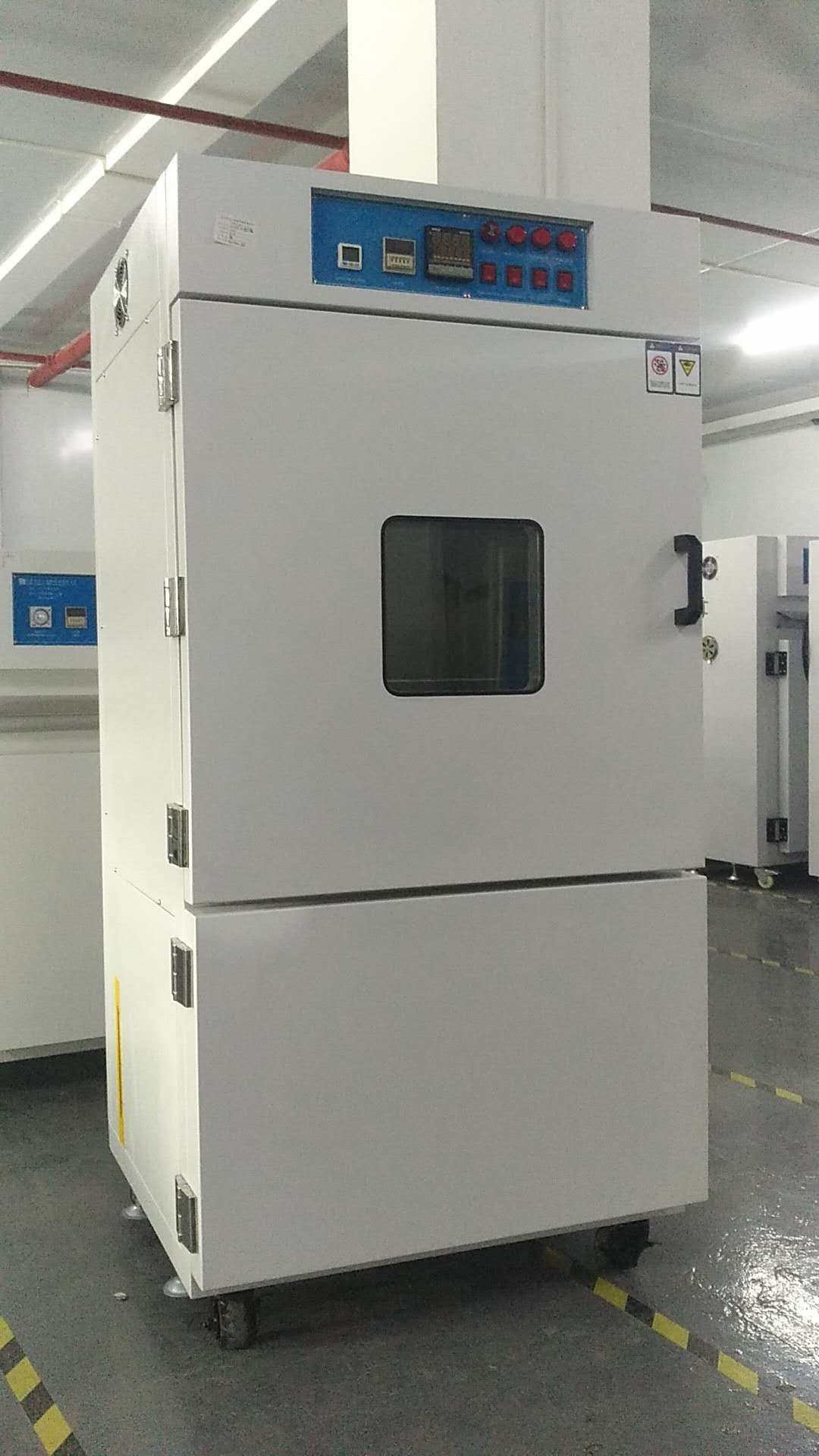

industrial ovenLIYI 220V Drying Vacuum Oven With 3KW Electrothermal Tube 1

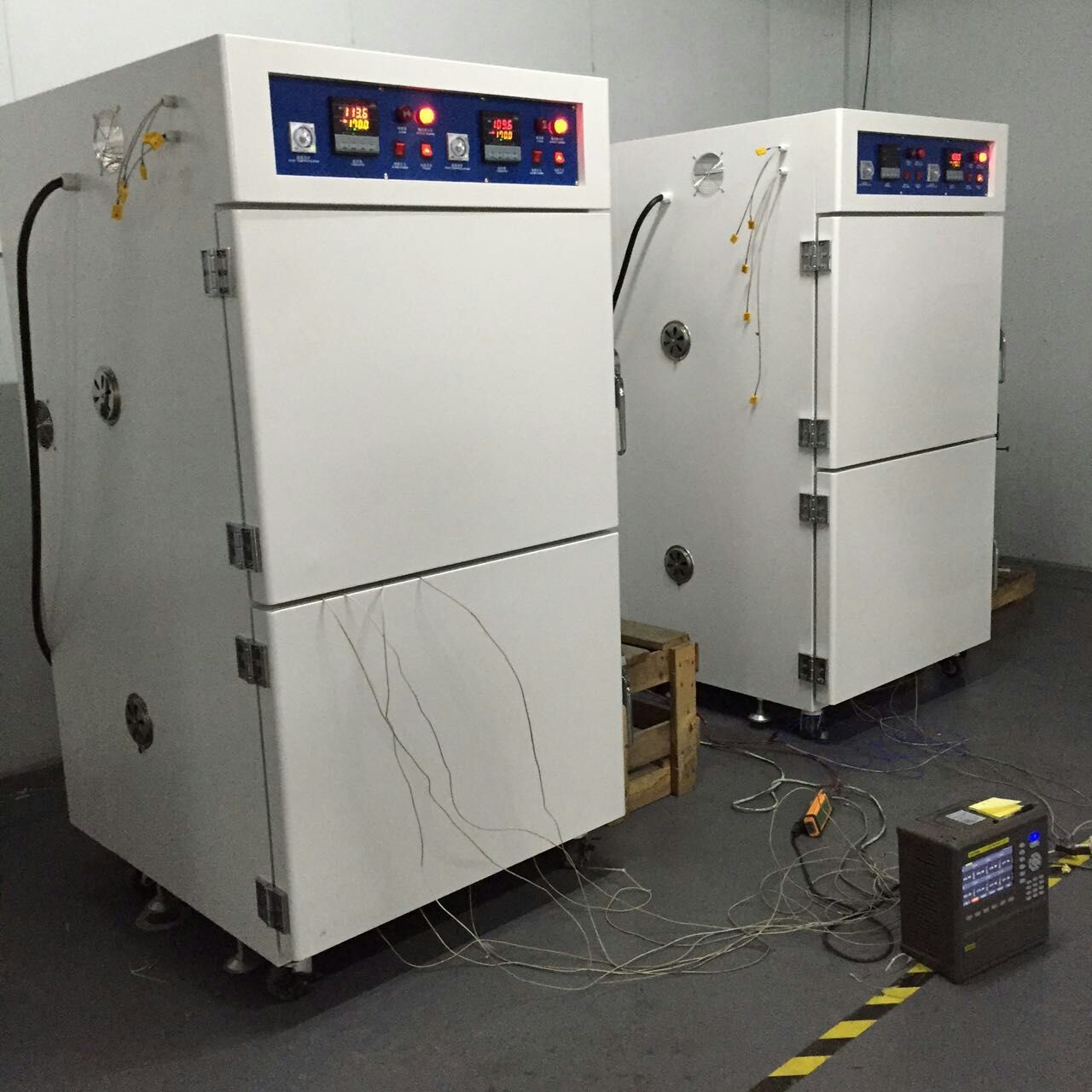

LIYI 220V Drying Vacuum Oven With 3KW Electrothermal Tube 2

Our service:

During the whole business process, we offer Consultative Selling service.


1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
