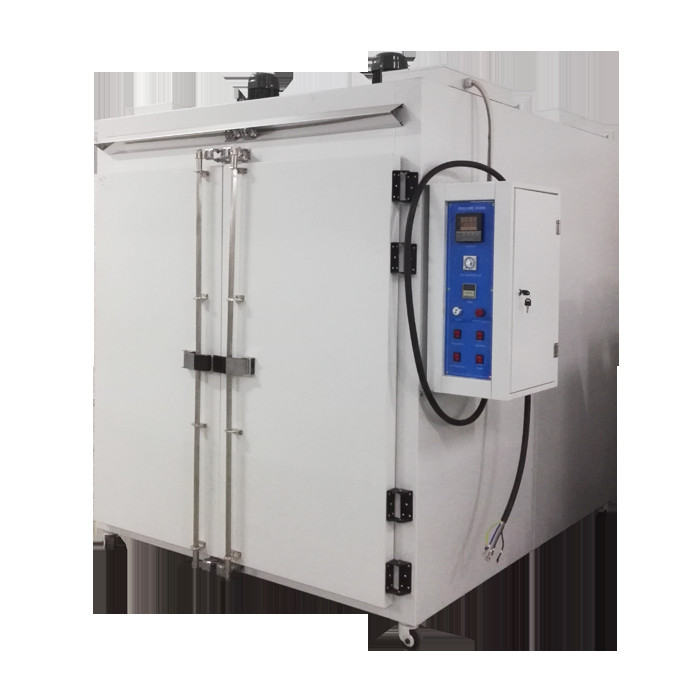

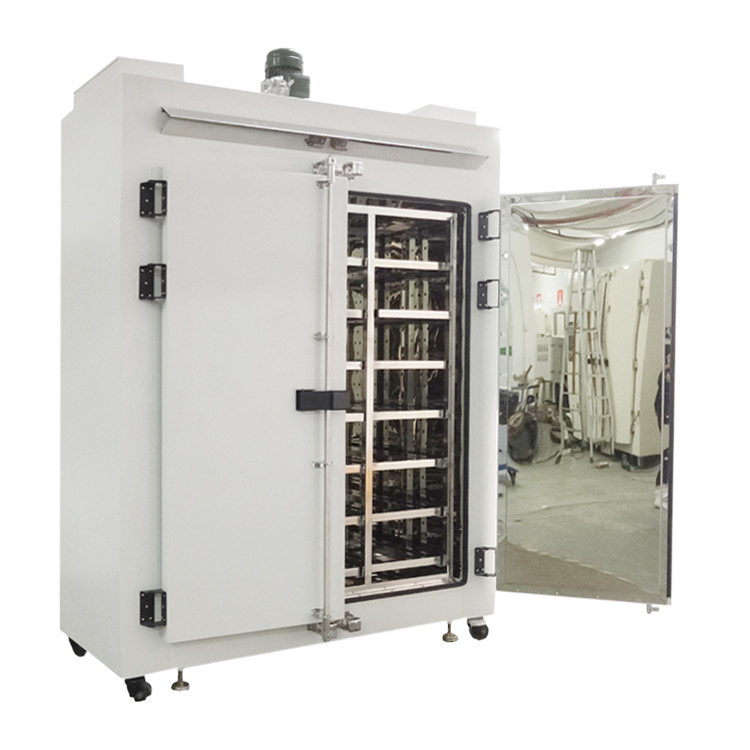

High Temperature Liyi 500 Degrees Hot Air Electric Drying Oven
1 Set
MOQ
2000~20000USD
Price
High Temperature Liyi 500 Degrees Hot Air Electric Drying Oven
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE ISO
Model Number: LY-6180
High Light:

500Degrees Electric Drying Oven

,

Liyi Electric Drying Oven

,

Liyi high temperature drying oven

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 20-35 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Specifications
Product Name: Liyi Customized Max 500 Degree Hot Air Industrial High Temperature Drying Oven
Temperature Range: A-d(200°C~500°C)
Heating Up Time: RT~100°C About 10min
Accuracy (°C): ±0.3
Uniformity (°C): ±1%
Rate Of Work (kw): 3.5~16
Heating System: PID+S.S.R.
Power: 220V Or 380V
Product Description

Liyi Customized Max 500 Degree Hot Air Industrial High Temperature Drying Oven



      With many year's experiences, we design, manufacturer and trade good quality industrial ovens with affordable prices. Our Industrial ovens are designed to heat up to 800 ℃ and are used for a wide variety of heat processes including drying, curing, aging, annealing, stress relieving, bonding, tempering, pre-heating and forming. Industrial ovens are essentially heated boxes with insulated doors that process products one at a time or in groups (“batches”). The part(s) to be heated are brought into the oven in batches on racks, carts, or trucks. Production requirements can accommodate manual or automated loading.



       Standard industrial ovens are offered in many sizes, with multiple options available upon request. And we also supply custom engineered industrial ovens.



Characteristics



Great part of hot wind is circulated in the oven with high thermal efficiency, less energy consumption.The oven is equipped by the adjustable air-distributing plates to utilize the forced ventilating to dry the target materials evenly. The hot air circulating drying oven runs in stable condition, low noise, self-control temperature, easy installing and maintaining, and wide application.



Feature



1, No Installation
2, High efficiency through the use of a heat pump system for removing air humidity.
3, Drying in a closed sealed room, no foreign material pollution and no dependence from the climate.
4, All in one design, the operation directly after power switched on.
5, Graphical touch control system, automatic intelligent control and demands no human duty after setting.
6, Condensate available for further use.



Specifications

Standard Models (Temperature Range RT~500℃)can be customized up tp 800℃

Model
Inner Size
W*H*D
(cm)
External Size
W*H*D
(cm)
Accuracy
(°C)
Uniformity
(°C)

Power
Power of Rate
(KW)
LY-645
45×40×40
66×92×55





±0.3





±1%




220V
Or
380V
3.5
LY-660
50×60×50
70×125×65
4.5
LY-690
60×90×50
80×156×65
5.5
LY-6100
80×100×60
100×166×75
8
LY-6120
90×120×60
110×186×75
10
LY-6140
140×120×60
160×186×75
12
LY-6160
160×140×80
180×206×97
14
LY-6180
180×140×100
200×200×118
16
LY-OEM





During the whole business process, we offer Consultative Selling service.



1) Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
