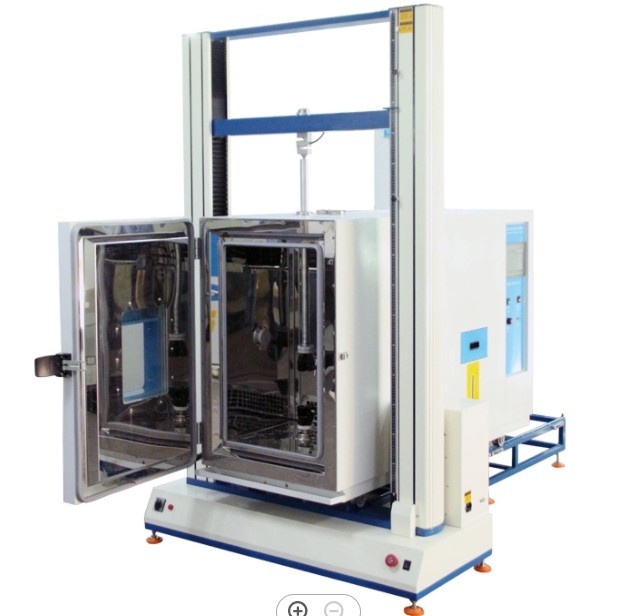

Liyi High Low Temperature Tensile Tester Strength Test Equipment Price
This machine combines high-low temperature tester with peel strength tester wonderfully. It can restrain the error brought by changing environment between testing process. Setting up different fixtures can test 180&90 degree peeling strength, separating force,ect. for the adhesive material in the high-low temperature environment. This machine can be changed into programmable temperature&humidity tester according to your needs.
Character:
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficiency and structure rigidity.
2. Use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controlled in 2%.
3. That Using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
4. Have steady performance, high accuracy, powerful software function and easy operation.
5. Use double insulated glass, user-friendly observing test; Adopt stainless steel frame and bladder, not only beauty but corrosion resistance.
Design Standards:
UN38.3, SJ/T11169-1998, SJ/T11170-1998, UL1642-1995, UL2054-1997, QC/T 743-2006 , QC/ 742-2006, QC/T 744-2006 , GB/T18287-2000, GB 8897.4-2002 , IEC60086-4-2000 and so on.
|
Capacity
|
2,5,10,20,50,100,200,500,1000kg
|
|
Choosing capacity
|
3 to 10 times of the most value about the specimen damage
g,kg,N,KN,LB( switchover free)
|
|
Operation method
|
Windows operation
|
|
Resolution
|
1/2500,000
|
|
Accuracy
|
≤0.5%
|
|
Testing speed
|
1~500mm/min
|
|
Stroke
|
400,500,600mm(Height can be customed)
|
|
Test width
|
40cm(can be changed by customer needs)
|
|
Test space
|
(L×W×H)40×40×70cm
|
|
Motor
|
Panasonic servo motor
|
|
Kind of drive
|
high-precision ball screw
|
|
Dimension
|
(W×D×H)1200×600×1500mm
|
|
Weight
|
200kg
|
|
Power
|
1φ,110V/50Hz
|
|
Rate of work
|
0.4KW(depend on motor model)
|
|
Clamp
|
customize by customer needs(tensile and compressive clamp)
|
Temperature control system:
|
Temperature range
|
-40℃~150℃
|
|
Temperature method
|
computer P.I.D.automatic control
|
|
Humidity range
|
20%RH~98%RH
|
|
Stability of control
|
±2.5%RH,±1℃
|
|
Accuracy of distribution
|
±3%RH,±1℃
|
|
Temperature&humidity control
|
TATO
|
|
Circulatory System
|
Wind forced circulation
|
|
Heating System
|
SUS#304, stainless steel heater
|
|
Humidifying System
|
Surface evaporation, a transparent structure
|
|
Cooling system
|
Fan cooling mode, high efficiency of all sealed compressor
|
|
Dehumidifying System
|
Freezing latent heat humidification mode
|
|
Internal&external material
|
SUS#304
|
|
Inner dimension:
|
(L×W×H)40×40×70cm
|
Safety Device:
|
Stroke protection
|
Machinery, computer double protection, prevent over preset
|
|
Force protection
|
system setting
|
|
Emergency stop device
|
Handling emergencies
Leakage current
Compressor overload
Over temperature
|
During the whole business process, we offer Consultative Selling service.
1. Customer inquiry process:
Discussing testing requirements and Technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2. Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.
3. Order process:
We offer below business term:
|
Accepted Delivery Terms:
|
FOB, CFR, CIF, EXW, DDP
|
|
Accepted Payment Currency:
|
USD, EUR, HKD, CNY
|
|
Accepted Payment Type:
|
T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
|
|
Nearest Port:
|
Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing, HK
|
4. Production and delivery process:
We will produce the machines according to confirm PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements) . Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5. Installation and after sale service:
Defines installing those products in the filed and providing after-sales support.
