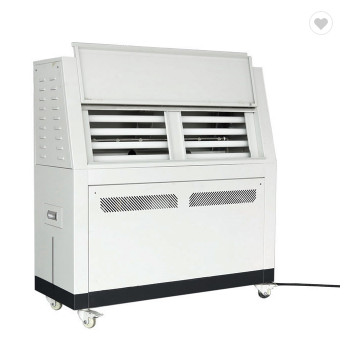

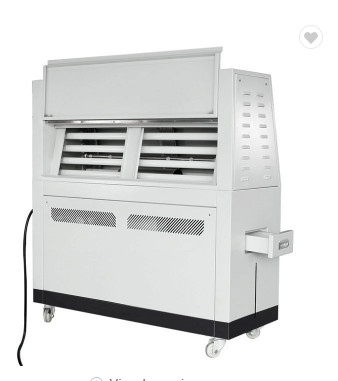

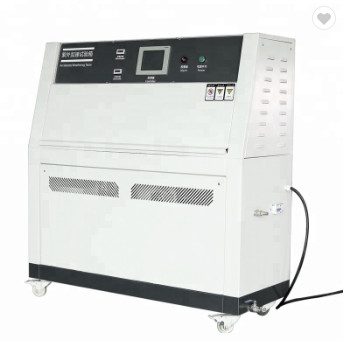

LIYI Ultraviolet Environmental Simulation Chamber UVB313 40W Lamps oil paint aging test
UVA340 Ultraviolet Environmental Simulation Chamber for Ink Aging Test with 40W UVA Lamps can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
IEC61215, ASTM D4329,D499,D4587,D5208,G154,G53；ISO 4892-3,ISO 11507；EN 534；prEN 1062-4,BS 2782；JIS D0205；SAE J2020,ect.
1.The UVA340 Ultraviolet Environmental Simulation Chamber for Ink Aging Test with 40W UVA Lamps is designed according to uses’ operation , it’s easy to operate, safe and reliable.
2.The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3.The door rotating up does not interfere with the operation and the tester takes a very small space only.
4.It’s unique condensation system can be contented by tap water.
5.The heater is under the container rather than in the water, which is long life, easy to maintain.
6.The water level controller is outside the box, easy to monitor.
7.The machine has truckles, convenient to move.
8.Computer programming is convenient, automatically alarming when incorrect operated or faulted.
9.It has irradiance calibrator to extend the life of the lamp tube(more than 1600h).
10.It has Chinese and English instruction book, convenient to consult.
11.Divided into three types: common, light irradiance controlling, spraying
|Inside Dimensions (CM)||45×117×50|
|Outer Dimensions (CM)||70×135×145|
|Rate of Work||4.0(KW)|
|Distance Between Lamps||35mm|
|Distance Between Samples and Lamps||50mm|
|Specimen Number||L150mm×W75mm, 48pcs in total|
|Ultraviolet Wavelength||290nm～400nm UV-A340,UV-B313,UV-C351(state clearly in your order )|
|Rate of the Lamp||40W/Piece, 1200mm/Piece|
|Controller||touch screen programmable controller|
|Illumination Heating System||all independent system, nickel chrome alloy electrical heating type heater|
|Condensation Humidifying System||stainless steel shallow evaporative humidifier|
|Blackboard Temperature||double metal blackboard thermal meter|
|Water Supplying System||Humidification water supplying automatic control|
|Exposure Way||moisture condensation way exposure, light radiation exposure|
|Safety Device||leakage, short circuit, super temperature, water shortage and over current protection|
