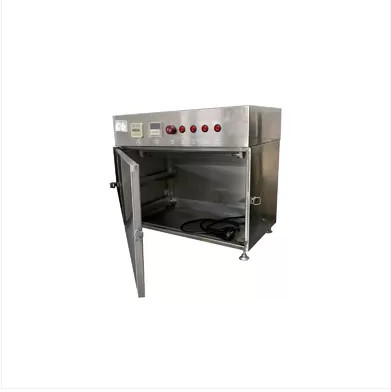

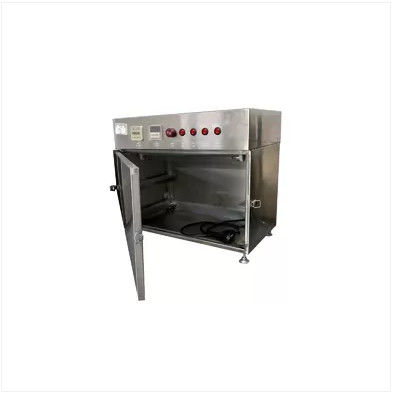

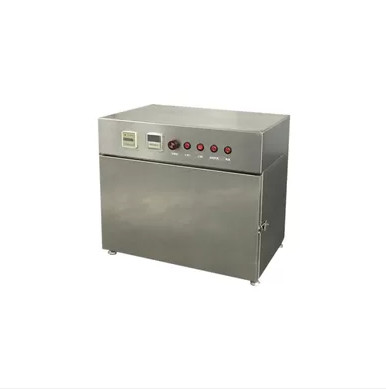

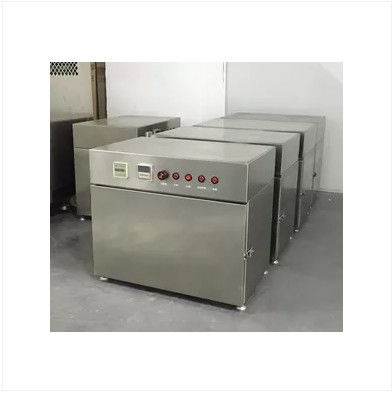

LIYI SUS304 ASTM D1148 Small Environmental Chamber , 265nm Aging Test Machine
Product introduction:
Anti yellowing chamber simulating the ultraviolet radiation of sunlight, the test piece is irradiated by ultraviolet ray in the machine for a period of time, the degree of resistance to yellowing or fading is observed, the grade of yellow change can be determined by gray standard ratio, and this product can also be used to eliminate the function of EPROM in the electronics industry.
Gray standard available for reference pollution,determine the material level of yellowing. You can also visually observe yellowing sample rate directly. It can be used as ageing tester and ovens after taking off ultraviolet lamp.
Characteristics
1. Use hot wind cycle to heat;
2. Use SUS #304 stainless steel as inner material;
3. Use paint-coated processing as external material.
Specification:
| Inner chamber size(W*D*H) | 50×30×26 cm |
| Outer size(W*D*H) | 54×34×43 cm |
| Temperature | RT(Room temperature) |
| Shelves | Two layers, height can not be adjusted |
| UV light source | 2 tubes, 15W |
| UV light wavelength | Max 265nm |
| UV light irradiance | Max 0.3w/m² |
| Timer | 0~9999min, electronic display |
| Chamber weight | 12 Kg |
| Power | 1¢,220V/50Hz |
Our service:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
