LIYI Humidity Stability Chamber , 80-800L Benchtop Test Chamber
1
MOQ
3,099.00 - $5,680.00/Set
Price
LIYI Humidity Stability Chamber , 80-800L Benchtop Test Chamber
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: ISO
High Light:

LIYI humidity stability chamber

,

80L humidity stability chamber

,

800L benchtop test chamber

Payment & Shipping Terms
Packaging Details: Standard Export wooden case
Delivery Time: 10-15 work days
Payment Terms: T/T
Specifications
Warranty: 1 YEAR, 12 Months
Place Of Origin:: Guangdong, China
Power:: Electronic
Color:: Customer Required
Emperature Control Range:: A: -40℃~150℃,B: -60℃~150℃ ,C: -70℃~150℃
Controller Resolution:: ±0.3℃;±2.5%RH
Condensing Way:: Air-cooling
Temp&Humi Fluctuation:: ±0.5℃;±2.5%RH
Humidity Control Range:: RH20%-98% (can Be Customized)
Keyword:: Mini Temperature Humidity Chamber
Power Supply:: 220V 50Hz
Customized Support:: OEM, ODM, OBM
Product Description

Stability Benchtop Environmental Test Temperature Humidity Chamber



Product Description

This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.



Standards:

GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566 etc.

Characteristics:

1. Freezer imported by the French original armored warrior compressor and use environmental-friendly refrigerant (R134A, R404A, R23).
Frozen system uses units or low-temperature dual-loop system design.
2. Use more powerful wing-blower air supply cycle, to avoid any dead end, temperature and humidity are evenly distributed in the test region.
3. Wind-road cycle adopted the design of blowing side wind and return wind. Wind pressure and wind speed are in accord with test standards, and make the door instantaneous temperature and humidity open that is stabilized time soon.
4. Heating, cooling, humidification and dehumidification system is totally unaided to improve efficiency, reduce testing cost, increase life expectancy and lower failure rate.

Product Parameters



Model LY-280 LY-2150 LY-2225 LY-2408 LY-2800

Inner Size

W×H×D(cm)

40×50×40 50×60×50 50×75×60 60×85×80 100×100×80

Outside Size

W×H×D(cm)

93×155×95 100×148×106 117×166×91 140×176×101 170×186×111
Volume (V) 80 L 150L 225L 408L 800L
Temp and Hum Range

A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C

RH20%-98%

Wind Cycling Way Centrifugal fan-broadband type forced air circulation
Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Water Supplying Way Automatic cycling water supply
Standard Accessories

1 Observe window(double-deck cavity toughened glass),

1 50mm test hole in the left,

1 PL inner chamber lamp,

2 clapboards,

1 bag of wet and dry bulb,

3 fuses,

1 power line.

Safety device

Non- fuse-switch(compressor overload,

refrigerant high low voltage,

over-humidity and temperature protection,

Protection switch,fuse stoppage warning system



Detailed Images

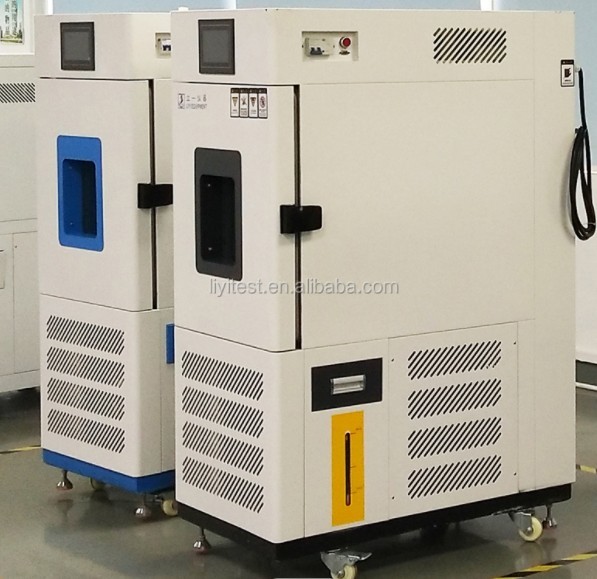

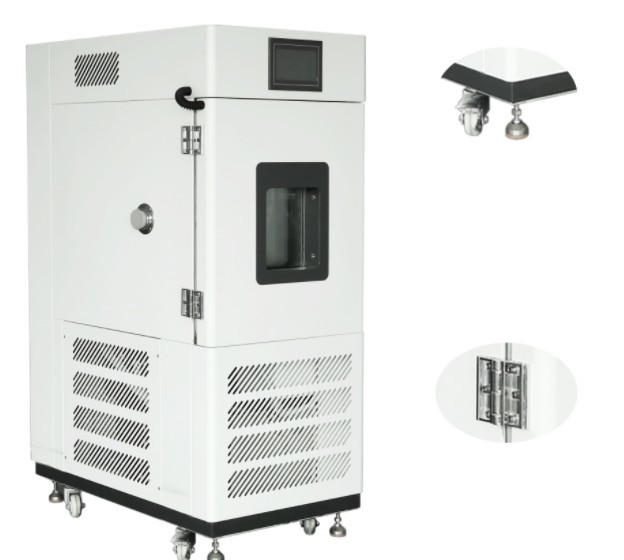

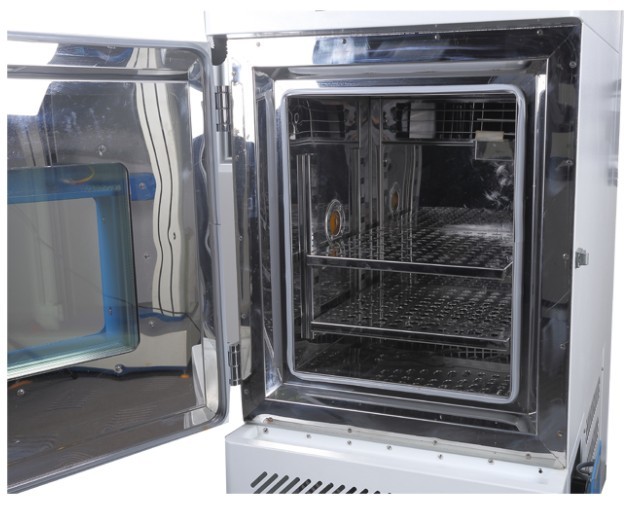

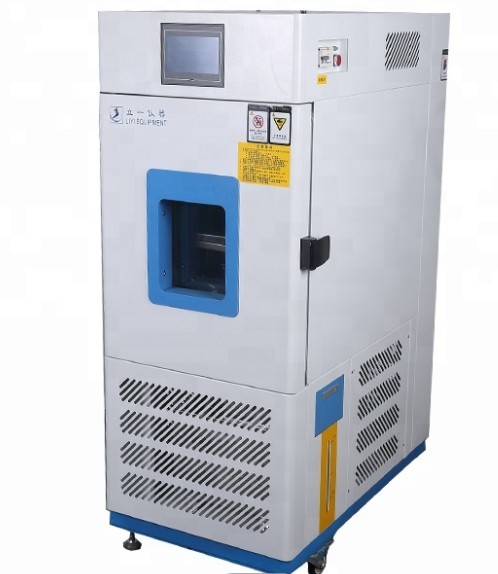

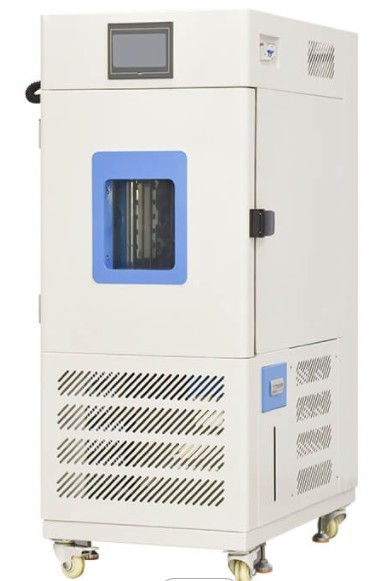

Stability Benchtop Environmental Test Temperature Humidity Chamber
Stability Benchtop Environmental Test Temperature Humidity Chamber
Stability Benchtop Environmental Test Temperature Humidity Chamber
Stability Benchtop Environmental Test Temperature Humidity Chamber
LIYI Humidity Stability Chamber , 80-800L Benchtop Test Chamber 4
Company Information

Guangdong LIYI Technology Co.,Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.

Stability Benchtop Environmental Test Temperature Humidity Chamber
