Ultraviolet Environmental Simulation Chamber RT70C UVA340 UVB313 UVA351
1Set
MOQ
4000~8000USD
Price
Ultraviolet Environmental Simulation Chamber RT70C UVA340 UVB313 UVA351
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-ZW
High Light:

UVA340 environmental simulation chamber

,

RT70C environmental simulation chamber

,

UVB313 environmental simulation chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Specifications
Temperature Range: RT~70℃
Material: Inner Stainless Steel
Controller: Touch Screen
UV Light: UVA340 UVB313 UVA351 Optional
Lamp Quantity: 8PCS
Function: UV, Water Spray, Condensation
Lamps Length: 1200mm
Lamp Power: 40W
Power: 220V
Product Description

Ultraviolet Environmental Simulation Chamber UVA340 RT~70℃ UVA340 UVB313 UVA351 optional



      UVA340 Ultraviolet Environmental Simulation Chamber for Ink Aging Test with 40W UVA Lamps can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.



Designing Standard:

IEC61215, ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN 534;prEN 1062-4,BS 2782;JIS D0205;SAE J2020,ect.



Characteristics:

1. The UVA340 Ultraviolet Environmental Simulation Chamber for Ink Aging Test with 40W UVA Lamps is designed according to uses’ operation , it’s easy to operate, safe and reliable.

2. The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.

3. The door rotating up does not interfere with the operation and the tester takes a very small space only.

4. It’s unique condensation system can be contented by tap water.

5. The heater is under the container rather than in the water, which is long life, easy to maintain.

6. The water level controller is outside the box, easy to monitor.

7. The machine has truckles, convenient to move.

8. Computer programming is convenient, automatically alarming when incorrect operated or faulted.

9. It has irradiance calibrator to extend the life of the lamp tube(more than 1600h).

10. It has Chinese and English instruction book, convenient to consult.

11. Divided into three types: common, light irradiance controlling, spraying





Specifications:

Mode LY-ZW
Inside Dimensions (CM) 45×117×50
Outer Dimensions (CM) 70×135×145
Rate of Work 4.0(KW)

Performance Index



Temperature Range RT+10℃~70℃
Humidity Range ≥95%R.H
Distance Between Lamps 35mm
Distance Between Samples and Lamps 50mm
Specimen Number L150mm×W75mm, 48pcs in total
Ultraviolet Wavelength 290nm~400nm UV-A340,UV-B313,UV-C351(state clearly in your order )
Rate of the Lamp 40W/Piece, 1200mm/Piece
Lamp amount 8pcs

Controlling

System

Controller touch screen programmable controller
Illumination Heating System all independent system, nickel chrome alloy electrical heating type heater
Condensation Humidifying System stainless steel shallow evaporative humidifier
Blackboard Temperature double metal blackboard thermal meter
Water Supplying System Humidification water supplying automatic control
Exposure Way moisture condensation way exposure, light radiation exposure
Safety Device leakage, short circuit, super temperature, water shortage and over current protection

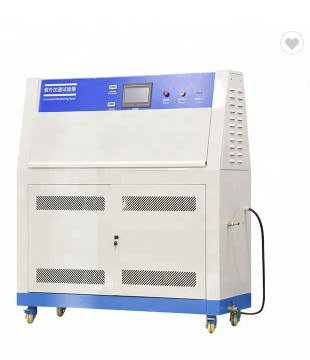

Ultraviolet Environmental Simulation Chamber RT70C UVA340 UVB313 UVA351 0

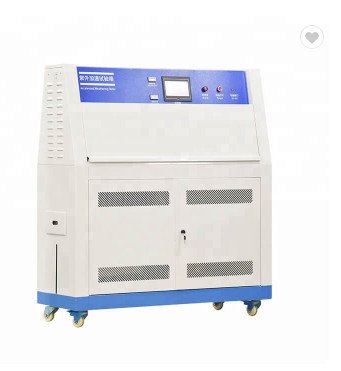

Ultraviolet Environmental Simulation Chamber RT70C UVA340 UVB313 UVA351 1



During the whole business process, we offer Consultative Selling service.



1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
