Aging Test Chamber Xenon Lamp Climate Resistance Test Chamber Humidity Range 30%~95%
Product introduction:

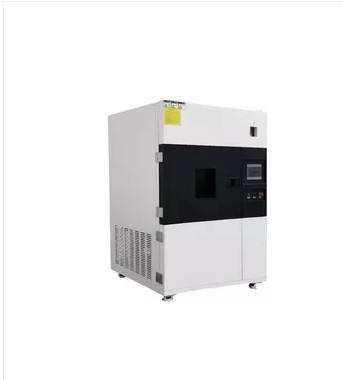

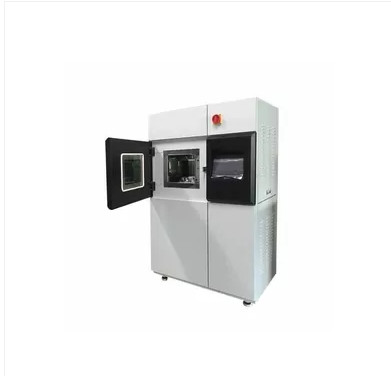

Liyi xenon test chamber is a comprehensive climate testing machine, can do climatic aging test and the lightfastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition.
Standards:
GB/T16422-2,GB/T1865-97,GB/T9344-88,ASTMG155,GB/T16422.2,GB/T2423.24-1995,ISO10SB02/B04,SAEJ2527,SAEJ2412
Specification:
| Model | LY-XD | |
| Test chamber size | 500×600×500mm(D*W*H) All size can customize | |
| Test chamber volume | 150L | |
|
Test Index |
Temperature range | Room temperature: +10°C~80°C ±3°C |
| Temperature uniformity | ≤2°C | |
| Temperature fluctuation | ±0.5°C | |
| Temperature deviation | ≤±2°C | |
| Heating speed | 5 degree/Min | |
| Humidity range | 30%~95% | |
| Humidity uniformity | ≤2°C | |
| Balckboard temperature range | 40°C~80°C±3°C | |
| Water spray period | 0min ~ 99h adjustable | |
| Water spray pressure | 3Kpa | |
| Water spray time | 0min ~ 99h adjustable | |
| Lamp nominal power | 1.8KW/1pcs(Made in China and wind cooled) | |
| Lamp life time | Average life 1200~1600h(Consumable do not guarantee) | |
| Wave length | (290-800nm) | |
Working Conditions:
| Power | 380V±10%; 50Hz; 3 phase 5 lines |
| Environment temperature | RT.+5~+35°C |
| Environment humidity | ≤85%R.H |
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
