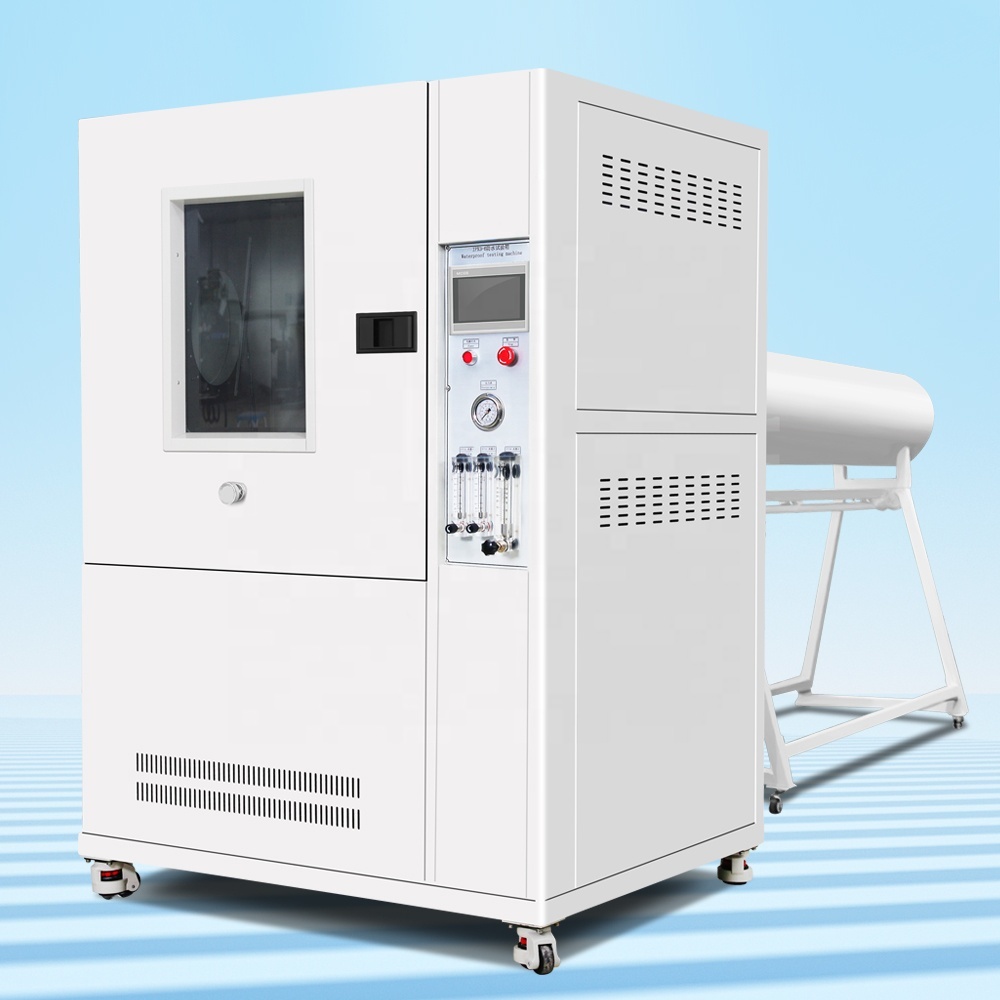

LIYI IEC60529 IPX Waterproof Testing Chamber
This programmable rubber/plastic rain test chamber simulates moisture and rain conditions to evaluate the effects of water exposure on lighting equipment, auto parts, household appliances, and other products. It tests product resistance to rain penetration and moisture-proof capabilities.
Compliance Standards
IEC60529, ISO 20653, GB2423.38-90, GB5170.20-90, GB 4208-93, IPX4 waterproof test methods
Key Features
- Realistic simulation of dripping rain, splashing water, and water spray environments
- Advanced control system with inverter technology
- Automatically adjustable specimen frame rotation angle
- Precision control of oscillating bar swing angle and water swing rate
- Rigorous scientific design for accurate environmental simulation
Technical Specifications
| Model |
LY-IPX34 |
| Turntable Size (L*D*H) |
1300*1300*1300mm |
| Chamber Size (L*D*H) |
1800*1520*1950mm |
| Pendulum Size |
R600mm (Additive matching R400mm, R200mm) |
| Nozzle Size |
Diameter 0.4mm |
| Pendulum Diameter |
15mm |
| Sample Turntable Diameter |
Diameter 600mm (Additive matching R400mm, R200mm) |
| Flow Rate |
0-3L/min |
| Turntable Load Capacity |
50KG |
| Turntable Height Range |
550-1000mm |
| Turntable Rotation Speed |
1-5r/min (precise adjustable) |
| Turntable Rotation Mode |
Continuous positive/reverse rotation |
| Pendulum Angle |
240° roundtrip 4S, 720° roundtrip 12s (precision control) or custom |
| Safety Features |
Leakage protection, water shortage protection, short circuit protection |

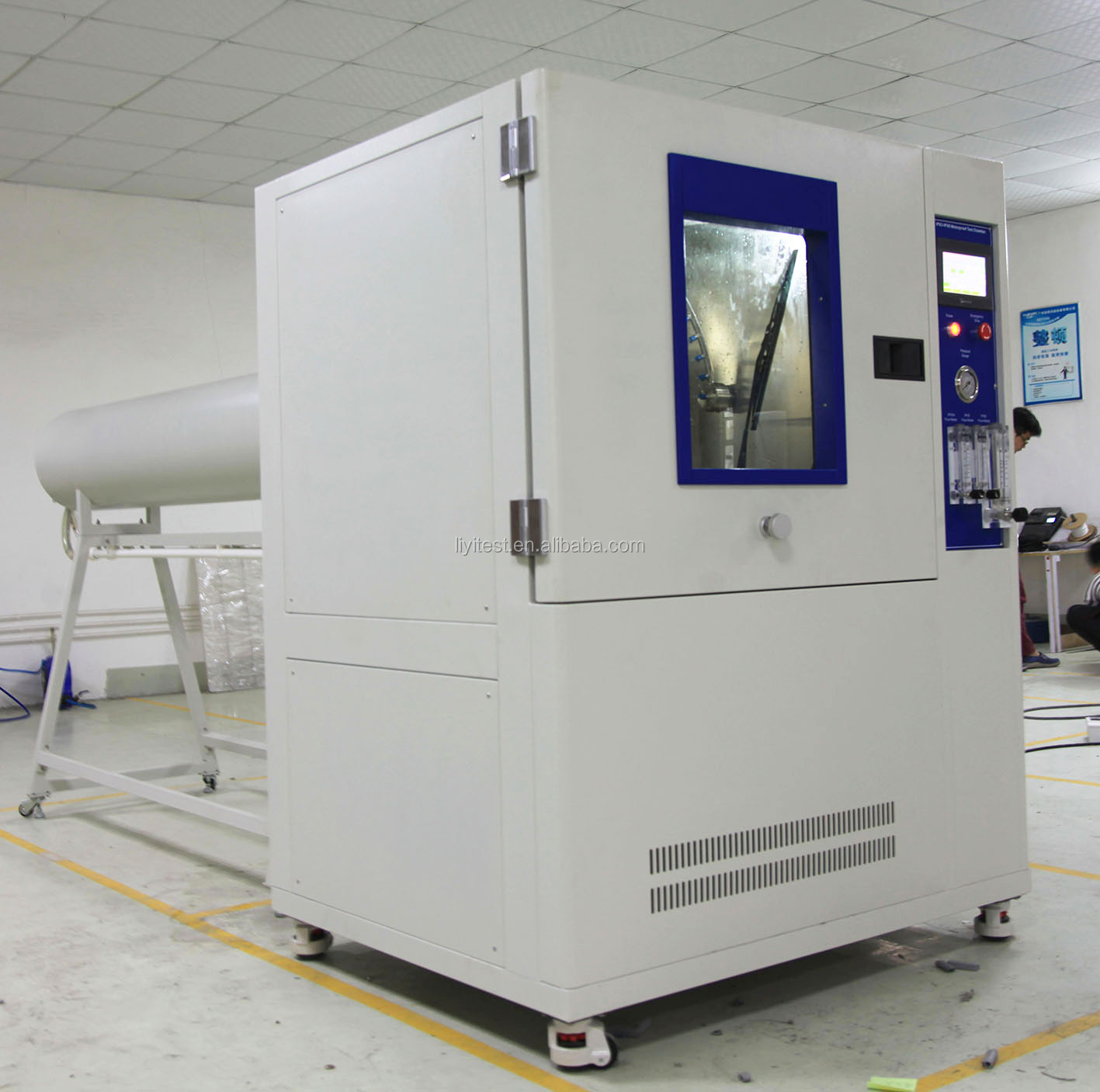

Product Gallery
Manufacturer Profile
Guangdong LIYI Technology Co., Ltd is a high-technology production-oriented enterprise specializing in developing, manufacturing, and marketing environmental testing equipment. With advanced technology, experienced technical management personnel, and efficient professional service staff, we maintain fine quality management and comprehensive after-sales service systems.
Our production base in Dongguan, Guangdong province, China, serves customers from over 150 countries and regions. We also maintain an office in Kunshan, Jiangsu province to better serve Eastern China markets. Our mission is to help customers establish testing laboratories to ensure product quality through international standards and specific customer requirements.
Frequently Asked Questions
Are you a manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?
Yes, we are a professional manufacturer of customized industrial drying ovens, hot air ovens, laboratory ovens, vacuum ovens, universal tensile testing machines, environmental climatic chambers, muffle furnaces, and more. All machines include a 12-month warranty after shipment, with extended coverage for sea transportation. For service requests, contact us via email or phone for troubleshooting and solutions within 24-48 hours.
What is the delivery timeline?
Standard machines are typically available from stock. For out-of-stock items, delivery is 15-20 working days after deposit receipt. We can accommodate urgent requests with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How do I install and use the machine?
We provide English operation videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. We also offer installation assistance when necessary.
