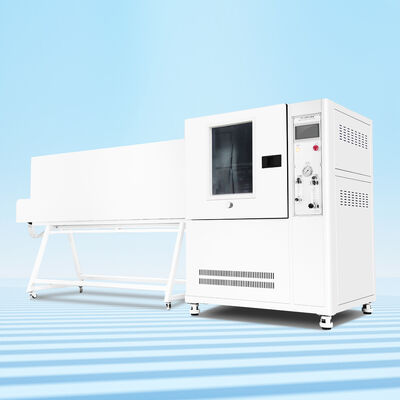

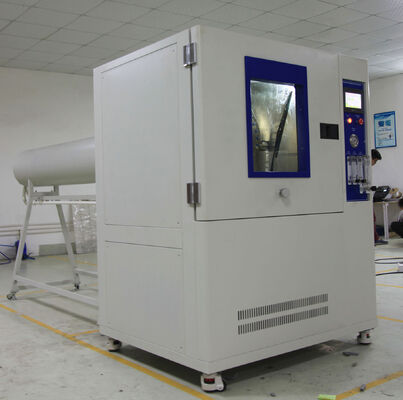

LIYI CE Approved IPX5 IPX6 Automatic Touch Screen Water Shower Test Chamber
This CE Approved IPX5 IPX6 Automatic Touch Screen Water Shower Test Chamber is designed for waterproof testing of electronic products, lighting equipment, auto parts, and household appliances. It simulates moisture and rain conditions to evaluate product resistance to water penetration and moisture protection capabilities.
Compliance Standards
IEC60529, ISO 20653, GB2423.38-90, GB5170.20-90, GB 4208-93, IPX4 waterproof test methods
Key Features

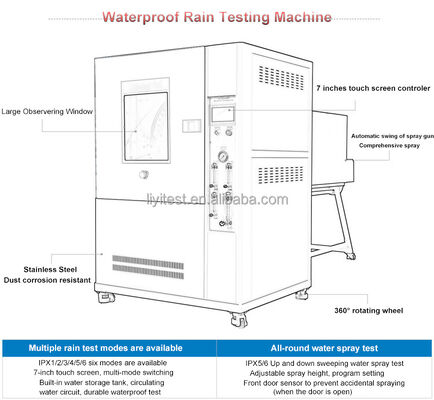

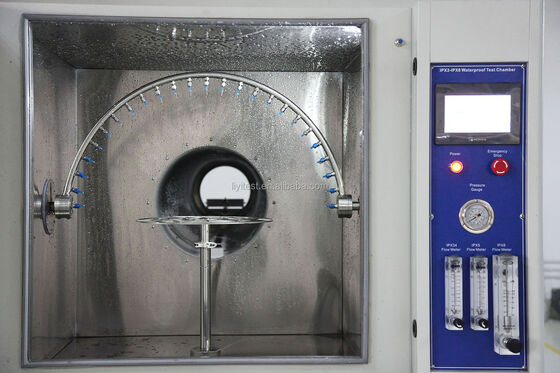

Programmable rubber/plastic Rain Test Chamber with rigorous scientific design to realistically simulate dripping rain, splashing water, and water spray environments. Features advanced control systems and inverter technology for automatic adjustment of specimen frame rotation angle, oscillating bar swing angle, and water swing rate.
Technical Specifications
| Model |
LY-IPX34 |
| Turntable Size (L*D*H) |
1300*1300*1300mm |
| Chamber Size (L*D*H) |
1800*1520*1950mm |
| Pendulum Size |
R600mm (Additive matching R400mm, R200mm) |
| Nozzle Size |
Diameter 0.4mm |
| Pendulum Diameter |
15mm |
| Sample Turntable Diameter |
Diameter 600mm (Additive matching R400mm, R200mm) |
| Rate of Flow |
0-3L/min |
| Turntable Load Bearing |
50KG |
| Turntable Height Range |
550-1000mm |
| Rotating Speed of Turntable |
1-5r/min (precise adjustable) |
| Turntable Rotation Mode |
Continuous positive/reverse rotation |
| Pendulum Angle |
240° roundtrip 4S, 720° roundtrip 12s (precision control) or custom |
| Safety Features |
Leakage protection, water shortage protection, short circuit protection |
Product Gallery
Customer Feedback
Manufacturer Profile
Guangdong LIYI Technology Co., Ltd is a high-technology production-oriented enterprise specializing in developing, manufacturing, and marketing environmental testing equipment. With advanced technology, experienced technical management personnel, and efficient professional service staff, we maintain fine quality management and comprehensive after-sales service systems.
Our product range includes simulated environmental testers, plastic and rubber testers, and various materials testing equipment. Our production base is located in Dongguan, Guangdong province, China, with an additional office in Kunshan, Jiangsu province serving Eastern China markets since 2005.
LIYI serves customers from over 150 countries and regions, collaborating with dealers worldwide to provide superior service. Our mission is to help customers establish testing laboratories to ensure product quality through continuous development, innovation, and adherence to international testing standards.
Frequently Asked Questions
Are you a manufacturer? Do you offer after-sales service? How can I request service and what is the warranty?
Yes, we are one of China's leading professional manufacturers of customized industrial drying ovens, hot air ovens, laboratory ovens, vacuum ovens, universal tensile testing machines, environmental climatic chambers, and muffle furnaces. All machines include a 12-month warranty after shipment, with extended coverage for sea transportation. For technical issues, contact us via email or phone for remote troubleshooting and solutions within 24-48 hours.
What is the delivery timeframe?
Standard machines are typically available from stock. For out-of-stock items, delivery takes 15-20 working days after deposit receipt. We accommodate urgent orders with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to customer requirements, including OEM and ODM services with custom branding.
How do I install and use the machine?
We provide English operation videos via email. Most machines ship fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
