Liyi Climate Change Test Cabinet
High and Low Temperature Resistance Testing Chambers for precise temperature cycle testing equipment that simulates various environmental conditions.
Product Overview
The Liyi Climate Change Test Cabinet is designed to simulate different environmental conditions for testing material performance including heat resistance, dry resistance, humidity resistance, and cold resistance. This equipment helps define and verify material performance under extreme conditions.
Technical Specifications
| Model |
LY-280 |
LY-2150 |
LY-2225 |
LY-2408 |
LY-2800 |
| Inner Size W×H×D (cm) |
40×50×40 |
50×60×50 |
50×75×60 |
60×85×80 |
100×100×80 |
| Outside Size W×H×D (cm) |
93×155×95 |
100×148×106 |
117×166×91 |
140×176×101 |
170×186×111 |
| Volume (V) |
80 L |
150 L |
225 L |
408 L |
800 L |
Performance Specifications
- Temperature & Humidity Range: A: -20°C~150°C, B: -40°C~150°C, C: -60°C~150°C, D: -70°C~150°C, RH: 20%-98%
- Fluctuation: ±0.5°C, ±2.5%RH
- Deviation: ±0.5°C-±2°C, ±3%RH (>75%RH); ±5%RH (≤75%RH)
- Controller Analytical Accuracy: ±0.3°C, ±2.5%RH
System Components
- Wind Cycling Way: Centrifugal fan-broadband type forced air circulation
- Refrigeration Way: Single stage compression refrigeration
- Refrigerator: French Tecumseh
- Refrigerants: R404A USA DuPont environmental protection refrigerant (R23+R404)
- Condensing Way: Air-cooled or water-cooled
- Heater: Nickel chrome heating wire heater
- Humidifier: Semi-closed steam and wet
- Water Supplying Way: Automatic cycling water supply
Standard Accessories
- 1 Observe window (double-deck cavity toughened glass)
- 1 50mm test hole in the left
- 1 PL inner chamber lamp
- 2 clapboards
- 1 bag of wet and dry bulb
- 3 fuses
- 1 power line

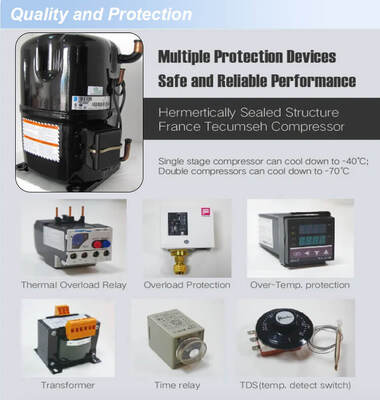

Safety Features
- Non-fuse switch (compressor overload protection)
- Refrigerant high/low voltage protection
- Over-humidity and temperature protection
- Protection switch and fuse stoppage warning system
Product Images
Manufacturer Information
Dongguan Liyi Environmental Technology Co., Ltd is a high-technology supported production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced technical management personnel, and efficient professional service staff, we maintain fine quality management and perfect after-sales service systems.
Our company primarily produces simulated environmental testers and plastic/rubber testers for various materials testing industries. Our production base is located in Dongguan, Guangdong province, China, with an additional office in Kunshan, Jiangsu province established in 2005 to better serve Eastern China markets.
Liyi serves customers from more than 150 countries and regions worldwide. We are committed to cooperating with dealers globally to offer superior service. Our mission is to help every customer establish testing laboratories to ensure product quality.
Frequently Asked Questions
Are you a manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?
Yes, we are one of the professional and largest manufacturers of environmental chambers, industrial ovens, universal tensile testers, UV aging test chambers, and other testing equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation. If your machine requires service, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
What is the delivery timeframe?
For standard machines, we typically maintain stock in our warehouse. If no stock is available, delivery time is 15-20 working days after deposit receipt for standard machines. We can make special arrangements for urgent requirements.
Do you accept customization service? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
After ordering testing machines from us, we provide English-language operation videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable to begin operation. If necessary, we can assist with on-site installation.
