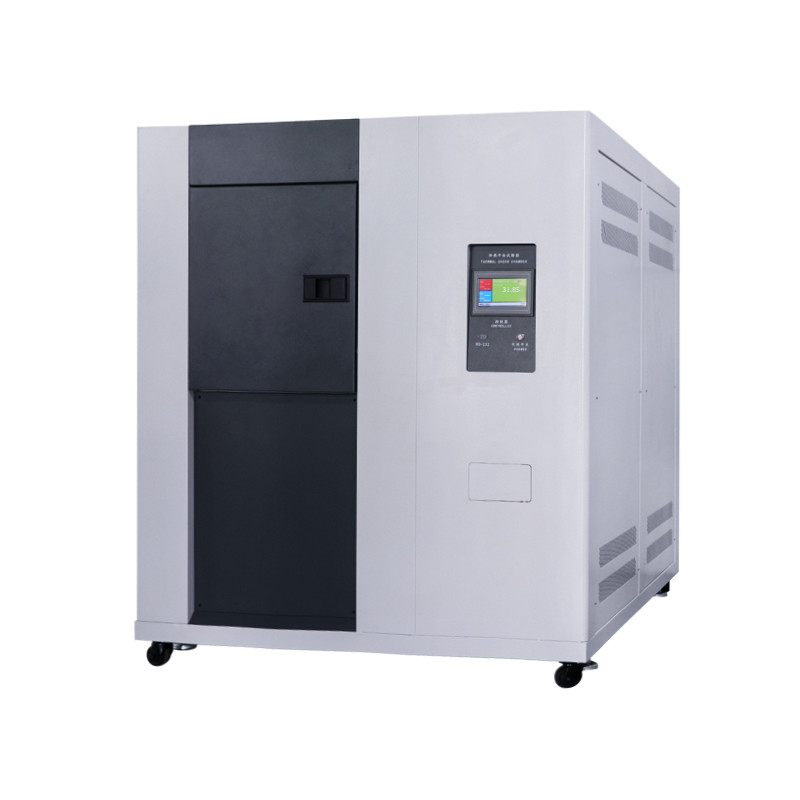

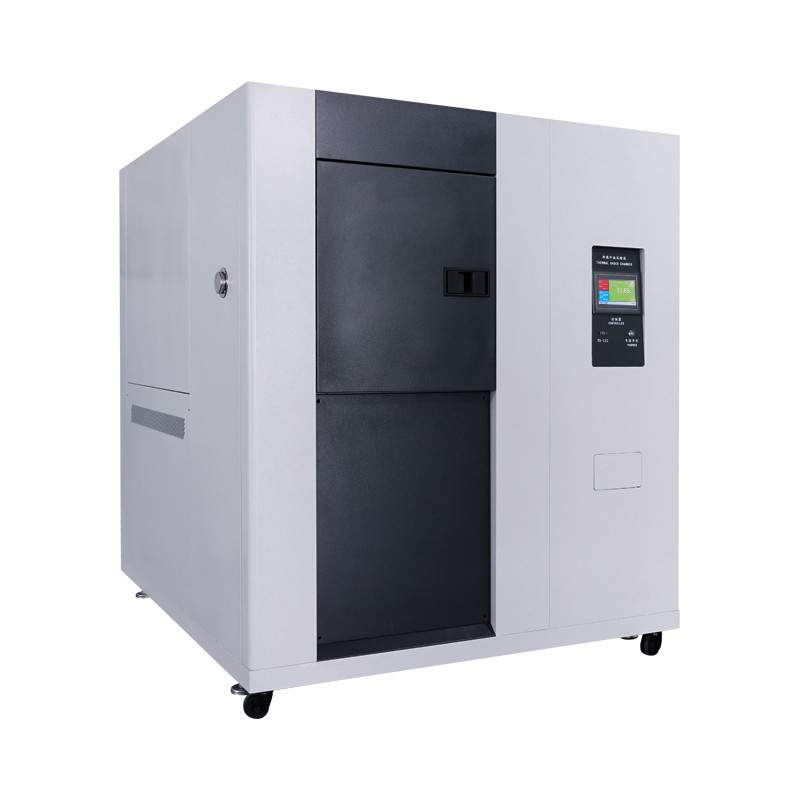

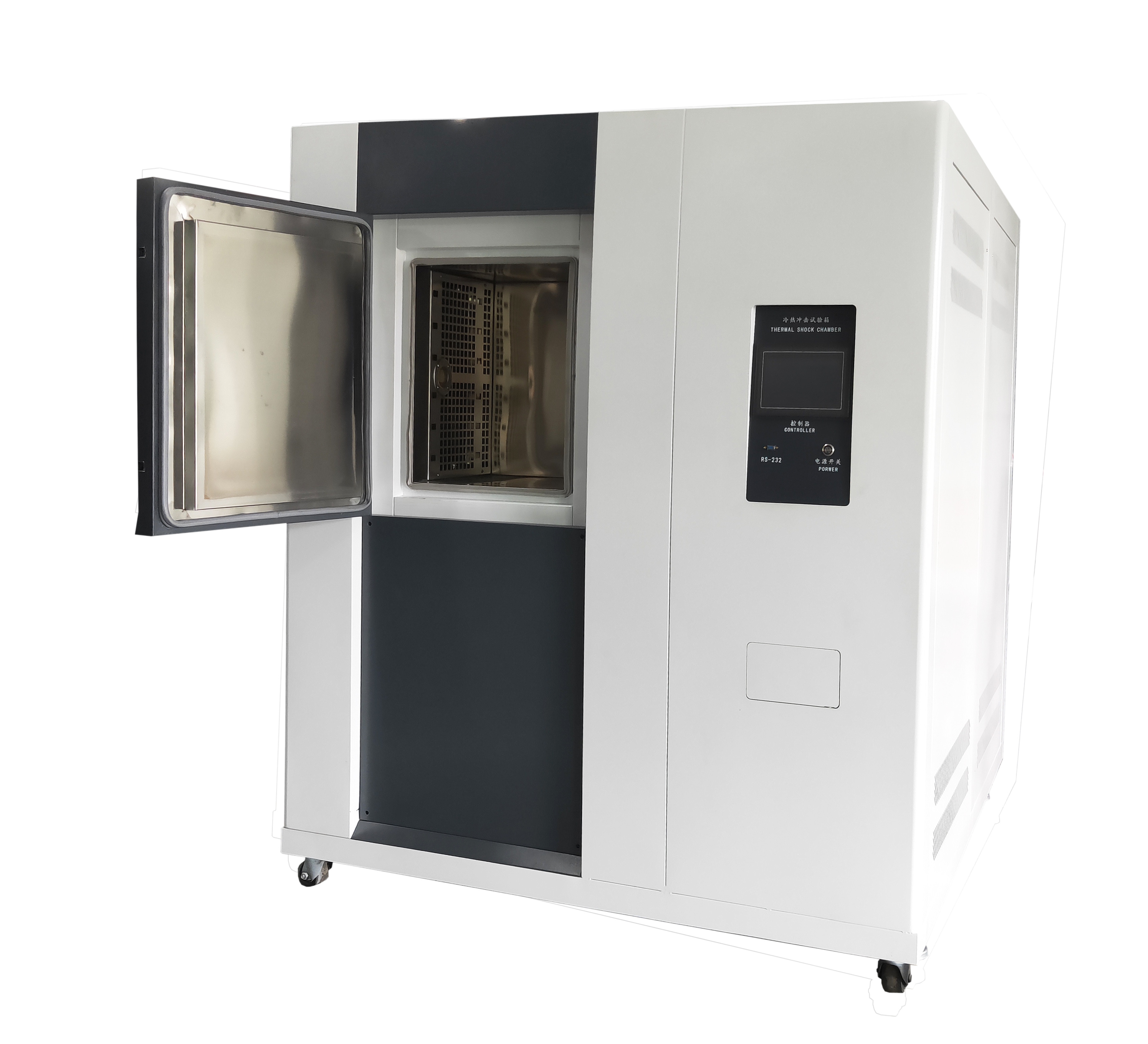

LIYI Touch Screen Thermal Cycling Chamber 80L 3 Zone Thermal Testing Equipment
LIYI Air Cooled 3 Zone High Low Temperature Impact Thermal Shock Test Chamber is metal, plastic, rubber, electronics and other industries necessary testing equipment. For the continuous exposure to extremely high temperature, very low temperature environment, instant exposure of the material structure or composite material tolerance, can be detected in the shortest possible time due to thermal expansion and contraction caused by chemical or physical damage.
It meets today's environmental stress screening requirements and is proven in installations around the world. It's an economical way to achieve ESS or thermal shocks for rapid component temperature changes.
The thermal shock chamber of this type is provided with three dampers, i.e., one for opening or closing the gas outlet and intake of the high-temperature air conditioning unit, another for the air outlet and inlet of the outside air supplying unit, and another for the gas outlet and intake of the low-temperature air conditioning unit.
High temperature: +60°C~+150°C (or 180°C)
Low temperature: -10°C~-40°C (or -40°C, -50°C,-60°C, -70°C)
||Less than ±2°C
|Temperature Conversion Time
||Less than 10S
|Temperature Recovery Time
||Less than 5min
||2 zone type or 3 zone type
||Water-cooled / air-cooled(small chambers only)
Since the cold chamber need huge cooling capacity for shocking, the chamber’s cooling mode is often designed as air-cooled or water-cooled.
Air-cooled type need installation environment:
The room must be equipped with exhauster and air conditioner to make sure heat dissipation timely.
It’s applied to small power products and cool areas.
Water-cooled type need installation conditions:
The customer must prepare water pipe and water tower (located outside) accordingly.
The water must be pure, or it will block the pipes and result in some maintenance trouble with time going.
It’s often applied to large system with the features of better heat dissipation, longer service time, low noise but slightly higher price if count the fee of water tower and water pipes.
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
We offer below business term:
|Accepted Delivery Terms:
||FOB, CFR, CIF, EXW, DDP
|Accepted Payment Currency:
||USD, EUR, HKD, CNY
|Accepted Payment Type:
||T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
||Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
