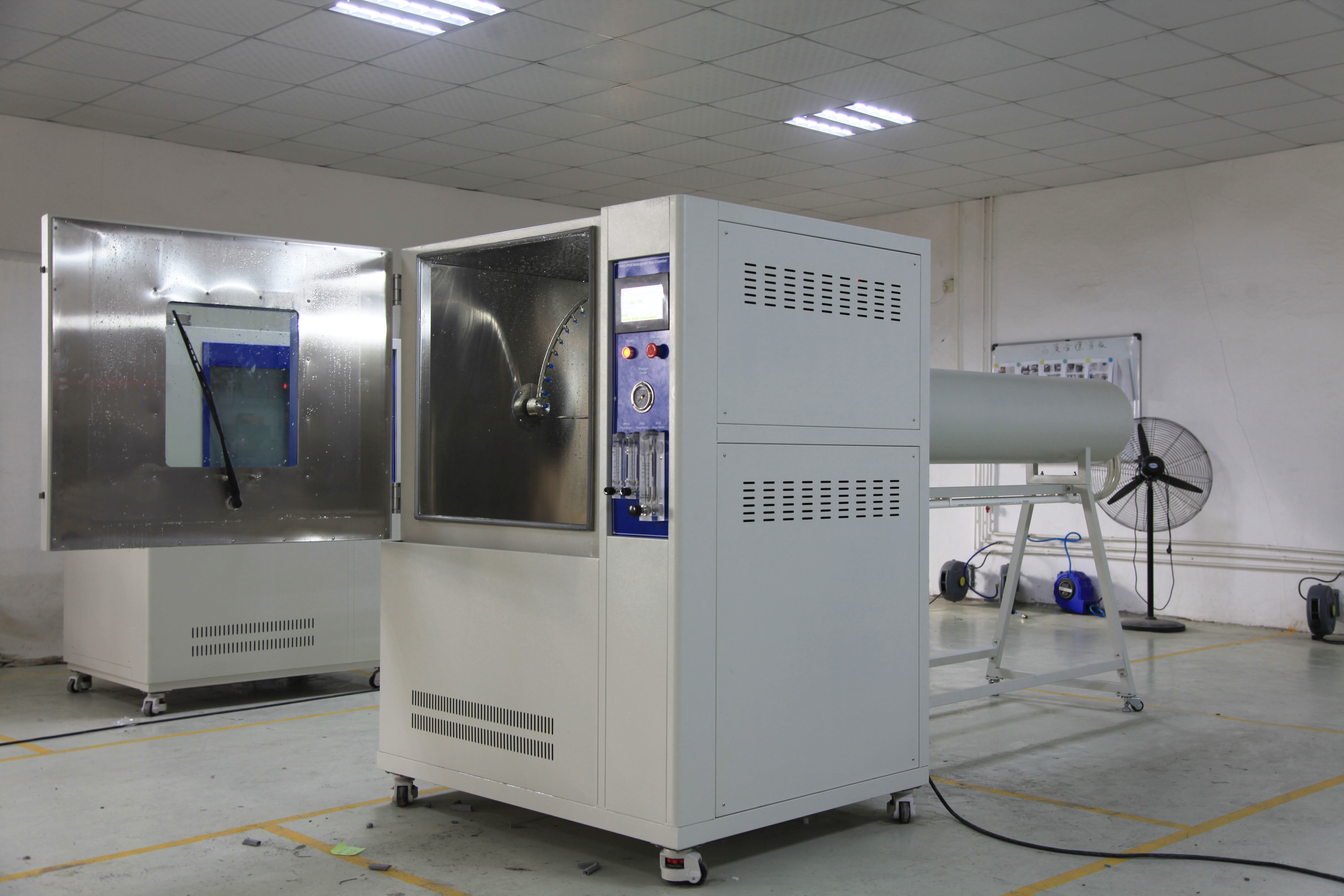

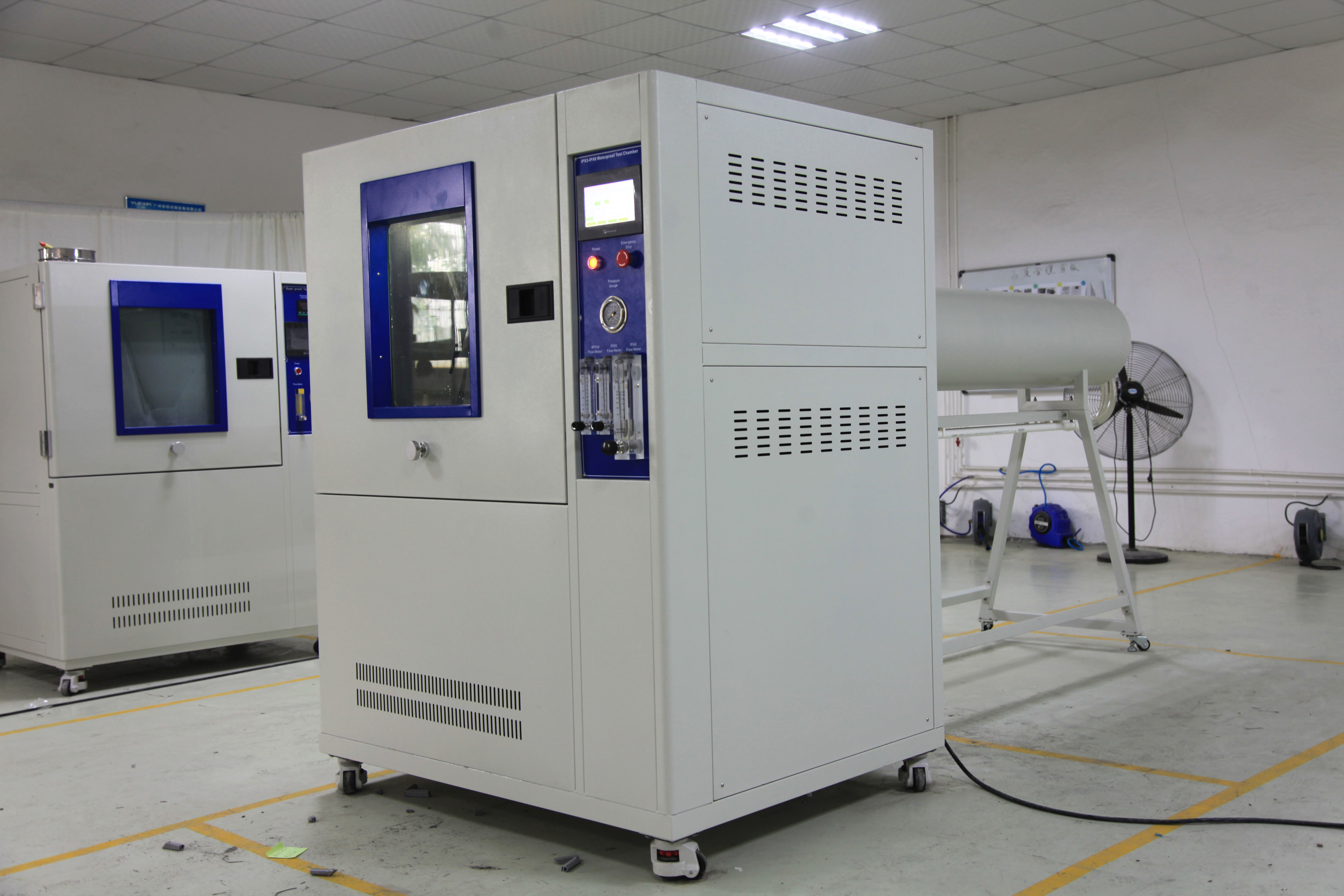

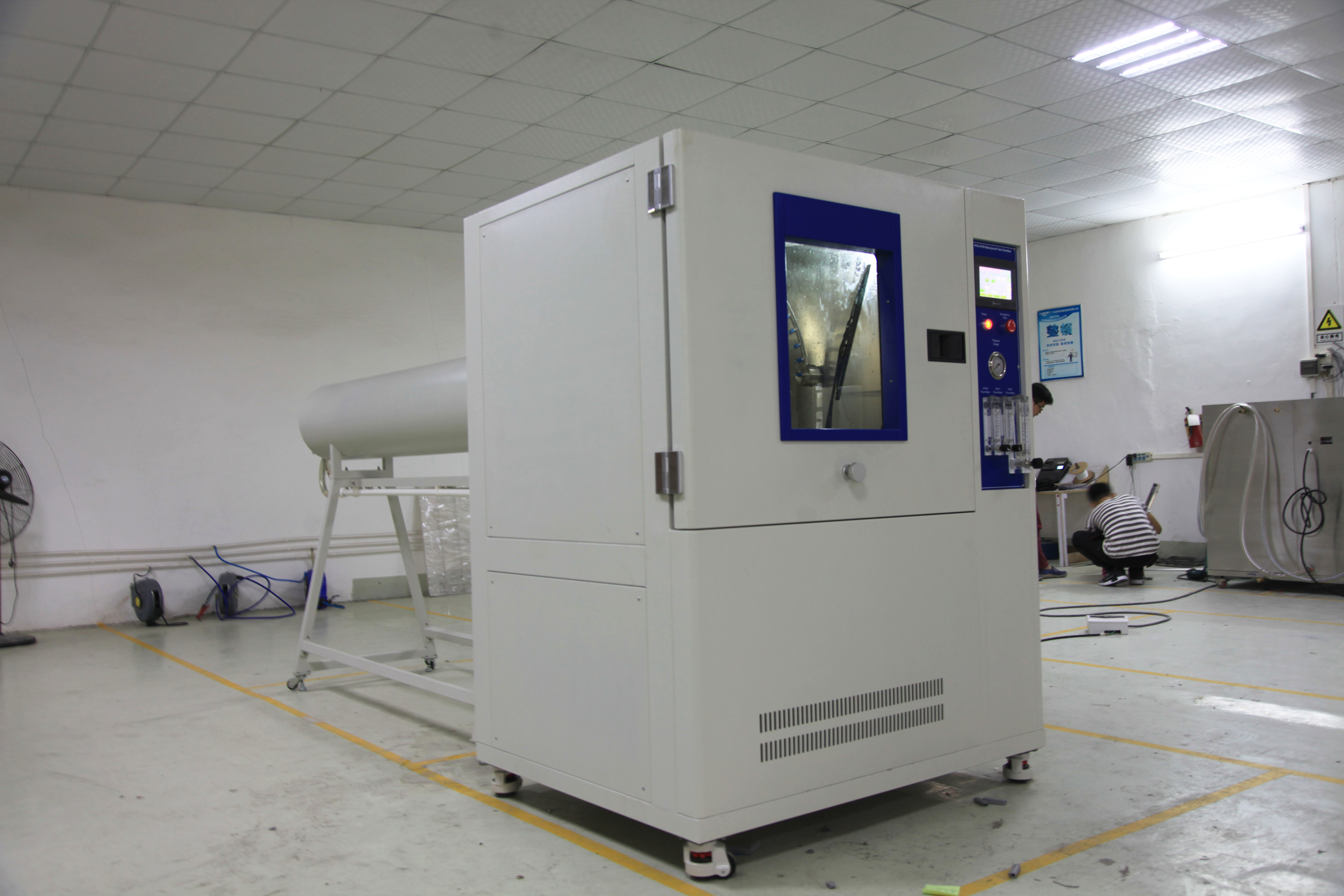

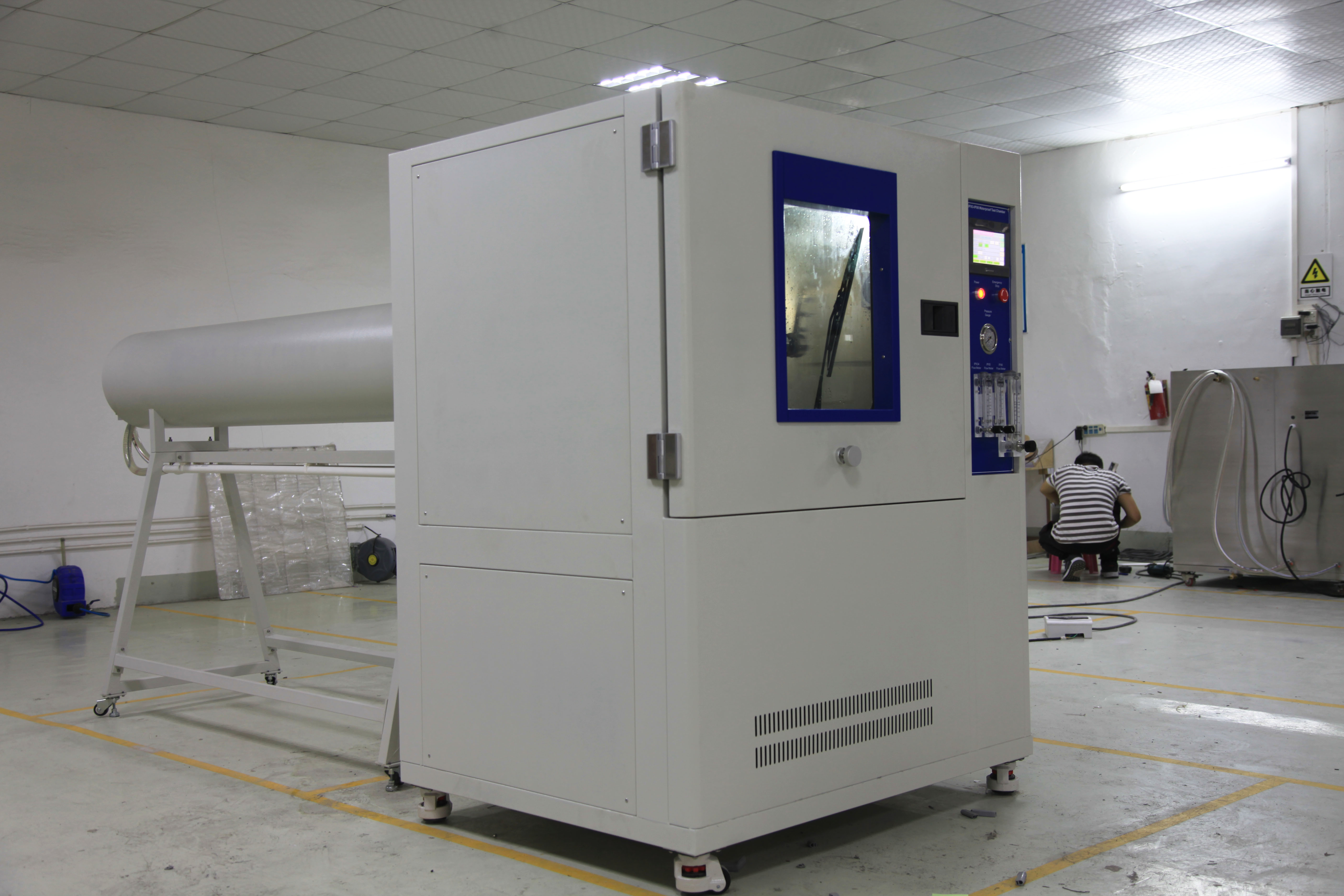

LIYI Strong Water Spray Chamber IPX3 4 5 6 Combined Waterproof Test Equipment
The destruction of products and materials by natural water (rainwater, sea water, River water, etc.) has caused incalculable economic losses every year. The damage mainly includes corrosion, fading, deformation, strength reduction, expansion, mildew and so on. Especially, electrical products are easy to cause fire because of short circuit caused by rainwater. Therefore, it is an essential and key procedure to carry out the shell protection water test for specific products or materials.
General application fields:
outdoor lamps, household appliances, automotive accessories and other electronic and electrical products.
Function of the equipment:
The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, cabinets, electrical components, automobiles, motorcycles and their components under simulated rainy weather conditions. After testing, the performance of the product can be judged by verification, so as to facilitate the design, improvement, verification and factory inspection of the product.
IEC60529:1989 +A1:1999 +A2:2013
Inner chamber size
|Swipping pipe size||R200mm||R400mm(can add R200mm)||R600mm(can add R400mm,R200mm)|
|Turn table diameter||D200mm||D400mm||D600mm|
|Can add∮200||Can add∮400 ,∮200|
|Turn table height||150-250mm||350-600mm||550-1000mm|
|Spray nozzle diameter||D0.4mm|
|Pipe inner diameter||15mm|
|Turn table max load||50kg|
|Turn table speed||1-5r/min adjustable|
|Turning method||front turning or front and back exchanging|
|Sswipping pipe angle||120º(IPX3),350º(IPX4) or customize|
|Swipping speed||120º(IPX3),350º(IPX4) or customize|
|Power source||220V, 1.0kw|
|Turn table size||W600*D600*H800mm|
|Water tank capacity||550L, size around 800×600×1145(mm)|
|Turn table size||D600mm|
|IPX5 spray nozzle||D6.3mm|
|IPX6 spray nozzle||D12.5mm|
|IPX5 water flow||12.5±0.625(L/min)|
|IPX6 water flow||100±5(L/min)|
|Flow control method||
(flow adjusting valve)
|Spray distance||2.5-3m(controlled by operator)|
|Spray nozzle fixing method||Manually hold||Manually hold(can equip with frame|
|Turn table max load||50KG|
|Control method||Buttom type||7 inch touch screen PLC|
|Power source||380V, 3.0kw|
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
We offer below business term:
|Accepted Delivery Terms:||FOB, CFR, CIF, EXW, DDP|
|Accepted Payment Currency:||USD, EUR, HKD, CNY|
|Accepted Payment Type:||T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow|
|Nearest Port:||Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired|
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
