Touch Screen Walk In Climatic Chamber Reliability Testing Controlled
1 Set
MOQ
10000~100000USD
Price
Touch Screen Walk In Climatic Chamber  Reliability Testing Controlled
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-WR10
High Light:

walk in humidity chamber

,

walk in temperature chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Specifications
Material: Inner 304# Stainless Steel
Inner Size: 2.5*2.2*2m
Controller: Touch Screen Programmable
OEM: Offered
Voltage: 380V
Warranty: 1 Year
Compressor: Imported Compressor
Accuracy: 0.5℃ ±2.5%RH
Temperature Range: -40°C~150°C/-70°C~150°C
Humidity Range: 20%~98% / 5%~98%
Product Description

10%~98% Humidity Walk In Environmental Chamber Reliability Testing And Controlled Storage Room



        10%~98% Humidity Walk In Environmental Chamber Reliability Testing And Controlled Storage Room is suitable for the whole machine or large parts of low temperature, high temperature, high and low temperature change, constant time heat, high and low temperature alternating moisture and heat test...

        The size and function of the studio can be customized according to user requirements. Pieced box body, beautiful and generous shape; Scientific airway design can meet the needs of different customers.

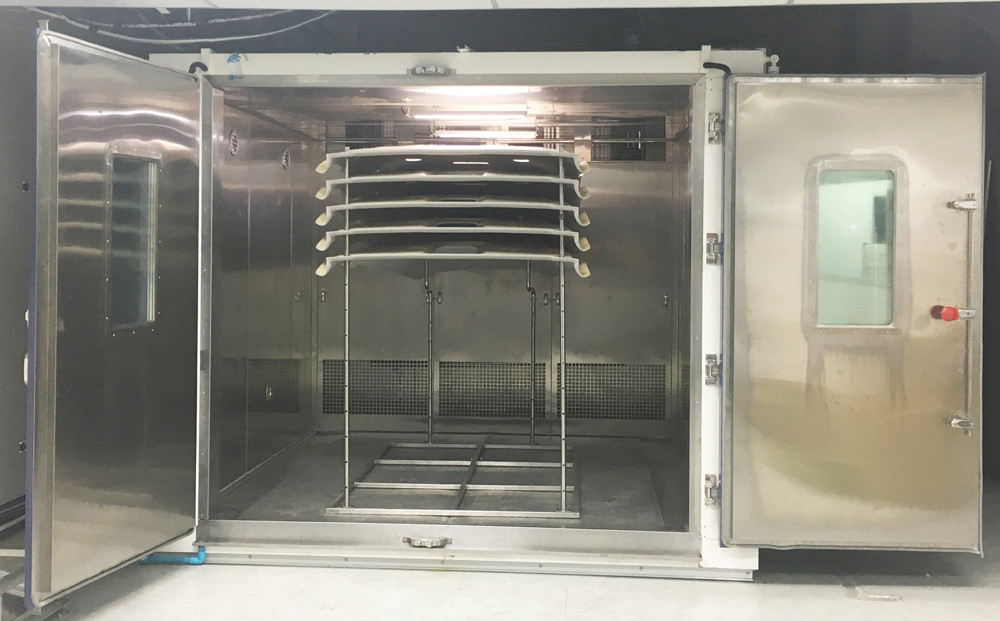

Touch Screen Walk In Climatic Chamber  Reliability Testing Controlled 0

Structure Features

Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing

Inner wall material:Stainless Steel Plate SUS304

Body insulation material:Rigid polyurethane Foam + glass fiber

Door insulation material:Rigid Polyurethane Foam + Glass fiber

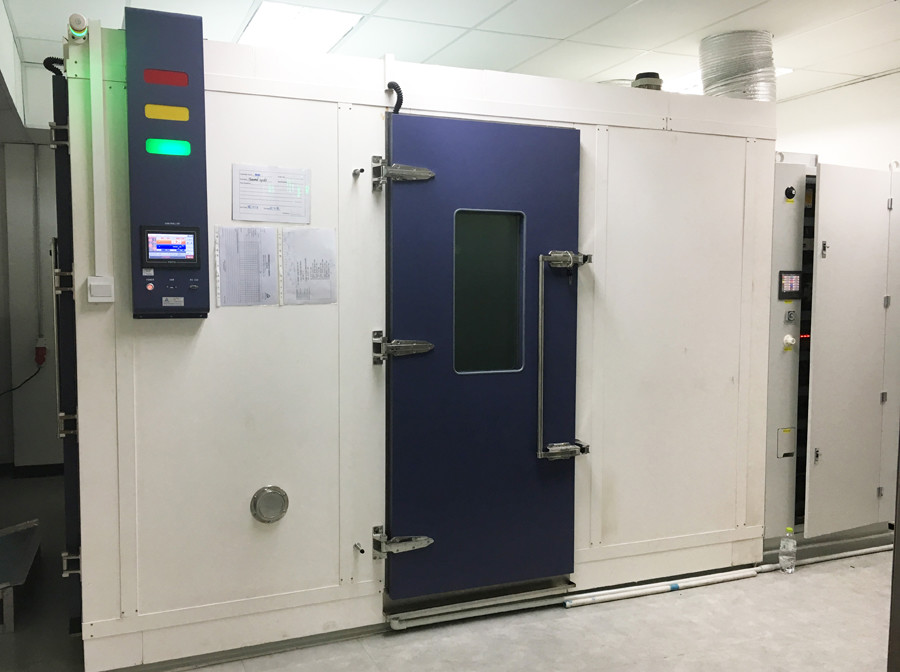

Touch Screen Walk In Climatic Chamber  Reliability Testing Controlled 1



Specifications:

Inner size W×H×D(cm) 250×220×200 (all size customize)
External size W×H×D(cm) 335×228×230
Temp & Humi Control Range

Temp range: A:0℃~80℃ B: -40℃~80℃ C: -40℃~150℃ D: -70℃~150℃

Humi range: RH20%-98% (can customize 5%~98%)

Heating &Cooling speed 1.5℃/min or customize
Fluctuation ±0.5℃;±2.5%RH
Deviation ±0.5℃-±2℃;±3%RH(<75%RH); ±5%RH(≥75%RH)
Controller TEMI880, 990, 1500 or customize brands and models
Refrigerator Fully enclosed piston French Tecumseh compressor(or Semi-closed compressor)
Refrigerants Dupont(R23+R404)
Test hole *50mm, 100mm or customize
Power 3φ 380V AC±10% 50Hz



Standards:

● GB-2423.1-2008(IEC68-2-2) Test B: High Temperature Test

● GB-2423.1-2008(IEC68-2-2) Test B: Low Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Operating Life Test

● GBJl50.3-2009(MIL-STD-810D) High Temperature Test

● GBJl50.4-2009(MIL-STD-810D) High Temperature Test



Flexibility for structure
     The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.

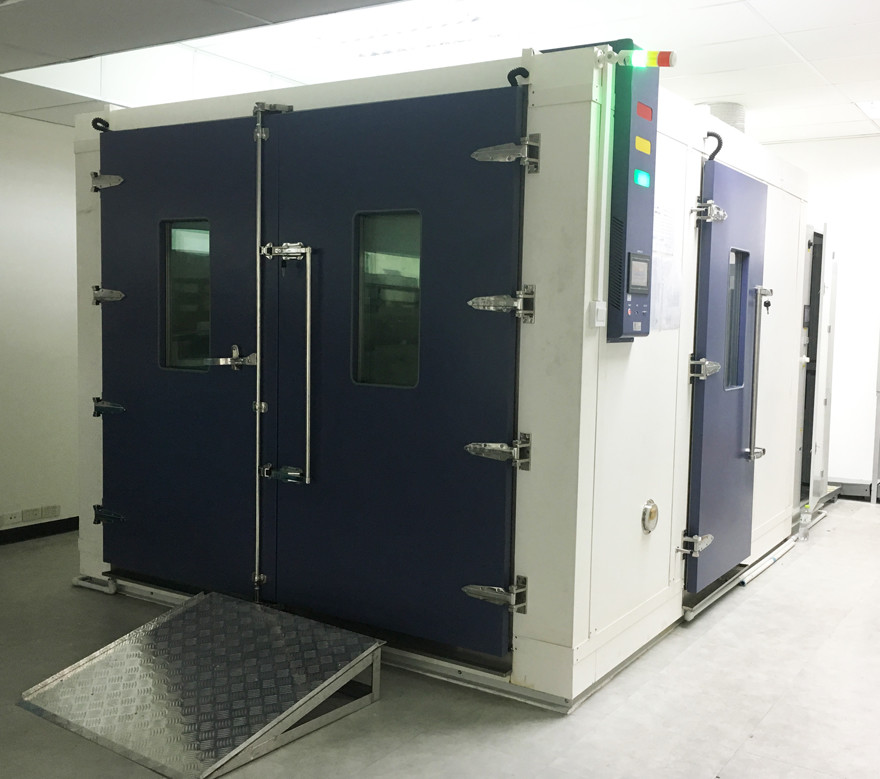

Touch Screen Walk In Climatic Chamber  Reliability Testing Controlled 2

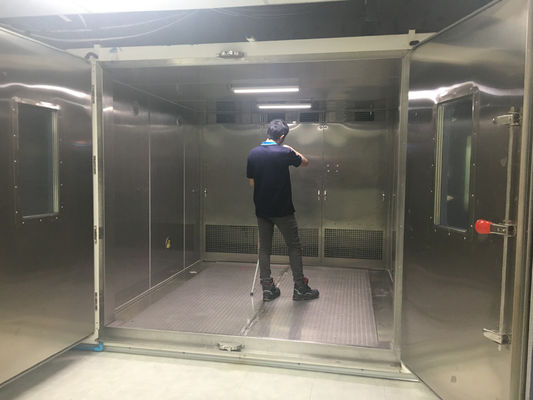

Touch Screen Walk In Climatic Chamber  Reliability Testing Controlled 3

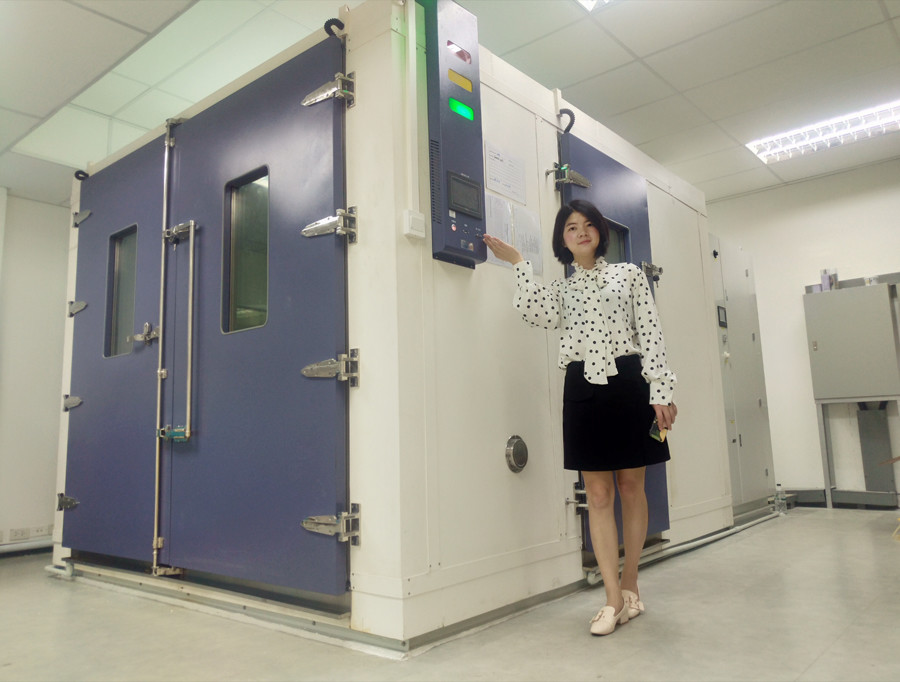

Touch Screen Walk In Climatic Chamber  Reliability Testing Controlled 4



Touch Screen Walk In Climatic Chamber  Reliability Testing Controlled 5



Touch Screen Walk In Climatic Chamber  Reliability Testing Controlled 6



Our service:

During the whole business process, we offer Consultative Selling service.



1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
