LIYI Car Lamp Defog Low Humidity And Temperature Cycling Chamber Scroll Compressor

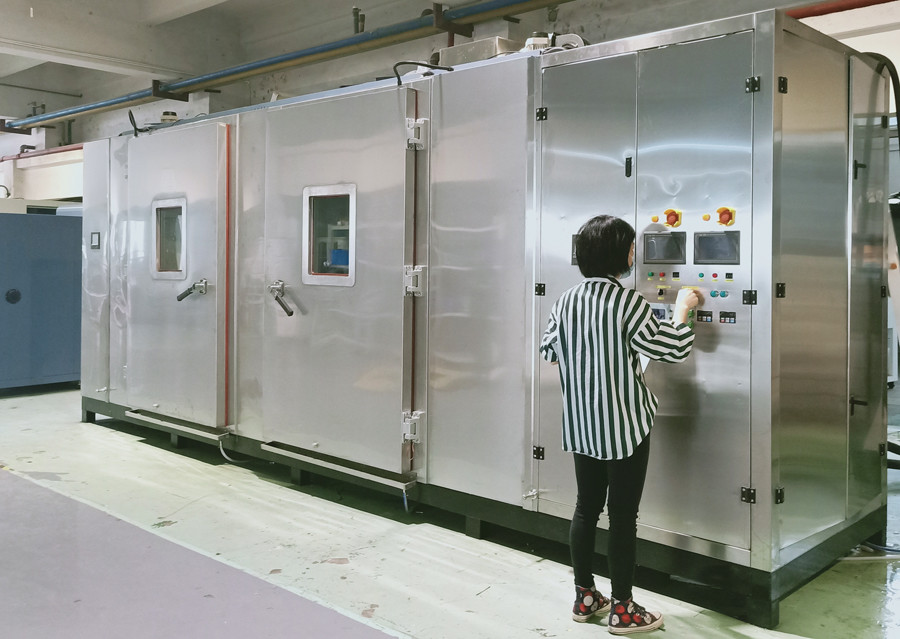

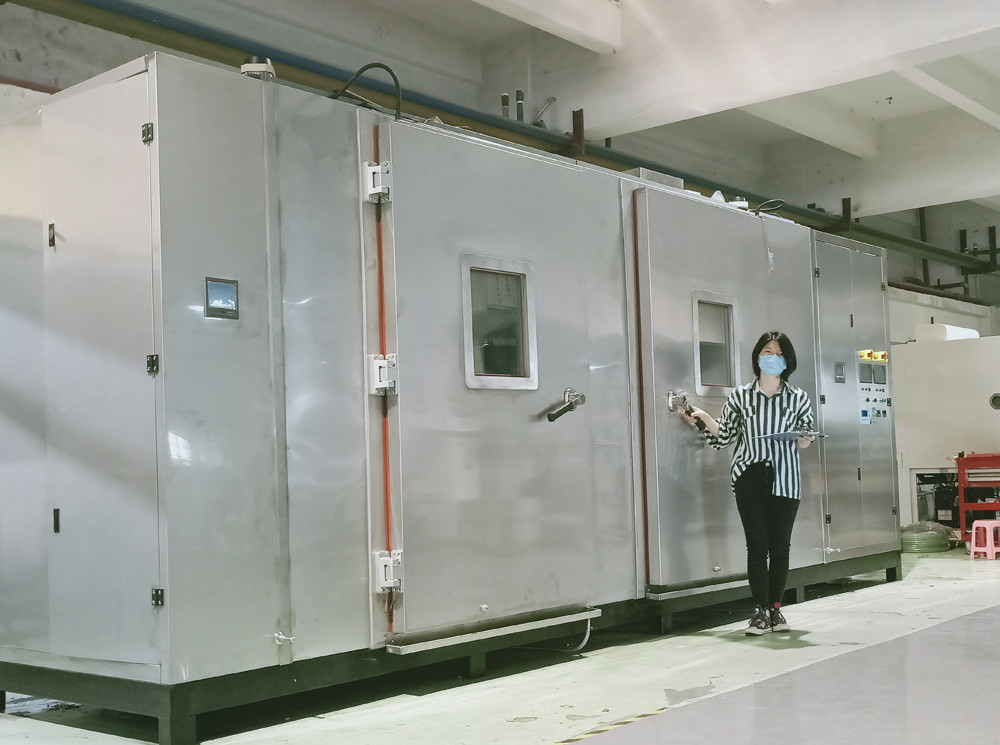

This chamber is customized specially used for car lamp lens testing with chamber A and chamber B separate temperature and humidity control. It can also combined use as a big temperature humidity chamber.
Inner chamber with IR lamp and air blasting fan.
Customize Low Humidity and Temperature Cycling Car Lamp Defog Chamber Walk In Environment Chamber is suitable for the whole machine or large parts of low temperature, high temperature, high and low temperature change, constant time heat, high and low temperature alternating moisture and heat test...
The size and function of the studio can be customized according to user requirements. Pieced box body, beautiful and generous shape; Scientific airway design can meet the needs of different customers.
1. The chamber is assembled with self-made storeroom boards. The dimension and shape of it can be changed freely. It is assembled on site and can be transported, carries and relocated conveniently. The special silicon rubber imported from Japan is utilized as the base material for sealing and contracting for the assemble seams. The self-made storeroom boards employ the design and processing technology of frame structure, setting steel plates into the frame as inner part and outer covering and foaming into a whole body that boasts the distinctive features of high tightness, perfect sealing, wide range of temperature and humidity resisting, good warmness reserving and long life etc. of the industry.
2. Non-frosting operation and automatic defrosting loop, continuous operation in low humidity and temperature.
3. The 7〃large color control screen comprehensively displays the operating states.
4. The precooling and preheating temperature are set automatically based on reset time. The operating state of the chamber can be adjusted to its best, which can save up to 50% of energy compared with the old model.
5. It is characterized by low error, high wind speed and uniform exposure of samples.
6. With the low noise design, the level of noise is controlled under 72db.
|1.1 Temperature range||
-40 to +150℃
|1.2 Temp Deviation||
≦ ± 2.0℃
|1.3 Temp Fluctuation||
|1.4 Temp Uniformity||
|1.5 Heating up& cooling down rate||
Heating up rate: RT ↑ +110℃ about 30min (no-load)
Cooling rate: +110℃ down to RT about 60min (no-load, )
Temperature and humidity performance test is in accordance with the relevant provisions of the
IEC60068 -3 standard measurement; sensor placed in the unit outlet.
||Single door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures.|
|4．Observation window||With observation window(according to design), multi-hollow electric insulation coated glass prevent condensation effectively|
|5．Lighting device||LED Lighting device *1 located on observation window|
High quality nickel-chromium alloy wire electric heaters,
Non-contact control mode(SSR)
Water basin heating and humidification method;
Stainless steel sheathed heater;
Heater control: no-contact control (SSR);
Water level control device, heater anti-dry device.
|8. Water outlet hole||
Available for drain the condensate water
|9. Cable port||
Φ50mm*1 located on each side of chamber, with rubber
stopper and stainless steel cover
|10. Shelf for samples||No|
|11. Mobile Casters||Mobile Casters with foot cups|
||Total power circuit breakers, over-temperature protectors|
||Pump to enhance automatic water supply|
● GB-2423．1-2008(IEC68-2-2) Test B: High Temperature Test
● GB-2423．1-2008(IEC68-2-2) Test B: Low Temperature Test
● GJB360．8-2009(MIL-STD．202F) High Temperature Operating Life Test
● GBJl50．3-2009(MIL-STD-810D) High Temperature Test
● GBJl50．4-2009(MIL-STD-810D) High Temperature Test
Flexibility for structure
The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Temperature Humidity Test Chamber Series:
80L, 150L, 225L, 408L, 800L, 1000L, 1500L, and etc. any size can be customized.
Walk in Chamber / Walk in Climatic Test Chamber / Walk in Temperature and Humidity Test Chamber / Aging Chamber series:
8CBM, 10CBM, 12CBM, 24CBM, 27CBM, 45CBM, 256CBM, 300CBM, 485CBM, 520CBM and etc. Can customize.
