Water Cooled Walk In Test Chamber AB Chamber Separate Control 380V

1 Set
MOQ
50000~200000USD
Price
Water Cooled Walk In Test Chamber AB Chamber Separate Control 380V
Features Gallery Product Description Request A Quote
Features
Specifications
Inner Size: AB Chamber Different Size, All Customize
Controller: Touch Screen Programmable
Voltage: 380V
Compressor: Scroll Compressor
Temperature Range: -40~+150°C(both Chamber)
Humidity Range: 10%~98%
High Light:

AB walk in environmental chamber

,

380V walk in humidity chamber

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-WR10
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Product Description

Water Cooled Walk-in AB Chamber Separate Control Car Lamp Fogging and Defog Test Chamber



        Water Cooled Walk-in AB Chamber Separate Control Car Lamp Fogging and Defog Test Chamber is suitable for the whole machine or large parts of low temperature, high temperature, high and low temperature change, constant time heat, high and low temperature alternating moisture and heat test...

        The size and function of the studio can be customized according to user requirements. Pieced box body, beautiful and generous shape; Scientific airway design can meet the needs of different customers.



Features:

1. The chamber is assembled with self-made storeroom boards. The dimension and shape of it can be changed freely. It is assembled on site and can be transported, carries and relocated conveniently. The special silicon rubber imported from Japan is utilized as the base material for sealing and contracting for the assemble seams. The self-made storeroom boards employ the design and processing technology of frame structure, setting steel plates into the frame as inner part and outer covering and foaming into a whole body that boasts the distinctive features of high tightness, perfect sealing, wide range of temperature and humidity resisting, good warmness reserving and long life etc. of the industry.

2. Non-frosting operation and automatic defrosting loop, continuous operation in low humidity and temperature.

3. The 7〃large color control screen comprehensively displays the operating states.

4. The precooling and preheating temperature are set automatically based on reset time. The operating state of the chamber can be adjusted to its best, which can save up to 50% of energy compared with the old model.

5. It is characterized by low error, high wind speed and uniform exposure of samples.

6. With the low noise design, the level of noise is controlled under 72db.



Specifications:

1.1 Temperature range

-40 to +150℃

1.2 Temp Deviation

≦ ± 2.0℃

1.3 Temp Fluctuation

±0.5℃

1.4 Temp Uniformity

±2.0℃

1.5 Heating up& cooling down rate

Heating up rate: RT ↑ +110℃ about 30min (no-load)

Cooling rate: +110℃ down to RT about 60min (no-load, )

2Humidity
2.Humidity control range 10%R.H~98%R.H
Humidity deviation

±3.0%RH(>75%RH)

±5.0%RH(≤75%RH)

Humidity uniformity ±3.0%RH(No load)
Humidity fluctuation ±2.0%RH


Temperature and humidity performance test is in accordance with the relevant provisions of the



IEC60068 -3 standard measurement; sensor placed in the unit outlet.

  • Chamber size

All customize

  • Door
Single door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures.
4.Observation window With observation window(according to design), multi-hollow electric insulation coated glass prevent condensation effectively
5.Lighting device LED Lighting device *1 located on observation window
6. Heating

High quality nickel-chromium alloy wire electric heaters,

Non-contact control mode(SSR)

7. Humidifier

Water basin heating and humidification method;

Stainless steel sheathed heater;

Heater control: no-contact control (SSR);

Water level control device, heater anti-dry device.

8. Water outlet hole

Available for drain the condensate water

9. Cable port

Φ50mm*1 located on each side of chamber, with rubber

stopper and stainless steel cover

10. Shelf for samples No
11. Mobile Casters Mobile Casters with foot cups
  • Electronic control cabinet
Total power circuit breakers, over-temperature protectors
  • Supply system
Pump to enhance automatic water supply
  • Floor load-bearing
≧1000kg



Standards:

● GB-2423.1-2008(IEC68-2-2) Test B: High Temperature Test

● GB-2423.1-2008(IEC68-2-2) Test B: Low Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Operating Life Test

● GBJl50.3-2009(MIL-STD-810D) High Temperature Test

● GBJl50.4-2009(MIL-STD-810D) High Temperature Test



Flexibility for structure
     The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.

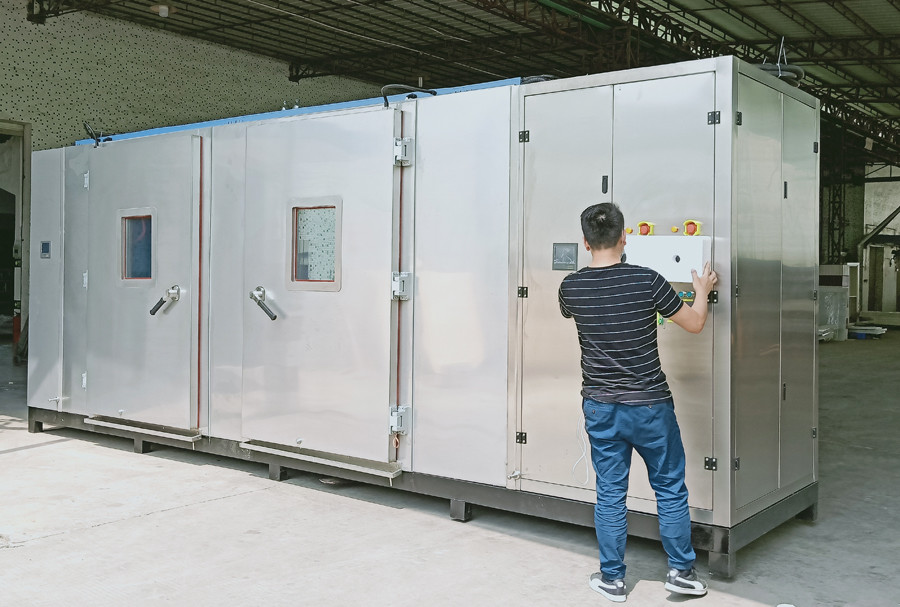

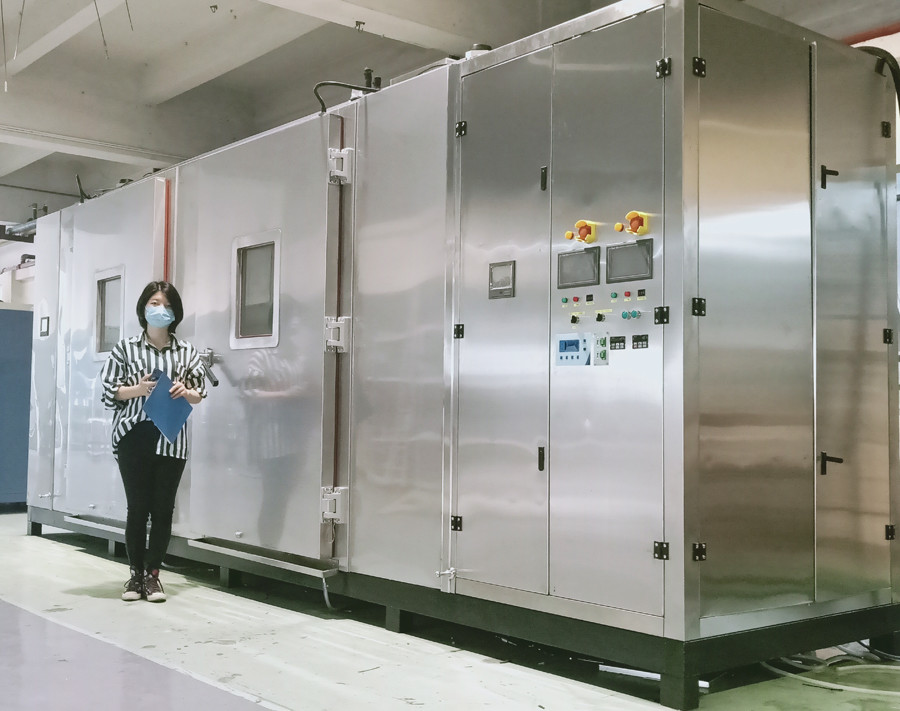

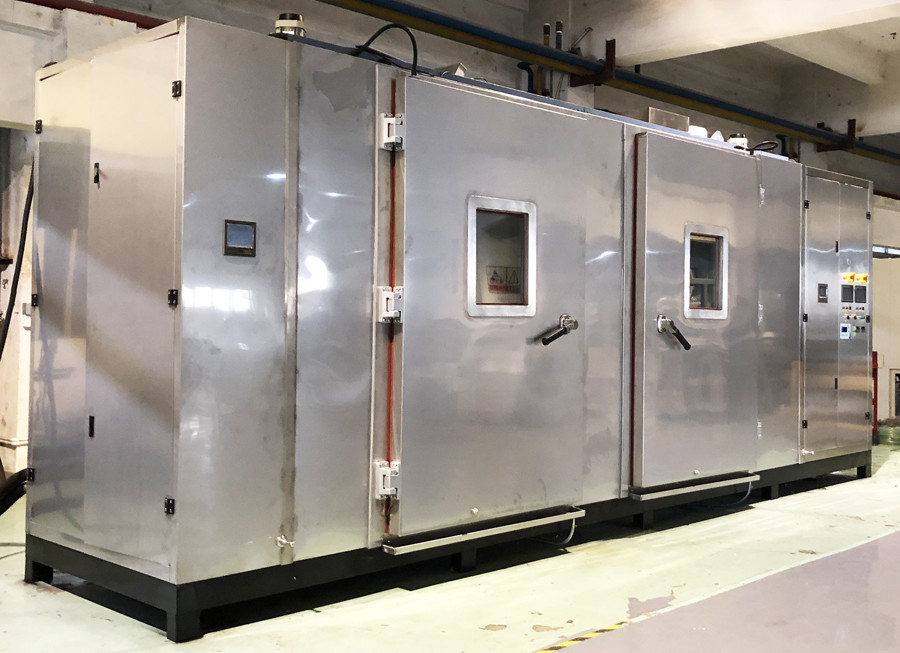

Water Cooled Walk In Test Chamber AB Chamber Separate Control 380V 0





Related products:

Temperature Humidity Test Chamber Series:

80L, 150L, 225L, 408L, 800L, 1000L, 1500L, and etc. any size can be customized.



Walk in Chamber / Walk in Climatic Test Chamber / Walk in Temperature and Humidity Test Chamber / Aging Chamber series:

8CBM, 10CBM, 12CBM, 24CBM, 27CBM, 45CBM, 256CBM, 300CBM, 485CBM, 520CBM and etc. Can customize.
