LIYI Reliability Destruction Thermal Shock Test Chamber 42L Air Cooled CE Certificated

1 Set
MOQ
10000~50000USD
Price
LIYI Reliability Destruction Thermal Shock Test Chamber 42L Air Cooled CE Certificated
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 304# Stainless Steel
Inner Size: 350*400*300mm (can Customize)
Controller: Touch Screen Programmable
OEM: Offered
Voltage: 380V
Warranty: 1 Year
Compressor: Tecumseh
Temperature Range: -40°C~150°C
Temperature Recovery Time: Less Than 5min
Uses: Thermal Shock Test Machine
High Light:

CE 42L thermal cycling test equipment

,

42L impact test equipment

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-TS42
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

LIYI Reliability Destruction Thermal Shock Test Chamber 42L Air Cooled CE Certificated



Machine introduction:

      CE Certificated 42L Air Cooled Thermal Shock Test Machine For Reliability Destruction Testing is metal, plastic, rubber, electronics and other industries necessary testing equipment. For the continuous exposure to extremely high temperature, very low temperature environment, instant exposure of the material structure or composite material tolerance, can be detected in the shortest possible time due to thermal expansion and contraction caused by chemical or physical damage.
      CE Certificated 42L Air Cooled Thermal Shock Test Machine For Reliability Destruction Testing meets today's environmental stress screening requirements and is proven in installations around the world. It's an economical way to achieve ESS or thermal shocks for rapid component temperature changes.

      The thermal shock chamber of this type is provided with three dampers, i.e., one for opening or closing the gas outlet and intake of the high-temperature air conditioning unit, another for the air outlet and inlet of the outside air supplying unit, and another for the gas outlet and intake of the low-temperature air conditioning unit.



Standards:

1.GB/T2423.1-1989
2.GB/T2423.2-1989
3.GB/T2423.22-1989
4.GJB150.5-86
5.GJB360.7-87
6.GJB367.2-87 405
7.SJ/T10187-91Y73
8.SJ/T10186-91Y73
9.IEC68-2-14
10.GB/T 2424.13-2002
11.GB/T 2423.22-2002
12.QC/T17-92
13.EIA 364-32

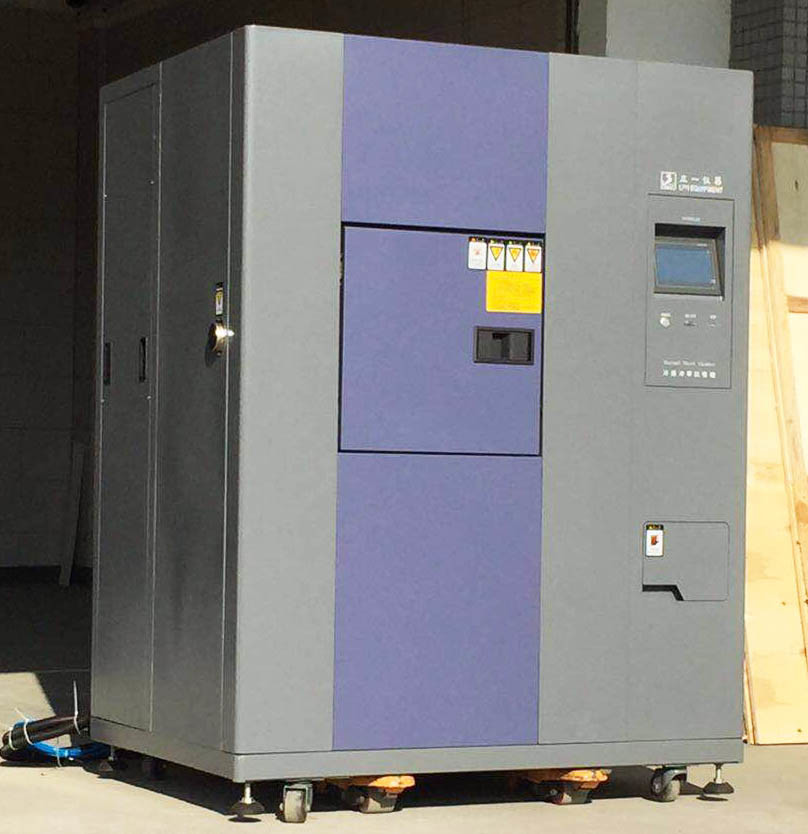

LIYI Reliability Destruction Thermal Shock Test Chamber 42L Air Cooled CE Certificated 0



Specifications:

Model LY-TS-42 LY-TS-80 LY-TS-150 LY-TS-225 LY-TS-300
Inner Size(cm) 40×35×30 40×50×40 50×60×50 50×75×60 100×60×50
Temperature Range

High temperature: +60°C~+150°C (or 180°C)

Low temperature: -10°C~-40°C (or -40°C, -50°C,-60°C, -70°C)

Temperature Deviation Less than ±2°C
Temperature Conversion Time Less than 10S
Temperature Recovery Time Less than 5min
Test method 2 zone type or 3 zone type
Cooling System Water-cooled / air-cooled(small chambers only)
Power AC380V/50HZ Three-phase

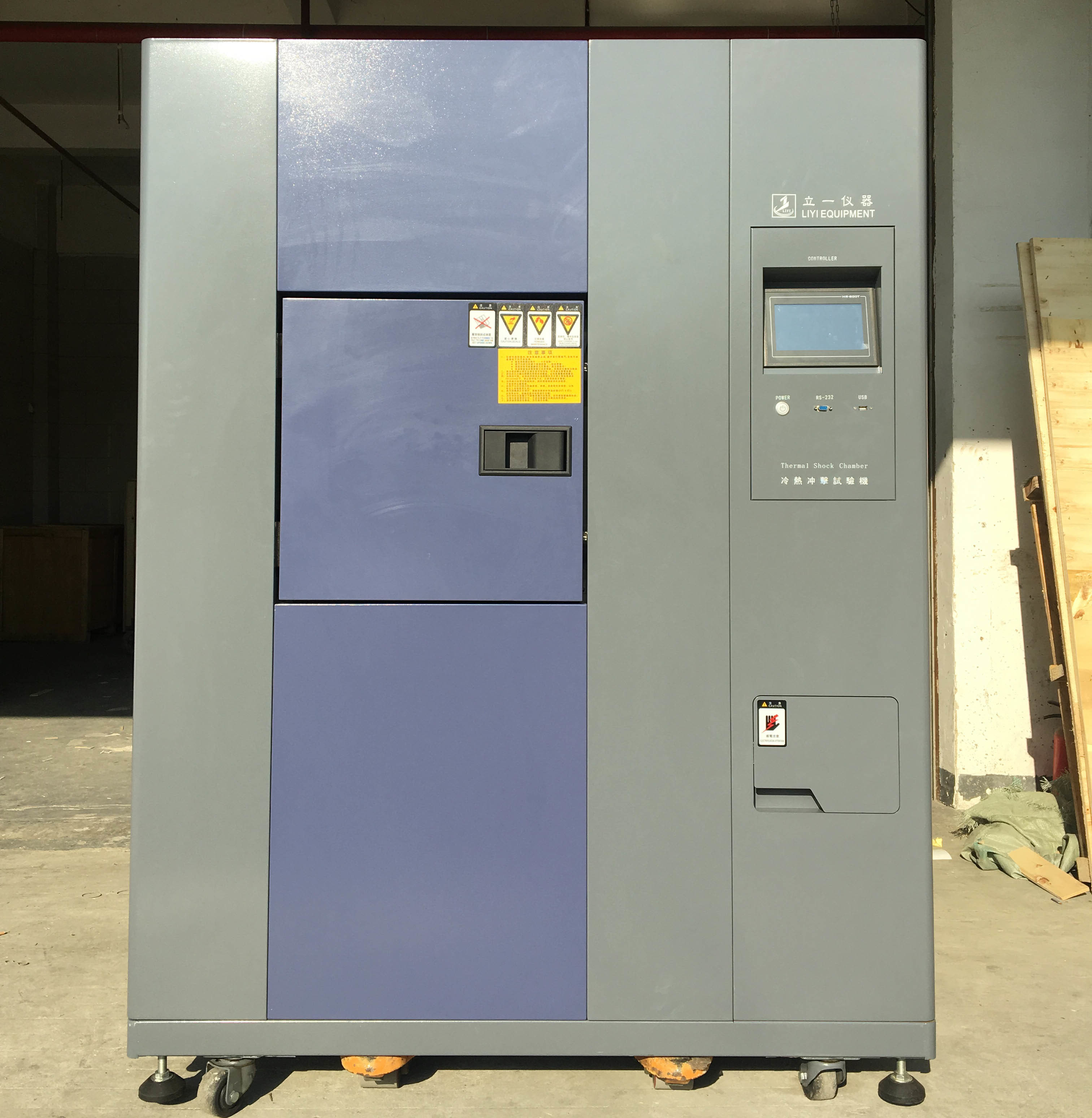

LIYI Reliability Destruction Thermal Shock Test Chamber 42L Air Cooled CE Certificated 1



Since the cold chamber need huge cooling capacity for shocking, the chamber’s cooling mode is often designed as air-cooled or water-cooled.



Air-cooled type need installation environment:
The room must be equipped with exhauster and air conditioner to make sure heat dissipation timely.
It’s applied to small power products and cool areas.



Water-cooled type need installation conditions:
The customer must prepare water pipe and water tower (located outside) accordingly.
The water must be pure, or it will block the pipes and result in some maintenance trouble with time going.
It’s often applied to large system with the features of better heat dissipation, longer service time, low noise but slightly higher price if count the fee of water tower and water pipes.

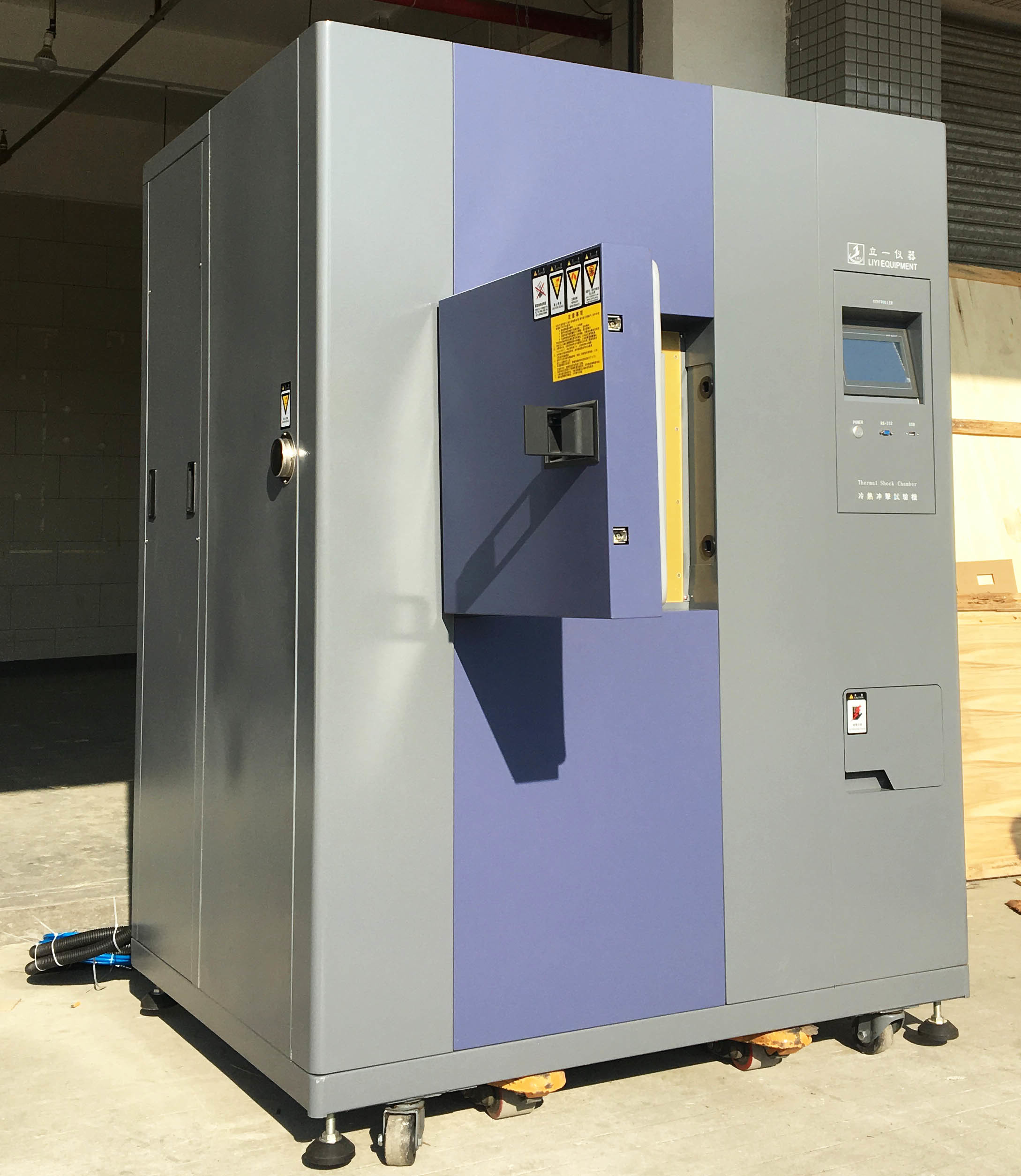

LIYI Reliability Destruction Thermal Shock Test Chamber 42L Air Cooled CE Certificated 2

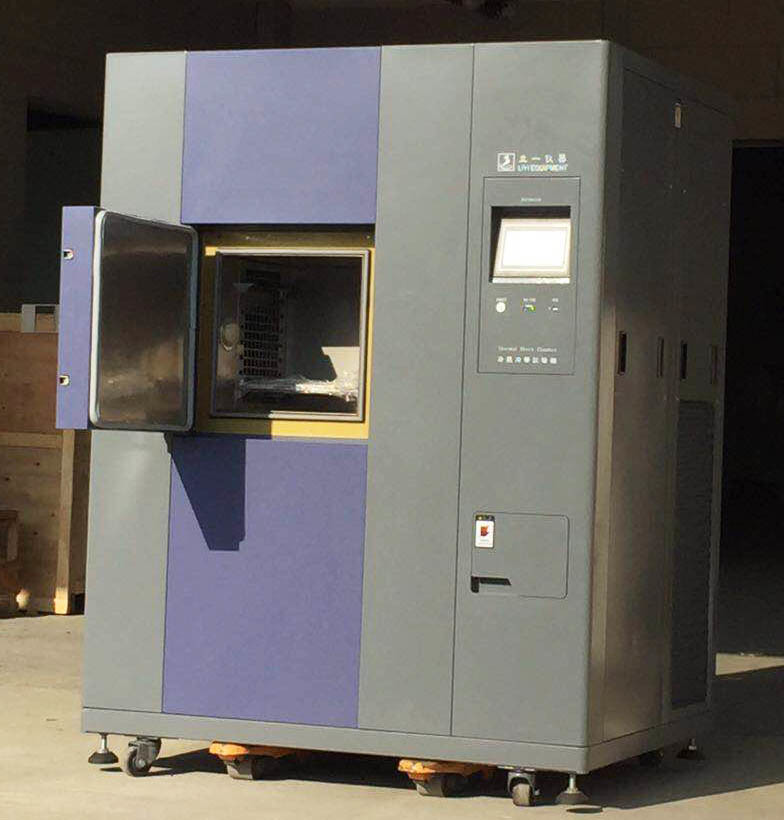

LIYI Reliability Destruction Thermal Shock Test Chamber 42L Air Cooled CE Certificated 3



LIYI Reliability Destruction Thermal Shock Test Chamber 42L Air Cooled CE Certificated 4



LIYI Reliability Destruction Thermal Shock Test Chamber 42L Air Cooled CE Certificated 5



LIYI Reliability Destruction Thermal Shock Test Chamber 42L Air Cooled CE Certificated 6



Our service:

During the whole business process, we offer Consultative Selling service.



1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
