LIYI 2 Chambers Combined Walk In Humidity Chamber Low Temperature Chamber

1 Set
MOQ
15000~100000USD
Price
LIYI 2 Chambers Combined Walk In Humidity Chamber Low Temperature Chamber
Features Gallery Product Description Request A Quote
Features
Specifications
Inner Size: Any Size Can Be Customized
Temperature Range: Maximum: 150 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC
Voltage: 380V
Warranty: 1 Year
Compressor: Bizer
Accuracy: 0.5℃ ±2.5%RH
Cooling Method: Water Cooled
Humidity Range: 20%~98%
High Light:

walk in environmental chamber

,

walk in temperature chamber

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-WR10
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Product Description

LIYI 2 Chambers Combined Walk In Humidity Chamber Low Temperature Chamber



       Customize Size 2 Chambers Combined Walk In Humidity Chamber Low Temperature Chamber is made from lightweight insulated panels for fast and easy installation. Usually for electronics temperature aging, like recharger, PCBA, Battery, LCD, scanners, monitors, LED, biological equipment, etc. Outside banding helps prevent leaking and keeps moisture out of the Walk-In Chamber and workspace temperatures steady.
       This kind of Walk-In Chambers are custom built to accommodate almost any size. They feature welded walls creating an environmental room for applications requiring controlled temperature and humidity testing exceeding 85°C. Typically, for ease of installation, a Walk-In Chamber works best in new construction buildings, areas with extremely large doors, or rooms where outside walls can be easily removed.





Features:

1. The chamber is assembled with self-made storeroom boards. The dimension and shape of it can be changed freely. It is assembled on site and can be transported, carries and relocated conveniently. The special silicon rubber imported from Japan is utilized as the base material for sealing and contracting for the assemble seams. The self-made storeroom boards employ the design and processing technology of frame structure, setting steel plates into the frame as inner part and outer covering and foaming into a whole body that boasts the distinctive features of high tightness, perfect sealing, wide range of temperature and humidity resisting, good warmness reserving and long life etc. of the industry.

2. Non-frosting operation and automatic defrosting loop, continuous operation in low humidity and temperature.

3. The 7〃large color control screen comprehensively displays the operating states.

4. The precooling and preheating temperature are set automatically based on reset time. The operating state of the chamber can be adjusted to its best, which can save up to 50% of energy compared with the old model.

5. It is characterized by low error, high wind speed and uniform exposure of samples.

6. With the low noise design, the level of noise is controlled under 72db.

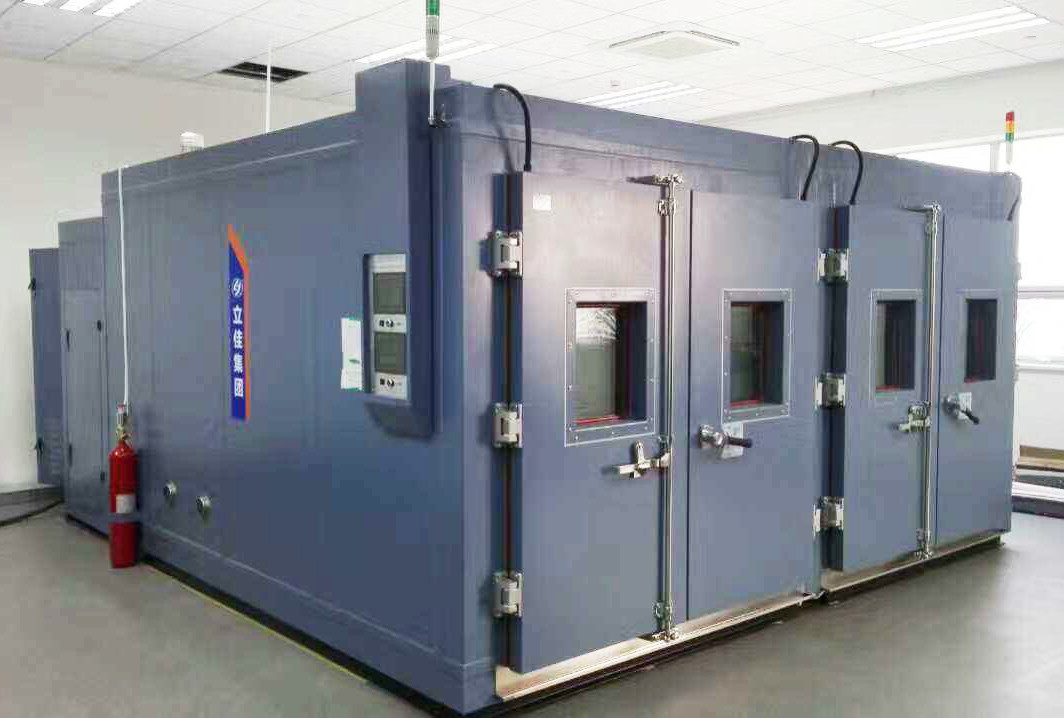

LIYI 2 Chambers Combined Walk In Humidity Chamber Low Temperature Chamber 0



Specifications:

SR NO SPECIFICATION LY-WR10
1 TEMPERATURE RANGE -50C TO +100C
2 HUMIDITY RANGE 20% TO 98% RH
3 DIMENSION (INTERNAL) (W X D X H) All size can customize
4 DIMENSION (EXTERNAL) (W X D X H
5 RAMP

VARIABLE, TEMP. 0~5C / MIN & HUMIDITY 0~5%/MIN

IN AVERAGE, NO LOAD

6 ACCURACY TEMP. ±1C, HUMIDITY ±2.5%RH
7 INTERIOR WALLS STAINLESS STEEL 304
8 EXTERIOR WALLS COLD ROLLED STELL PLATE WITH BAKING FINISH
9 TEMPERATURE & HUMIDITY MEASUREMENT AND CONTROLLER

32 BIT CONTROL AND MONITORING SYSTEM.

INTERFACE FACILITY WITH RS232

PROGRAMMABLE TEMP. HUMID. CONTROLLER

10 VIEWING WINDOW MULTI PANE GLASS WINDOW SIZE
11 PORT HOLES 50 MM DIAMETER FOR WIRE ROUTING
12 POWER SUPPLY REQUIREMENT THREE PHASE, AC380 V ± 10 %, 50 HZ
13 SOUND PRESSURE LEVEL <72DB (A)
14 CONDENSER COOLING WATER COOLED
  GENERAL TECHNICAL SPECIFICATION
15 THERMAL CYCLIC CHAMBER
15.1 CHAMBER WITH INTERNAL AIR CIRCULATION, AND ALL THE HEATERS AND COOLING COIL LOCATED BEHIND/BELOW THE FALSE SHEET OF THE CHAMBER AND OUTSIDE THE WORKING SPACE
16 INTERIOR
16.1 THE CONDITIONING WITH AIR CIRCULATION TO MAINTAIN UNIFORM TEMPERATUR
16.2 INTERIOR HAVE PROVISION FOR ARRANGING STAINLESS STEEL
17 INSULATION
17.1 INSULATION IS ASBESTOS-FREE CSC-FREE, WITH LOW THERMAL CONDUCTIVITY, POLYRTHENE PU FOAM
18 COOLING SYSTEM
18.1

CASCADE TYPE, REFRIGERATION SYSTEM WITH HERMETICALLY SEALED REFRIGERATION

CYCLES WITH ENVIRONMENT AND OZONE FRIENDLY AND CHLORIDE FREE REFRIGERATION

19 DOOR
19.1 LOCKABLE FRONT OPENING, WITH DOUBLE DOOR LATCH EASY TO OPEN
19.2 WITH SILICON GASKET FOR PERFECT SEALING
20 VIEWING WINDOW
20.1 VIEWING INTERLOCK IS SEALED TO AVOID LEAKAGE AND PROVIDED WITH HEATING PROVISION TO PREVENT CONDENSATION
21 ILLUMINATION
21.1 INERNALLIGHT ON VIEWING WINDOWS WITH EXTERNAL CONTROL
22 TEMPERATURE MEASURING AND CONTROL SYSTEM
22.1

THE TEMPERATURE MEASURING AND CONTROL SYSTEM ADOPTS MICROPROCESSOR SYSTEM AND PROVIDED WITH TOUCH PANEL FOR MONITORING AND DIGITAL DISPLAY:

SUPPLIED WITH SUPPORT SOFTWARE

SOFTWARE IS CAPABLE TO VISUALIZE AND GRAPHICAL ANALLYSE THE MEASURED & RECORDED VALUE.

A. GRAPHICAL REPRESENTATION AND DIGITAL DISPLAY AND CONTROL OF SET AND ACTUAL VALUES
B. DIGITAL INPUT AND DISPLAY OF TEMPERATURE IN DEGREE CENTIGRADE
C. FAULT DIAGNOSIS SYSTEM
D. 120 STROAGE OF PROGRAMMES
22.2 HAVE ADJUSTABLE SAFETY CUT-OUT AGAINST HIGH AND LOW TEMPERATURE
22.3 FACILITY TO PROGRAMME TEMPERATURE MEASURING USING SENSOR PT100
23 RECORDER & PC CONNECTIVITY
23.1 STANDARD RS -232 INTERFACE FOR PC CONNECTIVITY
23.2 RS-232 CABLE FOR PC CONNECTIVITY ALONG WITH PC CONNECTIVITY SOFTWARE
24 PORT HOLES
24.1 EACH PORT HOLE PROVIDED WITH SILICON SEALING BUNKER (PLUG)
25 ELECTRICAL PANEL
25.1 ALL POWER CONNECTORS, PROTECTION DEVICES POWER CONTROL LOGIC BUILT IN THE CONTROL PANEL INTEGRATED TO THE CHAMBER
25.2 ALL ELECTRICAL CABLES TAGGED WITH ID NUMBER
25.3 ALL ELECTRICAL FUNCTION CIRCUIT EQUIPPED WITH ITS OWN SAFETY DEVICE THAT SHUTS DOWN THE RELEVANT CIRCUIT OR THE ENTIRE TEST CHAMBER IF A FAULTY DEVELOPS
25.4 ALL ELECTRICAL SYSTEMS COMPLY WITH RECOGNIZED TECHNICAL REGULATION AS WELL AS WITH THE ACCIDENT PREVENTION REGULATIONS.
26 STANDARD PROTECTION
26.1 PROTECTIVE FEATURE TO BE PROVIDED AS FOLLOWS:
A. OVER LOAD TRIP & EARTH LEAKAGE TRIP FOR COMPLETE CHAMBER
B. OVER LOAD TRIP FOR COMPRESSORS, HEATERS AND MOTORS
C. OVER TEMPERATURE CUT-OFF FOR COMPRESSORS
D. HEATER BE CUT OFF, IF AIR CIRCULATION BLOWERS ARE OFF
27 OPERATING SYSTEM
27.1 DETAILED OPERATING & MAINTANANCE MANUAL
A. OPERATIONAL INSTRUCTION
B. COMPLETE LIST PARTS
C. PREVENTIVE MAINTENANCE PROCEDURE
D. TROUBLE SHOOTING MEASURES



Standards:

● GB-2423.1-2008(IEC68-2-2) Test B: High Temperature Test

● GB-2423.1-2008(IEC68-2-2) Test B: Low Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Operating Life Test

● GBJl50.3-2009(MIL-STD-810D) High Temperature Test

● GBJl50.4-2009(MIL-STD-810D) High Temperature Test



Flexibility for structure
     The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.

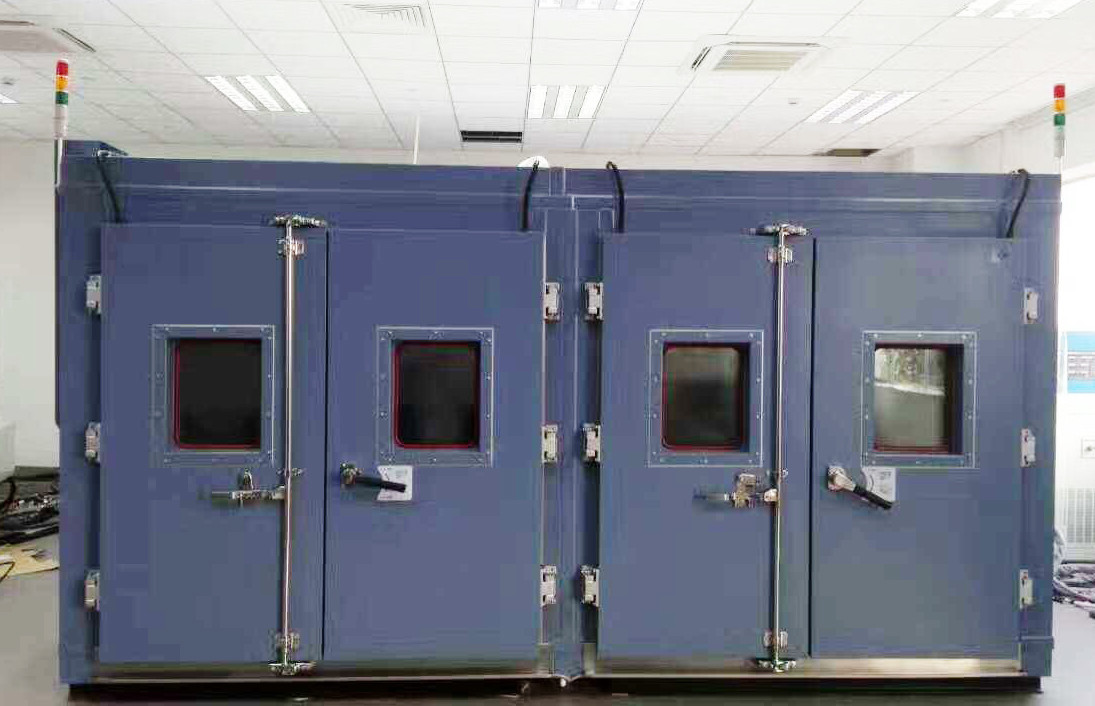

LIYI 2 Chambers Combined Walk In Humidity Chamber Low Temperature Chamber 1
