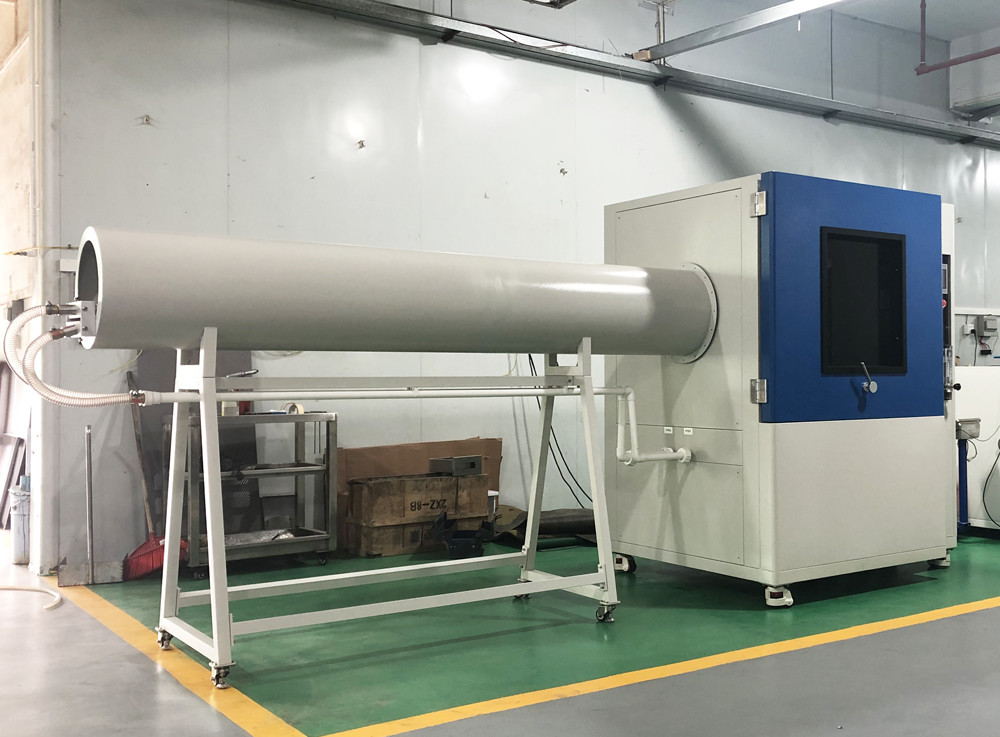

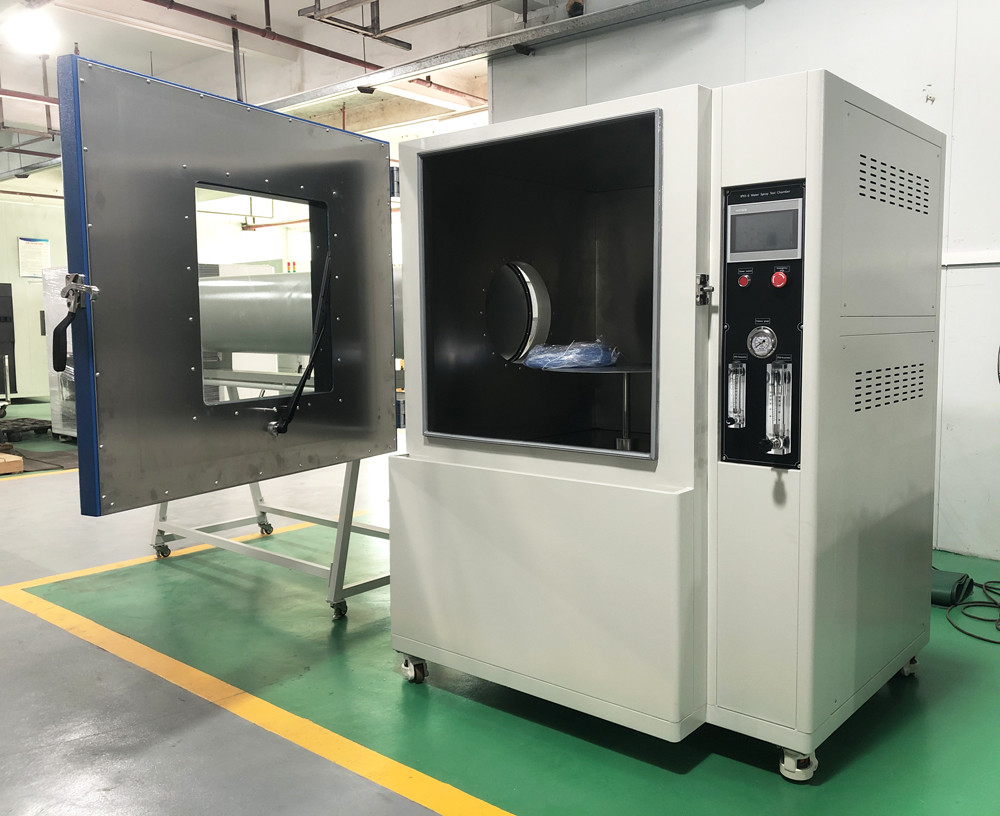

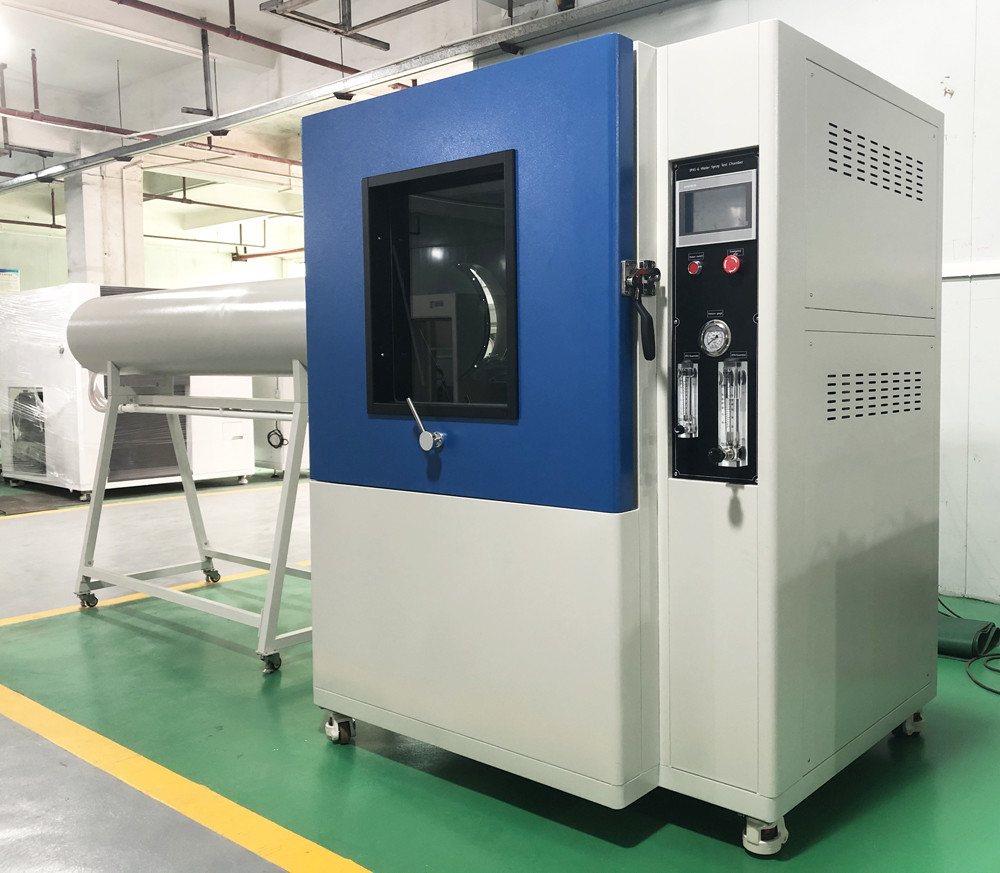

LIYI Waterproof Test Machine IPX5 IPX6 IP65 Water Cycling Use Rain Test Machine
General application fields of IEC60529 IPX5 IPX6 IP65 Water Cycling Use Water Tightness Test Chamber :
outdoor lamps, household appliances, automotive accessories and other electronic and electrical products.
Function of the equipment:
The main function of the IEC60529 IPX5 IPX6 IP65 Water Cycling Use Water Tightness Test Chamber is to test the physical and other related properties of electronic and electrical products, lamps, cabinets, electrical components, automobiles, motorcycles and their components under simulated rainy weather conditions. After testing, the performance of the product can be judged by verification, so as to facilitate the design, improvement, verification and factory inspection of the product.
IEC60529:1989 +A1:1999 +A2:2013
|Include water pipe length 2450mm|
OInner chamber size
|Water tank capacity||100L,W500×D450×H450mm|
|Turn table size||D400mm||D600mm||D800mm|
|IPX5 spray nozzle||D6.3mm|
|IPX6 spray nozzle||D12.5mm|
|IPX5 water flow||12.5±0.625(L/min)|
|IPX6 water flow||100±5(L/min)|
|Flow control method||Manually adjusting (flow meter)|
|Water spray distance||2.8m(spray nuzzle to the center of turn table)|
|Spray nozzle fixing method||Mechnical fixing(can manually adjusting spray nuzzle angle)|
|Turn table max load||50KG|
|Water cycle||Can use recycle|
|Control method||7 inch touch screen+PLC|
|Power source||380V, 3.0kw|
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
We offer below business term:
|Accepted Delivery Terms:||FOB, CFR, CIF, EXW, DDP|
|Accepted Payment Currency:||USD, EUR, HKD, CNY|
|Accepted Payment Type:||T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow|
|Nearest Port:||Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired|
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
