LIYI IPx56 Waterproof Test Chamber Rain Test Chamber 1000L Volume
| Model | SM-IPX56-1000 | |
| Testing room Size | 1000(W)*1000(H)*1000(D) | |
| External Size | 3950(W)*1800(H)*1200(D)(2.5m pipeline is detachable ) | |
| Power | 2.5(KW) | |

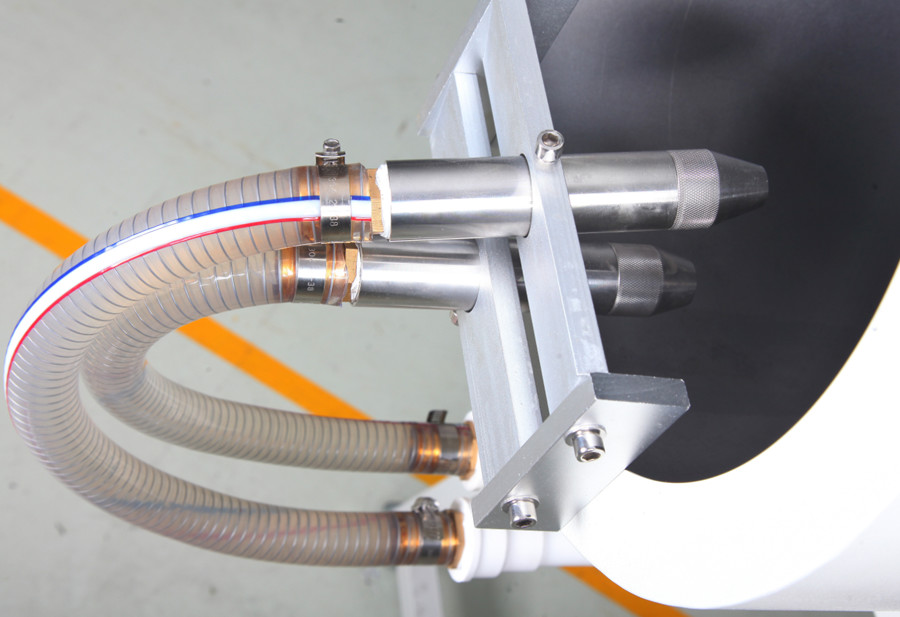

| Performance Index | IPX5 Nozzle diameter | φ6.3mm |
| IPX5 water flow | 12.5L/min | |
| IPX6 Nozzle diameter | φ12.5mm | |
| IPX5 water flow | 100L/min | |
| Flushing distance | 2500mm | |
| Swing amplitude | ±15°(theoretical value) | |
| Rotating speed | 1~20r/min can also be used for speed regulation without joints | |
| Operation Control System | Controller | SANWOOD SH-5500 controller |
| Time controller | Imported programmable time computer integrated controller | |
| Water pressure control | Electromagnetic flowmeter | |
| Observation | Large area visualization toughened glass door | |
| Water supply system | Water tank, booster pump | |
| Power supply | AC380V TN-S | |
| Safety protection | Leakage, short circuit, motor overheating | |

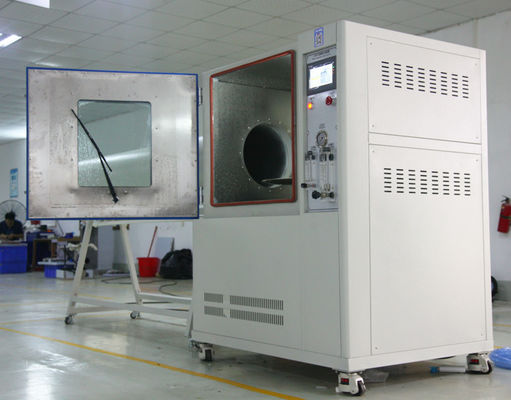

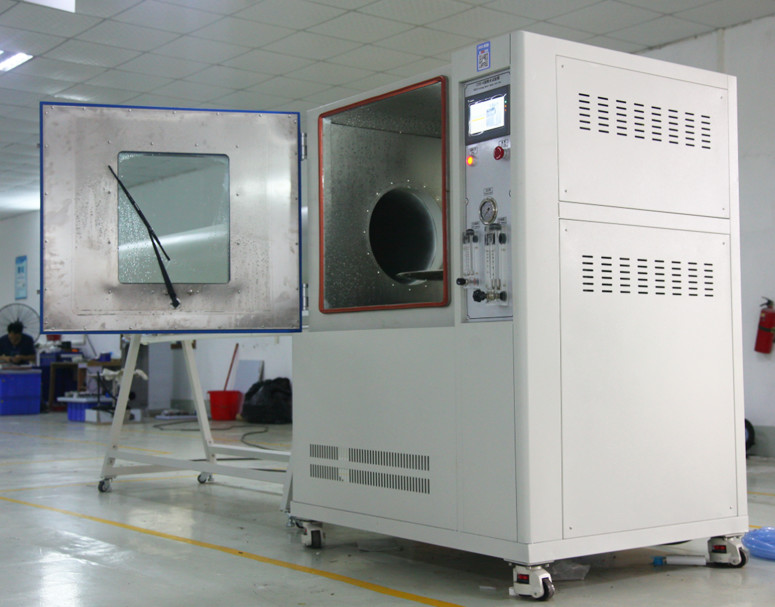

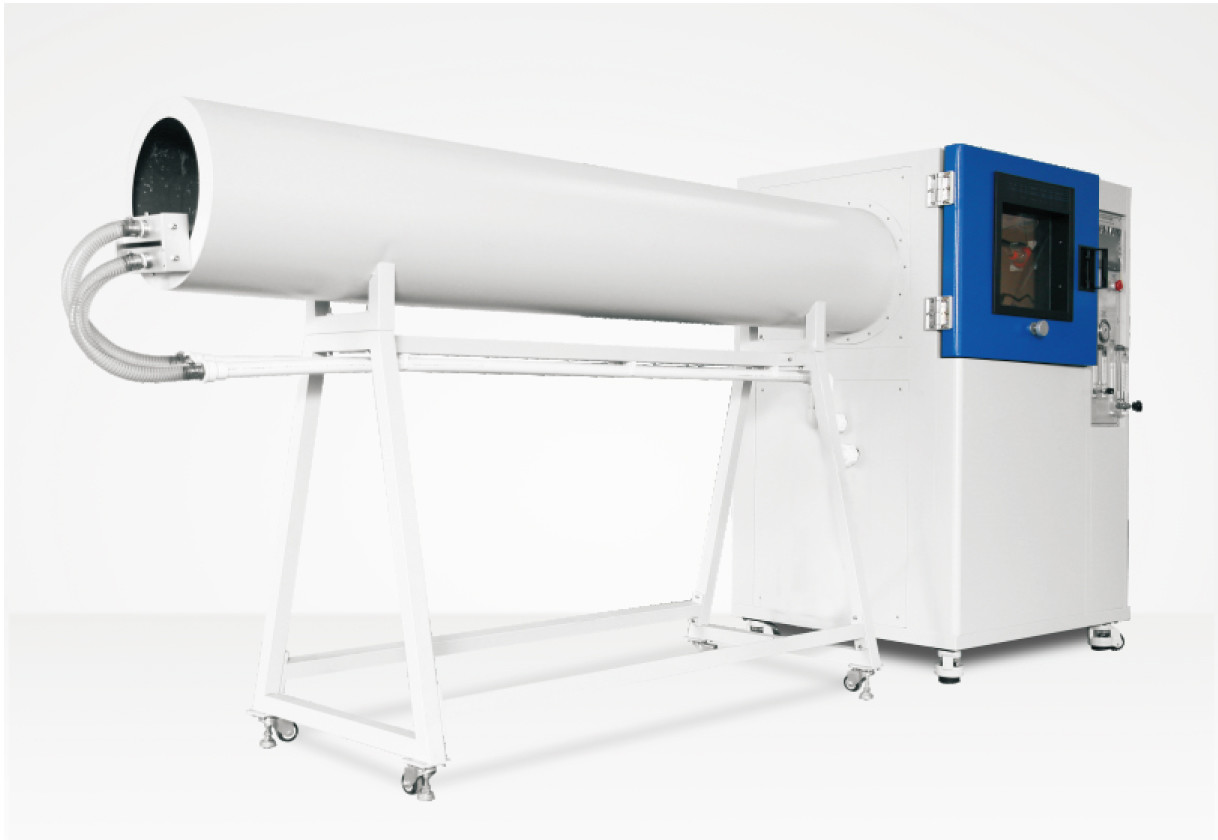

IPx56 Water Proof Test Chamber Rain Test Chamber 1000L Volume
LIYI has 23 years of professional Rain Test Chamber (IPX-5/6),Rain Test Chamber ,Rain-proof test chamber, water spray test chamber, IPX56 rain test chamber manufacturers
Rain spray test chamber is used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.
Standards:
IEC 60529 standard,JIS D0203, D5500, SAE J585e, CNS 7138
Applications:
Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control.
Specifications:
| Model | LY-FS56B-1000L | |
| Testing room Size | 1000(W)*1000(H)*1000(D) | |
| External Size | 3950(W)*1800(H)*1200(D)(2.5m pipeline is detachable ) | |
| Power | 2.5(KW) | |
| Performance Index | IPX5 Nozzle diameter | φ6.3mm |
| IPX5 water flow | 12.5L/min | |
| IPX6 Nozzle diameter | φ12.5mm | |
| IPX5 water flow | 100L/min | |
| Flushing distance | 2500mm | |
| Swing amplitude | ±15°(theoretical value) | |
| Rotating speed | 1~20r/min can also be used for speed regulation without joints | |
| Operation Control System | Controller | SANWOOD SH-5500 controller |
| Time controller | Imported programmable time computer integrated controller | |
| Water pressure control | Electromagnetic flowmeter | |
| Observation | Large area visualization toughened glass door | |
| Water supply system | Water tank, booster pump | |
| Power supply | AC380V TN-S | |
| Safety protection | Leakage, short circuit, motor overheating | |
Our service:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
